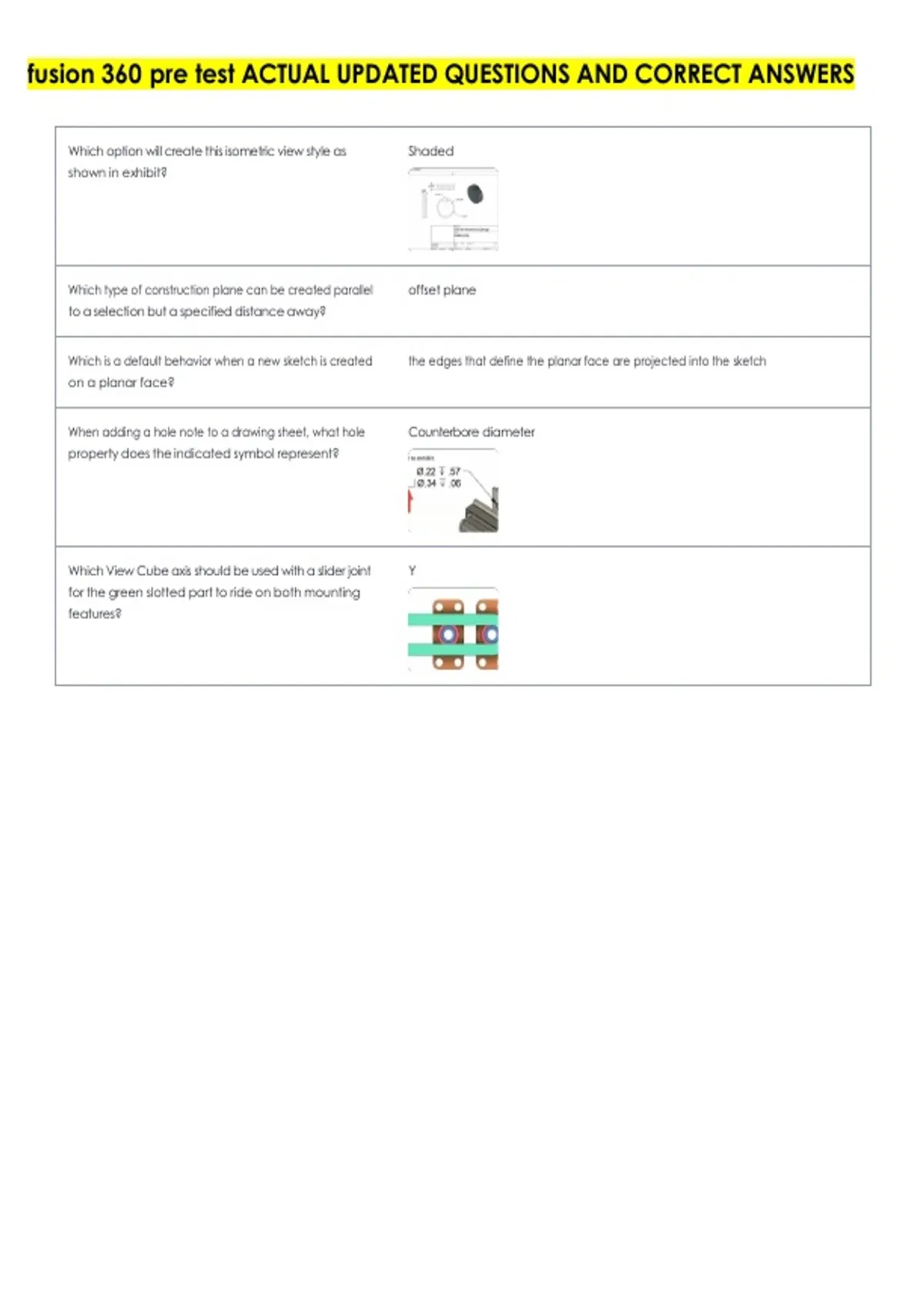

fusion 360 pre test ACTUAL UPDATED QUESTIONS AND CORRECT ANSWERS
Which option will create this isometric view style as Shaded
shown in exhibit?
Which type of construction plane can be created parallel offset plane
to a selection but a specified distance away?
Which is a default behavior when a new sketch is created the edges that define the planar face are projected into the sketch
on a planar face?
When adding a hole note to a drawing sheet, what hole Counterbore diameter
property does the indicated symbol represent?
Which View Cube axis should be used with a slider joint Y
for the green slotted part to ride on both mounting
features?
, When using the Edit Form tool with two edges selected ALT/OPTION
as shown in Exhibit 1, what shortcut key is used to extrude
the selected edges as shown in Exhibit 2?
A mechanical designer has created a new form primitive box
and scaled a single face.Which form primitive was used
for this design?
While adjusting an assembly's components, a mechanical set a joint rest position
designer wants to ensure one component always returns
to a default position after dragging it. How can they
accomplish this in their design?
While working on a drawing, a mechanical designer Edit title block
needs to change the layout of the title block.Which
option should be used?
A mechanical designer has created a ball screw and Coupler{distance .100 in.{2.54mm}
coupler assembly with a pitch of 0.10 in. (2.54 mm).The
ball screw has a revolute joint and the coupler has a
slider joint applied, and the motion link dialog is shown in
the exhibit.Assuming the ball screw rotates a full
revolution, which motion link setting will generate the
appropriate coupler motion?
When starting a new detailed drawing, which setting Contents
dictates the components that will be displayed in the first
drawing view?
Which view type can be placed without restrictions on Detail View
the drawing sheet without a hot key?
What does it mean for the sketch rectangle lines to be Sketch is under defined
blue?
Which type of drawing view was used in the exhibit Section view
denoted by A-A (1:1)?
Which option will create this isometric view style as Shaded
shown in exhibit?
Which type of construction plane can be created parallel offset plane
to a selection but a specified distance away?
Which is a default behavior when a new sketch is created the edges that define the planar face are projected into the sketch
on a planar face?
When adding a hole note to a drawing sheet, what hole Counterbore diameter
property does the indicated symbol represent?
Which View Cube axis should be used with a slider joint Y
for the green slotted part to ride on both mounting
features?
, When using the Edit Form tool with two edges selected ALT/OPTION
as shown in Exhibit 1, what shortcut key is used to extrude
the selected edges as shown in Exhibit 2?
A mechanical designer has created a new form primitive box
and scaled a single face.Which form primitive was used
for this design?
While adjusting an assembly's components, a mechanical set a joint rest position
designer wants to ensure one component always returns
to a default position after dragging it. How can they
accomplish this in their design?
While working on a drawing, a mechanical designer Edit title block
needs to change the layout of the title block.Which
option should be used?
A mechanical designer has created a ball screw and Coupler{distance .100 in.{2.54mm}
coupler assembly with a pitch of 0.10 in. (2.54 mm).The
ball screw has a revolute joint and the coupler has a
slider joint applied, and the motion link dialog is shown in
the exhibit.Assuming the ball screw rotates a full
revolution, which motion link setting will generate the
appropriate coupler motion?
When starting a new detailed drawing, which setting Contents
dictates the components that will be displayed in the first
drawing view?
Which view type can be placed without restrictions on Detail View
the drawing sheet without a hot key?
What does it mean for the sketch rectangle lines to be Sketch is under defined
blue?
Which type of drawing view was used in the exhibit Section view
denoted by A-A (1:1)?
