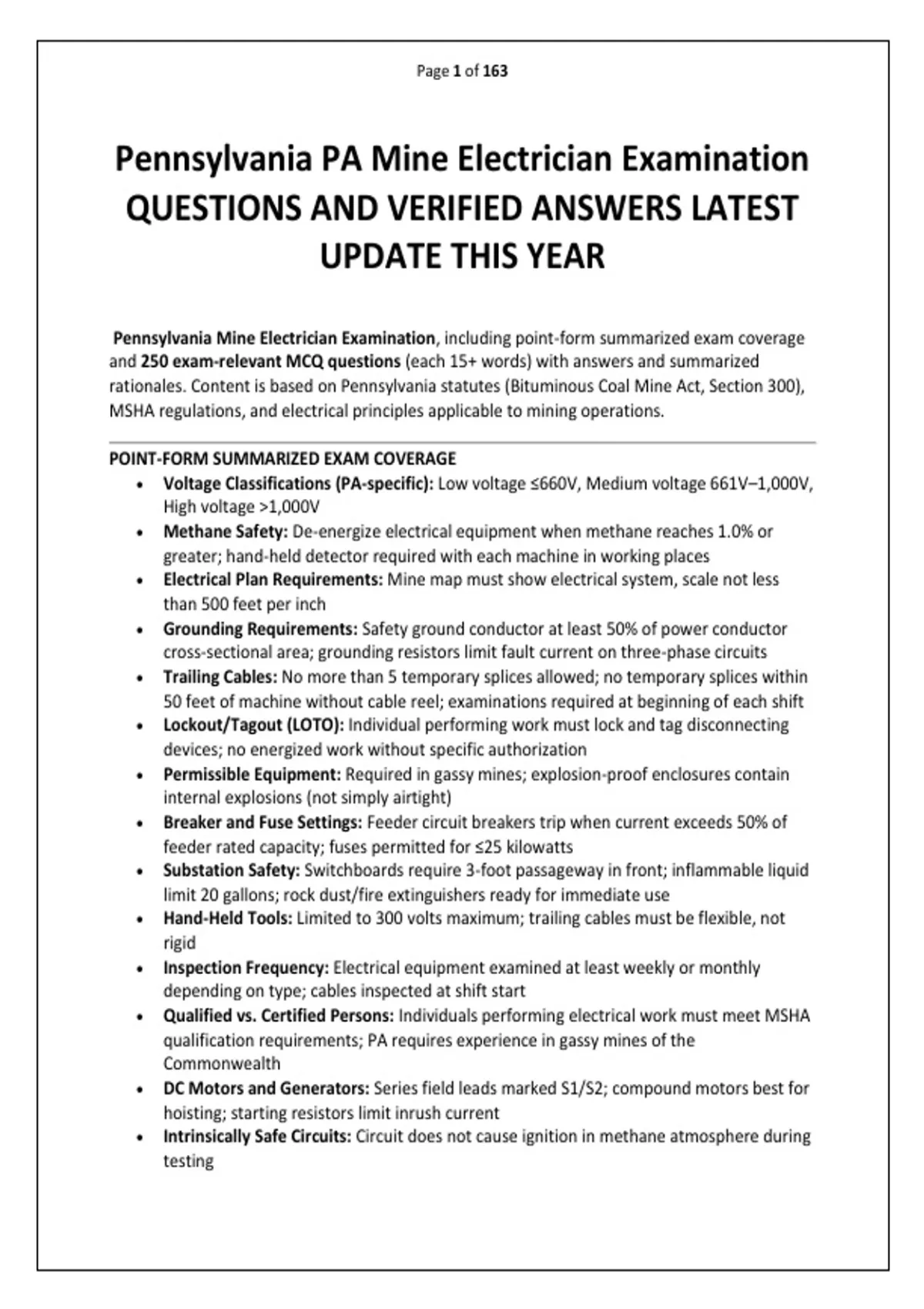

Page 1 of 163
Pennsylvania PA Mine Electrician Examination
QUESTIONS AND VERIFIED ANSWERS LATEST
UPDATE THIS YEAR
Pennsylvania Mine Electrician Examination, including point-form summarized exam coverage
and 250 exam-relevant MCQ questions (each 15+ words) with answers and summarized
rationales. Content is based on Pennsylvania statutes (Bituminous Coal Mine Act, Section 300),
MSHA regulations, and electrical principles applicable to mining operations.
POINT-FORM SUMMARIZED EXAM COVERAGE
• Voltage Classifications (PA-specific): Low voltage ≤660V, Medium voltage 661V–1,000V,
High voltage >1,000V
• Methane Safety: De-energize electrical equipment when methane reaches 1.0% or
greater; hand-held detector required with each machine in working places
• Electrical Plan Requirements: Mine map must show electrical system, scale not less
than 500 feet per inch
• Grounding Requirements: Safety ground conductor at least 50% of power conductor
cross-sectional area; grounding resistors limit fault current on three-phase circuits
• Trailing Cables: No more than 5 temporary splices allowed; no temporary splices within
50 feet of machine without cable reel; examinations required at beginning of each shift
• Lockout/Tagout (LOTO): Individual performing work must lock and tag disconnecting
devices; no energized work without specific authorization
• Permissible Equipment: Required in gassy mines; explosion-proof enclosures contain
internal explosions (not simply airtight)
• Breaker and Fuse Settings: Feeder circuit breakers trip when current exceeds 50% of
feeder rated capacity; fuses permitted for ≤25 kilowatts
• Substation Safety: Switchboards require 3-foot passageway in front; inflammable liquid
limit 20 gallons; rock dust/fire extinguishers ready for immediate use
• Hand-Held Tools: Limited to 300 volts maximum; trailing cables must be flexible, not
rigid
• Inspection Frequency: Electrical equipment examined at least weekly or monthly
depending on type; cables inspected at shift start
• Qualified vs. Certified Persons: Individuals performing electrical work must meet MSHA
qualification requirements; PA requires experience in gassy mines of the
Commonwealth
• DC Motors and Generators: Series field leads marked S1/S2; compound motors best for
hoisting; starting resistors limit inrush current
• Intrinsically Safe Circuits: Circuit does not cause ignition in methane atmosphere during
testing
, Page 2 of 163
1. A mine electrician is troubleshooting a circuit and fails to apply lockout/tagout before
beginning work. What is the primary safety violation involved?
A) Improper grounding
B) Failure to follow LOTO procedures
C) Incorrect voltage rating
D) Poor insulation
Answer: B
Rationale: LOTO is mandatory before servicing electrical equipment to prevent unexpected
energization. This is a critical safety violation.
2. A trailing cable shows visible insulation damage near a high-traffic mining area. What is the
most appropriate action?
A) Continue operation
B) Repair or replace cable immediately
C) Reduce voltage
, Page 3 of 163
D) Ignore if functioning
Answer: B
Rationale: Damaged insulation can cause ground faults and shocks. The cable must be repaired
or replaced before further use.
3. What is the definition of low voltage according to Pennsylvania mining regulations?
A) Voltage up to 460 volts
B) Voltage up to 550 volts
C) Voltage up to 660 volts
D) Voltage up to 750 volts
Answer: C
Rationale: Pennsylvania defines low voltage as any voltage up to and including 660 volts.
4. What is the definition of medium voltage under Pennsylvania mining law?
A) Voltage from 600 to 1,000 volts
B) Voltage from 661 to 1,000 volts
, Page 4 of 163
C) Voltage from 551 to 1,000 volts
D) Voltage from 676 to 1,000 volts
Answer: B
Rationale: Medium voltage is defined as any voltage from 661 to 1,000 volts in Pennsylvania
regulations.
5. An electrician detects a ground fault in a mining machine. What protective system should
respond immediately?
A) Fuse
B) Ground fault protection system
C) Transformer
D) Battery
Answer: B
Rationale: Ground fault systems are designed to trip quickly to prevent shock hazards and
equipment damage.
