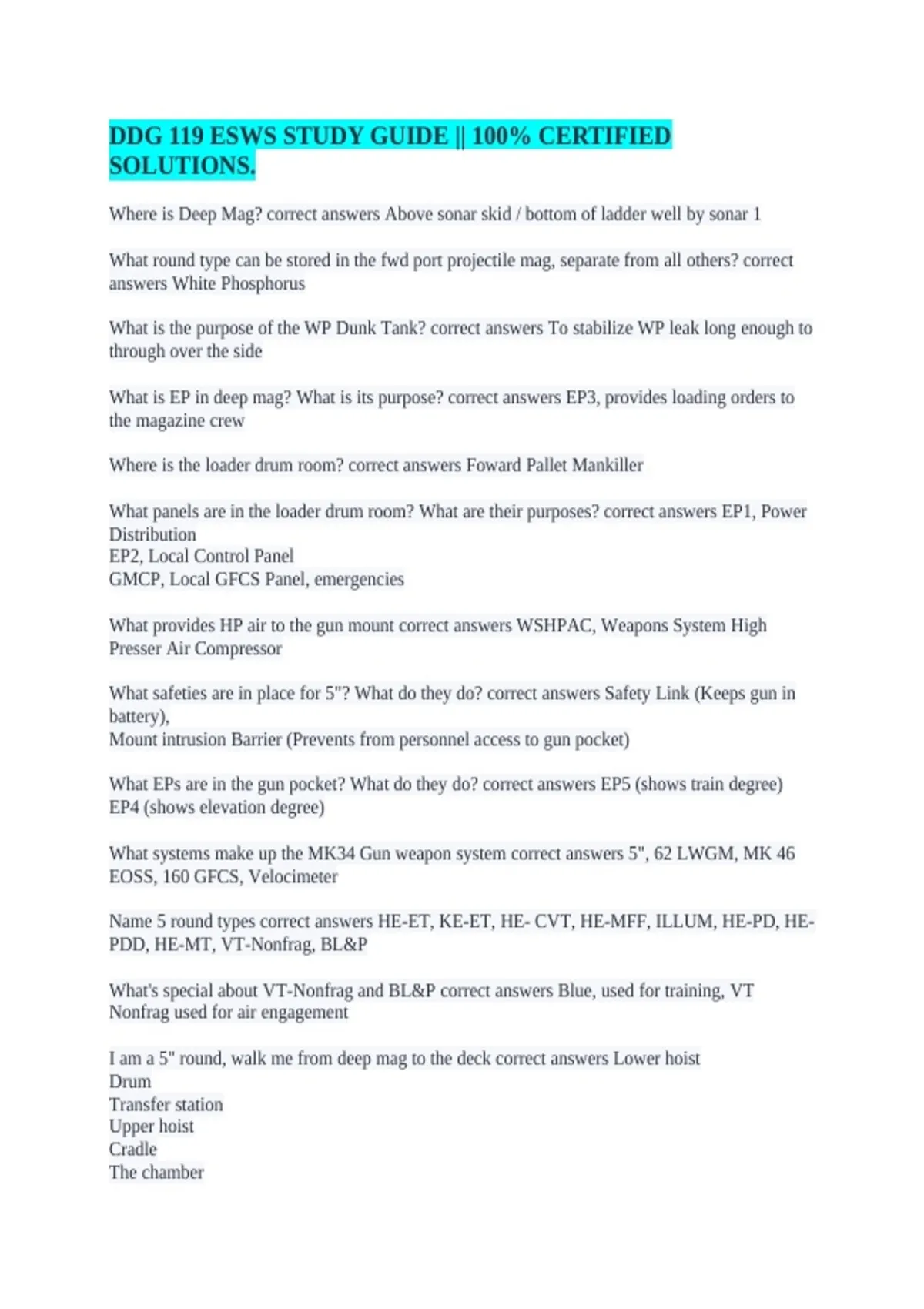

DDG 119 ESWS STUDY GUIDE || 100% CERTIFIED
SOLUTIONS.
Where is Deep Mag? correct answers Above sonar skid / bottom of ladder well by sonar 1
What round type can be stored in the fwd port projectile mag, separate from all others? correct
answers White Phosphorus
What is the purpose of the WP Dunk Tank? correct answers To stabilize WP leak long enough to
through over the side
What is EP in deep mag? What is its purpose? correct answers EP3, provides loading orders to
the magazine crew
Where is the loader drum room? correct answers Foward Pallet Mankiller
What panels are in the loader drum room? What are their purposes? correct answers EP1, Power
Distribution
EP2, Local Control Panel
GMCP, Local GFCS Panel, emergencies
What provides HP air to the gun mount correct answers WSHPAC, Weapons System High
Presser Air Compressor
What safeties are in place for 5"? What do they do? correct answers Safety Link (Keeps gun in
battery),
Mount intrusion Barrier (Prevents from personnel access to gun pocket)
What EPs are in the gun pocket? What do they do? correct answers EP5 (shows train degree)
EP4 (shows elevation degree)
What systems make up the MK34 Gun weapon system correct answers 5", 62 LWGM, MK 46
EOSS, 160 GFCS, Velocimeter
Name 5 round types correct answers HE-ET, KE-ET, HE- CVT, HE-MFF, ILLUM, HE-PD, HE-
PDD, HE-MT, VT-Nonfrag, BL&P
What's special about VT-Nonfrag and BL&P correct answers Blue, used for training, VT
Nonfrag used for air engagement
I am a 5" round, walk me from deep mag to the deck correct answers Lower hoist
Drum
Transfer station
Upper hoist
Cradle
The chamber
