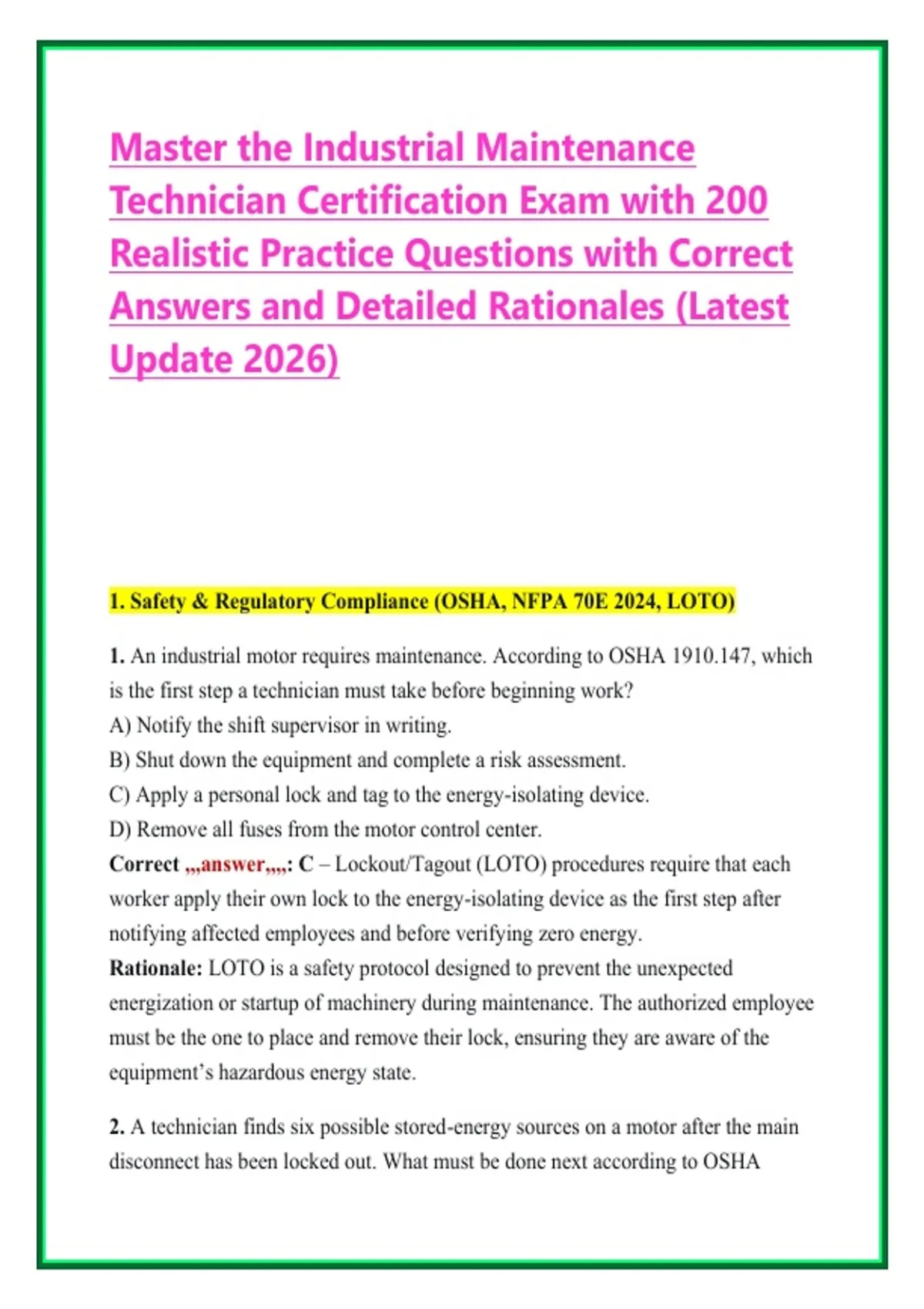

Master the Industrial Maintenance
Technician Certification Exam with 200
Realistic Practice Questions with Correct
Answers and Detailed Rationales (Latest
Update 2026)
1. Safety & Regulatory Compliance (OSHA, NFPA 70E 2024, LOTO)
1. An industrial motor requires maintenance. According to OSHA 1910.147, which
is the first step a technician must take before beginning work?
A) Notify the shift supervisor in writing.
B) Shut down the equipment and complete a risk assessment.
C) Apply a personal lock and tag to the energy-isolating device.
D) Remove all fuses from the motor control center.
Correct ,,,answer,,,,: C – Lockout/Tagout (LOTO) procedures require that each
worker apply their own lock to the energy-isolating device as the first step after
notifying affected employees and before verifying zero energy.
Rationale: LOTO is a safety protocol designed to prevent the unexpected
energization or startup of machinery during maintenance. The authorized employee
must be the one to place and remove their lock, ensuring they are aware of the
equipment’s hazardous energy state.
2. A technician finds six possible stored-energy sources on a motor after the main
disconnect has been locked out. What must be done next according to OSHA
,1910.147?
A) Proceed with repairs to save time.
B) Use only a non-contact voltage tester to check for voltage.
C) Assume all energy has been dissipated.
D) Verify a zero-energy state by attempting to start the machine and measuring
stored energy with appropriate test equipment.
Correct ,,,answer,,,,: D – After isolating the energy source, the technician must
verify that the equipment is de-energized (zero energy state) by attempting a
normal start and using test equipment to confirm no stored energy remains.
Rationale: Stored energy from capacitors, springs, gravity, or pressurized fluid can
be just as dangerous as primary power. OSHA requires a “verify” step to ensure no
hazardous energy is present before work begins.
3. According to NFPA 70E 2024, what is the minimum approach distance for a
qualified person exposed to an arc flash hazard with an incident energy of
25 cal/cm²?
A) 12 inches
B) 3 feet
C) 18 inches without PPE
D) Based on the calculated arc flash boundary.
Correct ,,,answer,,,,: D – NFPA 70E 2024 requires the arc flash boundary to be
calculated based on incident energy; it is not a fixed distance.
Rationale: The standard emphasizes that safe approach distances must be
determined from an arc-flash risk assessment that considers the actual available
fault current, clearing time, and working distance.
4. A 480 V panel has a calculated incident energy of 12 cal/cm². According to
NFPA 70E 2024, what is the correct PPE category required?
A) Category 1 (4 cal/cm²)
B) Category 2 (8 cal/cm²)
C) Category 3 (25 cal/cm²)
,D) Category 4 (40 cal/cm²)
Correct ,,,answer,,,,: C – Incident energy of 12 cal/cm² exceeds the Category 2
threshold (8 cal/cm²) and falls under Category 3, which requires PPE rated for up
to 25 cal/cm².
Rationale: Arc-rated clothing and equipment must be selected based on the
highest incident energy exposure. A value of 12 cal/cm² mandates Category 3 PPE,
which includes an arc-rated suit, hood, and gloves.
5. Which of the following is considered hazardous energy under OSHA’s LOTO
standard?
A) Electrical, mechanical, hydraulic, pneumatic, chemical, and thermal energy.
B) Only electrical energy.
C) Only gravitational and chemical energy.
D) Only stored energy in springs and batteries.
Correct ,,,answer,,,,: A – The LOTO standard covers all forms of hazardous
energy that could cause injury if unexpectedly released.
Rationale: “Hazardous energy” includes any potential energy source—electrical,
mechanical (e.g., flywheels, springs), hydraulic, pneumatic, chemical, thermal, or
gravitational—that must be isolated before maintenance work can begin.
6. What is the primary purpose of a lockout/tagout (LOTO) procedure?
A) Reduce electrical power consumption during maintenance.
B) Document the completion of a repair job.
C) Ensure equipment cannot be accidentally energized while being serviced.
D) Allow multiple workers to access a machine at the same time.
Correct ,,,answer,,,,: C – LOTO is a safety system that physically prevents
machines from being started up during maintenance and repair work.
Rationale: By isolating and locking out the energy source, workers are protected
from unexpected energization, which is a leading cause of severe injuries in
industrial maintenance.
, 7. What is the primary role of an industrial maintenance technician?
A) Operate production equipment.
B) Design new machinery.
C) Maintain, troubleshoot, and repair industrial equipment.
D) Supervise electrical installation projects.
Correct ,,,answer,,,,: C – The core function is to keep equipment running safely
and efficiently through inspection, repair, and preventive actions.
Rationale: Maintenance technicians ensure equipment reliability, prevent
downtime, and support safe operations by addressing mechanical, electrical, and
control system issues.
2. Electrical Systems & Controls (PLC, Motor Controls, Wiring, Drives)
8. What is the main function of a programmable logic controller (PLC) in an
industrial setting?
A) Supply high-voltage power to motors.
B) Store mechanical spare parts.
C) Automate and control industrial processes based on programmed logic.
D) Measure hydraulic pressure and temperature.
Correct ,,,answer,,,,: C – PLCs are industrial computers that monitor inputs and
control outputs to automate machinery and processes.
Rationale: PLCs are programmed using ladder logic or other languages to execute
real-time control tasks such as conveyor sequencing, motor starting, and valve
operation.
9. A technician is checking a PLC input/output (I/O) module. Which card would be
examined to determine why a limit switch signal is not reaching the processor?
A) The output card.
B) The analog input card.
C) The input card.
D) The power supply card.
