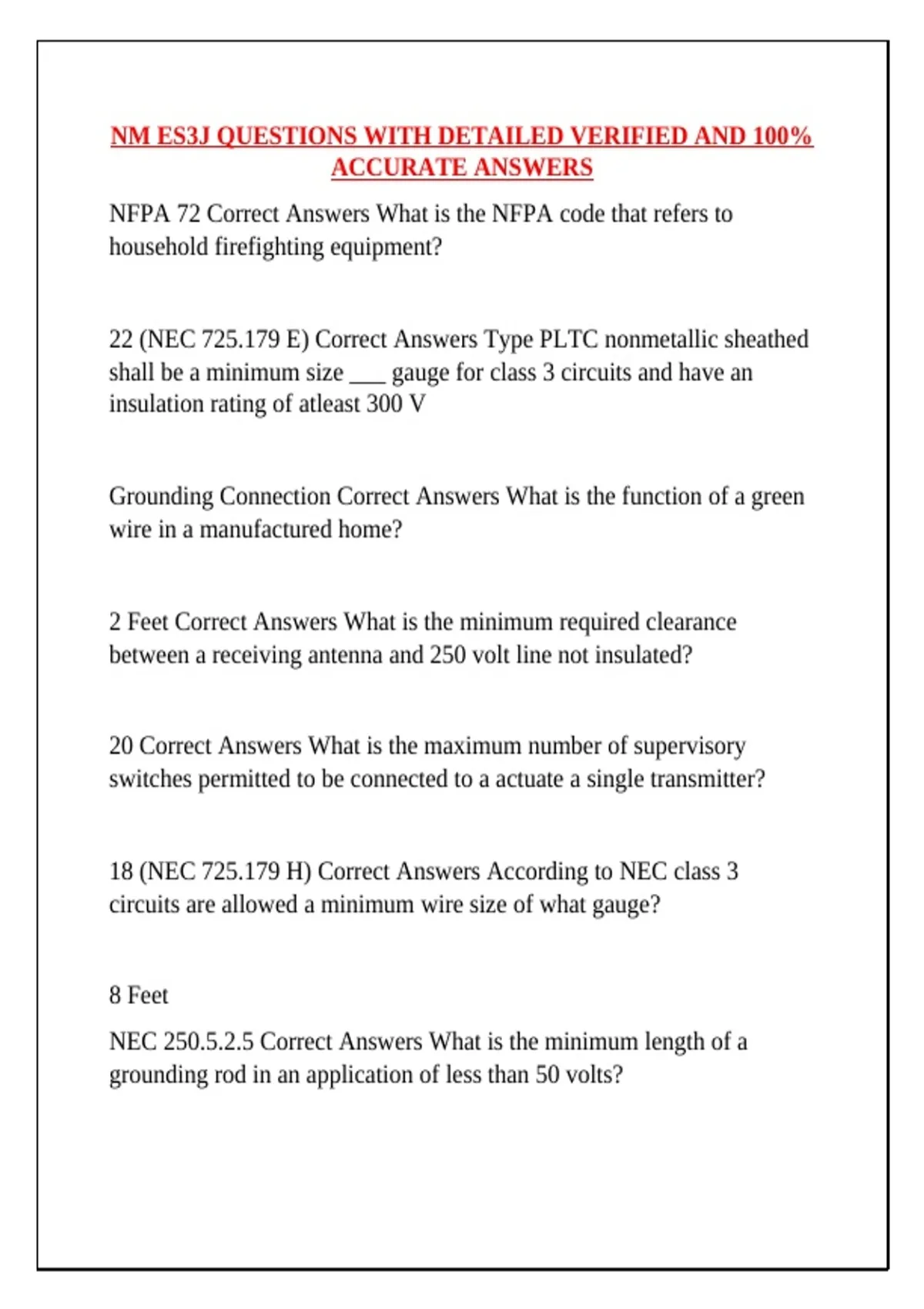

NM ES3J QUESTIONS WITH DETAILED VERIFIED AND 100%
ACCURATE ANSWERS
NFPA 72 Correct Answers What is the NFPA code that refers to
household firefighting equipment?
22 (NEC 725.179 E) Correct Answers Type PLTC nonmetallic sheathed
shall be a minimum size ___ gauge for class 3 circuits and have an
insulation rating of atleast 300 V
Grounding Connection Correct Answers What is the function of a green
wire in a manufactured home?
2 Feet Correct Answers What is the minimum required clearance
between a receiving antenna and 250 volt line not insulated?
20 Correct Answers What is the maximum number of supervisory
switches permitted to be connected to a actuate a single transmitter?
18 (NEC 725.179 H) Correct Answers According to NEC class 3
circuits are allowed a minimum wire size of what gauge?
8 Feet
NEC 250.5.2.5 Correct Answers What is the minimum length of a
grounding rod in an application of less than 50 volts?
, Wooden plugs Correct Answers According to the NEC electrical
equipment may not be mounted to concrete, cinder block, or brick walls
with one of these___.
300
(NEC 800.179) Correct Answers Communication cables shall have a
voltage rating of not less than how many volts?
Connected
(NEC 550.16) Correct Answers In a manufactured home the grounding
bus shall be ___ through the green color insulated conductor in the
supply cord or the feeder wiring to the service ground in the service
equipment located adjacent to the mobile home.
2
(NFPA 72 18.5.2.1) Correct Answers what is the maximum blink rate on
a strobe light per second?
10 foot gas pipe
(NEC 250.5.2 A) Correct Answers All of the following is acceptable as
a ground except?
1 1/4 inches
(NEC 300.4 A 1) Correct Answers What is the minimum clearance to
the edge of a wood stud for a wire hole?
ACCURATE ANSWERS
NFPA 72 Correct Answers What is the NFPA code that refers to
household firefighting equipment?
22 (NEC 725.179 E) Correct Answers Type PLTC nonmetallic sheathed
shall be a minimum size ___ gauge for class 3 circuits and have an
insulation rating of atleast 300 V
Grounding Connection Correct Answers What is the function of a green
wire in a manufactured home?
2 Feet Correct Answers What is the minimum required clearance
between a receiving antenna and 250 volt line not insulated?
20 Correct Answers What is the maximum number of supervisory
switches permitted to be connected to a actuate a single transmitter?
18 (NEC 725.179 H) Correct Answers According to NEC class 3
circuits are allowed a minimum wire size of what gauge?
8 Feet
NEC 250.5.2.5 Correct Answers What is the minimum length of a
grounding rod in an application of less than 50 volts?
, Wooden plugs Correct Answers According to the NEC electrical
equipment may not be mounted to concrete, cinder block, or brick walls
with one of these___.
300
(NEC 800.179) Correct Answers Communication cables shall have a
voltage rating of not less than how many volts?
Connected
(NEC 550.16) Correct Answers In a manufactured home the grounding
bus shall be ___ through the green color insulated conductor in the
supply cord or the feeder wiring to the service ground in the service
equipment located adjacent to the mobile home.
2
(NFPA 72 18.5.2.1) Correct Answers what is the maximum blink rate on
a strobe light per second?
10 foot gas pipe
(NEC 250.5.2 A) Correct Answers All of the following is acceptable as
a ground except?
1 1/4 inches
(NEC 300.4 A 1) Correct Answers What is the minimum clearance to
the edge of a wood stud for a wire hole?
