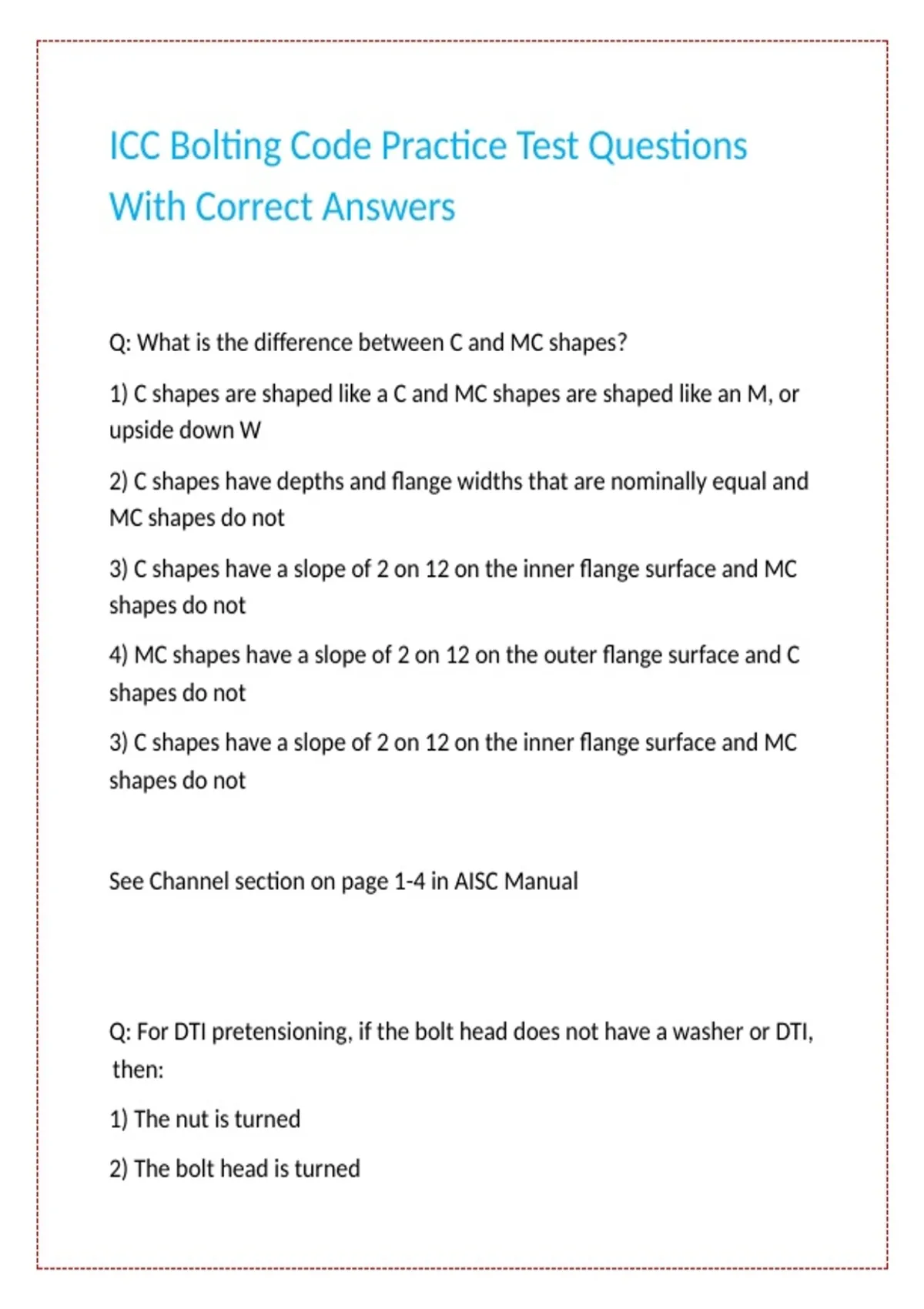

ICC Bolting Code Practice Test Questions
With Correct Answers
Q: What is the difference between C and MC shapes?
| | | | | | | | |
1) C shapes are shaped like a C and MC shapes are shaped like an M, or
| | | | | | | | | | | | | | | | |
upside down W | |
2) C shapes have depths and flange widths that are nominally equal and
| | | | | | | | | | | | |
MC shapes do not
| | |
3) C shapes have a slope of 2 on 12 on the inner flange surface and MC
| | | | | | | | | | | | | | | | |
shapes do not | |
4) MC shapes have a slope of 2 on 12 on the outer flange surface and C
| | | | | | | | | | | | | | | | |
shapes do not | |
3) C shapes have a slope of 2 on 12 on the inner flange surface and MC
| | | | | | | | | | | | | | | | |
shapes do not | |
See Channel section on page 1-4 in AISC Manual
| | | | | | | |
Q: For DTI pretensioning, if the bolt head does not have a washer or DTI,
| | | | | | | | | | | | | |
then:
|
1) The nut is turned
| | | |
2) The bolt head is turned
| | | | |
,3) The assembly must be reconfigured
| | | | |
4) The DTI will not function correctly
| | | | | |
1) The nut is turned
| | | |
See figure C-8.1 in 16.2
| | | |
Q: Shop drawings shall be prepared:
| | | | |
1) by the Engineer
| | |
2) for use by the inspector
| | | | |
3) In advance of fabrication
| | | |
4) Within 60 days of bid documents being released
| | | | | | | |
3) In advance of fabrication
| | | |
See section M1 in 16.2
| | | |
Q: DTIs can be inspected by only observing dye spatter when:
| | | | | | | | | |
1) Faying surfaces are galvanized
| | | |
2) Specifically instructed by the manufacturer and approved by the
| | | | | | | | | |
engineer
,3) Recommended by the inspector
| | | |
4) Steel surfaces are going to be painted after installation
| | | | | | | | |
2) Specifically instructed by the manufacturer and approved by the
| | | | | | | | | |
engineer
See 2.6 and 2.8 in 16.2
| | | | |
Q: For column anchor rods, what is the allowable variation in horizonal
| | | | | | | | | | | |
variation from the specified location of a 2" diameter anchor bolt?
| | | | | | | | | |
1) 1/4" or less
| | |
2) 1/8" or less
| | |
3) 1/16" or less
| | |
4) 1/2" or less
| | |
4) 1/2" or less
| | |
See section 7.5.1 in 16.3
| | | |
Q: If I make a tee shape out of a W16x89 steel shape, what will my web
| | | | | | | | | | | | | | | | |
thickness be? |
1) 1/4"
|
, 2) 1"
|
3) 4.5 cm
| |
4) 1/2"
|
4) 1/2"
|
See Table 1-1 and find W16x89
| | | | |
Even though you cut it in half to make a T shape, the web thickness does
| | | | | | | | | | | | | | |
not change
| |
Q: The wrench used in an arbitration procedure must:
| | | | | | | |
1) Be hydraulic
| |
2) Not be an impact wrench
| | | | |
3) Be able to indicate torque
| | | | |
4) Be calibrated immediately prior to arbitration
| | | | | |
3) Be able to indicate torque
| | | | |
See paragraph 2 in section 10 part 16.2
| | | | | | |
