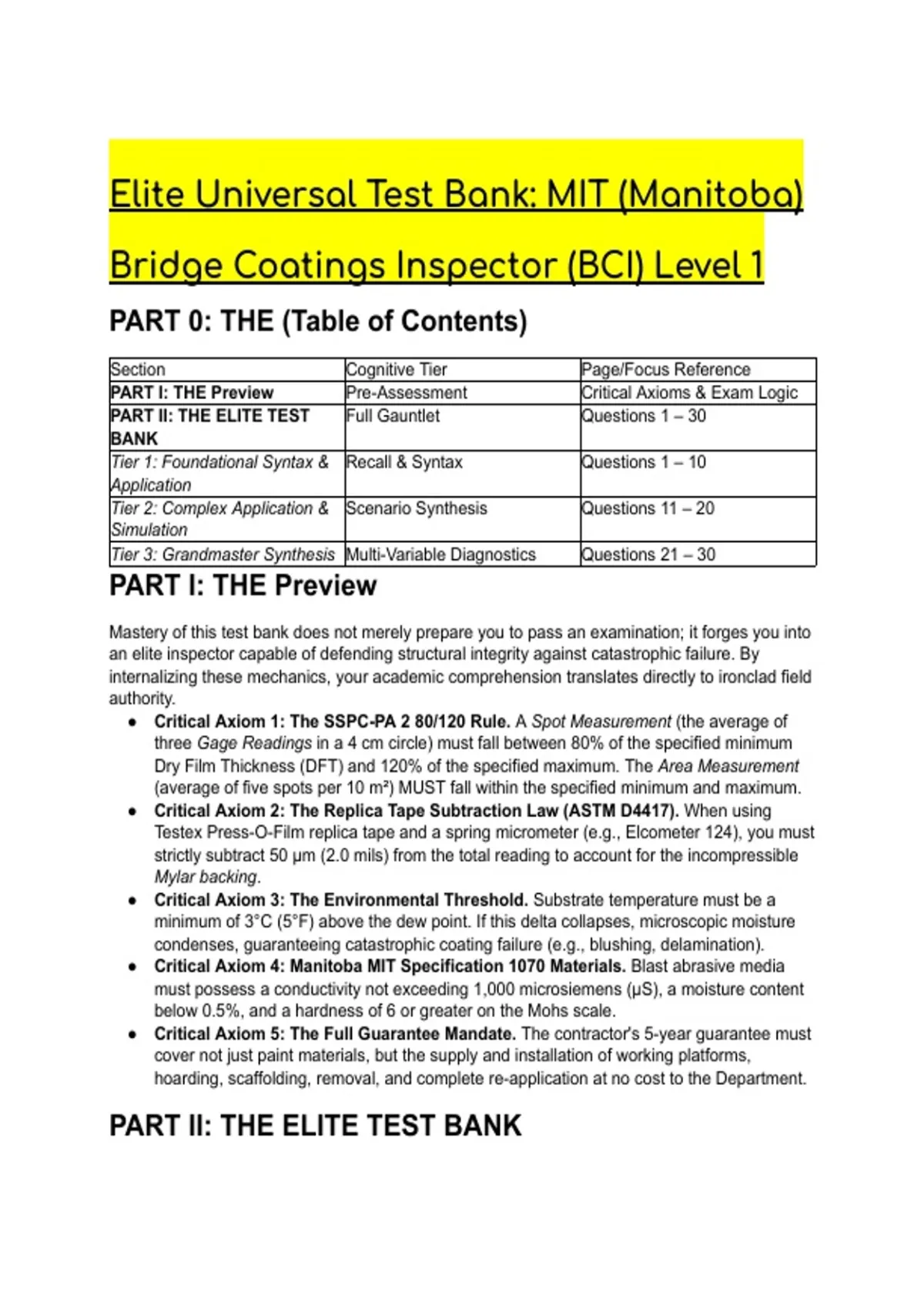

Elite Universal Test Bank: MIT (Manitoba)
Bridge Coatings Inspector (BCI) Level 1
PART 0: THE (Table of Contents)
Section Cognitive Tier Page/Focus Reference
PART I: THE Preview Pre-Assessment Critical Axioms & Exam Logic
PART II: THE ELITE TEST Full Gauntlet Questions 1 – 30
BANK
Tier 1: Foundational Syntax & Recall & Syntax Questions 1 – 10
Application
Tier 2: Complex Application & Scenario Synthesis Questions 11 – 20
Simulation
Tier 3: Grandmaster Synthesis Multi-Variable Diagnostics Questions 21 – 30
PART I: THE Preview
Mastery of this test bank does not merely prepare you to pass an examination; it forges you into
an elite inspector capable of defending structural integrity against catastrophic failure. By
internalizing these mechanics, your academic comprehension translates directly to ironclad field
authority.
● Critical Axiom 1: The SSPC-PA 2 80/120 Rule. A Spot Measurement (the average of
three Gage Readings in a 4 cm circle) must fall between 80% of the specified minimum
Dry Film Thickness (DFT) and 120% of the specified maximum. The Area Measurement
(average of five spots per 10 m²) MUST fall within the specified minimum and maximum.
● Critical Axiom 2: The Replica Tape Subtraction Law (ASTM D4417). When using
Testex Press-O-Film replica tape and a spring micrometer (e.g., Elcometer 124), you must
strictly subtract 50 µm (2.0 mils) from the total reading to account for the incompressible
Mylar backing.
● Critical Axiom 3: The Environmental Threshold. Substrate temperature must be a
minimum of 3°C (5°F) above the dew point. If this delta collapses, microscopic moisture
condenses, guaranteeing catastrophic coating failure (e.g., blushing, delamination).
● Critical Axiom 4: Manitoba MIT Specification 1070 Materials. Blast abrasive media
must possess a conductivity not exceeding 1,000 microsiemens (µS), a moisture content
below 0.5%, and a hardness of 6 or greater on the Mohs scale.
● Critical Axiom 5: The Full Guarantee Mandate. The contractor's 5-year guarantee must
cover not just paint materials, but the supply and installation of working platforms,
hoarding, scaffolding, removal, and complete re-application at no cost to the Department.
PART II: THE ELITE TEST BANK
,Tier 1 - Foundational Syntax & Application
Q1: You are inspecting a newly abrasive-blasted steel girder. Using Testex Press-O-Film
X-Coarse replica tape and an Elcometer 124 spring micrometer, your raw dial reading shows
4.5 mils. Based on the principles of ASTM D4417, which conclusion regarding the surface
profile is the MOST ACCURATE? A) The surface profile is 4.5 mils and falls within the
acceptable limit for an X-Coarse grade tape. B) The surface profile is 2.5 mils because the
incompressible backing must be subtracted. C) The tape must be discarded because a 4.5 mil
reading exceeds the maximum limit for X-Coarse tape. D) The surface profile is 6.5 mils
because the backing thickness must be added to the dial reading.
● The Answer: B (The surface profile is 2.5 mils because the incompressible backing must
be subtracted.)
● Distractor Analysis:
○ A is incorrect: This represents a critical novice error. Failing to subtract the 2.0 mil
(50 µm) Mylar backing results in artificially high profile readings, leading to
unnecessary rejection of properly prepared steel.
○ C is incorrect: X-Coarse tape is rated for profiles between 1.5 and 4.5 mils (38–115
µm). A true profile of 2.5 mils is perfectly centered within the tape's functional
range.
○ D is incorrect: Adding the backing thickness represents a complete inversion of the
micrometer's physical measurement logic, fundamentally misinterpreting the testing
mechanics.
The Mentor's Analysis: The spring micrometer measures the total combined thickness of the
crushed foam peak and the protective Mylar backing. To isolate the true surface profile (the
foam), the constant variable (the 2.0 mil backing) must always be removed from the equation.
By executing this basic subtraction, you bypass the common trap of failing compliant surface
preparation. Professional/Academic Intuition: Raw Tape Reading − 2.0 mils (50 µm) = True
Surface Profile.
Q2: Under SSPC-PA 2 guidelines for measuring Dry Film Thickness (DFT), you are assessing a
10 m² area of a bridge deck. How is a single Spot Measurement formally defined? A) One
individual placement of the electronic magnetic gage probe on the substrate. B) The average of
five individual gage readings taken randomly across the entire 10 m² area. C) The average of at
least three gage readings taken within a 4 cm (1.5 inch) diameter circle. D) The average
thickness required to cover the peak-to-valley surface profile completely.
● The Answer: C (The average of at least three gage readings taken within a 4 cm (1.5
inch) diameter circle.)
● Distractor Analysis:
○ A is incorrect: A single placement is defined purely as a Gage Reading. A single
reading has no statistical authority to accept or reject an area due to expected
substrate micro-roughness.
○ B is incorrect: This incorrectly hybridizes the framework for an Area Measurement
(which requires averaging five Spot Measurements, not five gage readings).
○ D is incorrect: This describes the concept of "effective dry film thickness" over a
profile, not the statistical definition of a measurement procedure under SSPC-PA 2.
The Mentor's Analysis: SSPC-PA 2 relies on a three-tier statistical hierarchy to smooth out the
erratic peaks and valleys of blasted steel: Gage Readings build Spot Measurements, and Spot
Measurements build Area Measurements. When evaluating compliance, the Spot Measurement
, is the lowest actionable metric. Professional/Academic Intuition: Never reject a coating
based on a single Gage Reading; the 4 cm circle is your absolute minimum baseline for
truth.
Q3: According to Manitoba MIT Specification 1070 for Coating Structural Steel, what is the
maximum allowable conductivity limit for abrasive blast media to prevent osmotic blistering? A)
500 microsiemens (µS) B) 1,000 microsiemens (µS) C) 2,500 microsiemens (µS) D) 5,000
microsiemens (µS)
● The Answer: B (1,000 microsiemens (µS))
● Distractor Analysis:
○ A is incorrect: While 500 µS represents a highly pure abrasive, holding contractors
to this unwritten standard exceeds the strict contractual limits of MIT Specification
1070, leading to unwarranted material rejections.
○ C is incorrect: 2,500 µS indicates a dangerously high level of soluble salt
contamination. Utilizing media with this conductivity guarantees chloride transfer to
the steel substrate.
○ D is incorrect: 5,000 µS represents severely contaminated, likely recycled media
that has not been washed. It will induce rapid flash rusting upon contact with
ambient humidity.
The Mentor's Analysis: Soluble salts (chlorides and sulfates) trapped beneath a coating act as
osmotic pumps, drawing moisture through the semi-permeable paint film and initiating under-film
corrosion. Specification 1070 explicitly caps abrasive conductivity at 1,000 µS when tested via
ASTM D 4940 to mitigate this risk at the source. Professional/Academic Intuition: Dirty
abrasive equals a doomed coating. Verify ASTM D 4940 conductivity limits before the first
hopper is loaded.
Q4: A field inspector notes an ambient air temperature of 24°C (75°F) and a relative humidity of
80%. Using a psychrometric chart, the dew point is determined to be 20°C (68°F). What is the
absolute MINIMUM acceptable substrate temperature required to safely commence coating
application? A) 20°C (68°F) B) 23°C (73°F) C) 25°C (77°F) D) 27°C (80°F)
● The Answer: B (23°C (73°F))
● Distractor Analysis:
○ A is incorrect: 20°C is the exact dew point. If the steel is 20°C, invisible moisture is
already condensing on the surface, which will cause the coating to fail via blistering
or blushing.
○ C is incorrect: While 25°C is perfectly safe, it is not the mathematically derived
minimum acceptable limit established by universal industry standards.
○ D is incorrect: 27°C is arbitrarily too high and restricts the contractor's operational
working window unnecessarily.
The Mentor's Analysis: The primary atmospheric risk in bridge coating is micro-condensation.
Substrates act as thermal sinks, often remaining colder than the ambient air. To guarantee a dry
surface, the steel must maintain a buffer zone above the dew point. Professional/Academic
Intuition: The 3°C (5°F) Delta Rule: Substrate temperature must ALWAYS remain at least
3°C (5°F) above the dew point.
Q5: During the application of a multi-coat system, operations are halted for the weekend.
According to Manitoba MIT Specification 1070, what lapping preparation is REQUIRED where
the continuous application is interrupted? A) 50 mm of bare steel and 50 mm of each previously
applied coat must be exposed. B) The edge must be masked cleanly with a sharp, vertical tape
line to prevent overlapping. C) At least 100 mm of bare steel and 100 mm of each coat of the
new system must be left exposed. D) The wet edge must be thinned with solvent to allow
