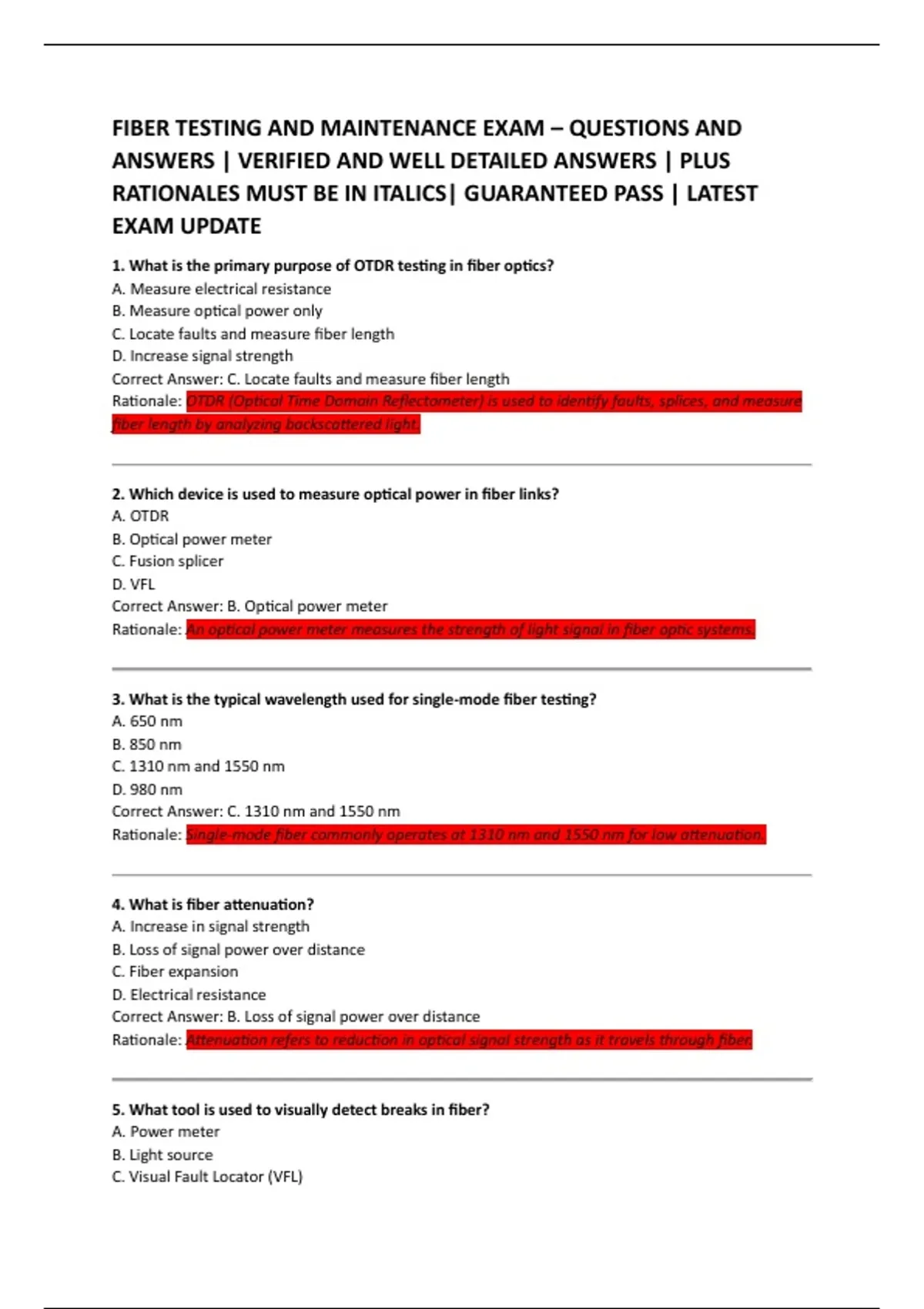

FIBER TESTING AND MAINTENANCE EXAM – QUESTIONS AND
ANSWERS | VERIFIED AND WELL DETAILED ANSWERS | PLUS
RATIONALES MUST BE IN ITALICS| GUARANTEED PASS | LATEST
EXAM UPDATE
1. What is the primary purpose of OTDR testing in fiber optics?
A. Measure electrical resistance
B. Measure optical power only
C. Locate faults and measure fiber length
D. Increase signal strength
Correct Answer: C. Locate faults and measure fiber length
Rationale: OTDR (Optical Time Domain Reflectometer) is used to identify faults, splices, and measure
fiber length by analyzing backscattered light.
2. Which device is used to measure optical power in fiber links?
A. OTDR
B. Optical power meter
C. Fusion splicer
D. VFL
Correct Answer: B. Optical power meter
Rationale: An optical power meter measures the strength of light signal in fiber optic systems.
3. What is the typical wavelength used for single-mode fiber testing?
A. 650 nm
B. 850 nm
C. 1310 nm and 1550 nm
D. 980 nm
Correct Answer: C. 1310 nm and 1550 nm
Rationale: Single-mode fiber commonly operates at 1310 nm and 1550 nm for low attenuation.
4. What is fiber attenuation?
A. Increase in signal strength
B. Loss of signal power over distance
C. Fiber expansion
D. Electrical resistance
Correct Answer: B. Loss of signal power over distance
Rationale: Attenuation refers to reduction in optical signal strength as it travels through fiber.
5. What tool is used to visually detect breaks in fiber?
A. Power meter
B. Light source
C. Visual Fault Locator (VFL)
,D. OTDR
Correct Answer: C. Visual Fault Locator (VFL)
Rationale: VFL emits visible red light to locate breaks and macro bends in fiber.
6. What is the main cause of high connector loss?
A. High voltage
B. Dirty or misaligned connectors
C. Fiber coating
D. High temperature
Correct Answer: B. Dirty or misaligned connectors
Rationale: Contamination or misalignment increases insertion loss at connectors.
7. What does OTDR "dead zone" refer to?
A. Fiber break point
B. Area where OTDR cannot detect events
C. Signal amplification area
D. Connector region only
Correct Answer: B. Area where OTDR cannot detect events
Rationale: Dead zones occur due to strong reflections near the OTDR pulse launch.
8. Which fiber type is most commonly used in long-distance communication?
A. Multimode fiber
B. Plastic fiber
C. Single-mode fiber
D. Copper fiber
Correct Answer: C. Single-mode fiber
Rationale: Single-mode fiber supports long-distance, high-bandwidth transmission.
9. What is splice loss?
A. Power gain at splice
B. Signal loss at fiber joint
C. Electrical loss
D. Connector gain
Correct Answer: B. Signal loss at fiber joint
Rationale: Splice loss occurs when joining two fiber ends imperfectly.
10. What is the function of a fusion splicer?
A. Clean fiber ends
B. Join fiber ends permanently
C. Measure power
D. Cut fiber jackets
, Correct Answer: B. Join fiber ends permanently
Rationale: Fusion splicer uses heat to permanently fuse fiber ends.
11. What is macrobending?
A. Small core defect
B. Large visible fiber bend causing loss
C. Connector issue
D. Signal amplification
Correct Answer: B. Large visible fiber bend causing loss
Rationale: Macrobending causes light leakage due to excessive bending radius.
12. What is microbending?
A. Small invisible bends causing loss
B. Fiber break
C. OTDR error
D. Connector type
Correct Answer: A. Small invisible bends causing loss
Rationale: Microbending refers to microscopic distortions in fiber structure.
13. What does an optical light source do?
A. Measures power
B. Injects known signal for testing
C. Cuts fiber
D. Splices fiber
Correct Answer: B. Injects known signal for testing
Rationale: It provides a stable signal for loss measurement.
14. What is insertion loss?
A. Signal gain
B. Loss caused by inserting a device in fiber link
C. Electrical loss
D. Power increase
Correct Answer: B. Loss caused by inserting a device in fiber link
Rationale: Insertion loss measures power reduction due to components.
15. What is ORL in fiber testing?
A. Optical Return Loss
B. Optical Resistance Level
C. Output Reflection Loss
D. Optical Relay Link
Correct Answer: A. Optical Return Loss
Rationale: ORL measures reflected light in a fiber link.
