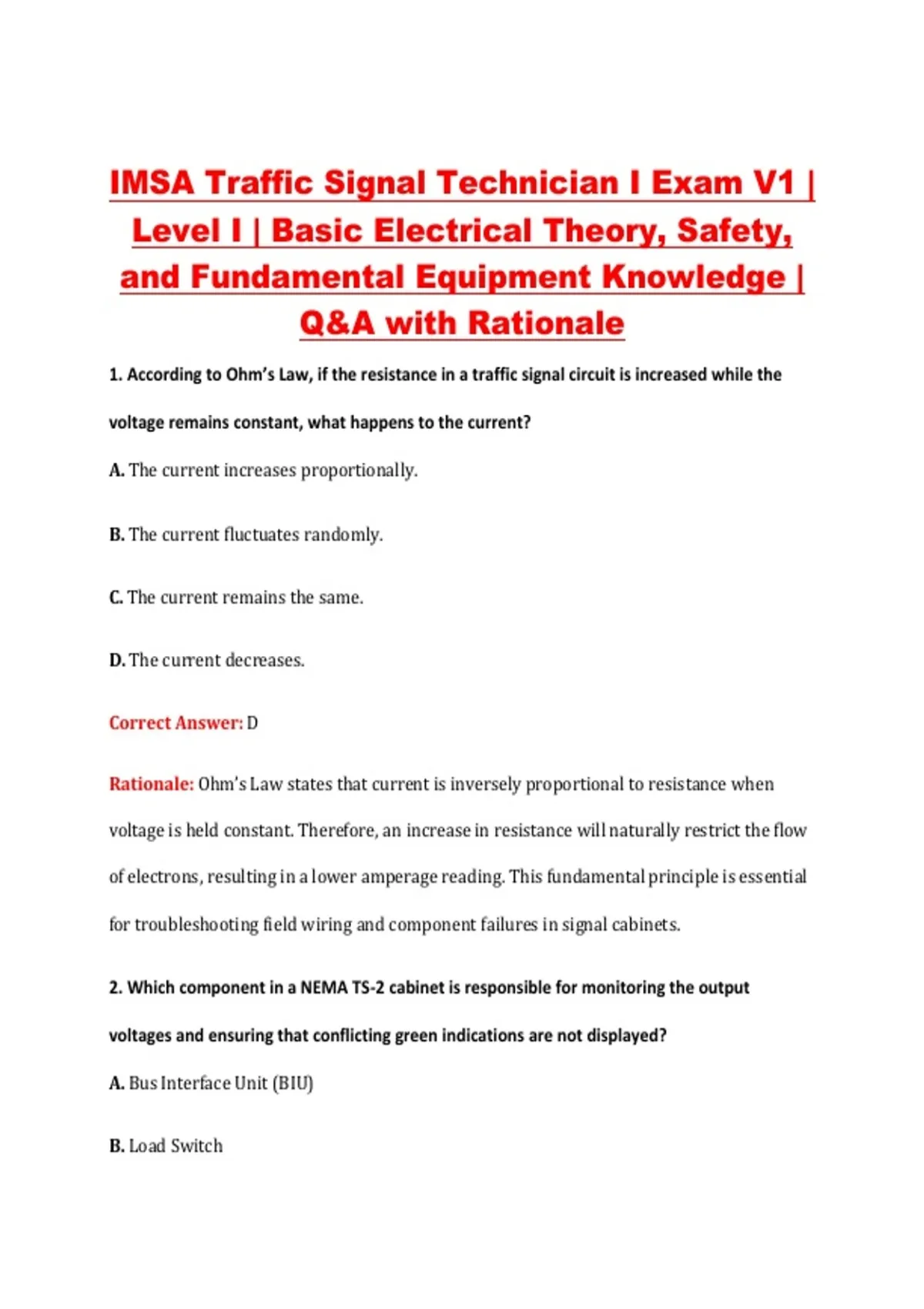

IMSA Traffic Signal Technician I Exam V1 |
Level I | Basic Electrical Theory, Safety,
and Fundamental Equipment Knowledge |
Q&A with Rationale
1. According to Ohm’s Law, if the resistance in a traffic signal circuit is increased while the
voltage remains constant, what happens to the current?
A. The current increases proportionally.
B. The current fluctuates randomly.
C. The current remains the same.
D. The current decreases.
Correct Answer: D
Rationale: Ohm’s Law states that current is inversely proportional to resistance when
voltage is held constant. Therefore, an increase in resistance will naturally restrict the flow
of electrons, resulting in a lower amperage reading. This fundamental principle is essential
for troubleshooting field wiring and component failures in signal cabinets.
2. Which component in a NEMA TS-2 cabinet is responsible for monitoring the output
voltages and ensuring that conflicting green indications are not displayed?
A. Bus Interface Unit (BIU)
B. Load Switch
,C. Detector Rack
D. Malfunction Management Unit (MMU)
Correct Answer: D
Rationale: The Malfunction Management Unit (MMU) is a critical safety device that
monitors the cabinet for conflicting signals or improper voltages. If it detects an unsafe
condition, it triggers the cabinet to enter a fail-safe flash mode. This device serves as the
primary safeguard against hardware or software malfunctions that could cause hazardous
traffic movements.
3. What is the standard color of the neutral conductor in a typical 120VAC traffic signal
electrical system in North America?
A. Black
B. Green
C. White
D. Red
Correct Answer: C
Rationale: The National Electrical Code (NEC) specifies that white or natural gray must be
used for grounded (neutral) conductors. Black is typically used for the hot or ‘line’
conductor, while green is reserved for equipment grounding. Consistent adherence to these
color codes is vital for technician safety and accurate troubleshooting of electrical faults.
, 4. In a temporary traffic control zone, what is the primary purpose of the ‘Buffer Space’?
A. To provide space for worker vehicles
B. To offer protection for traffic and workers by providing longitudinal recovery space
C. To store construction materials
D. To act as a designated area for equipment refueling
Correct Answer: B
Rationale: The buffer space is a longitudinal area within a work zone that separates traffic
flow from the actual work space. It is designed to be empty to allow out-of-control vehicles
a chance to recover or stop before reaching workers. Proper design of buffer spaces is
mandated by the Manual on Uniform Traffic Control Devices (MUTCD) to maximize site
safety.
5. Which type of traffic signal detector operates based on the principle of change in
inductance caused by a metallic mass moving over a wire coil?
A. Video Image Processor
B. Microwave Radar
C. Inductive Loop Detector
D. Piezoelectric Sensor
Correct Answer: C
Level I | Basic Electrical Theory, Safety,
and Fundamental Equipment Knowledge |
Q&A with Rationale
1. According to Ohm’s Law, if the resistance in a traffic signal circuit is increased while the
voltage remains constant, what happens to the current?
A. The current increases proportionally.
B. The current fluctuates randomly.
C. The current remains the same.
D. The current decreases.
Correct Answer: D
Rationale: Ohm’s Law states that current is inversely proportional to resistance when
voltage is held constant. Therefore, an increase in resistance will naturally restrict the flow
of electrons, resulting in a lower amperage reading. This fundamental principle is essential
for troubleshooting field wiring and component failures in signal cabinets.
2. Which component in a NEMA TS-2 cabinet is responsible for monitoring the output
voltages and ensuring that conflicting green indications are not displayed?
A. Bus Interface Unit (BIU)
B. Load Switch
,C. Detector Rack
D. Malfunction Management Unit (MMU)
Correct Answer: D
Rationale: The Malfunction Management Unit (MMU) is a critical safety device that
monitors the cabinet for conflicting signals or improper voltages. If it detects an unsafe
condition, it triggers the cabinet to enter a fail-safe flash mode. This device serves as the
primary safeguard against hardware or software malfunctions that could cause hazardous
traffic movements.
3. What is the standard color of the neutral conductor in a typical 120VAC traffic signal
electrical system in North America?
A. Black
B. Green
C. White
D. Red
Correct Answer: C
Rationale: The National Electrical Code (NEC) specifies that white or natural gray must be
used for grounded (neutral) conductors. Black is typically used for the hot or ‘line’
conductor, while green is reserved for equipment grounding. Consistent adherence to these
color codes is vital for technician safety and accurate troubleshooting of electrical faults.
, 4. In a temporary traffic control zone, what is the primary purpose of the ‘Buffer Space’?
A. To provide space for worker vehicles
B. To offer protection for traffic and workers by providing longitudinal recovery space
C. To store construction materials
D. To act as a designated area for equipment refueling
Correct Answer: B
Rationale: The buffer space is a longitudinal area within a work zone that separates traffic
flow from the actual work space. It is designed to be empty to allow out-of-control vehicles
a chance to recover or stop before reaching workers. Proper design of buffer spaces is
mandated by the Manual on Uniform Traffic Control Devices (MUTCD) to maximize site
safety.
5. Which type of traffic signal detector operates based on the principle of change in
inductance caused by a metallic mass moving over a wire coil?
A. Video Image Processor
B. Microwave Radar
C. Inductive Loop Detector
D. Piezoelectric Sensor
Correct Answer: C
