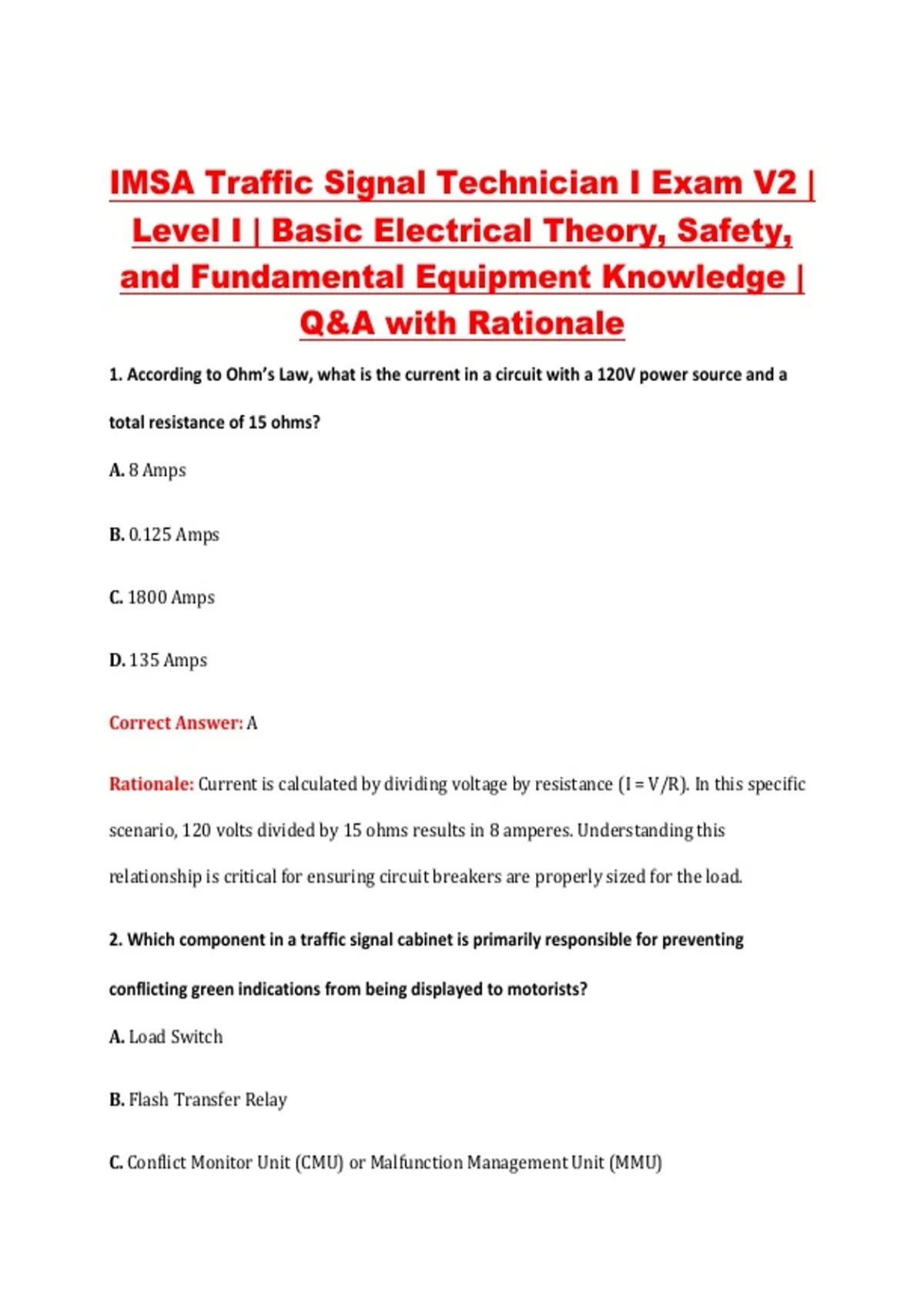

IMSA Traffic Signal Technician I Exam V2 |
Level I | Basic Electrical Theory, Safety,
and Fundamental Equipment Knowledge |
Q&A with Rationale
1. According to Ohm’s Law, what is the current in a circuit with a 120V power source and a
total resistance of 15 ohms?
A. 8 Amps
B. 0.125 Amps
C. 1800 Amps
D. 135 Amps
Correct Answer: A
Rationale: Current is calculated by dividing voltage by resistance (I = V/R). In this specific
scenario, 120 volts divided by 15 ohms results in 8 amperes. Understanding this
relationship is critical for ensuring circuit breakers are properly sized for the load.
2. Which component in a traffic signal cabinet is primarily responsible for preventing
conflicting green indications from being displayed to motorists?
A. Load Switch
B. Flash Transfer Relay
C. Conflict Monitor Unit (CMU) or Malfunction Management Unit (MMU)
,D. Detector Rack
Correct Answer: C
Rationale: The CMU or MMU is a fail-safe device that monitors the signal outputs for
conflicting or invalid conditions. If an unsafe state like dual greens is detected, it triggers
the intersection into a flashing mode. This hardware redundancy is a core safety
requirement in modern traffic control systems.
3. In the context of MUTCD safety requirements, what class of high-visibility safety apparel is
required for workers on a highway right-of-way?
A. Class 1
B. Class D
C. Class E
D. Class 2 or 3
Correct Answer: D
Rationale: The Manual on Uniform Traffic Control Devices (MUTCD) mandates the use of
specific high-visibility apparel. Class 2 or 3 garments are typically required depending on
the speed of traffic and the proximity of workers to the travel lanes. This ensures that
technicians remain visible to motorists during both day and night operations.
4. What is the primary function of a Load Switch in a NEMA TS-2 traffic signal cabinet?
A. To monitor for power surges
, B. To convert low-voltage DC signals from the controller into high-voltage AC for the signal
heads
C. To regulate the timing of the yellow clearance interval
D. To process vehicle detection data from loop amplifiers
Correct Answer: B
Rationale: A load switch acts as a solid-state relay that switches the 120VAC power
required by signal indications. It receives a 24VDC command from the controller and closes
the circuit for the red, yellow, or green lights. This separation of control logic and high-
power load is fundamental to electrical safety and reliability.
5. Which wire color is standard for the ‘neutral’ conductor in a 120VAC traffic signal circuit in
North America?
A. Black
B. Green
C. Red
D. White
Correct Answer: D
Rationale: Standard electrical practice in the United States designates white as the color
for the neutral conductor. Black is typically used for the ‘hot’ or energized leg, while green
Level I | Basic Electrical Theory, Safety,
and Fundamental Equipment Knowledge |
Q&A with Rationale
1. According to Ohm’s Law, what is the current in a circuit with a 120V power source and a
total resistance of 15 ohms?
A. 8 Amps
B. 0.125 Amps
C. 1800 Amps
D. 135 Amps
Correct Answer: A
Rationale: Current is calculated by dividing voltage by resistance (I = V/R). In this specific
scenario, 120 volts divided by 15 ohms results in 8 amperes. Understanding this
relationship is critical for ensuring circuit breakers are properly sized for the load.
2. Which component in a traffic signal cabinet is primarily responsible for preventing
conflicting green indications from being displayed to motorists?
A. Load Switch
B. Flash Transfer Relay
C. Conflict Monitor Unit (CMU) or Malfunction Management Unit (MMU)
,D. Detector Rack
Correct Answer: C
Rationale: The CMU or MMU is a fail-safe device that monitors the signal outputs for
conflicting or invalid conditions. If an unsafe state like dual greens is detected, it triggers
the intersection into a flashing mode. This hardware redundancy is a core safety
requirement in modern traffic control systems.
3. In the context of MUTCD safety requirements, what class of high-visibility safety apparel is
required for workers on a highway right-of-way?
A. Class 1
B. Class D
C. Class E
D. Class 2 or 3
Correct Answer: D
Rationale: The Manual on Uniform Traffic Control Devices (MUTCD) mandates the use of
specific high-visibility apparel. Class 2 or 3 garments are typically required depending on
the speed of traffic and the proximity of workers to the travel lanes. This ensures that
technicians remain visible to motorists during both day and night operations.
4. What is the primary function of a Load Switch in a NEMA TS-2 traffic signal cabinet?
A. To monitor for power surges
, B. To convert low-voltage DC signals from the controller into high-voltage AC for the signal
heads
C. To regulate the timing of the yellow clearance interval
D. To process vehicle detection data from loop amplifiers
Correct Answer: B
Rationale: A load switch acts as a solid-state relay that switches the 120VAC power
required by signal indications. It receives a 24VDC command from the controller and closes
the circuit for the red, yellow, or green lights. This separation of control logic and high-
power load is fundamental to electrical safety and reliability.
5. Which wire color is standard for the ‘neutral’ conductor in a 120VAC traffic signal circuit in
North America?
A. Black
B. Green
C. Red
D. White
Correct Answer: D
Rationale: Standard electrical practice in the United States designates white as the color
for the neutral conductor. Black is typically used for the ‘hot’ or energized leg, while green
