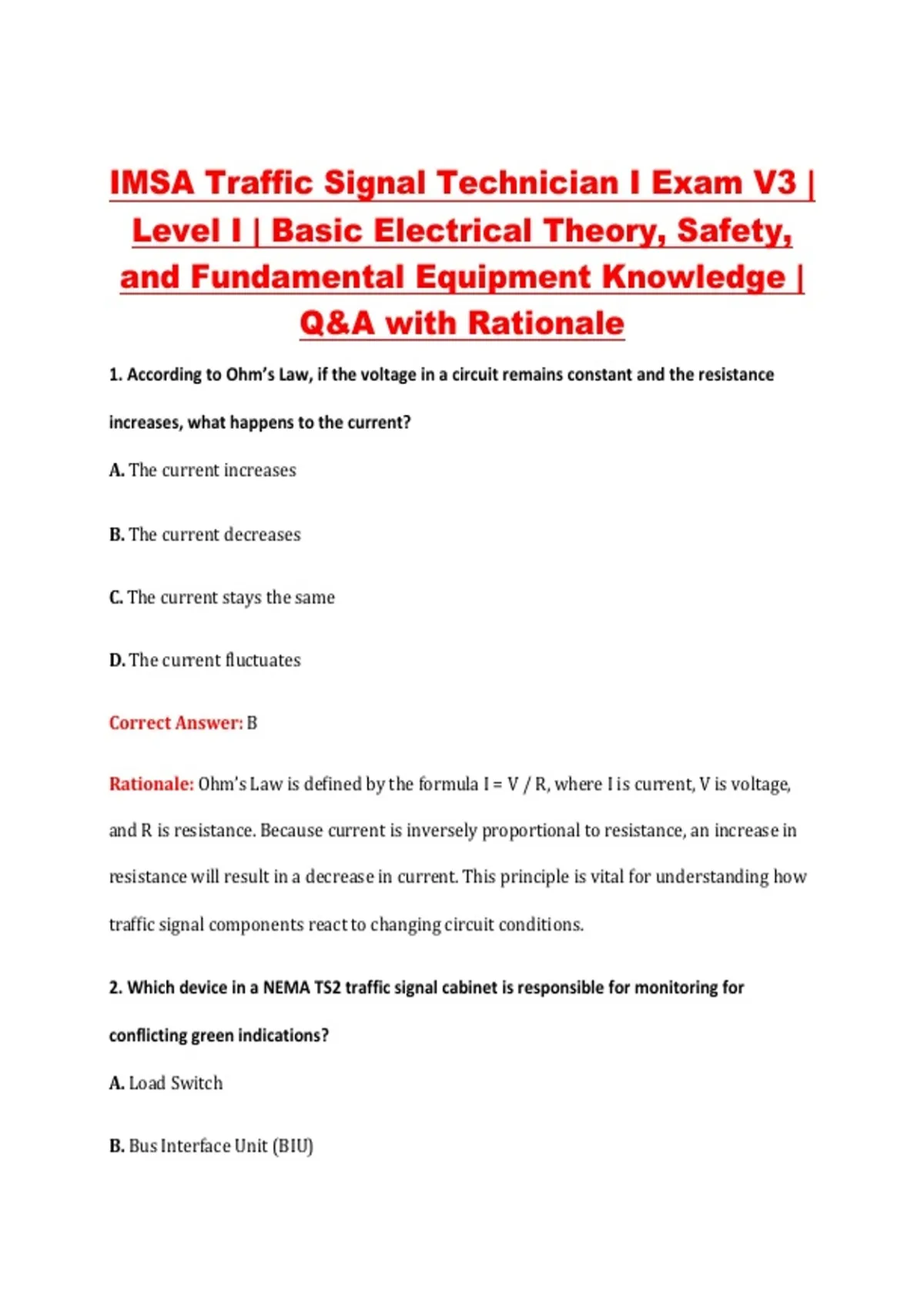

IMSA Traffic Signal Technician I Exam V3 |
Level I | Basic Electrical Theory, Safety,
and Fundamental Equipment Knowledge |
Q&A with Rationale
1. According to Ohm’s Law, if the voltage in a circuit remains constant and the resistance
increases, what happens to the current?
A. The current increases
B. The current decreases
C. The current stays the same
D. The current fluctuates
Correct Answer: B
Rationale: Ohm’s Law is defined by the formula I = V / R, where I is current, V is voltage,
and R is resistance. Because current is inversely proportional to resistance, an increase in
resistance will result in a decrease in current. This principle is vital for understanding how
traffic signal components react to changing circuit conditions.
2. Which device in a NEMA TS2 traffic signal cabinet is responsible for monitoring for
conflicting green indications?
A. Load Switch
B. Bus Interface Unit (BIU)
,C. Malfunction Management Unit (MMU)
D. Flash Transfer Relay
Correct Answer: C
Rationale: The Malfunction Management Unit (MMU) is a critical safety component that
monitors the cabinet for conflicting phases and improper voltages. If it detects a conflict,
such as two green lights showing for intersecting movements, it will immediately place the
intersection into flash mode. This device is the modern equivalent of the Conflict Monitor
Unit found in older TS1 cabinets.
3. What is the standard unit of measurement for electrical power?
A. Amperes
B. Ohms
C. Volts
D. Watts
Correct Answer: D
Rationale: Electrical power is measured in Watts, which represents the rate at which
energy is consumed. Power can be calculated using the formula P = V x I, where V is voltage
and I is current. Understanding power requirements is essential when sizing service
breakers and backup battery systems for traffic signals.
, 4. Which color of wire is universally recognized as the equipment grounding conductor in a
traffic signal system?
A. White
B. Red
C. Black
D. Green or Bare
Correct Answer: D
Rationale: Standard electrical codes specify that green or bare wires are used for
grounding purposes to provide a low-resistance path to the earth. This safety feature
protects personnel and equipment by directing fault currents away from conductive
surfaces. Proper grounding is also necessary for the effective operation of surge protection
devices.
5. What does the ‘SDLC’ acronym stand for in a NEMA TS2 cabinet environment?
A. Signal Data Link Connection
B. Synchronous Data Link Control
C. Serial Digital Loop Circuit
D. Standard Device Logic Cable
Correct Answer: B
Level I | Basic Electrical Theory, Safety,
and Fundamental Equipment Knowledge |
Q&A with Rationale
1. According to Ohm’s Law, if the voltage in a circuit remains constant and the resistance
increases, what happens to the current?
A. The current increases
B. The current decreases
C. The current stays the same
D. The current fluctuates
Correct Answer: B
Rationale: Ohm’s Law is defined by the formula I = V / R, where I is current, V is voltage,
and R is resistance. Because current is inversely proportional to resistance, an increase in
resistance will result in a decrease in current. This principle is vital for understanding how
traffic signal components react to changing circuit conditions.
2. Which device in a NEMA TS2 traffic signal cabinet is responsible for monitoring for
conflicting green indications?
A. Load Switch
B. Bus Interface Unit (BIU)
,C. Malfunction Management Unit (MMU)
D. Flash Transfer Relay
Correct Answer: C
Rationale: The Malfunction Management Unit (MMU) is a critical safety component that
monitors the cabinet for conflicting phases and improper voltages. If it detects a conflict,
such as two green lights showing for intersecting movements, it will immediately place the
intersection into flash mode. This device is the modern equivalent of the Conflict Monitor
Unit found in older TS1 cabinets.
3. What is the standard unit of measurement for electrical power?
A. Amperes
B. Ohms
C. Volts
D. Watts
Correct Answer: D
Rationale: Electrical power is measured in Watts, which represents the rate at which
energy is consumed. Power can be calculated using the formula P = V x I, where V is voltage
and I is current. Understanding power requirements is essential when sizing service
breakers and backup battery systems for traffic signals.
, 4. Which color of wire is universally recognized as the equipment grounding conductor in a
traffic signal system?
A. White
B. Red
C. Black
D. Green or Bare
Correct Answer: D
Rationale: Standard electrical codes specify that green or bare wires are used for
grounding purposes to provide a low-resistance path to the earth. This safety feature
protects personnel and equipment by directing fault currents away from conductive
surfaces. Proper grounding is also necessary for the effective operation of surge protection
devices.
5. What does the ‘SDLC’ acronym stand for in a NEMA TS2 cabinet environment?
A. Signal Data Link Connection
B. Synchronous Data Link Control
C. Serial Digital Loop Circuit
D. Standard Device Logic Cable
Correct Answer: B
