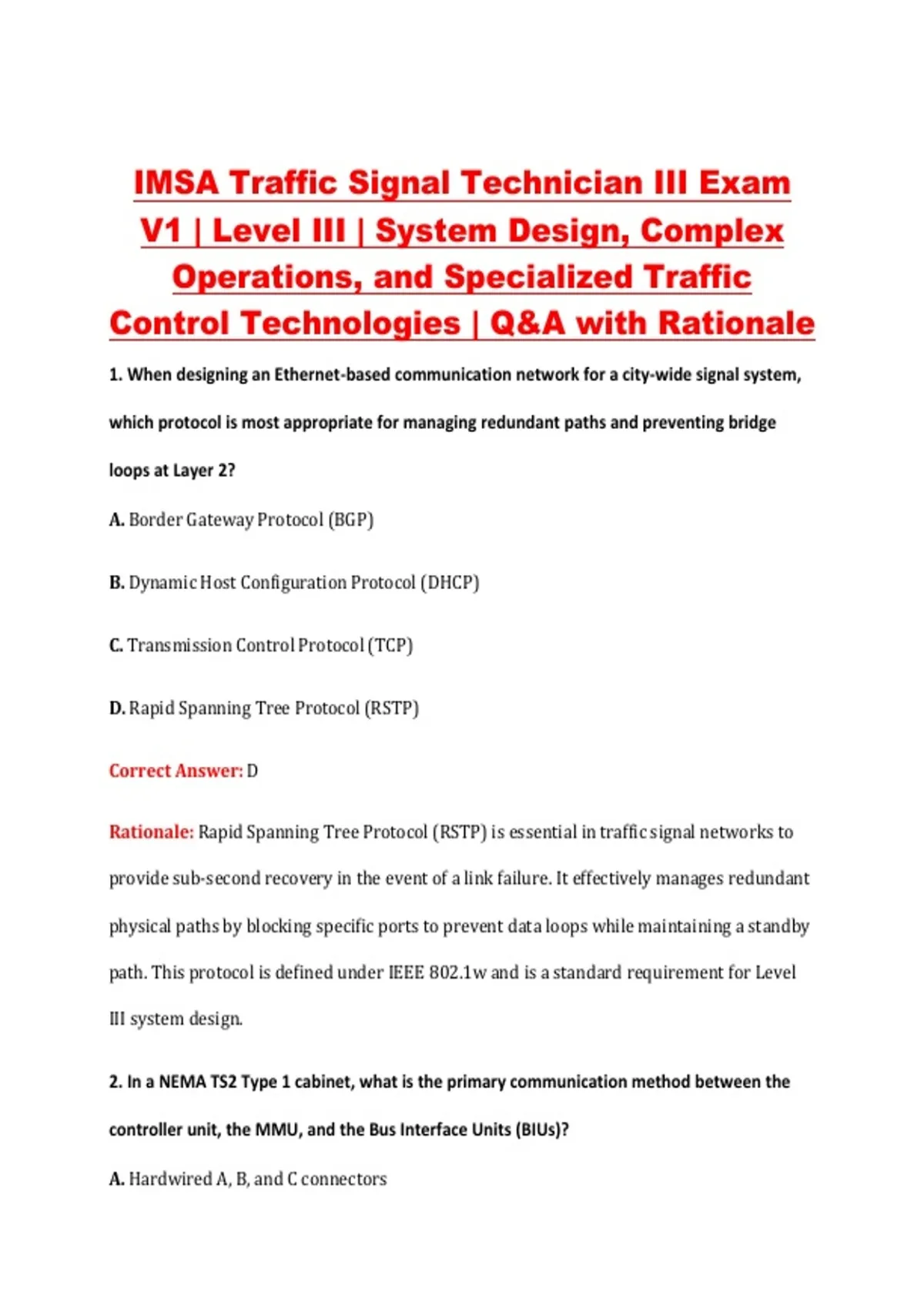

IMSA Traffic Signal Technician III Exam
V1 | Level III | System Design, Complex
Operations, and Specialized Traffic
Control Technologies | Q&A with Rationale
1. When designing an Ethernet-based communication network for a city-wide signal system,
which protocol is most appropriate for managing redundant paths and preventing bridge
loops at Layer 2?
A. Border Gateway Protocol (BGP)
B. Dynamic Host Configuration Protocol (DHCP)
C. Transmission Control Protocol (TCP)
D. Rapid Spanning Tree Protocol (RSTP)
Correct Answer: D
Rationale: Rapid Spanning Tree Protocol (RSTP) is essential in traffic signal networks to
provide sub-second recovery in the event of a link failure. It effectively manages redundant
physical paths by blocking specific ports to prevent data loops while maintaining a standby
path. This protocol is defined under IEEE 802.1w and is a standard requirement for Level
III system design.
2. In a NEMA TS2 Type 1 cabinet, what is the primary communication method between the
controller unit, the MMU, and the Bus Interface Units (BIUs)?
A. Hardwired A, B, and C connectors
,B. SDLC (Synchronous Data Link Control) Bus
C. Fiber Optic Patch Cables
D. RS-232 Serial Null Modem
Correct Answer: B
Rationale: The SDLC bus is the backbone of the NEMA TS2 Type 1 architecture, operating
at 153.6 Kbps to facilitate serial communication. It replaces the bulky wire harnesses found
in TS1 cabinets by using a single shielded cable to connect all major components. This
design allows for advanced diagnostics and reduces the physical footprint of the cabinet
wiring.
3. Which NTCIP standard specifically defines the object definitions for Actuated Signal
Controller (ASC) units?
A. NTCIP 1201
B. NTCIP 1202
C. NTCIP 1203
D. NTCIP 1204
Correct Answer: B
Rationale: NTCIP 1202 is the specific standard that details the objects and data structures
required for signal controller interoperability. It ensures that different manufacturers’
controllers can communicate essential timing and status data to a central management
,system. Understanding these object definitions is critical for Level III technicians involved
in system integration.
4. During the design of a railroad preemption sequence, which interval is defined as the time
needed to safely clear vehicles off the tracks before the arrival of a train?
A. Exit Interval
B. Advance Warning Time
C. Preemption Hold Interval
D. Track Clearance Green
Correct Answer: D
Rationale: Track Clearance Green is a vital safety interval that provides sufficient time for
any vehicle stopped on the tracks to move to a safe location. This interval must be
calculated based on the distance between the stop bar and the furthest track plus the
length of a design vehicle. Proper timing of this phase is a high-priority safety requirement
in complex traffic control design.
5. What is the primary advantage of using a 4-Phase Diamond Interchange operation
compared to a 3-Phase operation?
A. Reduced overall cycle length
B. Improved clear-out of the internal storage area between ramps
C. Lower equipment costs
, D. Simpler detection requirements
Correct Answer: B
Rationale: The 4-phase operation is specifically designed to manage the internal
‘reservoir’ or storage area between the two ramp intersections of a diamond interchange.
By using four distinct movements, the system can clear vehicles trapped between the
ramps more effectively than a 3-phase sequence. This leads to higher capacity and reduced
chances of gridlock during peak hours.
6. When testing a fiber optic link with an OTDR (Optical Time Domain Reflectometer), a
sudden drop in power without a reflection typically indicates what?
A. A macro-bend or a non-reflective break
B. A mechanical connector
C. A fusion splice
D. The end of the fiber
Correct Answer: A
Rationale: A non-reflective event on an OTDR trace, characterized by a loss of power
without a spike, usually points to a macro-bend or a clean break where light is not reflected
back to the source. Reflective events, conversely, are typically caused by connectors or
glass-to-air interfaces. Level III technicians must be able to interpret these traces to
diagnose communication failures in the field.
