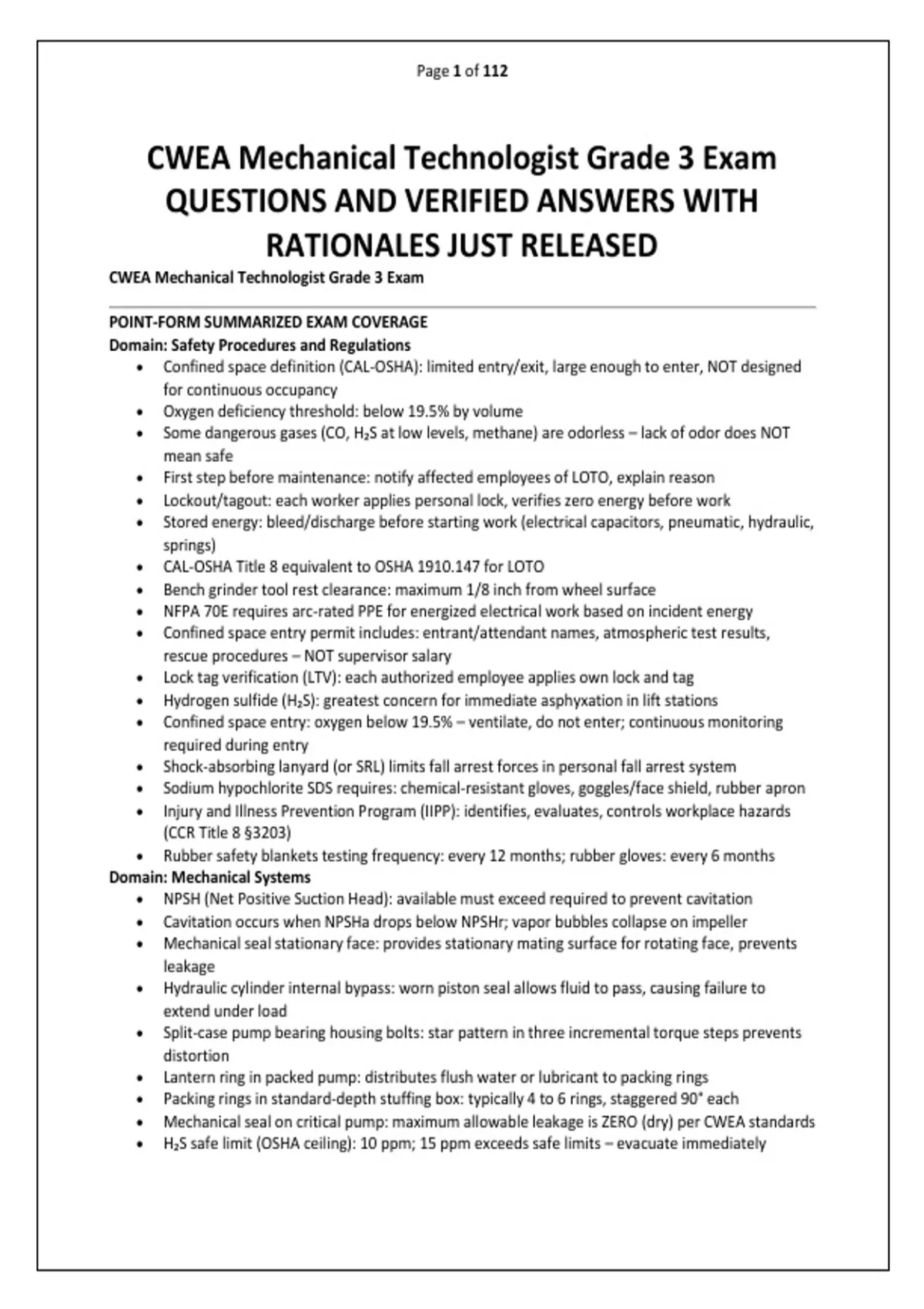

Page 1 of 112
CWEA Mechanical Technologist Grade 3 Exam
QUESTIONS AND VERIFIED ANSWERS WITH
RATIONALES JUST RELEASED
CWEA Mechanical Technologist Grade 3 Exam
POINT-FORM SUMMARIZED EXAM COVERAGE
Domain: Safety Procedures and Regulations
• Confined space definition (CAL-OSHA): limited entry/exit, large enough to enter, NOT designed
for continuous occupancy
• Oxygen deficiency threshold: below 19.5% by volume
• Some dangerous gases (CO, H₂S at low levels, methane) are odorless – lack of odor does NOT
mean safe
• First step before maintenance: notify affected employees of LOTO, explain reason
• Lockout/tagout: each worker applies personal lock, verifies zero energy before work
• Stored energy: bleed/discharge before starting work (electrical capacitors, pneumatic, hydraulic,
springs)
• CAL-OSHA Title 8 equivalent to OSHA 1910.147 for LOTO
• Bench grinder tool rest clearance: maximum 1/8 inch from wheel surface
• NFPA 70E requires arc-rated PPE for energized electrical work based on incident energy
• Confined space entry permit includes: entrant/attendant names, atmospheric test results,
rescue procedures – NOT supervisor salary
• Lock tag verification (LTV): each authorized employee applies own lock and tag
• Hydrogen sulfide (H₂S): greatest concern for immediate asphyxation in lift stations
• Confined space entry: oxygen below 19.5% – ventilate, do not enter; continuous monitoring
required during entry
• Shock-absorbing lanyard (or SRL) limits fall arrest forces in personal fall arrest system
• Sodium hypochlorite SDS requires: chemical-resistant gloves, goggles/face shield, rubber apron
• Injury and Illness Prevention Program (IIPP): identifies, evaluates, controls workplace hazards
(CCR Title 8 §3203)
• Rubber safety blankets testing frequency: every 12 months; rubber gloves: every 6 months
Domain: Mechanical Systems
• NPSH (Net Positive Suction Head): available must exceed required to prevent cavitation
• Cavitation occurs when NPSHa drops below NPSHr; vapor bubbles collapse on impeller
• Mechanical seal stationary face: provides stationary mating surface for rotating face, prevents
leakage
• Hydraulic cylinder internal bypass: worn piston seal allows fluid to pass, causing failure to
extend under load
• Split-case pump bearing housing bolts: star pattern in three incremental torque steps prevents
distortion
• Lantern ring in packed pump: distributes flush water or lubricant to packing rings
• Packing rings in standard-depth stuffing box: typically 4 to 6 rings, staggered 90° each
• Mechanical seal on critical pump: maximum allowable leakage is ZERO (dry) per CWEA standards
• H₂S safe limit (OSHA ceiling): 10 ppm; 15 ppm exceeds safe limits – evacuate immediately
, Page 2 of 112
• Screw conveyor repeated tripping: check for mechanical binding (dried sludge, foreign object)
before electrical issues
• Silent (spring-assisted) check valve prevents slamming; swing checks rely on gravity
• CMMS (Computerized Maintenance Management System) tracks work orders, PM scheduling,
spare parts
• Plain bearings: quieter, less costly than rolling element bearings, but require proper lubrication
• PTFE packing vs. graphite: graphite withstands up to 1200°F; PTFE melts above 500°F
• Impeller wear rings: increased clearance causes internal recirculation, reduced efficiency
• Vibration analysis peak at 2x running speed with small 1x = angular misalignment
• Eccentric reducer on pump suction side: prevents air pocket formation at high point
• Backlash in gears: play between gear teeth that prevents binding
• UNC threads: Unified National Coarse
• Alignment sequence: complete vertical alignment first
• Plain bearings (journal, babbitt) recommended for high-speed, heavy-load applications
• Anti-friction bearing cage: properly spaces rolling elements and guides through load zone
• Shaft sleeve purpose: protects pump shaft from wear
• Globe valve: most widely used of smaller sized pipe valves
• Altitude valve: automatically limits water level in elevated tanks
• Positive displacement air compressors: reciprocating and rotary types
• Ball and roller bearings: most common anti-friction bearing types
• Stuffing box: area on centrifugal pump that holds packing
• Impeller removal: use hydraulic puller; heat to expand, never hammer
• Wear ring: replace when clearance exceeds 1/8 inch (0.125 in) on large pumps
Domain: Installation, Alignment, Fabrication
• Locate baselines: initial step in preparation for installation of machinery
• Shielded metal-arc welding (SMAW): most popular welding process in use today
• Offset misalignment: shafts parallel but not on same axis (parallel misalignment)
• Soft foot: condition where one or more machine feet do not make complete contact with base
plate
• Motor is normally the machine to be shimmed during alignment
• Angular misalignment correction: use level placed on top of pulley, parallel with shaft
• Deflection height for belt retensioning: use straightedge or string across pulley tops
• Bolt torquing pattern for flanges: star or cross pattern in multiple increments
• Hidden line in mechanical drawing: represented by dashed line -----
• Sheet steel thickness designation: gauge number
• Gasket material selection: based on fluid compatibility, temperature, pressure
• Welding preparation: bevel edges for proper penetration
Domain: Electrical & Instrumentation
• SCADA troubleshooting: always manually verify level with dip tape before replacing transducer
• Motor overload after 30 seconds running: mechanical binding in driven equipment (belt press)
• 3-phase induction motor prolonged high running current above FLA = overload, not electrical
fault
• Interrupting current of GFCI receptacle: 5-6 mA
• Aluminum stepladder forbidden for electrical work (conductive)
• Current kills in electrical shock (not voltage)
• Electromagnetism: relationship between electric current and magnetic field
• Manual starter: on-off switch with overload relays
, Page 3 of 112
• Dielectric strength: amount of potential difference insulation can withstand
• Ohm's Law calculations: I = V/R, P = V × I, P = I² × R
• Instrument transformers (CTs, PTs): reduce high voltages and currents to safe measurement
values
• Hazardous location Class I: environments containing flammable vapors and gases
• Nomex: best choice for work clothing fabric when working with electricity
• Leather over rubber gloves: best combination for electrical work
• Lockout/tagout: identify individual who placed the lock
• Predictive maintenance: measurements on operating equipment to detect symptoms not in line
with predetermined parameters
• Category ratings on meters: Cat 4 for service drop, Cat 1 for protected electronic equipment
• Megger test: applies test voltage several times higher than normal to measure insulation
resistance
Domain: Maintenance Management & Documentation
• Corrective work: requested, discovered during inspections, or while performing other tasks
• Logbook: documents all work performed during shift; lists information needed by other shifts
• Preventive maintenance purpose: ensure proper functioning of equipment, pipelines, valves
• CMMS: tracks work orders, PM schedules, spare parts inventory, equipment history
• Breakdown maintenance (reactive): run-to-failure approach, not proactive
• Job preparation: receiving instruction and planning equipment use
• Anticipating other tasks or problems: sharply reduces number of emergencies
• Making job planning a group effort: improves productivity
• Inventory control operation: monitors supply of spare parts, tools, test instruments
• Record runtime hours at repair: baseline for future PM intervals, tracks component life
• Failure Report: equipment not operating as intended
Domain: Piping Systems & Valves
• Eccentric reducer on horizontal pump suction: flat side up to prevent air pocket
• Globe valve: most widely used of all smaller sized pipe valves
• Check valve slamming prevention: silent (spring-assisted) check valve
• Pressure relief valve pilot stage plugged: causes pressure override above set point
• Pressure relief valve opens at set point but pressure continues rising: pilot-operated relief pilot
stage plugged
• Altitude valve: automatically limits water level in elevated tanks
• Flange connection on chlorine gas line: requires work permit before breaking
Domain: Hydraulics & Pneumatics
• Hydraulic cylinder internal bypass: worn piston seal allows fluid to pass, failure to extend fully
under load
• Worn pump (low volumetric efficiency) causes slow cycle times only when oil is hot (internal
leakage increases as viscosity drops)
• Pilot-operated relief valve plugged pilot orifice: prevents main spool from opening fully, causing
pressure override
• Hydraulic system relief valve: set point determines maximum system pressure
Domain: Engines & Compressors
• Positive displacement air compressors: reciprocating and rotary types
• Engine tuning tasks: valve clearance adjustment, regulator cleaning, magnetic points inspection,
timing adjustment, control checks
• Compressor valve inspection: check for carbon buildup, warpage, spring integrity
, Page 4 of 112
Domain: Drawings & Documentation
• P&ID (Piping and Instrumentation Drawing): entire process system view
• Ladder diagram (ladder logic): PLC programming language
• Hidden line in mechanical drawing: represented by dashed line
• Redline drawings: as-built modifications showing changes made during construction
• Hidden line in mechanical drawing: represented by dashed line
• Blueprint reading: symbols for pumps, valves, motors, and instrumentation
Domain: Mathematics & Calculations
• Volume calculations: rectangular tank L × W × H × 7.48 gal/cu ft
• Pump horsepower: BHP = (Flow × Total Head × SG) ÷ (3960 × Efficiency)
• Motor amperage: single-phase: I = P ÷ (V × PF × Eff); three-phase: I = P ÷ (V × √3 × PF × Eff)
• Thermal expansion: ΔL = α × L × ΔT (α steel = 0.00000633/°F)
• Ohm's Law: V = I × R, P = V × I
• Chlorine dosage: lbs = MG × mg/L × 8.34
• Ampacity: #12 THWN copper wire = 25 amps (NEC Table 310.16 at 75°C)
• Motor synchronous speed: RPM = (120 × f) ÷ P
• Cost calculations: KWh = (Watts × Hours) ÷ 1000; Cost = KWh × rate
Section 1: Safety Procedures & Regulations (Questions 1-35)
1. According to CAL-OSHA, what is the primary definition of a confined space?
A) Any space smaller than 50 cubic feet
B) A space designed for continuous human occupancy
C) A space with limited or restricted means of entry/exit, large enough to bodily enter and perform
work, and not designed for continuous human occupancy
D) Any area with less than 18 inches of vertical clearance
Answer: C
CWEA Mechanical Technologist Grade 3 Exam
QUESTIONS AND VERIFIED ANSWERS WITH
RATIONALES JUST RELEASED
CWEA Mechanical Technologist Grade 3 Exam
POINT-FORM SUMMARIZED EXAM COVERAGE
Domain: Safety Procedures and Regulations
• Confined space definition (CAL-OSHA): limited entry/exit, large enough to enter, NOT designed
for continuous occupancy
• Oxygen deficiency threshold: below 19.5% by volume
• Some dangerous gases (CO, H₂S at low levels, methane) are odorless – lack of odor does NOT
mean safe
• First step before maintenance: notify affected employees of LOTO, explain reason
• Lockout/tagout: each worker applies personal lock, verifies zero energy before work
• Stored energy: bleed/discharge before starting work (electrical capacitors, pneumatic, hydraulic,
springs)
• CAL-OSHA Title 8 equivalent to OSHA 1910.147 for LOTO
• Bench grinder tool rest clearance: maximum 1/8 inch from wheel surface
• NFPA 70E requires arc-rated PPE for energized electrical work based on incident energy
• Confined space entry permit includes: entrant/attendant names, atmospheric test results,
rescue procedures – NOT supervisor salary
• Lock tag verification (LTV): each authorized employee applies own lock and tag
• Hydrogen sulfide (H₂S): greatest concern for immediate asphyxation in lift stations
• Confined space entry: oxygen below 19.5% – ventilate, do not enter; continuous monitoring
required during entry
• Shock-absorbing lanyard (or SRL) limits fall arrest forces in personal fall arrest system
• Sodium hypochlorite SDS requires: chemical-resistant gloves, goggles/face shield, rubber apron
• Injury and Illness Prevention Program (IIPP): identifies, evaluates, controls workplace hazards
(CCR Title 8 §3203)
• Rubber safety blankets testing frequency: every 12 months; rubber gloves: every 6 months
Domain: Mechanical Systems
• NPSH (Net Positive Suction Head): available must exceed required to prevent cavitation
• Cavitation occurs when NPSHa drops below NPSHr; vapor bubbles collapse on impeller
• Mechanical seal stationary face: provides stationary mating surface for rotating face, prevents
leakage
• Hydraulic cylinder internal bypass: worn piston seal allows fluid to pass, causing failure to
extend under load
• Split-case pump bearing housing bolts: star pattern in three incremental torque steps prevents
distortion
• Lantern ring in packed pump: distributes flush water or lubricant to packing rings
• Packing rings in standard-depth stuffing box: typically 4 to 6 rings, staggered 90° each
• Mechanical seal on critical pump: maximum allowable leakage is ZERO (dry) per CWEA standards
• H₂S safe limit (OSHA ceiling): 10 ppm; 15 ppm exceeds safe limits – evacuate immediately
, Page 2 of 112
• Screw conveyor repeated tripping: check for mechanical binding (dried sludge, foreign object)
before electrical issues
• Silent (spring-assisted) check valve prevents slamming; swing checks rely on gravity
• CMMS (Computerized Maintenance Management System) tracks work orders, PM scheduling,
spare parts
• Plain bearings: quieter, less costly than rolling element bearings, but require proper lubrication
• PTFE packing vs. graphite: graphite withstands up to 1200°F; PTFE melts above 500°F
• Impeller wear rings: increased clearance causes internal recirculation, reduced efficiency
• Vibration analysis peak at 2x running speed with small 1x = angular misalignment
• Eccentric reducer on pump suction side: prevents air pocket formation at high point
• Backlash in gears: play between gear teeth that prevents binding
• UNC threads: Unified National Coarse
• Alignment sequence: complete vertical alignment first
• Plain bearings (journal, babbitt) recommended for high-speed, heavy-load applications
• Anti-friction bearing cage: properly spaces rolling elements and guides through load zone
• Shaft sleeve purpose: protects pump shaft from wear
• Globe valve: most widely used of smaller sized pipe valves
• Altitude valve: automatically limits water level in elevated tanks
• Positive displacement air compressors: reciprocating and rotary types
• Ball and roller bearings: most common anti-friction bearing types
• Stuffing box: area on centrifugal pump that holds packing
• Impeller removal: use hydraulic puller; heat to expand, never hammer
• Wear ring: replace when clearance exceeds 1/8 inch (0.125 in) on large pumps
Domain: Installation, Alignment, Fabrication
• Locate baselines: initial step in preparation for installation of machinery
• Shielded metal-arc welding (SMAW): most popular welding process in use today
• Offset misalignment: shafts parallel but not on same axis (parallel misalignment)
• Soft foot: condition where one or more machine feet do not make complete contact with base
plate
• Motor is normally the machine to be shimmed during alignment
• Angular misalignment correction: use level placed on top of pulley, parallel with shaft
• Deflection height for belt retensioning: use straightedge or string across pulley tops
• Bolt torquing pattern for flanges: star or cross pattern in multiple increments
• Hidden line in mechanical drawing: represented by dashed line -----
• Sheet steel thickness designation: gauge number
• Gasket material selection: based on fluid compatibility, temperature, pressure
• Welding preparation: bevel edges for proper penetration
Domain: Electrical & Instrumentation
• SCADA troubleshooting: always manually verify level with dip tape before replacing transducer
• Motor overload after 30 seconds running: mechanical binding in driven equipment (belt press)
• 3-phase induction motor prolonged high running current above FLA = overload, not electrical
fault
• Interrupting current of GFCI receptacle: 5-6 mA
• Aluminum stepladder forbidden for electrical work (conductive)
• Current kills in electrical shock (not voltage)
• Electromagnetism: relationship between electric current and magnetic field
• Manual starter: on-off switch with overload relays
, Page 3 of 112
• Dielectric strength: amount of potential difference insulation can withstand
• Ohm's Law calculations: I = V/R, P = V × I, P = I² × R
• Instrument transformers (CTs, PTs): reduce high voltages and currents to safe measurement
values
• Hazardous location Class I: environments containing flammable vapors and gases
• Nomex: best choice for work clothing fabric when working with electricity
• Leather over rubber gloves: best combination for electrical work
• Lockout/tagout: identify individual who placed the lock
• Predictive maintenance: measurements on operating equipment to detect symptoms not in line
with predetermined parameters
• Category ratings on meters: Cat 4 for service drop, Cat 1 for protected electronic equipment
• Megger test: applies test voltage several times higher than normal to measure insulation
resistance
Domain: Maintenance Management & Documentation
• Corrective work: requested, discovered during inspections, or while performing other tasks
• Logbook: documents all work performed during shift; lists information needed by other shifts
• Preventive maintenance purpose: ensure proper functioning of equipment, pipelines, valves
• CMMS: tracks work orders, PM schedules, spare parts inventory, equipment history
• Breakdown maintenance (reactive): run-to-failure approach, not proactive
• Job preparation: receiving instruction and planning equipment use
• Anticipating other tasks or problems: sharply reduces number of emergencies
• Making job planning a group effort: improves productivity
• Inventory control operation: monitors supply of spare parts, tools, test instruments
• Record runtime hours at repair: baseline for future PM intervals, tracks component life
• Failure Report: equipment not operating as intended
Domain: Piping Systems & Valves
• Eccentric reducer on horizontal pump suction: flat side up to prevent air pocket
• Globe valve: most widely used of all smaller sized pipe valves
• Check valve slamming prevention: silent (spring-assisted) check valve
• Pressure relief valve pilot stage plugged: causes pressure override above set point
• Pressure relief valve opens at set point but pressure continues rising: pilot-operated relief pilot
stage plugged
• Altitude valve: automatically limits water level in elevated tanks
• Flange connection on chlorine gas line: requires work permit before breaking
Domain: Hydraulics & Pneumatics
• Hydraulic cylinder internal bypass: worn piston seal allows fluid to pass, failure to extend fully
under load
• Worn pump (low volumetric efficiency) causes slow cycle times only when oil is hot (internal
leakage increases as viscosity drops)
• Pilot-operated relief valve plugged pilot orifice: prevents main spool from opening fully, causing
pressure override
• Hydraulic system relief valve: set point determines maximum system pressure
Domain: Engines & Compressors
• Positive displacement air compressors: reciprocating and rotary types
• Engine tuning tasks: valve clearance adjustment, regulator cleaning, magnetic points inspection,
timing adjustment, control checks
• Compressor valve inspection: check for carbon buildup, warpage, spring integrity
, Page 4 of 112
Domain: Drawings & Documentation
• P&ID (Piping and Instrumentation Drawing): entire process system view
• Ladder diagram (ladder logic): PLC programming language
• Hidden line in mechanical drawing: represented by dashed line
• Redline drawings: as-built modifications showing changes made during construction
• Hidden line in mechanical drawing: represented by dashed line
• Blueprint reading: symbols for pumps, valves, motors, and instrumentation
Domain: Mathematics & Calculations
• Volume calculations: rectangular tank L × W × H × 7.48 gal/cu ft
• Pump horsepower: BHP = (Flow × Total Head × SG) ÷ (3960 × Efficiency)
• Motor amperage: single-phase: I = P ÷ (V × PF × Eff); three-phase: I = P ÷ (V × √3 × PF × Eff)
• Thermal expansion: ΔL = α × L × ΔT (α steel = 0.00000633/°F)
• Ohm's Law: V = I × R, P = V × I
• Chlorine dosage: lbs = MG × mg/L × 8.34
• Ampacity: #12 THWN copper wire = 25 amps (NEC Table 310.16 at 75°C)
• Motor synchronous speed: RPM = (120 × f) ÷ P
• Cost calculations: KWh = (Watts × Hours) ÷ 1000; Cost = KWh × rate
Section 1: Safety Procedures & Regulations (Questions 1-35)
1. According to CAL-OSHA, what is the primary definition of a confined space?
A) Any space smaller than 50 cubic feet
B) A space designed for continuous human occupancy
C) A space with limited or restricted means of entry/exit, large enough to bodily enter and perform
work, and not designed for continuous human occupancy
D) Any area with less than 18 inches of vertical clearance
Answer: C
