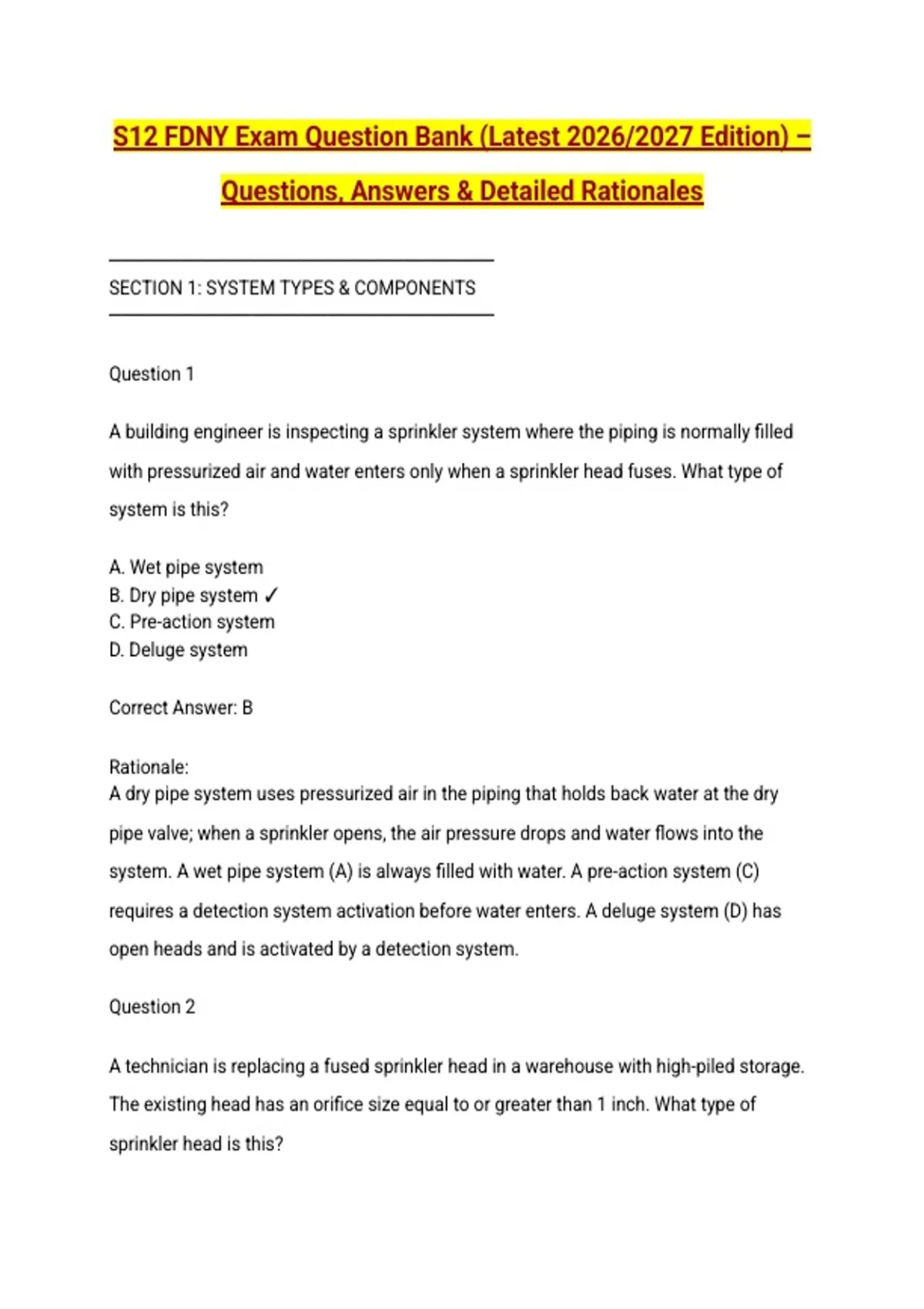

S12 FDNY Exam Question Bank (Latest 2026/2027 Edition) –
Questions, Answers & Detailed Rationales
──────────────────────────────
SECTION 1: SYSTEM TYPES & COMPONENTS
──────────────────────────────
Question 1
A building engineer is inspecting a sprinkler system where the piping is normally filled
with pressurized air and water enters only when a sprinkler head fuses. What type of
system is this?
A. Wet pipe system
B. Dry pipe system ✓
C. Pre-action system
D. Deluge system
Correct Answer: B
Rationale:
A dry pipe system uses pressurized air in the piping that holds back water at the dry
pipe valve; when a sprinkler opens, the air pressure drops and water flows into the
system. A wet pipe system (A) is always filled with water. A pre-action system (C)
requires a detection system activation before water enters. A deluge system (D) has
open heads and is activated by a detection system.
Question 2
A technician is replacing a fused sprinkler head in a warehouse with high-piled storage.
The existing head has an orifice size equal to or greater than 1 inch. What type of
sprinkler head is this?
,A. Standard orifice sprinkler
B. Quick response sprinkler
C. Extra Large Orifice (ELO) sprinkler ✓
D. Extended coverage sprinkler
Correct Answer: C
Rationale:
An ELO (Extra Large Orifice) sprinkler is defined as having an orifice size equal to or
greater than 1 inch, designed for high-piled storage protection with lower pressure
requirements. A standard orifice (A) is smaller. Quick response (B) refers to thermal
sensitivity, not orifice size. Extended coverage (D) refers to spacing, not orifice diameter.
Question 3
During a monthly inspection, a Certificate of Fitness holder notices that a sprinkler head
located above a ceiling has a decorative cover plate that drops away when the head
operates. What type of head is this?
A. Pendent sprinkler head
B. Upright sprinkler head
C. Concealed sprinkler head ✓
D. Sidewall sprinkler head
Correct Answer: C
Rationale:
Concealed sprinkler heads are installed above ceilings with cover plates that provide a
finished appearance and protect the head from accidental contact; the plate drops away
when heat activates the head. Pendent (A) and upright (B) heads are exposed. Sidewall
(D) heads mount on walls, not above ceilings.
Question 4
,A data center requires a sprinkler system that will not discharge water unless both a fire
detection system activates AND an individual sprinkler head fuses. Which system type
meets this requirement?
A. Wet pipe system
B. Dry pipe system
C. Pre-action system ✓
D. Standard deluge system
Correct Answer: C
Rationale:
A pre-action system requires activation of a detection system (pre-action valve opens)
AND individual sprinkler head fusion before water discharges, providing double
protection against accidental water damage. A deluge system (D) activates all open
heads simultaneously upon detection. Wet (A) and dry (B) systems discharge water
upon single head activation.
Question 5
A sprinkler system with open heads and no fusible elements is connected to a deluge
valve that opens when a heat or smoke detection system activates. What is this system
called?
A. Wet pipe system
B. Dry pipe system
C. Pre-action system
D. Deluge system ✓
Correct Answer: D
Rationale:
A deluge system is equipped with open nozzles/heads and is operated by a detection
system that trips the deluge valve, releasing water through all open heads
, simultaneously. This is distinct from pre-action (C) which has closed heads. Wet (A) and
dry (B) systems have individual fusible elements in each head.
Question 6
A building has a sprinkler system that is normally filled with water under pressure and
activates immediately when any individual sprinkler head fuses. What is the Response
Time Index (RTI) of a standard sprinkler head used in this system?
A. 40
B. 80 ✓
C. 120
D. 200
Correct Answer: B
Rationale:
A standard sprinkler head has an RTI of 80, indicating its thermal response
characteristics. Quick response sprinklers have lower RTI values (typically around 50).
The RTI measures how quickly a sprinkler responds to heat; lower numbers indicate
faster response.
Question 7
A technician is installing pipe hangers for a 6-inch sprinkler line. According to FDNY
S-12 standards, what size threaded rod is required for this hanger assembly?
A. 3/8 inch
B. 1/2 inch ✓
C. 5/8 inch
D. 3/4 inch
Correct Answer: B
