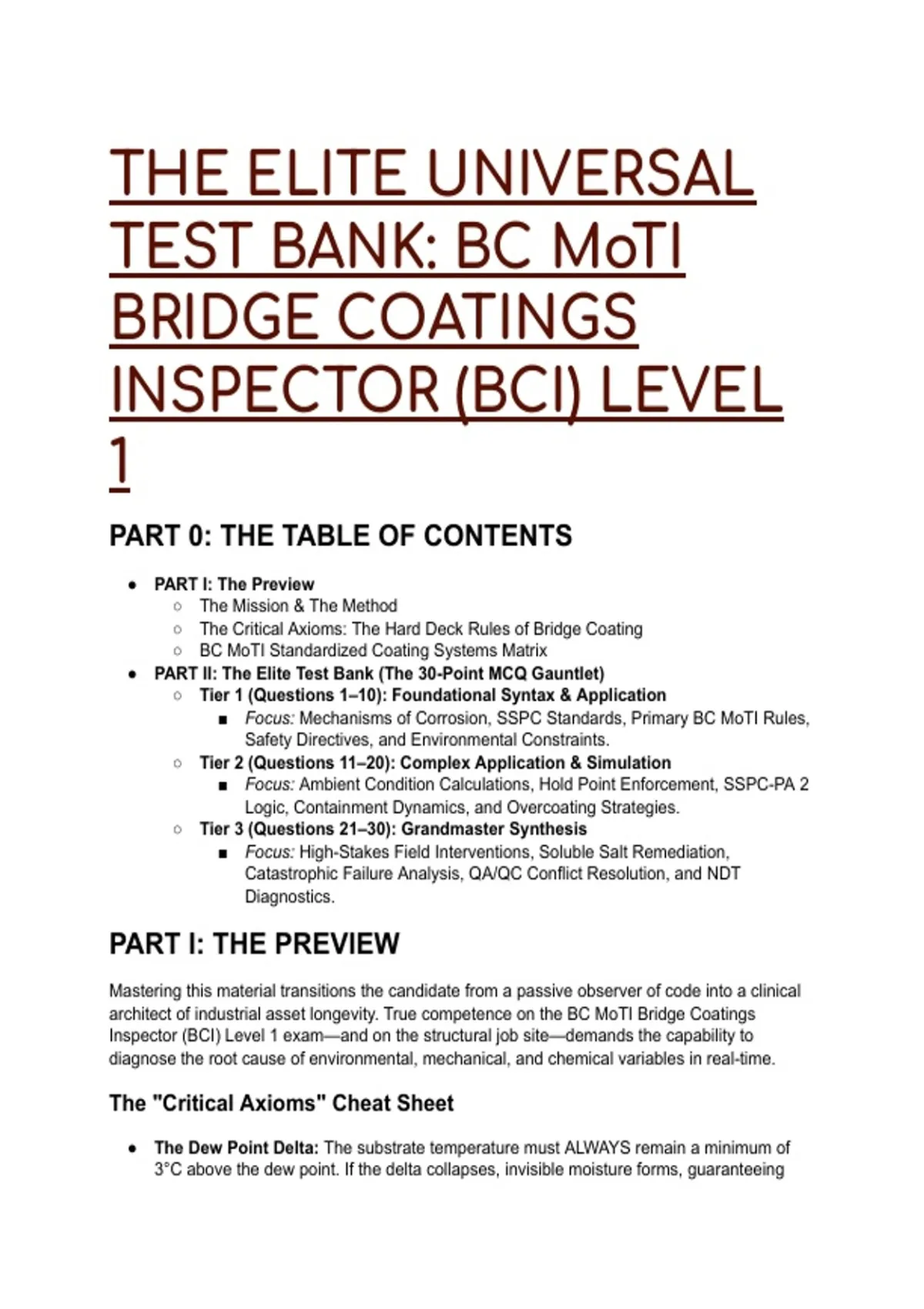

THE ELITE UNIVERSAL
TEST BANK: BC MoTI
BRIDGE COATINGS
INSPECTOR (BCI) LEVEL
1
PART 0: THE TABLE OF CONTENTS
● PART I: The Preview
○ The Mission & The Method
○ The Critical Axioms: The Hard Deck Rules of Bridge Coating
○ BC MoTI Standardized Coating Systems Matrix
● PART II: The Elite Test Bank (The 30-Point MCQ Gauntlet)
○ Tier 1 (Questions 1–10): Foundational Syntax & Application
■ Focus: Mechanisms of Corrosion, SSPC Standards, Primary BC MoTI Rules,
Safety Directives, and Environmental Constraints.
○ Tier 2 (Questions 11–20): Complex Application & Simulation
■ Focus: Ambient Condition Calculations, Hold Point Enforcement, SSPC-PA 2
Logic, Containment Dynamics, and Overcoating Strategies.
○ Tier 3 (Questions 21–30): Grandmaster Synthesis
■ Focus: High-Stakes Field Interventions, Soluble Salt Remediation,
Catastrophic Failure Analysis, QA/QC Conflict Resolution, and NDT
Diagnostics.
PART I: THE PREVIEW
Mastering this material transitions the candidate from a passive observer of code into a clinical
architect of industrial asset longevity. True competence on the BC MoTI Bridge Coatings
Inspector (BCI) Level 1 exam—and on the structural job site—demands the capability to
diagnose the root cause of environmental, mechanical, and chemical variables in real-time.
The "Critical Axioms" Cheat Sheet
● The Dew Point Delta: The substrate temperature must ALWAYS remain a minimum of
3°C above the dew point. If the delta collapses, invisible moisture forms, guaranteeing
, premature adhesive failure.
● The 8-Hour Rule: Under BC MoTI SS 216.07.01, a cleaned and blasted steel surface
must be coated within a maximum of 8 hours, or sooner if ambient conditions degrade or
flash rusting initiates.
● The Zinc Sacrifice: Inorganic and organic zinc-rich primers protect steel via galvanic
sacrifice. They function as the anode, while the steel is the cathode. Without an electrical
pathway established via a clean steel profile, they revert to mere barrier coatings.
● The Isocyanate Threat: Polyurethane topcoats contain isocyanates, which are severe
respiratory sensitizers causing occupational asthma. Proper personal protective
equipment, specifically supplied-air respirators, constitutes a zero-tolerance biological
mandate.
● The Hold Point Authority: BC MoTI SS 216.09.02 enforces mandatory inspection "Hold
Points" (e.g., after blasting, before primer, post-stripe coat). Bypassing a hold point
renders the subsequent coating layer automatically non-compliant and subject to removal.
BC MoTI Standardized Coating Systems Matrix
System Code Application Area Structural Environment Coating System
(Primer / Midcoat /
Topcoat)
SS1 Steel, Shop Moderate to Severe Inorganic Zinc / High
Service Performance Epoxy /
Aliphatic Polyurethane
SS3 Steel, Shop Controlled Environment Inorganic Zinc Primer /
Curing Polyurethane Topcoat
SFO4 Steel, Field Overcoating Intact Solvent-Based Surface
Systems Tolerant Epoxy
PART II: THE ELITE TEST BANK
Tier 1: Foundational Syntax & Application
Q1: A bridge girder exhibits localized, deep cavities in a concentrated area near a drainage
scupper, while the surrounding steel remains largely intact. This geometry has penetrated the
substrate at an accelerated rate compared to general surface rusting. Based on the principles of
corrosion morphology, which classification is the MOST ACCURATE? A) Uniform atmospheric
corrosion B) Galvanic corrosion C) Pitting corrosion D) Crevice corrosion
● The Answer: C (Pitting corrosion)
● Distractor Analysis:
○ A is incorrect: Uniform atmospheric corrosion occurs evenly across a broadly
exposed surface resulting in a general loss of cross-sectional thickness, not as
localized, deep cavities.
○ B is incorrect: Galvanic corrosion inherently requires the electrical coupling of two
dissimilar metals sharing a common electrolyte, which is not indicated by localized
cavities forming on a single, homogenous steel girder.
○ D is incorrect: Crevice corrosion occurs specifically in confined micro-environments
such as under bolt heads, backing rings, or tight lap joints where stagnant
electrolyte solutions can accumulate and deoxygenate, not openly on the exposed
, girder face.
The Mentor's Analysis: Pitting represents an aggressive, highly localized attack that
successfully breaks down the passive protective film of the metal, creating a self-sustaining
anodic micro-environment inside the pit. Because the active pit functions as a very small anode
operating against a massive surrounding cathodic surface area, the penetration rate is
exceptionally rapid and mechanically dangerous. Professional/Academic Intuition: Pitting
constitutes a volume-to-depth crisis; superficial surface damage often obscures
catastrophic structural penetration.
Q2: A contractor is preparing a newly fabricated steel pylon for a BC MoTI SS1 coating system.
The specification demands an SSPC-SP 10 surface preparation. During your inspection, you
note that all mill scale and heavy rust have been removed, but there are light shadows and
streaks of tightly adherent residue covering approximately 3% of the surface area. Which
conclusion is the MOST ACCURATE? A) The surface fails; SSPC-SP 10 requires 100%
removal of all visible contaminants without exception. B) The surface passes; SSPC-SP 10
permits random staining to remain on no more than 5% of each unit area. C) The surface fails;
the contractor must achieve an SSPC-SP 5 White Metal finish for any newly fabricated steel
intended for moderate to severe service. D) The surface passes; any profile achieved after the
total removal of mill scale inherently satisfies the SP 10 standard.
● The Answer: B (The surface passes; SSPC-SP 10 permits random staining to remain on
no more than 5% of each unit area.)
● Distractor Analysis:
○ A is incorrect: This absolute standard defines SSPC-SP 5 (White Metal Blast
Cleaning), not SSPC-SP 10 (Near-White Metal).
○ C is incorrect: While SSPC-SP 5 yields superior theoretical longevity and is
recognized as the ultimate standard, inspectors are bound to enforce the written
specification. If the contract stipulates SP 10, demanding SP 5 constitutes
regulatory overreach.
○ D is incorrect: Simply removing mill scale does not guarantee compliance; the
remaining staining, shadows, and tight residues must be strictly quantified and kept
below the 5% threshold across each nine-square-inch evaluation unit.
The Mentor's Analysis: The fundamental distinction between White Metal (SP 5) and
Near-White Metal (SP 10) is purely mathematical and economic. SP 10 acknowledges the
financial reality of field and shop blasting by allowing a generous 5% tolerance for aesthetic
staining, provided all functional contaminants are completely eradicated from the substrate.
Professional/Academic Intuition: The inspector operates as a legal referee of the
specification, enforcing the 5% tolerance of SP 10 without demanding the perfection of
SP 5 or accepting the loose tolerance of SP 6.
Q3: According to SSPC Vis 1, a steel bridge component is evaluated prior to surface
preparation to establish the baseline condition. The steel is entirely covered with rust, the
original mill scale has completely rusted away, and slight pitting is visibly evident to the naked
eye. Which rust grade BEST describes this initial condition? A) Rust Grade A B) Rust Grade B
C) Rust Grade C D) Rust Grade D
● The Answer: C (Rust Grade C)
● Distractor Analysis:
○ A is incorrect: Grade A specifically applies to newly fabricated steel that is
completely covered with intact mill scale and exhibits little to no rust.
○ B is incorrect: Grade B applies to steel where the mill scale has begun to flake and
rust has formed on the exposed substrate, but the surface is not yet entirely
