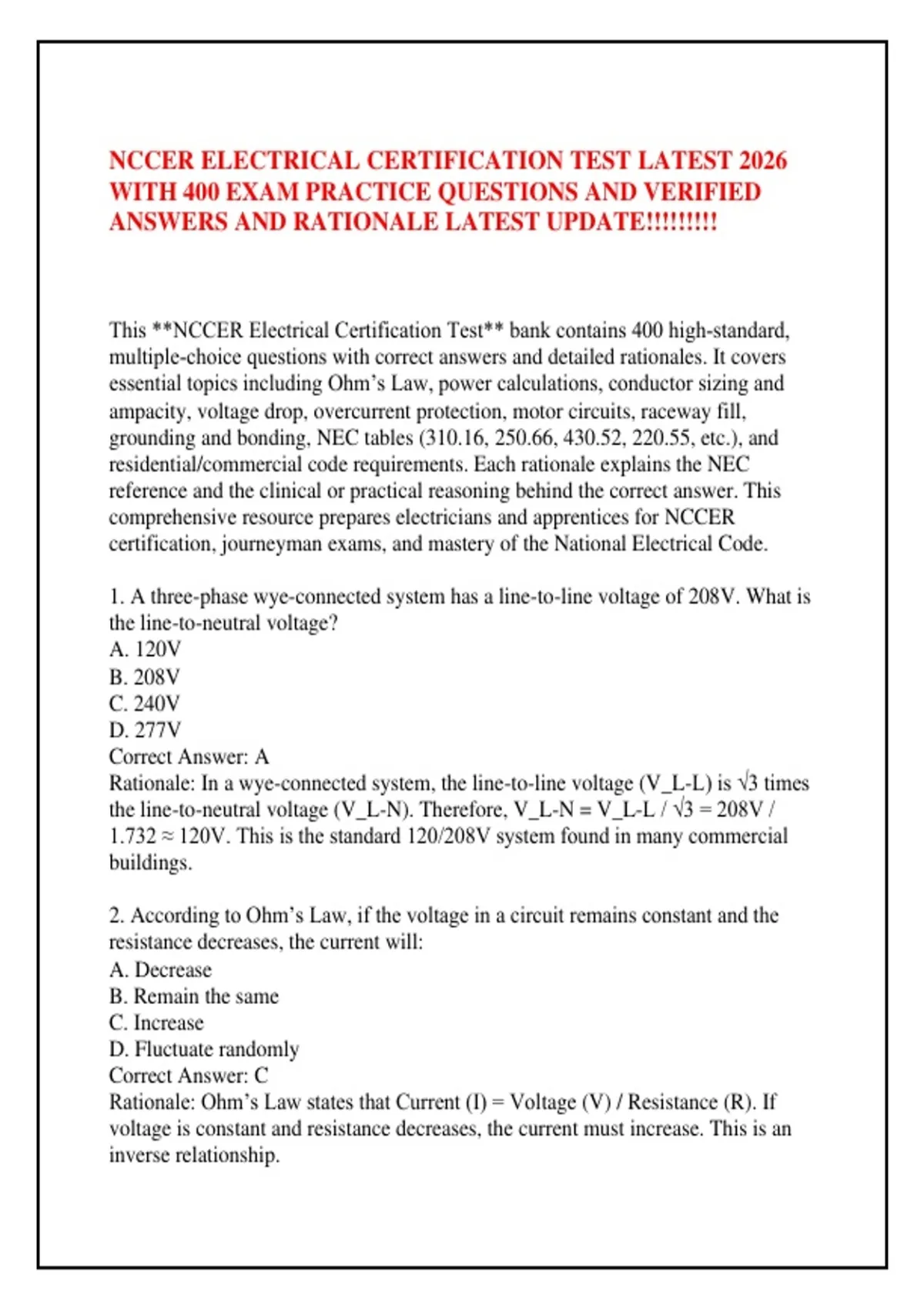

NCCER ELECTRICAL CERTIFICATION TEST LATEST 2026
WITH 400 EXAM PRACTICE QUESTIONS AND VERIFIED
ANSWERS AND RATIONALE LATEST UPDATE!!!!!!!!!
This **NCCER Electrical Certification Test** bank contains 400 high‑standard,
multiple‑choice questions with correct answers and detailed rationales. It covers
essential topics including Ohm’s Law, power calculations, conductor sizing and
ampacity, voltage drop, overcurrent protection, motor circuits, raceway fill,
grounding and bonding, NEC tables (310.16, 250.66, 430.52, 220.55, etc.), and
residential/commercial code requirements. Each rationale explains the NEC
reference and the clinical or practical reasoning behind the correct answer. This
comprehensive resource prepares electricians and apprentices for NCCER
certification, journeyman exams, and mastery of the National Electrical Code.
1. A three-phase wye-connected system has a line-to-line voltage of 208V. What is
the line-to-neutral voltage?
A. 120V
B. 208V
C. 240V
D. 277V
Correct Answer: A
Rationale: In a wye-connected system, the line-to-line voltage (V_L-L) is √3 times
the line-to-neutral voltage (V_L-N). Therefore, V_L-N = V_L-L / √3 = 208V /
1.732 ≈ 120V. This is the standard 120/208V system found in many commercial
buildings.
2. According to Ohm’s Law, if the voltage in a circuit remains constant and the
resistance decreases, the current will:
A. Decrease
B. Remain the same
C. Increase
D. Fluctuate randomly
Correct Answer: C
Rationale: Ohm’s Law states that Current (I) = Voltage (V) / Resistance (R). If
voltage is constant and resistance decreases, the current must increase. This is an
inverse relationship.
,3. A 240V heater draws 12.5A of current. What is the power consumption of this
heater in watts?
A. 2400W
B. 2880W
C. 3000W
D. 3125W
Correct Answer: C
Rationale: The formula for electrical power is Power (P) = Voltage (V) × Current
(I). Therefore, P = 240V × 12.5A = 3000W. This is a single-phase power
calculation.
4. What is the maximum continuous load that can be placed on a 20-ampere branch
circuit?
A. 12A
B. 16A
C. 20A
D. 24A
Correct Answer: B
Rationale: NEC 210.20(A) requires that the load on a branch circuit not exceed
80% of its rating for continuous loads (defined as three hours or more). Therefore,
20A × 0.8 = 16A.
5. A 10 AWG copper conductor with Type THHN insulation has an ampacity of?
A. 20A
B. 25A
C. 30A
D. 35A
Correct Answer: D
Rationale: According to NEC Table 310.16, a 10 AWG copper conductor with
THHN insulation (90°C column) has an ampacity of 40A, but under the 75°C
column (often used for termination ratings), it is 35A. For most common
applications, 35A is the accepted maximum before derating.
6. The grounding electrode conductor for a service is typically connected to the:
A. Neutral bus bar
B. Equipment grounding bar
C. Hot bus bar
D. Main breaker
Correct Answer: A
,Rationale: The grounding electrode conductor is connected to the neutral bus bar at
the service entrance. This is the main bonding point where the neutral is bonded to
ground (system bonding jumper). It establishes the reference to earth.
7. What is the minimum burial depth for direct burial cable under a residential
driveway in a non-vehicular area?
A. 12 inches
B. 18 inches
C. 24 inches
D. 36 inches
Correct Answer: B
Rationale: NEC Table 300.5 requires a minimum cover of 18 inches for direct
burial cable under a driveway (residential). For non-vehicular areas, 24 inches may
be required, but specifically for one-family residential driveways, 18 inches is the
minimum.
8. A single-phase motor draws 15A at 230V with a power factor of 0.85. What is
the true power?
A. 2932.5W
B. 3450W
C. 4058.8W
D. 1725W
Correct Answer: A
Rationale: True power (P) = V × I × Power Factor. P = 230V × 15A × 0.85 =
2932.5W. The apparent power (VA) would be 230 × 15 = 3450VA.
9. Which NEC article covers branch circuits?
A. Article 210
B. Article 215
C. Article 220
D. Article 230
Correct Answer: A
Rationale: Article 210 covers branch circuits. Article 215 covers feeders, Article
220 covers branch circuit and feeder calculations, and Article 230 covers services.
10. The NEC requires that each guest room in a hotel have at least how many
general purpose receptacle outlets?
A. 1
B. 2
C. 3
, D. 4
Correct Answer: B
Rationale: NEC 210.60 requires at least two general purpose receptacle outlets in
guest rooms of hotels and motels. This ensures basic convenience for guests.
11. In a dwelling unit, receptacle outlets installed for countertops in a kitchen must
be supplied by at least how many small-appliance branch circuits?
A. 1
B. 2
C. 3
D. 4
Correct Answer: B
Rationale: NEC 210.11(C)(1) requires at least two 20-ampere small-appliance
branch circuits for the kitchen, dining room, and similar areas. These circuits must
serve the countertop receptacles.
12. A run of EMT conduit is installed outdoors on the north side of a building.
What is the primary concern regarding condensation?
A. The conduit may become brittle
B. Water may accumulate inside and cause corrosion
C. The conduit may expand excessively
D. The wire insulation may melt
Correct Answer: B
Rationale: When warm, moist air inside conduit cools on a cold surface,
condensation forms. In outdoor runs, this can lead to water accumulation inside the
conduit, causing corrosion over time. Drain fittings are often required.
13. What is the maximum number of 12 AWG THHN conductors permitted in a
3/4-inch EMT conduit?
A. 9
B. 12
C. 16
D. 20
Correct Answer: C
Rationale: According to NEC Chapter 9, Table 1, and Annex C, for 12 AWG
THHN in 3/4-inch EMT, the maximum fill is 16 conductors (based on 40% fill for
more than 2 conductors).
14. A continuous load is defined by the NEC as a load where the maximum current
is expected to continue for how long?
