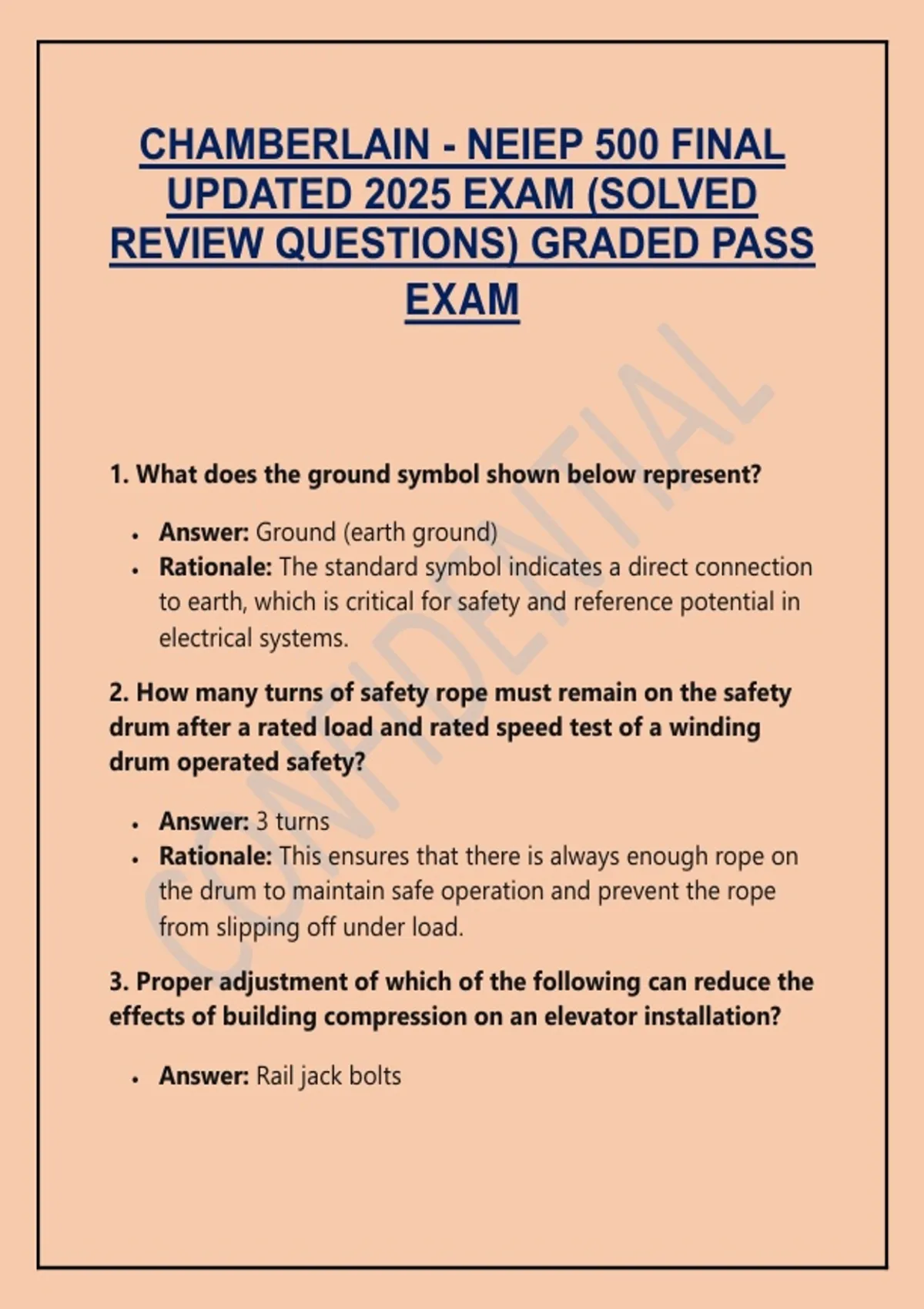

CHAMBERLAIN - NEIEP 500 FINAL
UPDATED 2025 EXAM (SOLVED
REVIEW QUESTIONS) GRADED PASS
EXAM
1. What does the ground symbol shown below represent?
Answer: Ground (earth ground)
Rationale: The standard symbol indicates a direct connection
to earth, which is critical for safety and reference potential in
electrical systems.
2. How many turns of safety rope must remain on the safety
drum after a rated load and rated speed test of a winding
drum operated safety?
Answer: 3 turns
Rationale: This ensures that there is always enough rope on
the drum to maintain safe operation and prevent the rope
from slipping off under load.
3. Proper adjustment of which of the following can reduce the
effects of building compression on an elevator installation?
Answer: Rail jack bolts
, Rationale: Building compression can cause the guide rails to
shift. Properly adjusted rail jack bolts help maintain alignment
and compensate for building movement.
4. What type of flex would be used to pipe a switch in a wet
location?
Answer: Liquidtight Flexible Metal Conduit (LFMC)
Rationale: LFMC is designed to be watertight and is
approved for use in wet or damp environments, protecting
the wiring from moisture.
5. Which component is used to engage and couple the car
door to the hoistway door during opening and closing?
Answer: Door clutch
Rationale: The door clutch physically connects the car door
operator to the hoistway door, allowing them to move
together.
6. On high-rise raceways, at least how many feet apart must
the wires be supported?
Answer: 100 feet
Rationale: This is a requirement per NEC guidelines to
prevent sagging and mechanical stress on the wiring over
long vertical runs.
7. What is the minimum size wire allowed by code for wiring
100 VAC lighting circuits to elevator cars?
Answer: #14 AWG
, Rationale: The National Electrical Code (NEC) mandates a
minimum of #14 AWG for lighting circuits to ensure
adequate current-carrying capacity and safety.
8. What is the metal enclosure that furnishes protection for
electrical wire called?
Answer: Raceway
Rationale: A raceway is a complete enclosed system of metal
or non-metallic channels designed to protect electrical
conductors.
9. What is the minimum height of a barricade placed around
an open hoistway?
Answer: 42 inches
Rationale: This standard height is required to prevent falls
into the hoistway during construction or maintenance.
10. When bending conduit, what is the maximum number of
bends in degrees between access points?
Answer: 360 degrees
Rationale: The NEC limits the total bends to 360 degrees
between pull points to prevent excessive friction that could
damage the wire during installation.
11. Which device would be used to automatically reopen the
doors without physical contact on power-operated vertically
sliding freight elevator doors?
Answer: Proximity devices
, Rationale: Proximity devices (like sensors) detect
obstructions and trigger the doors to reopen, ensuring safety
without physical contact.
12. Which requirement must be met when interlocks are
installed on freight elevators?
Answer: They must be tamper-proof to prevent override of
the door contacts
Rationale: This ensures that the safety interlocks cannot be
bypassed, maintaining the integrity of the door safety circuit.
13. When setting up a retiring cam for a freight elevator,
which statement is correct?
Answer: The cam must apply a force that is double that
required for normal interlock operation
Rationale: This extra force ensures that the interlock
mechanism operates reliably even under adverse conditions.
14. What device is installed to hold vertically sliding biparting
freight doors mechanically closed?
Answer: Keeper
Rationale: The keeper is a mechanical latch that secures the
doors in the closed position.
15. Which statement is correct for dumbwaiter installations
that use mechanical locks and electrical contacts?
Answer: They must be installed on all dumbwaiters
Rationale: This is a standard safety requirement to ensure
that dumbwaiter doors are properly secured.
