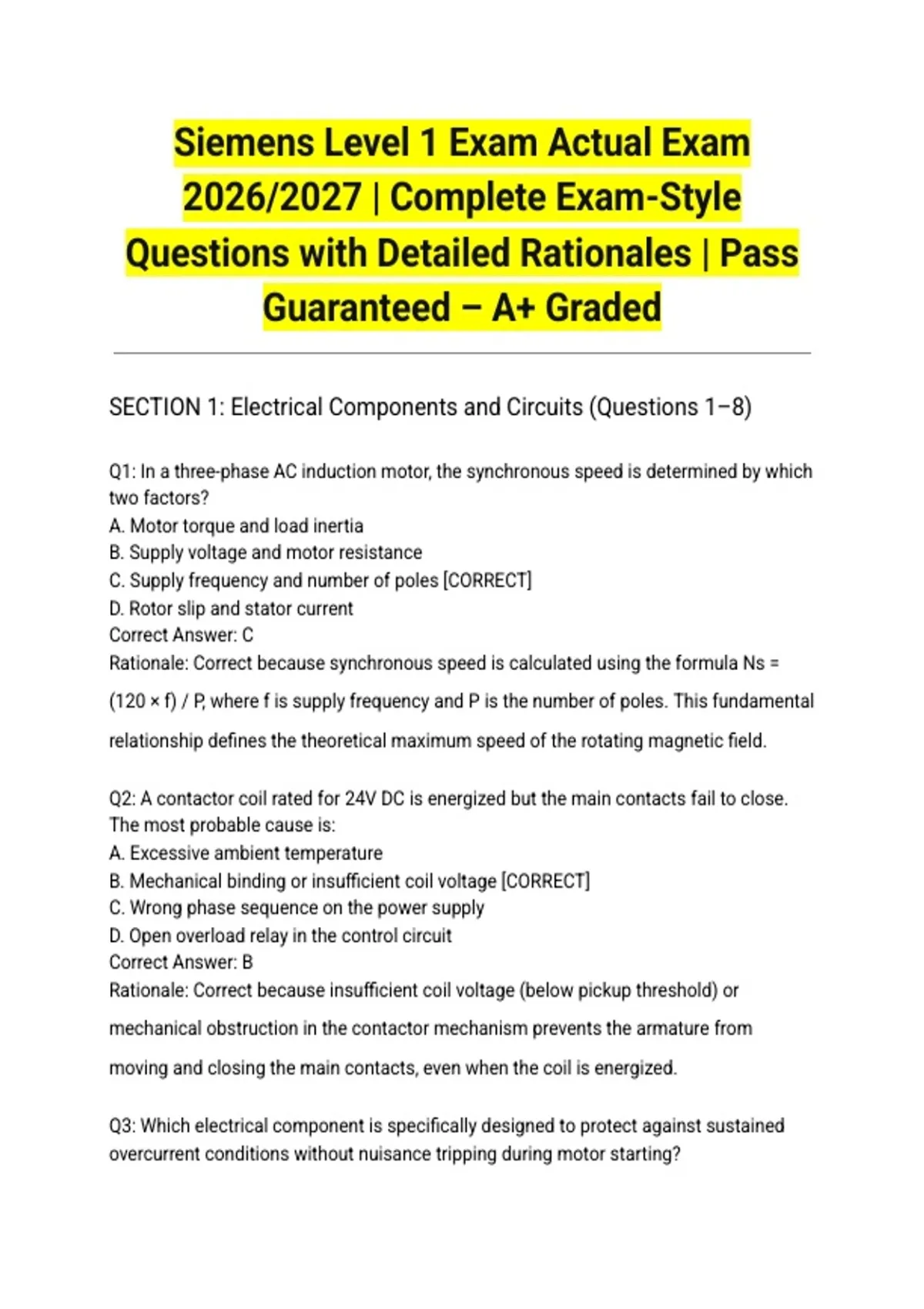

Siemens Level 1 Exam Actual Exam
2026/2027 | Complete Exam-Style
Questions with Detailed Rationales | Pass
Guaranteed – A+ Graded
SECTION 1: Electrical Components and Circuits (Questions 1–8)
Q1: In a three-phase AC induction motor, the synchronous speed is determined by which
two factors?
A. Motor torque and load inertia
B. Supply voltage and motor resistance
C. Supply frequency and number of poles [CORRECT]
D. Rotor slip and stator current
Correct Answer: C
Rationale: Correct because synchronous speed is calculated using the formula Ns =
(120 × f) / P, where f is supply frequency and P is the number of poles. This fundamental
relationship defines the theoretical maximum speed of the rotating magnetic field.
Q2: A contactor coil rated for 24V DC is energized but the main contacts fail to close.
The most probable cause is:
A. Excessive ambient temperature
B. Mechanical binding or insufficient coil voltage [CORRECT]
C. Wrong phase sequence on the power supply
D. Open overload relay in the control circuit
Correct Answer: B
Rationale: Correct because insufficient coil voltage (below pickup threshold) or
mechanical obstruction in the contactor mechanism prevents the armature from
moving and closing the main contacts, even when the coil is energized.
Q3: Which electrical component is specifically designed to protect against sustained
overcurrent conditions without nuisance tripping during motor starting?
,A. Fast-acting fuse
B. Magnetic-only circuit breaker
C. Thermal-magnetic circuit breaker [CORRECT]
D. Ground fault circuit interrupter
Correct Answer: C
Rationale: Correct because the thermal-magnetic circuit breaker combines a thermal
element (bimetallic strip) for sustained overloads with a magnetic element for
instantaneous short-circuit protection, allowing motor starting inrush without nuisance
tripping.
Q4: When reading a European-style electrical schematic, the component identification
letter "K" designates:
A. Relay or contactor [CORRECT]
B. Circuit breaker
C. Terminal block
D. Pushbutton
Correct Answer: A
Rationale: Correct because per IEC 81346 and EN 60617 standards, the letter "K" is the
standardized designation for contactors, relays, and similar switching devices in
electrical documentation.
Q5: In a DC motor control circuit using a four-quadrant drive, which quadrant represents
regenerative braking with reverse rotation?
A. Quadrant I (Forward motoring)
B. Quadrant II (Forward braking)
C. Quadrant III (Reverse motoring)
D. Quadrant IV (Reverse braking) [CORRECT]
Correct Answer: D
Rationale: Correct because Quadrant IV is defined by negative speed (reverse rotation)
and positive torque (braking torque), where the motor acts as a generator returning
energy to the DC bus during deceleration in reverse direction.
Q6: A proximity sensor with a PNP output configuration provides a HIGH signal when
the target is present. The load must be connected between:
A. Output and 0V (common)
, B. Output and +24V [CORRECT]
C. +24V and 0V directly
D. Output and protective earth
Correct Answer: B
Rationale: Correct because a PNP sourcing output switches the positive supply (+24V)
to the output terminal when active; therefore, the load must be connected between the
output and 0V to complete the circuit with correct current flow.
Q7: In a star-delta (Y-Δ) motor starter, the transition from star to delta configuration is
typically performed when the motor reaches approximately:
A. 25% of rated speed
B. 50% of rated speed
C. 70-80% of rated speed [CORRECT]
D. 95% of rated speed
Correct Answer: C
Rationale: Correct because the transition is timed to occur when the motor reaches
approximately 70-80% of synchronous speed, balancing reduced starting current with
adequate torque for the application while avoiding excessive inrush during switching.
Q8: The primary purpose of a snubber circuit (RC network) placed across a relay coil is
to:
A. Increase coil pull-in speed
B. Reduce contact arcing by suppressing inductive voltage spikes [CORRECT]
C. Provide visual indication of coil status
D. Increase the holding current of the coil
Correct Answer: B
Rationale: Correct because when a relay coil is de-energized, the collapsing magnetic
field generates a high inductive voltage spike (back EMF); the RC snubber dissipates
this energy, suppressing arcing across contacts and protecting semiconductor
switching devices.
SECTION 2: Mechanical Components and Electrical Drives (Questions
9–16)
2026/2027 | Complete Exam-Style
Questions with Detailed Rationales | Pass
Guaranteed – A+ Graded
SECTION 1: Electrical Components and Circuits (Questions 1–8)
Q1: In a three-phase AC induction motor, the synchronous speed is determined by which
two factors?
A. Motor torque and load inertia
B. Supply voltage and motor resistance
C. Supply frequency and number of poles [CORRECT]
D. Rotor slip and stator current
Correct Answer: C
Rationale: Correct because synchronous speed is calculated using the formula Ns =
(120 × f) / P, where f is supply frequency and P is the number of poles. This fundamental
relationship defines the theoretical maximum speed of the rotating magnetic field.
Q2: A contactor coil rated for 24V DC is energized but the main contacts fail to close.
The most probable cause is:
A. Excessive ambient temperature
B. Mechanical binding or insufficient coil voltage [CORRECT]
C. Wrong phase sequence on the power supply
D. Open overload relay in the control circuit
Correct Answer: B
Rationale: Correct because insufficient coil voltage (below pickup threshold) or
mechanical obstruction in the contactor mechanism prevents the armature from
moving and closing the main contacts, even when the coil is energized.
Q3: Which electrical component is specifically designed to protect against sustained
overcurrent conditions without nuisance tripping during motor starting?
,A. Fast-acting fuse
B. Magnetic-only circuit breaker
C. Thermal-magnetic circuit breaker [CORRECT]
D. Ground fault circuit interrupter
Correct Answer: C
Rationale: Correct because the thermal-magnetic circuit breaker combines a thermal
element (bimetallic strip) for sustained overloads with a magnetic element for
instantaneous short-circuit protection, allowing motor starting inrush without nuisance
tripping.
Q4: When reading a European-style electrical schematic, the component identification
letter "K" designates:
A. Relay or contactor [CORRECT]
B. Circuit breaker
C. Terminal block
D. Pushbutton
Correct Answer: A
Rationale: Correct because per IEC 81346 and EN 60617 standards, the letter "K" is the
standardized designation for contactors, relays, and similar switching devices in
electrical documentation.
Q5: In a DC motor control circuit using a four-quadrant drive, which quadrant represents
regenerative braking with reverse rotation?
A. Quadrant I (Forward motoring)
B. Quadrant II (Forward braking)
C. Quadrant III (Reverse motoring)
D. Quadrant IV (Reverse braking) [CORRECT]
Correct Answer: D
Rationale: Correct because Quadrant IV is defined by negative speed (reverse rotation)
and positive torque (braking torque), where the motor acts as a generator returning
energy to the DC bus during deceleration in reverse direction.
Q6: A proximity sensor with a PNP output configuration provides a HIGH signal when
the target is present. The load must be connected between:
A. Output and 0V (common)
, B. Output and +24V [CORRECT]
C. +24V and 0V directly
D. Output and protective earth
Correct Answer: B
Rationale: Correct because a PNP sourcing output switches the positive supply (+24V)
to the output terminal when active; therefore, the load must be connected between the
output and 0V to complete the circuit with correct current flow.
Q7: In a star-delta (Y-Δ) motor starter, the transition from star to delta configuration is
typically performed when the motor reaches approximately:
A. 25% of rated speed
B. 50% of rated speed
C. 70-80% of rated speed [CORRECT]
D. 95% of rated speed
Correct Answer: C
Rationale: Correct because the transition is timed to occur when the motor reaches
approximately 70-80% of synchronous speed, balancing reduced starting current with
adequate torque for the application while avoiding excessive inrush during switching.
Q8: The primary purpose of a snubber circuit (RC network) placed across a relay coil is
to:
A. Increase coil pull-in speed
B. Reduce contact arcing by suppressing inductive voltage spikes [CORRECT]
C. Provide visual indication of coil status
D. Increase the holding current of the coil
Correct Answer: B
Rationale: Correct because when a relay coil is de-energized, the collapsing magnetic
field generates a high inductive voltage spike (back EMF); the RC snubber dissipates
this energy, suppressing arcing across contacts and protecting semiconductor
switching devices.
