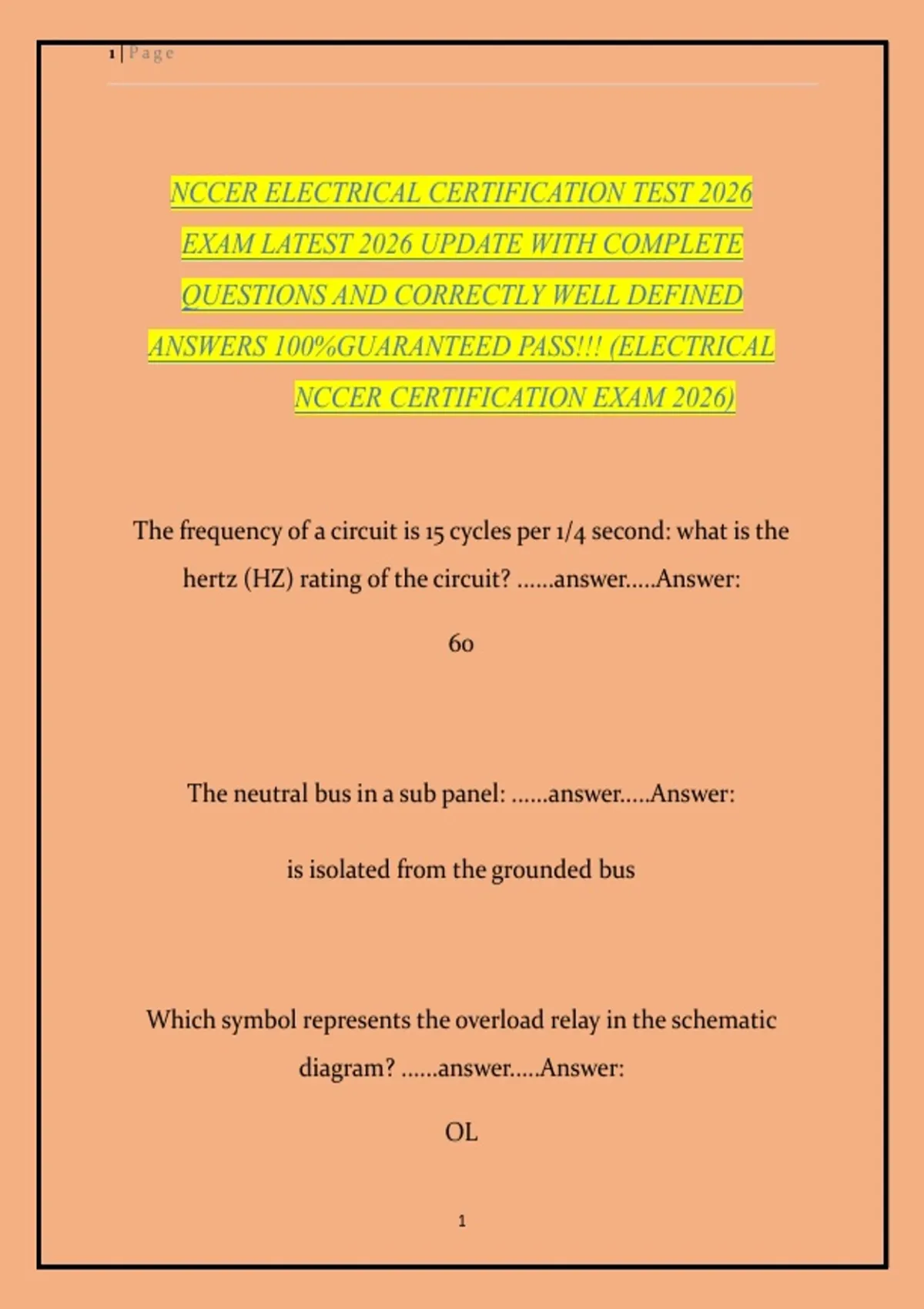

NCCER ELECTRICAL CERTIFICATION TEST 2026
EXAM LATEST 2026 UPDATE WITH COMPLETE
QUESTIONS AND CORRECTLY WELL DEFINED
ANSWERS 100%GUARANTEED PASS!!! (ELECTRICAL
NCCER CERTIFICATION EXAM 2026)
The frequency of a circuit is 15 cycles per 1/4 second: what is the
hertz (HZ) rating of the circuit? ......answer.....Answer:
60
The neutral bus in a sub panel: ......answer.....Answer:
is isolated from the grounded bus
Which symbol represents the overload relay in the schematic
diagram? ......answer.....Answer:
OL
1
,2|Page
The transformer coils of the primary and secondary share no
electrical connection, but current flows through them due to:
......answer.....Answer:
Mutual induction
The NEC recommends maintaining voltage within a 3% drop. If a
branch circuit operates at 240 volts AC. What is the minimum
circuit operating volt? ......answer.....Answer:
220.
What is the name of the connecting device shown in the diagram?
......answer.....Answer:
Split- bolt.
,3|Page
The volt amperes in an AC circuit is the same as : ......answer.....
What is the voltage drop for a #8 (16.510 cmil) copper wire at 120v.
215 feet one way and load of 39 amps? ......answer.....Answer:
10.5
If a voltage source of a circuit provides 240 volts and there are 5
ohms of resistance, how much current is in the circuit?
......answer.....Answer:
48 amps
What should be done to change rotation of a 3 phase motor?
......answer.....Answer:
Swap any two T leads
3
, 4|Page
What instrument is used to measure current: ......answer.....Answer:
Voltmeter
Which plain indicates the location of structures and equipment on
a property: ......answer.....Answer:
Site
Generally, the most ideal conductor is made of:
......answer.....Answer:
Copper
What is the standard size system used in the United States?
......answer.....Answer:
AWG
