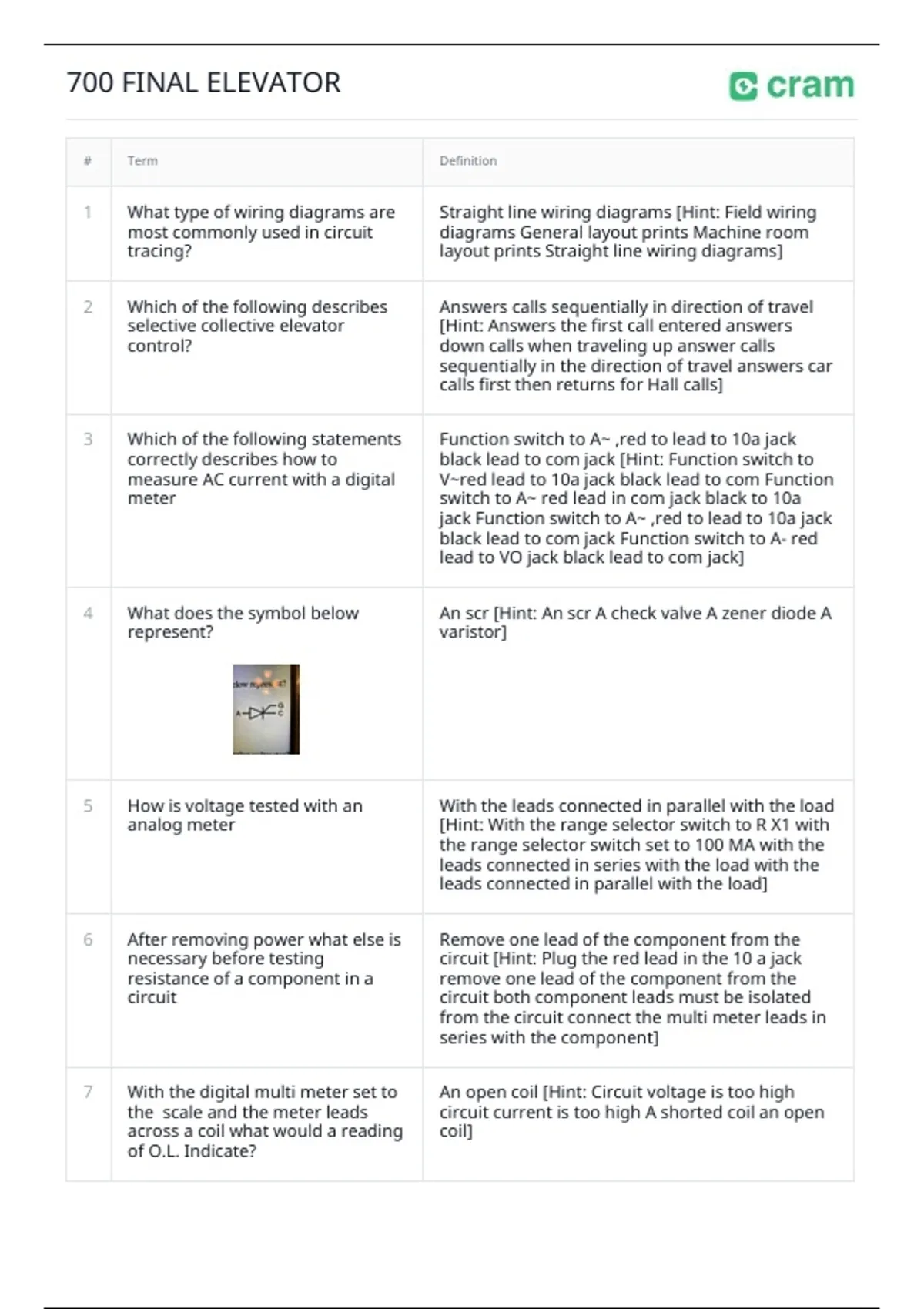

700 FINAL ELEVATOR
# Term Definition
1 What type of wiring diagrams are Straight line wiring diagrams [Hint: Field wiring
most commonly used in circuit diagrams General layout prints Machine room
tracing? layout prints Straight line wiring diagrams]
2 Which of the following describes Answers calls sequentially in direction of travel
selective collective elevator [Hint: Answers the first call entered answers
control? down calls when traveling up answer calls
sequentially in the direction of travel answers car
calls first then returns for Hall calls]
3 Which of the following statements Function switch to A~ ,red to lead to 10a jack
correctly describes how to black lead to com jack [Hint: Function switch to
measure AC current with a digital V~red lead to 10a jack black lead to com Function
meter switch to A~ red lead in com jack black to 10a
jack Function switch to A~ ,red to lead to 10a jack
black lead to com jack Function switch to A- red
lead to VO jack black lead to com jack]
4 What does the symbol below An scr [Hint: An scr A check valve A zener diode A
represent? varistor]
5 How is voltage tested with an With the leads connected in parallel with the load
analog meter [Hint: With the range selector switch to R X1 with
the range selector switch set to 100 MA with the
leads connected in series with the load with the
leads connected in parallel with the load]
6 After removing power what else is Remove one lead of the component from the
necessary before testing circuit [Hint: Plug the red lead in the 10 a jack
resistance of a component in a remove one lead of the component from the
circuit circuit both component leads must be isolated
from the circuit connect the multi meter leads in
series with the component]
7 With the digital multi meter set to An open coil [Hint: Circuit voltage is too high
the scale and the meter leads circuit current is too high A shorted coil an open
across a coil what would a reading coil]
of O.L. Indicate?
, 700 FINAL ELEVATOR
# Term Definition
8 If switch A were closed what Relay A energized, relay B de-energized [Hint:
would be the condition of the Relay A energized B de-energized relay B
relays energized relay A de-energized both relays
de-energized both relays energized]
9 What is the DC voltage output 1.33 x ac input
produced by a three phase full
wave silicone rectifier?
10 Which type of fuse would be used Time delay fuses
in AC motor or transformer
circuits
11 What type of fuse would be used Pico fuse
in a circuit to protect sensitive
solid state devices
12 Which type of coil circuit(s) would Two independent coils
be used on a mechanical latching
relay
13 What is used to reduce the hum or A shading coil
chatter of AC relays
14 What does a normally open -| |’-
mechanically operated contact
look like
15 What is the importance of relay To produce cleaning action
contact wipe or follow up
16 If the contact in the circuit were to 0v [Hint: 0v 55vdc 110vdc 110vac]
fail to close what would the
voltage be from A to -?
