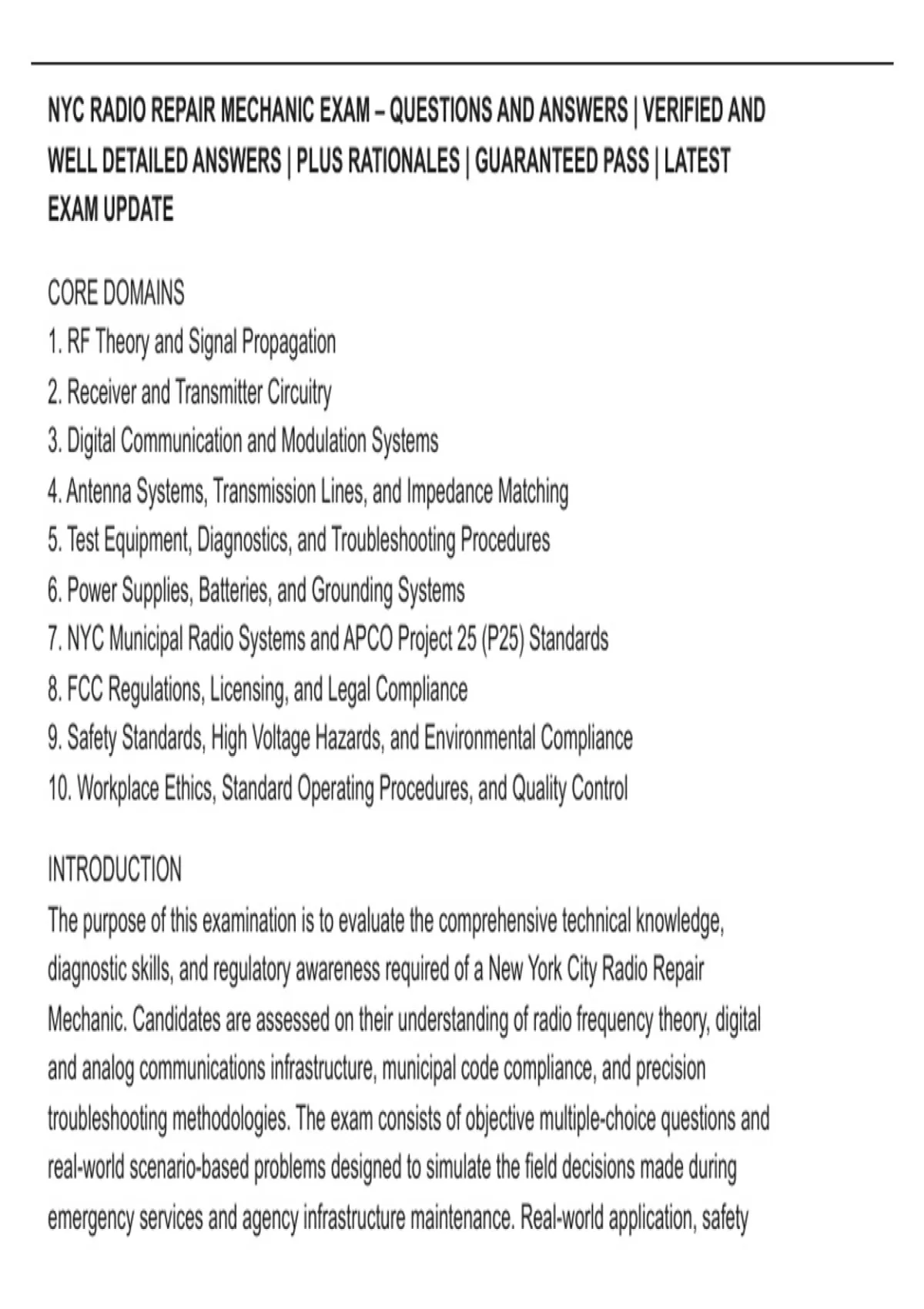

NYC RADIO REPAIR MECHANIC EXAM – QUESTIONS AND ANSWERS | VERIFIED AND
WELL DETAILED ANSWERS | PLUS RATIONALES | GUARANTEED PASS | LATEST
EXAM UPDATE
CORE DOMAINS
1. RF Theory and Signal Propagation
2. Receiver and Transmitter Circuitry
3. Digital Communication and Modulation Systems
4. Antenna Systems, Transmission Lines, and Impedance Matching
5. Test Equipment, Diagnostics, and Troubleshooting Procedures
6. Power Supplies, Batteries, and Grounding Systems
7. NYC Municipal Radio Systems and APCO Project 25 (P25) Standards
8. FCC Regulations, Licensing, and Legal Compliance
9. Safety Standards, High Voltage Hazards, and Environmental Compliance
10. Workplace Ethics, Standard Operating Procedures, and Quality Control
INTRODUCTION
The purpose of this examination is to evaluate the comprehensive technical knowledge,
diagnostic skills, and regulatory awareness required of a New York City Radio Repair
Mechanic. Candidates are assessed on their understanding of radio frequency theory, digital
and analog communications infrastructure, municipal code compliance, and precision
troubleshooting methodologies. The exam consists of objective multiple-choice questions and
real-world scenario-based problems designed to simulate the field decisions made during
emergency services and agency infrastructure maintenance. Real-world application, safety
,protocols, and critical decision-making under operational constraints are highly emphasized
to ensure the absolute integrity and reliability of the city's critical communication networks.
Question 1
Which of the following components is primarily used to isolate a radio transmitter from its
antenna system to prevent reflected power from damaging the power amplifier stage?
A. Diplexer
B. Circulator
C. Combiner
D. Attenuator
🟢 B. Circulator
🔴 Explanation: A circulator is a non-reciprocal ferrite device that routes microwave or RF
signals from one port to the next in a specific direction. When used as an isolator by
terminating the third port, it protects the transmitter by redirecting reflected power from the
antenna away from the power amplifier and into a dummy load.
Question 2
An emergency vehicle P25 mobile radio experiences intermittent transmission failures when
transmitting at full power, but works normally at low power. Which of the following is the most
likely cause?
,A. A loose or high-resistance ground connection at the vehicle chassis
B. An incorrect receiver tone squelch setting
C. The local oscillator frequency has drifted out of tolerance
D. An open-circuit condition in the microphone audio line
🟢 A. A loose or high-resistance ground connection at the vehicle chassis
🔴 Explanation: High-power transmissions demand significantly more current from the
vehicle's electrical system. A high-resistance ground or power connection causes a severe
voltage drop when current demand spikes, resetting or disabling the radio during full-power
transmissions. Low-power transmissions draw less current and may keep the voltage above
the reset threshold.
Question 3
According to FCC Part 90 regulations governing private land mobile radio services, what is
the maximum permissible frequency deviation for a transmitter operating on a narrow-band
12.5 kHz channel?
A. 5.0 kHz
B. 3.5 kHz
C. 2.5 kHz
D. 1.25 kHz
🟢 C. 2.5 kHz
, 🔴 Explanation: Under FCC Part 90 narrowbanding rules, channels with a 12.5 kHz
bandwidth are limited to a maximum frequency deviation of 2.5 kHz to prevent adjacent
channel interference. Legacy 25 kHz wideband channels permitted a 5.0 kHz deviation.
Question 4
During a routine preventative maintenance inspection of an NYC agency base station, a
technician measures a Voltage Standing Wave Ratio (VSWR) of 3.5:1 at the transmitter
output. This measurement indicates that:
A. The transmission system is perfectly matched and delivering maximum power.
B. A significant portion of the transmitted power is being reflected back to the transmitter.
C. The antenna is too long for the operating frequency but safe to operate.
D. The coaxial cable attenuation has increased beyond acceptable limits.
🟢 B. A significant portion of the transmitted power is being reflected back to the transmitter.
🔴 Explanation: A VSWR of 3.5:1 corresponds to a reflected power of approximately 31%,
indicating a severe impedance mismatch between the transmitter, transmission line, or
antenna. This condition degrades system efficiency and can cause thermal failure in the final
power amplifier stage.
Question 5
When troubleshooting a superheterodyne receiver that has zero audio output on any
channel, which stage should a mechanic test first using an oscilloscope or RF signal
