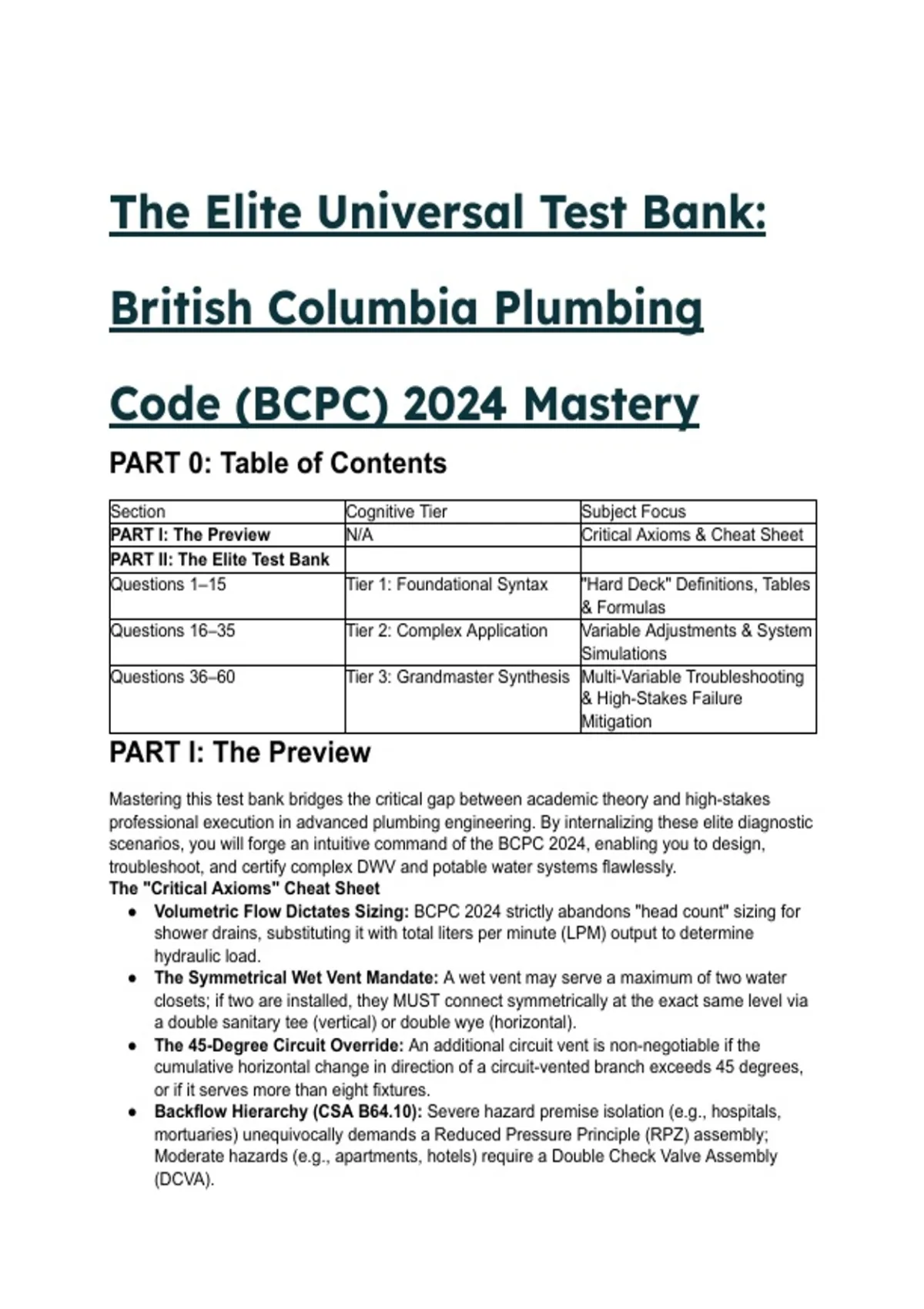

The Elite Universal Test Bank:
British Columbia Plumbing
Code (BCPC) 2024 Mastery
PART 0: Table of Contents
Section Cognitive Tier Subject Focus
PART I: The Preview N/A Critical Axioms & Cheat Sheet
PART II: The Elite Test Bank
Questions 1–15 Tier 1: Foundational Syntax "Hard Deck" Definitions, Tables
& Formulas
Questions 16–35 Tier 2: Complex Application Variable Adjustments & System
Simulations
Questions 36–60 Tier 3: Grandmaster Synthesis Multi-Variable Troubleshooting
& High-Stakes Failure
Mitigation
PART I: The Preview
Mastering this test bank bridges the critical gap between academic theory and high-stakes
professional execution in advanced plumbing engineering. By internalizing these elite diagnostic
scenarios, you will forge an intuitive command of the BCPC 2024, enabling you to design,
troubleshoot, and certify complex DWV and potable water systems flawlessly.
The "Critical Axioms" Cheat Sheet
● Volumetric Flow Dictates Sizing: BCPC 2024 strictly abandons "head count" sizing for
shower drains, substituting it with total liters per minute (LPM) output to determine
hydraulic load.
● The Symmetrical Wet Vent Mandate: A wet vent may serve a maximum of two water
closets; if two are installed, they MUST connect symmetrically at the exact same level via
a double sanitary tee (vertical) or double wye (horizontal).
● The 45-Degree Circuit Override: An additional circuit vent is non-negotiable if the
cumulative horizontal change in direction of a circuit-vented branch exceeds 45 degrees,
or if it serves more than eight fixtures.
● Backflow Hierarchy (CSA B64.10): Severe hazard premise isolation (e.g., hospitals,
mortuaries) unequivocally demands a Reduced Pressure Principle (RPZ) assembly;
Moderate hazards (e.g., apartments, hotels) require a Double Check Valve Assembly
(DCVA).
, ● Toxicity & Temperature Governance: All potable components must undergo
NSF/ANSI/CAN 61 toxicity testing, and discharge temperatures in healthcare/seniors'
facilities must never exceed 43°C.
PART II: THE ELITE TEST BANK
Q1: A shower drain receives 25 LPM from multiple connected body sprays. Based on BCPC
2024, which sizing calculation is the MOST ACCURATE? A) NPS 1-1/2, based on the historical
single-head metric. B) NPS 2, as discharge is maintained strictly under 30 LPM. C) NPS 3,
calculated at 6 fixture units for exceeding the 20 LPM threshold. D) NPS 4, calculated via the
31.7 FU per L/s continuous flow equation.
● The Answer: C (NPS 3, calculated at 6 fixture units for exceeding the 20 LPM threshold.)
● Distractor Analysis:
○ A is incorrect: The 2024 code update systematically eradicated head-count sizing,
shifting entirely to aggregate LPM metrics.
○ B is incorrect: NPS 2 is legally capped at 20 LPM; 25 LPM surpasses this boundary.
○ D is incorrect: The continuous flow multiplier (31.7) applies to constant mechanical
discharges like HVAC pumps, not intermittent shower systems.
The Mentor's Analysis: The architectural trend of high-output, multi-head shower assemblies
consistently overwhelmed legacy NPS 2 drains, leading to catastrophic pan flooding. The code
now forces sizing based on actual volumetric output rather than a nominal head count. By
transitioning to LPM, you bypass the trap of undersizing luxury residential configurations.
Professional/Academic Intuition: Aggregate total LPM, not hardware count, to determine
shower hydraulic load and prevent inevitable pan overflow.
Q2: A washing machine in a residential build operates independently, discharging without
draining into a laundry tray. Under BCPC 2024, which configuration is MANDATORY for the
standpipe? A) NPS 1-1/2 minimum size, 450 mm length. B) NPS 2 minimum size, 600 mm
minimum length measured from the trap weir. C) NPS 2 minimum size, 450 mm length
measured below the flood level rim. D) NPS 3 minimum size, 600 mm minimum length to
prevent detergent suds overflow.
● The Answer: B (NPS 2 minimum size, 600 mm minimum length measured from the trap
weir.)
● Distractor Analysis:
○ A is incorrect: The code explicitly struck NPS 1-1/2 sizing for clothes washers due
to the high discharge velocity of modern appliances.
○ C is incorrect: The 600 mm measurement must initiate precisely at the trap weir and
terminate above the flood level rim. * D is incorrect: NPS 3 is an unnecessary
over-specification; NPS 2 satisfies the hydraulic requirements without excessive
material cost.
The Mentor's Analysis: Modern high-efficiency clothes washers employ high-velocity
discharge pumps that easily overwhelm legacy 1-1/2 inch standpipes, resulting in localized
flooding and suds backup. The 2024 code definitively sets the floor at NPS 2 with a 600 mm
vertical drop to ensure adequate kinetic absorption. Professional/Academic Intuition: Always
size standalone washer standpipes at a strict NPS 2 minimum, locking the 600 mm length
directly from the trap weir.
Q3: A hospital requires premise isolation to protect the municipal water grid. According to CSA
B64.10, which mechanical backflow prevention device is the MOST APPROPRIATE for this
, installation? A) Air Gap (AG) only, to ensure absolute physical separation. B) Double Check
Valve Assembly (DCVA) tested semi-annually. C) Reduced Pressure Principle Backflow
Preventer (RPZ). D) Dual Check Valve with Atmospheric Port (DCAP).
● The Answer: C (Reduced Pressure Principle Backflow Preventer (RPZ).)
● Distractor Analysis:
○ A is incorrect: While an air gap is the ultimate protection, it breaks system pressure,
making it physically impossible for continuous main premise isolation in a large
facility.
○ B is incorrect: DCVAs are strictly relegated to moderate hazard profiles; hospitals
are classified as severe bio-chemical hazards.
○ D is incorrect: DCAPs lack the verifiable, mechanical fail-safes required for severe
bio-hazard containment.
The Mentor's Analysis: Hospitals pose a "Severe Hazard" involving highly toxic bio-chemicals,
pathogens, and reactive isotopes. An RPZ provides a verifiable, differential-pressure
mechanical fail-safe against both back-pressure and back-siphonage, actively dumping
contaminated water before it breaches the grid. Professional/Academic Intuition: Severe
biological or chemical hazards unequivocally demand RPZ assemblies; never
compromise premise isolation with a standard DCVA.
Q4: A mechanical contractor routes an NPS 2 trap arm. To maintain compliance with BCPC
Table 2.5.6.3, what is the MAXIMUM permitted developed length before a dedicated vent
connection is mandated? A) 1.5 m B) 1.8 m C) 2.4 m D) 3.6 m
● The Answer: C (2.4 m)
● Distractor Analysis:
○ A is incorrect: 1.5 m is the maximum permitted length for a smaller NPS 1-1/4 trap
arm.
○ B is incorrect: 1.8 m corresponds to the maximum length for an NPS 1-1/2 trap arm.
○ D is incorrect: 3.6 m applies exclusively to larger NPS 3 trap arms.
The Mentor's Analysis: Trap arms rely on strict length-to-diameter ratios to maintain a 1:50
downward slope without the trap weir dropping geometrically below the vent opening. If the arm
is overextended, the pipe fills completely, inducing catastrophic self-siphonage that strips the
trap seal. Professional/Academic Intuition: Memorize the trap arm gradient physics: 1.5m
(1.25"), 1.8m (1.5"), 2.4m (2"), and 3.6m (3").
Q5: A non-potable reclaimed water system is installed to supply trap seal primers in a
commercial complex. According to BCPC 2024 and CSA B128.1, how must this piping be
visually identified? A) Yellow piping marked every 1.0 m to indicate hazardous flow. B) Green
piping marked every 2.0 m with continuous reflective tape. C) Purple piping marked every 1.5 m
with explicit warning text. D) Blue piping with a continuous black longitudinal stripe.
● The Answer: C (Purple piping marked every 1.5 m with explicit warning text.)
● Distractor Analysis:
○ A is incorrect: Yellow is the universal legacy and modern color standard for gas
infrastructure, not non-potable water.
○ B is incorrect: Green denotes sewer or raw water in some municipal specs, but fails
the specific CSA B128.1 standard for non-potable interior systems.
○ D is incorrect: Blue is strictly reserved for identifying potable water lines.
The Mentor's Analysis: Cross-connection prevention relies heavily on immediate, universal
visual identification. To prevent catastrophic accidental taps into reclaimed water, purple is the
internationally recognized standard. The code enforces frequent (1.5 m) warnings to eliminate
any ambiguity. Professional/Academic Intuition: Non-potable distribution equals Purple,
