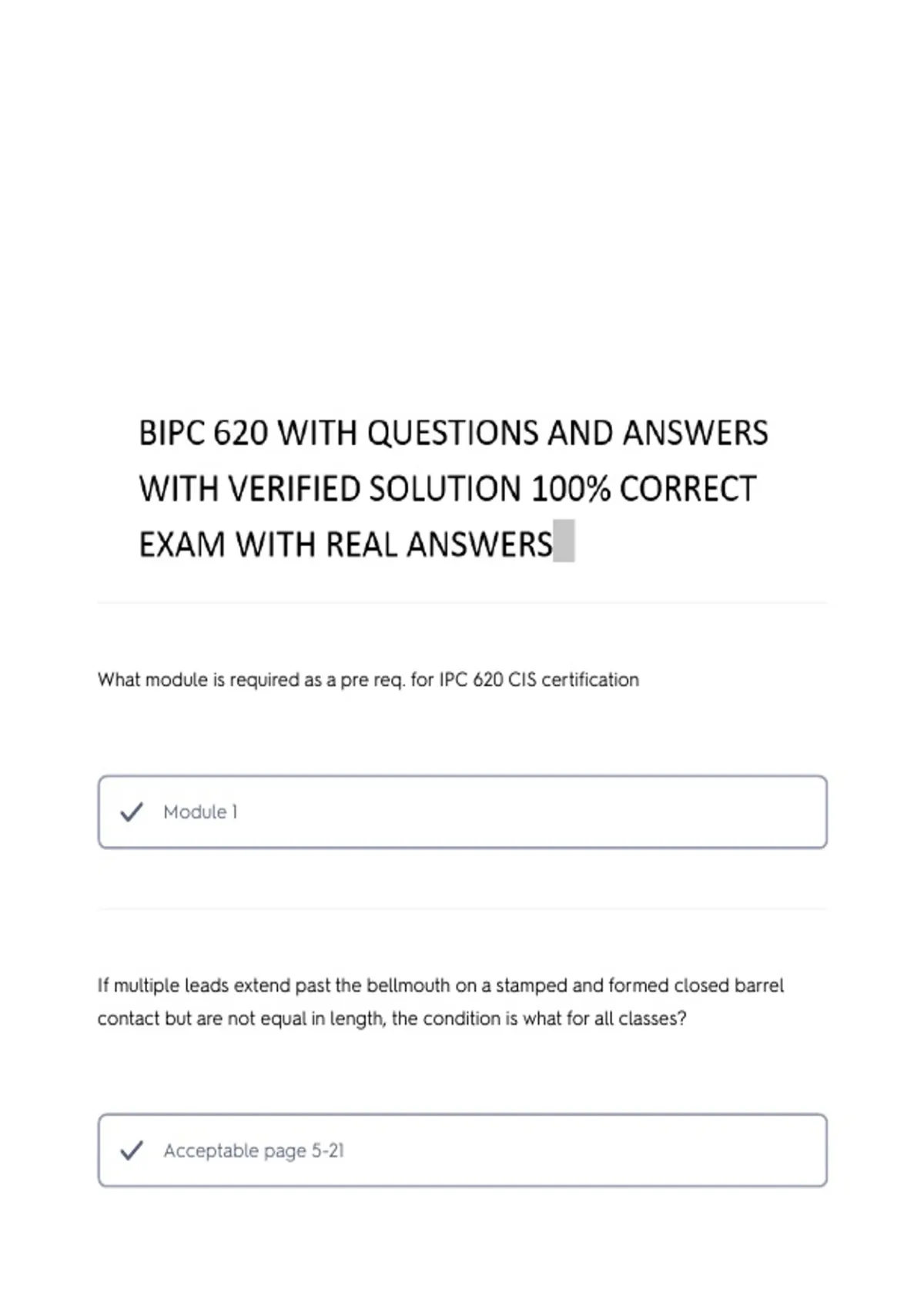

What module is required as a pre req. for IPC 620 CIS certification
Module 1
If multiple leads extend past the bellmouth on a stamped and formed closed barrel
contact but are not equal in length, the condition is what for all classes?
Acceptable page 5-21
,A wire that has been wrapped to a turret terminal with a minimum of 180 degrees and a
max. of 270 is considered what for all classes?
Target - Chapter 4, page 4-23
Scraped or nicked braid that DOES NOT exceed the scraped or nicked requirements of
table 13-1 are
A1P2P3 Ch 13 Stripping
The minimum turns of bare wire for a 22 AWG wire is
5 turns Table 18-1
A back braid lock stitch (direct applied) of at least what is acceptable for all classes
, 13 mm or 0.5 in
When inspecting a 22 AWG wire the inspection magnification range shall be
Give this one a try later!
1.5X-3X - Table 1-1
Hardware that has burrs or fayed edges is
Give this one a try later!
Defect for all classes Ch 20.
Blow through on a mold and not on an electrical mating surface that does not prevent
proper mating or function of the connector is
Give this one a try later!
A1P2P3 Ch 10 Over Molding Blow Through
Dents or kinks in wire loom tubing that does not interfere with the wire bundle
installation
, Give this one a try later!
acceptable for all classes Ch 16
Damage on restraining devices such as minor fraying, nicks or wear of less than of the
device thickness is A1D2D3
Give this one a try later!
25% Ch 14 Tie Wrap Lacing Damage
Safety wiring = the lock wire shall be installed such that the wire is put in the what if the
device tends to loosen
Give this one a try later!
Tension Ch 17 page 17-12 N1D2D3
What is the insulation clearance requirement for wires? for all classes?
Give this one a try later!
Module 1
If multiple leads extend past the bellmouth on a stamped and formed closed barrel
contact but are not equal in length, the condition is what for all classes?
Acceptable page 5-21
,A wire that has been wrapped to a turret terminal with a minimum of 180 degrees and a
max. of 270 is considered what for all classes?
Target - Chapter 4, page 4-23
Scraped or nicked braid that DOES NOT exceed the scraped or nicked requirements of
table 13-1 are
A1P2P3 Ch 13 Stripping
The minimum turns of bare wire for a 22 AWG wire is
5 turns Table 18-1
A back braid lock stitch (direct applied) of at least what is acceptable for all classes
, 13 mm or 0.5 in
When inspecting a 22 AWG wire the inspection magnification range shall be
Give this one a try later!
1.5X-3X - Table 1-1
Hardware that has burrs or fayed edges is
Give this one a try later!
Defect for all classes Ch 20.
Blow through on a mold and not on an electrical mating surface that does not prevent
proper mating or function of the connector is
Give this one a try later!
A1P2P3 Ch 10 Over Molding Blow Through
Dents or kinks in wire loom tubing that does not interfere with the wire bundle
installation
, Give this one a try later!
acceptable for all classes Ch 16
Damage on restraining devices such as minor fraying, nicks or wear of less than of the
device thickness is A1D2D3
Give this one a try later!
25% Ch 14 Tie Wrap Lacing Damage
Safety wiring = the lock wire shall be installed such that the wire is put in the what if the
device tends to loosen
Give this one a try later!
Tension Ch 17 page 17-12 N1D2D3
What is the insulation clearance requirement for wires? for all classes?
Give this one a try later!
