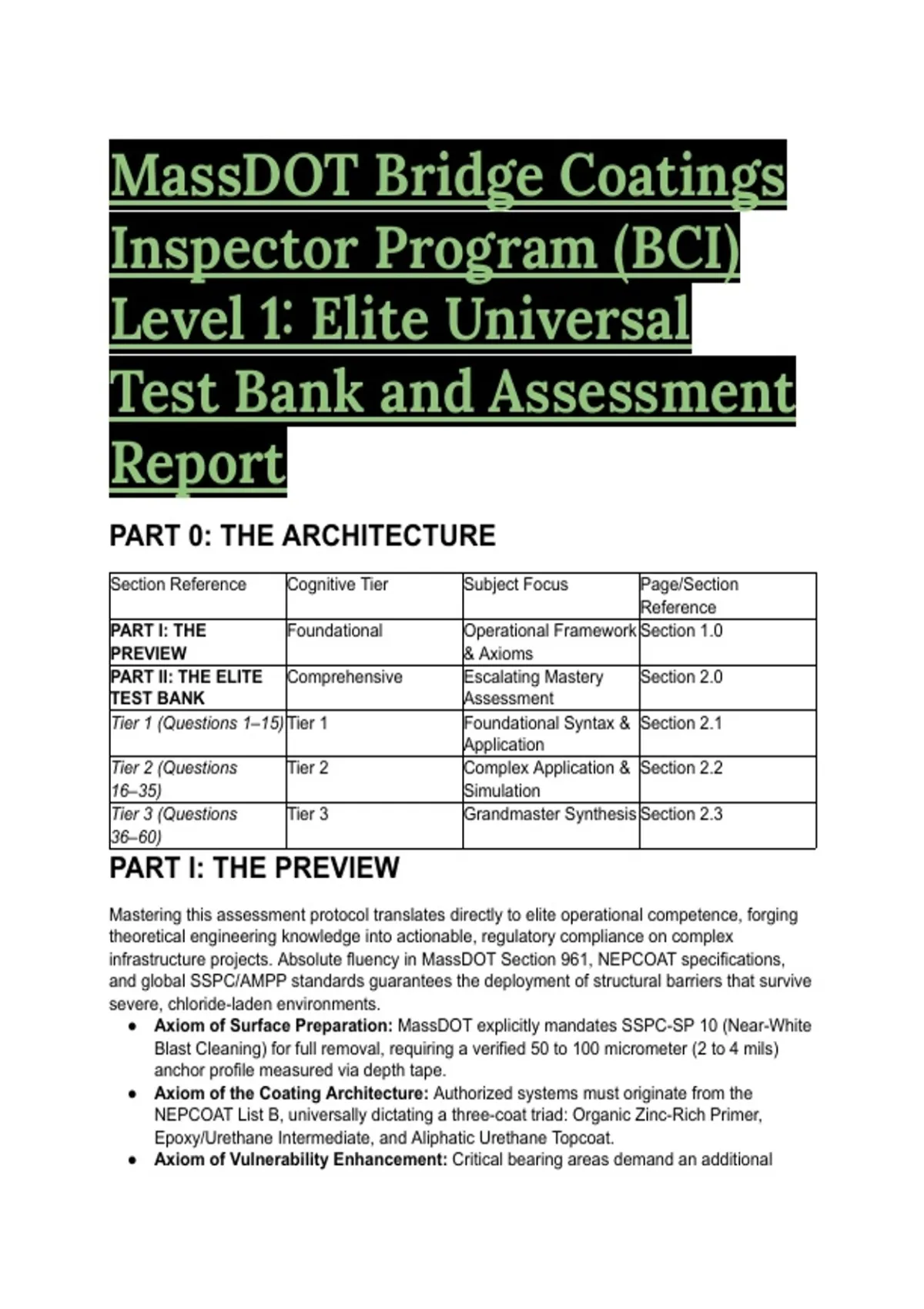

MassDOT Bridge Coatings
Inspector Program (BCI)
Level 1: Elite Universal
Test Bank and Assessment
Report
PART 0: THE ARCHITECTURE
Section Reference Cognitive Tier Subject Focus Page/Section
Reference
PART I: THE Foundational Operational Framework Section 1.0
PREVIEW & Axioms
PART II: THE ELITE Comprehensive Escalating Mastery Section 2.0
TEST BANK Assessment
Tier 1 (Questions 1–15) Tier 1 Foundational Syntax & Section 2.1
Application
Tier 2 (Questions Tier 2 Complex Application & Section 2.2
16–35) Simulation
Tier 3 (Questions Tier 3 Grandmaster Synthesis Section 2.3
36–60)
PART I: THE PREVIEW
Mastering this assessment protocol translates directly to elite operational competence, forging
theoretical engineering knowledge into actionable, regulatory compliance on complex
infrastructure projects. Absolute fluency in MassDOT Section 961, NEPCOAT specifications,
and global SSPC/AMPP standards guarantees the deployment of structural barriers that survive
severe, chloride-laden environments.
● Axiom of Surface Preparation: MassDOT explicitly mandates SSPC-SP 10 (Near-White
Blast Cleaning) for full removal, requiring a verified 50 to 100 micrometer (2 to 4 mils)
anchor profile measured via depth tape.
● Axiom of the Coating Architecture: Authorized systems must originate from the
NEPCOAT List B, universally dictating a three-coat triad: Organic Zinc-Rich Primer,
Epoxy/Urethane Intermediate, and Aliphatic Urethane Topcoat.
● Axiom of Vulnerability Enhancement: Critical bearing areas demand an additional
, intermediate coat (3 mils DFT) extending 1.5 meters (5 feet) from the beam end;
furthermore, all complex geometries must receive a manual stripe coat prior to the full
intermediate application.
● Axiom of Environmental Control: Field applications absolutely mandate Class 3A
Containment, strict adherence to a 450 g/L Maximum VOC limit, and precise
psychrometric testing per ASTM E337.
● Axiom of Lead Abatement: Legacy structural coatings are universally assumed to
contain hazardous lead (Pb) and must be isolated, collected, and processed under strict
environmental protection protocols.
PART II: THE ELITE TEST BANK
Tier 1 - Foundational Syntax & Application
Q1: A newly deployed inspector observes an abrasive blasting operation intended to remove
mill scale, rust, and old paint from a structural steel girder. The project specification mandates
SSPC-SP 10. Based on the principles of MassDOT Section 961 and AMPP Surface Preparation
Standards, which allowable residue threshold is the MOST ACCURATE? A) The surface must
be completely free of all visible contaminants, representing a perfectly uniform metallic color
with zero percent staining. B) The surface may retain tightly adhering rust and mill scale,
provided it is aggressively scraped and wire-brushed. C) The surface must be free of all visible
oil, grease, dust, and rust, but random staining from prior rust or paint may remain on up to 5
percent of each unit area. D) The surface may exhibit up to 33 percent staining from rust or old
paint, provided the underlying steel is profiled to 3 mils.
● The Answer: C (The surface must be free of all visible oil, grease, dust, and rust, but
random staining from prior rust or paint may remain on up to 5 percent of each unit area.)
● Distractor Analysis:
○ A is incorrect: This strictly defines SSPC-SP 5 (White Metal Blast Cleaning), which
represents a higher, more exhaustive degree of cleanliness than SP 10.
○ B is incorrect: This defines SSPC-SP 2 or SP 3 (Hand/Power Tool Cleaning), which
is entirely insufficient for full removal under MassDOT 961.
○ D is incorrect: This defines SSPC-SP 6 (Commercial Blast Cleaning), which allows
up to 33 percent staining, falling short of the strict "Near-White" mandate.
The Mentor's Analysis: SSPC-SP 10 (Near-White Metal Blast) serves as the foundational
requirement for long-term structural coating adhesion in severe environments. When evaluating
SP 10, the immediate priority is the visual quantification of remaining stain. By utilizing SSPC
VIS 1 photographic standards, the inspector bypasses the common trap of demanding SP 5
perfection or accepting SP 6 commercial leniency. Professional/Academic Intuition: The 5
percent variance rule separates "Near-White" (SP 10) from "White Metal" (SP 5); understand
this visual boundary absolutely.
Q2: Following an abrasive blasting sequence on a bridge fascia beam, an inspector prepares to
measure the surface profile. According to MassDOT Section 961, which metric defines the
REQUIRED blast profile, and which instrument MUST be utilized? A) A 1 to 2 mil profile
measured exclusively with a wet film thickness gauge. B) A 2 to 4 mil (50 to 100 micrometers)
profile measured with a profile depth tape and micrometer. C) A 3 to 5 mil profile measured
using a magnetic induction dry film thickness gauge. D) A 5 to 7 mil profile evaluated solely
through visual comparison against ISO 8501-1.
, ● The Answer: B (A 2 to 4 mil (50 to 100 micrometers) profile measured with a profile
depth tape and micrometer.)
● Distractor Analysis:
○ A is incorrect: A 1 to 2 mil depth is insufficient for modern high-build zinc primers,
and a WFT gauge measures liquid paint volume, not steel profile roughness.
○ C is incorrect: Magnetic induction gauges measure the dry film thickness of a cured
coating over steel, possessing zero capability to measure the microscopic peaks
and valleys of bare blasted steel.
○ D is incorrect: ISO 8501-1 assesses the visual cleanliness of steel, not the physical
peak-to-valley profile depth.
The Mentor's Analysis: Coating adhesion relies entirely on mechanical tooth. When evaluating
newly blasted steel, the immediate priority is verifying the physical depth of the anchor profile.
By utilizing Profile Depth Tape (Replica Tape), the inspector bypasses the common trap of
relying on subjective visual estimators. Professional/Academic Intuition: MassDOT strictly
mandates a 2 to 4 mil anchor profile; any deviation severely compromises the primer's ability to
lock into the substrate.
Q3: During the application of a high-solids epoxy intermediate coat, an applicator utilizes a
standard Wet Film Thickness (WFT) gauge. Based on the operational mechanics of inspection
tools, which statement regarding this measurement is the MOST ACCURATE? A) The WFT
gauge utilizes magnetic induction to calculate the mass of the liquid coating. B) The WFT gauge
utilizes physical notches of known dimensions to capture the remaining coating depth. C) The
WFT gauge relies on capillary action to draw solvent into a vacuum chamber for volume
analysis. D) The WFT gauge penetrates the steel substrate to measure the combined profile
and liquid thickness.
● The Answer: B (The WFT gauge utilizes physical notches of known dimensions to
capture the remaining coating depth.)
● Distractor Analysis:
○ A is incorrect: Magnetic induction is strictly reserved for electronic Type 2 Dry Film
Thickness (DFT) gauges operating on cured coatings over ferrous substrates.
○ C is incorrect: Capillary action is irrelevant to step-comb style wet film thickness
gauges, which rely entirely on physical contact and visual confirmation of wetted
teeth.
○ D is incorrect: The gauge touches the substrate peaks, measuring the liquid film
above those peaks, completely independent of the steel's internal profile.
The Mentor's Analysis: Real-time application adjustments depend entirely on accurate WFT
monitoring. When evaluating applicator technique, the immediate priority is calculating the
required wet film to achieve the target dry film thickness. By utilizing Physical Notch Gauges, the
inspector bypasses the common trap of under-applying high-solids materials.
Professional/Academic Intuition: The WFT comb provides instant physical feedback; the last
wetted tooth indicates the exact minimum liquid depth resting on the structural steel.
Q4: A contractor selects a coating system for the full rehabilitation of a steel bridge over a
marine environment. According to MassDOT Section 961, the coating system must be selected
from the NEPCOAT Qualified Products List. Based on NEPCOAT List B standards, which
specific chemical architecture is MANDATED? A) Alkyd Primer / Acrylic Intermediate /
Waterborne Finish B) Moisture-Cured Urethane Primer / Epoxy Intermediate / Acrylic Finish C)
Organic Zinc-Rich Primer / Epoxy or Urethane Intermediate / Aliphatic Urethane Finish D)
Inorganic Zinc Primer / Alkyd Intermediate / Coal Tar Epoxy Finish
● The Answer: C (Organic Zinc-Rich Primer / Epoxy or Urethane Intermediate / Aliphatic
, Urethane Finish)
● Distractor Analysis:
○ A is incorrect: Alkyd systems lack the galvanic protection and chemical resistance
required for severe structural highway environments.
○ B is incorrect: While moisture-cured urethanes exist, they do not align with the
standard NEPCOAT List B triad required by MassDOT for general new and existing
bare steel.
○ D is incorrect: Coal tar epoxies are legacy immersion coatings, and applying alkyds
over zinc primers creates severe saponification risks.
The Mentor's Analysis: The NEPCOAT List B system serves as the definitive standard for
Northeastern structural steel preservation. When verifying materials, the immediate priority is
confirming the specific chemical triad. By utilizing the Organic Zinc/Epoxy/Aliphatic Urethane
system, the agency bypasses the common trap of premature coating degradation from UV
exposure and chloride attack. Professional/Academic Intuition: The zinc primer provides
galvanic sacrifice; the epoxy provides a dense moisture barrier; the aliphatic urethane provides
absolute UV stability.
Q5: An inspection team encounters an area where dissimilar metals—a carbon steel beam and
a stainless steel drainage support—are electrically coupled and exposed to chloride-laden
moisture. Based on the principles of corrosion engineering, which phenomenon is MOST
LIKELY to occur? A) Uniform loss of metal across both substrates simultaneously. B) Pitting
corrosion confined exclusively to the crevices beneath the connecting bolts. C) Galvanic
corrosion, where the more anodic metal corrodes at an accelerated rate. D) Stress corrosion
cracking driven entirely by the alkaline nature of the moisture.
● The Answer: C (Galvanic corrosion, where the more anodic metal corrodes at an
accelerated rate.)
● Distractor Analysis:
○ A is incorrect: Uniform corrosion occurs on single-metal substrates exposed to the
atmosphere, not dissimilar metals in contact.
○ B is incorrect: While crevice corrosion may occur, the dominant, accelerated failure
mode driven by the bimetallic coupling is galvanic corrosion.
○ D is incorrect: Stress corrosion cracking requires specific high-tensile stress
environments and is not the primary definition of bimetallic coupling.
The Mentor's Analysis: Structural assemblies frequently merge varying alloys. When facing
dissimilar metal couplings in an electrolyte, the immediate priority is localized barrier isolation.
By understanding Galvanic Potential, the inspector bypasses the common trap of ignoring
aggressive, localized anodic degradation. Professional/Academic Intuition: In a galvanic cell,
the less noble (more anodic) metal acts as a sacrificial anode and degrades rapidly; the coating
must perfectly isolate the electrolyte to sever the circuit.
Q6: Prior to the application of any primer, a contractor initiates a cleaning protocol utilizing
solvents and clean rags. According to MassDOT specifications and SSPC standards, what is
the primary purpose of SSPC-SP 1 (Solvent Cleaning)? A) To remove tightly adhered mill scale
and heavy rust prior to topcoat application. B) To achieve a 2 to 4 mil surface profile through
chemical etching. C) To remove all visible oil, grease, soil, drawing and cutting compounds, and
other soluble contaminants. D) To dissolve existing lead-based paint to avoid airborne
particulate containment.
● The Answer: C (To remove all visible oil, grease, soil, drawing and cutting compounds,
and other soluble contaminants.)
● Distractor Analysis:
Inspector Program (BCI)
Level 1: Elite Universal
Test Bank and Assessment
Report
PART 0: THE ARCHITECTURE
Section Reference Cognitive Tier Subject Focus Page/Section
Reference
PART I: THE Foundational Operational Framework Section 1.0
PREVIEW & Axioms
PART II: THE ELITE Comprehensive Escalating Mastery Section 2.0
TEST BANK Assessment
Tier 1 (Questions 1–15) Tier 1 Foundational Syntax & Section 2.1
Application
Tier 2 (Questions Tier 2 Complex Application & Section 2.2
16–35) Simulation
Tier 3 (Questions Tier 3 Grandmaster Synthesis Section 2.3
36–60)
PART I: THE PREVIEW
Mastering this assessment protocol translates directly to elite operational competence, forging
theoretical engineering knowledge into actionable, regulatory compliance on complex
infrastructure projects. Absolute fluency in MassDOT Section 961, NEPCOAT specifications,
and global SSPC/AMPP standards guarantees the deployment of structural barriers that survive
severe, chloride-laden environments.
● Axiom of Surface Preparation: MassDOT explicitly mandates SSPC-SP 10 (Near-White
Blast Cleaning) for full removal, requiring a verified 50 to 100 micrometer (2 to 4 mils)
anchor profile measured via depth tape.
● Axiom of the Coating Architecture: Authorized systems must originate from the
NEPCOAT List B, universally dictating a three-coat triad: Organic Zinc-Rich Primer,
Epoxy/Urethane Intermediate, and Aliphatic Urethane Topcoat.
● Axiom of Vulnerability Enhancement: Critical bearing areas demand an additional
, intermediate coat (3 mils DFT) extending 1.5 meters (5 feet) from the beam end;
furthermore, all complex geometries must receive a manual stripe coat prior to the full
intermediate application.
● Axiom of Environmental Control: Field applications absolutely mandate Class 3A
Containment, strict adherence to a 450 g/L Maximum VOC limit, and precise
psychrometric testing per ASTM E337.
● Axiom of Lead Abatement: Legacy structural coatings are universally assumed to
contain hazardous lead (Pb) and must be isolated, collected, and processed under strict
environmental protection protocols.
PART II: THE ELITE TEST BANK
Tier 1 - Foundational Syntax & Application
Q1: A newly deployed inspector observes an abrasive blasting operation intended to remove
mill scale, rust, and old paint from a structural steel girder. The project specification mandates
SSPC-SP 10. Based on the principles of MassDOT Section 961 and AMPP Surface Preparation
Standards, which allowable residue threshold is the MOST ACCURATE? A) The surface must
be completely free of all visible contaminants, representing a perfectly uniform metallic color
with zero percent staining. B) The surface may retain tightly adhering rust and mill scale,
provided it is aggressively scraped and wire-brushed. C) The surface must be free of all visible
oil, grease, dust, and rust, but random staining from prior rust or paint may remain on up to 5
percent of each unit area. D) The surface may exhibit up to 33 percent staining from rust or old
paint, provided the underlying steel is profiled to 3 mils.
● The Answer: C (The surface must be free of all visible oil, grease, dust, and rust, but
random staining from prior rust or paint may remain on up to 5 percent of each unit area.)
● Distractor Analysis:
○ A is incorrect: This strictly defines SSPC-SP 5 (White Metal Blast Cleaning), which
represents a higher, more exhaustive degree of cleanliness than SP 10.
○ B is incorrect: This defines SSPC-SP 2 or SP 3 (Hand/Power Tool Cleaning), which
is entirely insufficient for full removal under MassDOT 961.
○ D is incorrect: This defines SSPC-SP 6 (Commercial Blast Cleaning), which allows
up to 33 percent staining, falling short of the strict "Near-White" mandate.
The Mentor's Analysis: SSPC-SP 10 (Near-White Metal Blast) serves as the foundational
requirement for long-term structural coating adhesion in severe environments. When evaluating
SP 10, the immediate priority is the visual quantification of remaining stain. By utilizing SSPC
VIS 1 photographic standards, the inspector bypasses the common trap of demanding SP 5
perfection or accepting SP 6 commercial leniency. Professional/Academic Intuition: The 5
percent variance rule separates "Near-White" (SP 10) from "White Metal" (SP 5); understand
this visual boundary absolutely.
Q2: Following an abrasive blasting sequence on a bridge fascia beam, an inspector prepares to
measure the surface profile. According to MassDOT Section 961, which metric defines the
REQUIRED blast profile, and which instrument MUST be utilized? A) A 1 to 2 mil profile
measured exclusively with a wet film thickness gauge. B) A 2 to 4 mil (50 to 100 micrometers)
profile measured with a profile depth tape and micrometer. C) A 3 to 5 mil profile measured
using a magnetic induction dry film thickness gauge. D) A 5 to 7 mil profile evaluated solely
through visual comparison against ISO 8501-1.
, ● The Answer: B (A 2 to 4 mil (50 to 100 micrometers) profile measured with a profile
depth tape and micrometer.)
● Distractor Analysis:
○ A is incorrect: A 1 to 2 mil depth is insufficient for modern high-build zinc primers,
and a WFT gauge measures liquid paint volume, not steel profile roughness.
○ C is incorrect: Magnetic induction gauges measure the dry film thickness of a cured
coating over steel, possessing zero capability to measure the microscopic peaks
and valleys of bare blasted steel.
○ D is incorrect: ISO 8501-1 assesses the visual cleanliness of steel, not the physical
peak-to-valley profile depth.
The Mentor's Analysis: Coating adhesion relies entirely on mechanical tooth. When evaluating
newly blasted steel, the immediate priority is verifying the physical depth of the anchor profile.
By utilizing Profile Depth Tape (Replica Tape), the inspector bypasses the common trap of
relying on subjective visual estimators. Professional/Academic Intuition: MassDOT strictly
mandates a 2 to 4 mil anchor profile; any deviation severely compromises the primer's ability to
lock into the substrate.
Q3: During the application of a high-solids epoxy intermediate coat, an applicator utilizes a
standard Wet Film Thickness (WFT) gauge. Based on the operational mechanics of inspection
tools, which statement regarding this measurement is the MOST ACCURATE? A) The WFT
gauge utilizes magnetic induction to calculate the mass of the liquid coating. B) The WFT gauge
utilizes physical notches of known dimensions to capture the remaining coating depth. C) The
WFT gauge relies on capillary action to draw solvent into a vacuum chamber for volume
analysis. D) The WFT gauge penetrates the steel substrate to measure the combined profile
and liquid thickness.
● The Answer: B (The WFT gauge utilizes physical notches of known dimensions to
capture the remaining coating depth.)
● Distractor Analysis:
○ A is incorrect: Magnetic induction is strictly reserved for electronic Type 2 Dry Film
Thickness (DFT) gauges operating on cured coatings over ferrous substrates.
○ C is incorrect: Capillary action is irrelevant to step-comb style wet film thickness
gauges, which rely entirely on physical contact and visual confirmation of wetted
teeth.
○ D is incorrect: The gauge touches the substrate peaks, measuring the liquid film
above those peaks, completely independent of the steel's internal profile.
The Mentor's Analysis: Real-time application adjustments depend entirely on accurate WFT
monitoring. When evaluating applicator technique, the immediate priority is calculating the
required wet film to achieve the target dry film thickness. By utilizing Physical Notch Gauges, the
inspector bypasses the common trap of under-applying high-solids materials.
Professional/Academic Intuition: The WFT comb provides instant physical feedback; the last
wetted tooth indicates the exact minimum liquid depth resting on the structural steel.
Q4: A contractor selects a coating system for the full rehabilitation of a steel bridge over a
marine environment. According to MassDOT Section 961, the coating system must be selected
from the NEPCOAT Qualified Products List. Based on NEPCOAT List B standards, which
specific chemical architecture is MANDATED? A) Alkyd Primer / Acrylic Intermediate /
Waterborne Finish B) Moisture-Cured Urethane Primer / Epoxy Intermediate / Acrylic Finish C)
Organic Zinc-Rich Primer / Epoxy or Urethane Intermediate / Aliphatic Urethane Finish D)
Inorganic Zinc Primer / Alkyd Intermediate / Coal Tar Epoxy Finish
● The Answer: C (Organic Zinc-Rich Primer / Epoxy or Urethane Intermediate / Aliphatic
, Urethane Finish)
● Distractor Analysis:
○ A is incorrect: Alkyd systems lack the galvanic protection and chemical resistance
required for severe structural highway environments.
○ B is incorrect: While moisture-cured urethanes exist, they do not align with the
standard NEPCOAT List B triad required by MassDOT for general new and existing
bare steel.
○ D is incorrect: Coal tar epoxies are legacy immersion coatings, and applying alkyds
over zinc primers creates severe saponification risks.
The Mentor's Analysis: The NEPCOAT List B system serves as the definitive standard for
Northeastern structural steel preservation. When verifying materials, the immediate priority is
confirming the specific chemical triad. By utilizing the Organic Zinc/Epoxy/Aliphatic Urethane
system, the agency bypasses the common trap of premature coating degradation from UV
exposure and chloride attack. Professional/Academic Intuition: The zinc primer provides
galvanic sacrifice; the epoxy provides a dense moisture barrier; the aliphatic urethane provides
absolute UV stability.
Q5: An inspection team encounters an area where dissimilar metals—a carbon steel beam and
a stainless steel drainage support—are electrically coupled and exposed to chloride-laden
moisture. Based on the principles of corrosion engineering, which phenomenon is MOST
LIKELY to occur? A) Uniform loss of metal across both substrates simultaneously. B) Pitting
corrosion confined exclusively to the crevices beneath the connecting bolts. C) Galvanic
corrosion, where the more anodic metal corrodes at an accelerated rate. D) Stress corrosion
cracking driven entirely by the alkaline nature of the moisture.
● The Answer: C (Galvanic corrosion, where the more anodic metal corrodes at an
accelerated rate.)
● Distractor Analysis:
○ A is incorrect: Uniform corrosion occurs on single-metal substrates exposed to the
atmosphere, not dissimilar metals in contact.
○ B is incorrect: While crevice corrosion may occur, the dominant, accelerated failure
mode driven by the bimetallic coupling is galvanic corrosion.
○ D is incorrect: Stress corrosion cracking requires specific high-tensile stress
environments and is not the primary definition of bimetallic coupling.
The Mentor's Analysis: Structural assemblies frequently merge varying alloys. When facing
dissimilar metal couplings in an electrolyte, the immediate priority is localized barrier isolation.
By understanding Galvanic Potential, the inspector bypasses the common trap of ignoring
aggressive, localized anodic degradation. Professional/Academic Intuition: In a galvanic cell,
the less noble (more anodic) metal acts as a sacrificial anode and degrades rapidly; the coating
must perfectly isolate the electrolyte to sever the circuit.
Q6: Prior to the application of any primer, a contractor initiates a cleaning protocol utilizing
solvents and clean rags. According to MassDOT specifications and SSPC standards, what is
the primary purpose of SSPC-SP 1 (Solvent Cleaning)? A) To remove tightly adhered mill scale
and heavy rust prior to topcoat application. B) To achieve a 2 to 4 mil surface profile through
chemical etching. C) To remove all visible oil, grease, soil, drawing and cutting compounds, and
other soluble contaminants. D) To dissolve existing lead-based paint to avoid airborne
particulate containment.
● The Answer: C (To remove all visible oil, grease, soil, drawing and cutting compounds,
and other soluble contaminants.)
● Distractor Analysis:
