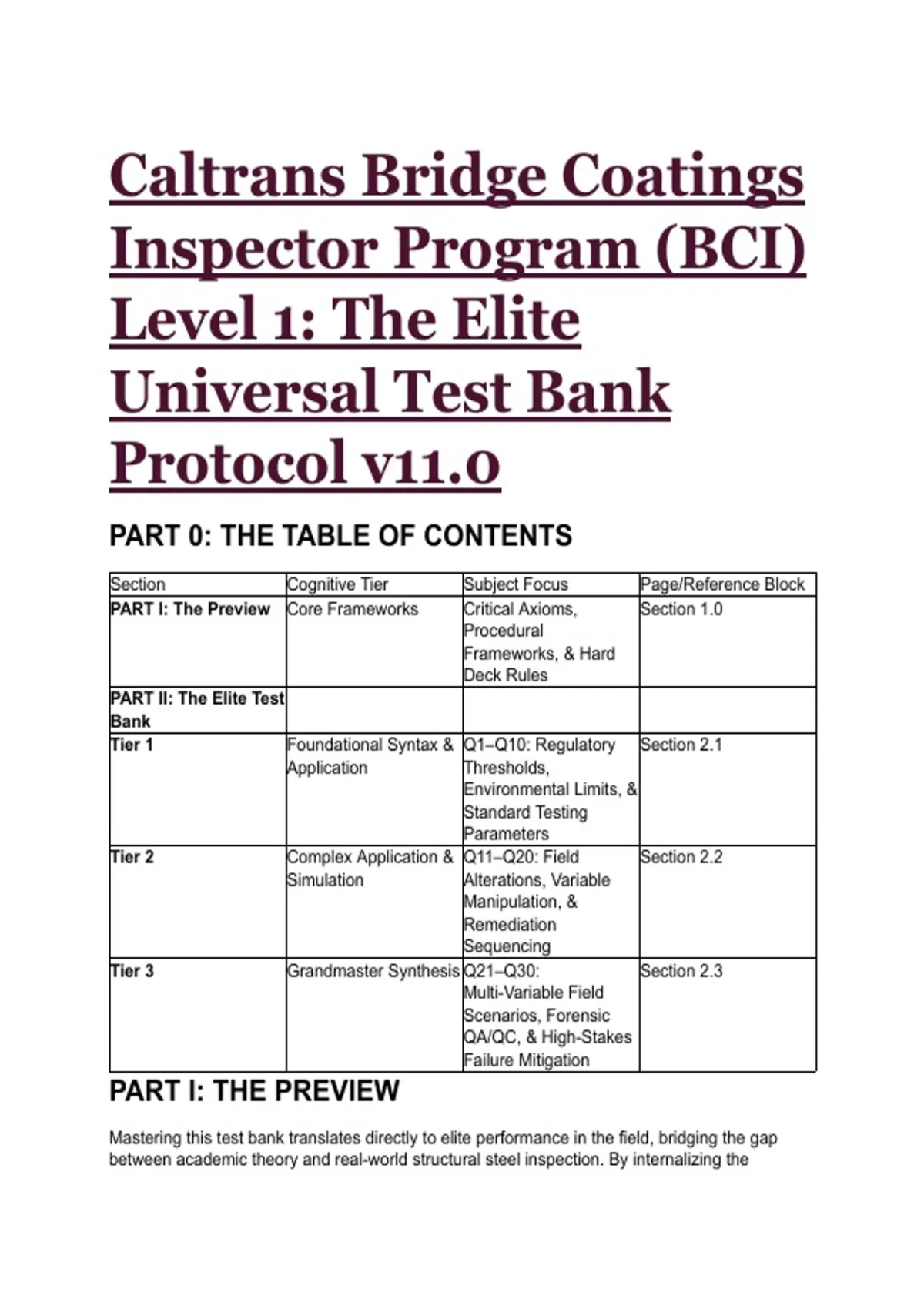

Caltrans Bridge Coatings
Inspector Program (BCI)
Level 1: The Elite
Universal Test Bank
Protocol v11.0
PART 0: THE TABLE OF CONTENTS
Section Cognitive Tier Subject Focus Page/Reference Block
PART I: The Preview Core Frameworks Critical Axioms, Section 1.0
Procedural
Frameworks, & Hard
Deck Rules
PART II: The Elite Test
Bank
Tier 1 Foundational Syntax & Q1–Q10: Regulatory Section 2.1
Application Thresholds,
Environmental Limits, &
Standard Testing
Parameters
Tier 2 Complex Application & Q11–Q20: Field Section 2.2
Simulation Alterations, Variable
Manipulation, &
Remediation
Sequencing
Tier 3 Grandmaster Synthesis Q21–Q30: Section 2.3
Multi-Variable Field
Scenarios, Forensic
QA/QC, & High-Stakes
Failure Mitigation
PART I: THE PREVIEW
Mastering this test bank translates directly to elite performance in the field, bridging the gap
between academic theory and real-world structural steel inspection. By internalizing the
,Caltrans Standard Specifications (Section 59) and SSPC protocols, the candidate transforms
from a passive observer into an authoritative enforcer of coating longevity, structural integrity,
and public safety.
The "Critical Axioms" Cheat Sheet:
● The Thermodynamic Window: Ambient air and surface temperatures must remain
strictly between 51°F and 100°F. Relative humidity (RH) must never exceed 75%.
Crucially, the steel surface temperature must remain a minimum of 5°F above the ambient
dew point to prevent micro-condensation.
● The Chemical Cleanliness Threshold: Cleaned surfaces must never exceed a
maximum soluble salt level of 10 micrograms per square centimeter (µg/cm²). Visual
cleanliness does not equate to chemical readiness.
● Adhesion and Curing Baselines: Coating adhesion to steel must achieve a minimum of
600 psi when tested via ASTM D4541. Furthermore, dry-to-solvent insolubility for
AASHTO M 300 Type II inorganic zinc primers must achieve a resistance rating of at least
4 using water as the solvent.
● The Certification Matrix: Field painting requires an SSPC-QP 1 certification. However,
the abatement and removal of hazardous coatings (lead-based paint) unequivocally
require an SSPC-QP 2 certification.
● Geometric Sealing Protocols: Caulk must be applied to all open seams greater than 6
mils wide only after the application of the undercoat. Stripe coats must cover all edges,
corners, and crevices to counteract surface tension thinning.
Caltrans QA/QC Frequency Directives
Testing Protocol Standard / Method Required Testing Regulatory Limit
Frequency
Soluble Salts SSPC-TU 4 (Cell 3 tests for the first Max 10 µg/cm².
Retrieval) 1,000 sq ft; 1 test per
additional 1,000 sq ft
(or fraction thereof) per
shift.
Adhesion ASTM D4541 (Pull-off) 1 test per designated Min 600 psi.
area. If 1 fails, perform
3 additional tests. If 2
total fail, reject the
entire area.
Insolubility ASTM D4752 (Water 1 test per 500 sq ft or Min Rating 4.
solvent) fraction thereof for
AASHTO M 300 Type II
inorganic zinc.
PART II: THE ELITE TEST BANK
Tier 1: Foundational Syntax & Application
Q1: According to Caltrans Standard Specifications Section 59, which of the following
environmental profiles strictly prohibits the application of structural steel coatings? A) Air
temperature is 55°F, surface temperature is 60°F, relative humidity is 60%, and the surface
, temperature is 8°F above the dew point. B) Air temperature is 95°F, surface temperature is 98°F,
relative humidity is 70%, and the surface temperature is 10°F above the dew point. C) Air
temperature is 65°F, surface temperature is 65°F, relative humidity is 72%, and the surface
temperature is 3°F above the dew point. D) Air temperature is 75°F, surface temperature is
78°F, relative humidity is 50%, and the surface temperature is 15°F above the dew point.
● The Answer: C (Air temperature is 65°F, surface temperature is 65°F, relative humidity is
72%, and the surface temperature is 3°F above the dew point.)
● Distractor Analysis:
○ A is incorrect: All recorded metrics fall safely within the acceptable ranges defined
by Caltrans: temperatures between 51-100°F, relative humidity below 75%, and a
surface temperature greater than 5°F above the dew point.
○ B is incorrect: Despite being a hot environment, the temperatures are legally below
the 100°F maximum threshold, and the 10°F dew point spread provides an
exceptionally safe thermodynamic margin against flash rusting.
○ D is incorrect: This data set represents ideal painting conditions with an extremely
low relative humidity and a wide, safe dew point margin.
The Mentor's Analysis: Coating failures often originate from micro-condensation invisible to
the naked eye. When facing changing weather conditions, the immediate priority is calculating
the thermodynamic dew point spread. By utilizing the 5°F minimum differential rule, you bypass
the common trap of allowing coating application on surfaces vulnerable to flash rusting or
surfactant leaching. Professional/Academic Intuition: Never authorize paint application
unless the surface temperature is demonstrably and continuously at least 5°F higher
than the ambient dew point.
Q2: When testing a blast-cleaned structural steel surface for soluble salts in the field using a cell
retrieval method (SSPC-TU 4), what is the absolute maximum acceptable limit under Caltrans
specifications? A) 5 micrograms per square centimeter B) 10 micrograms per square centimeter
C) 15 micrograms per square centimeter D) 25 micrograms per square centimeter
● The Answer: B (10 micrograms per square centimeter)
● Distractor Analysis:
○ A is incorrect: While achieving 5 µg/cm² is excellent for coating longevity and
represents superior blasting operations, Caltrans Section 59 specifications formally
establish the legal hard deck at a maximum of 10 µg/cm².
○ C is incorrect: This exceeds the maximum allowable limit. Coating over 15 µg/cm²
of soluble salts guarantees osmotic blistering and under-film corrosion over time.
○ D is incorrect: This limit is severely out of specification and represents a total failure
of the initial pressure washing and surface decontamination processes prior to
abrasive blasting.
The Mentor's Analysis: Soluble salts like chlorides and sulfates act as moisture magnets,
drawing water through the semi-permeable paint film and initiating premature under-film
corrosion. When facing a newly blasted surface, the immediate priority is quantitative chemical
verification. By utilizing SSPC-TU 4 retrieval methods to confirm levels below 10 µg/cm², you
bypass the common trap of assuming a visually clean surface is chemically clean.
Professional/Academic Intuition: Visual cleanliness (SSPC-SP 10) does not equal
chemical cleanliness; always verify soluble salts are below 10 µg/cm² before authorizing
primer application.
Q3: The contractor is preparing to coat high-strength (HS) bolted connections on a structural
steel bridge. Based on Caltrans QA/QC requirements for faying surfaces, the total primer
thickness must NEVER exceed: A) The maximum allowable dry film thickness determined under
