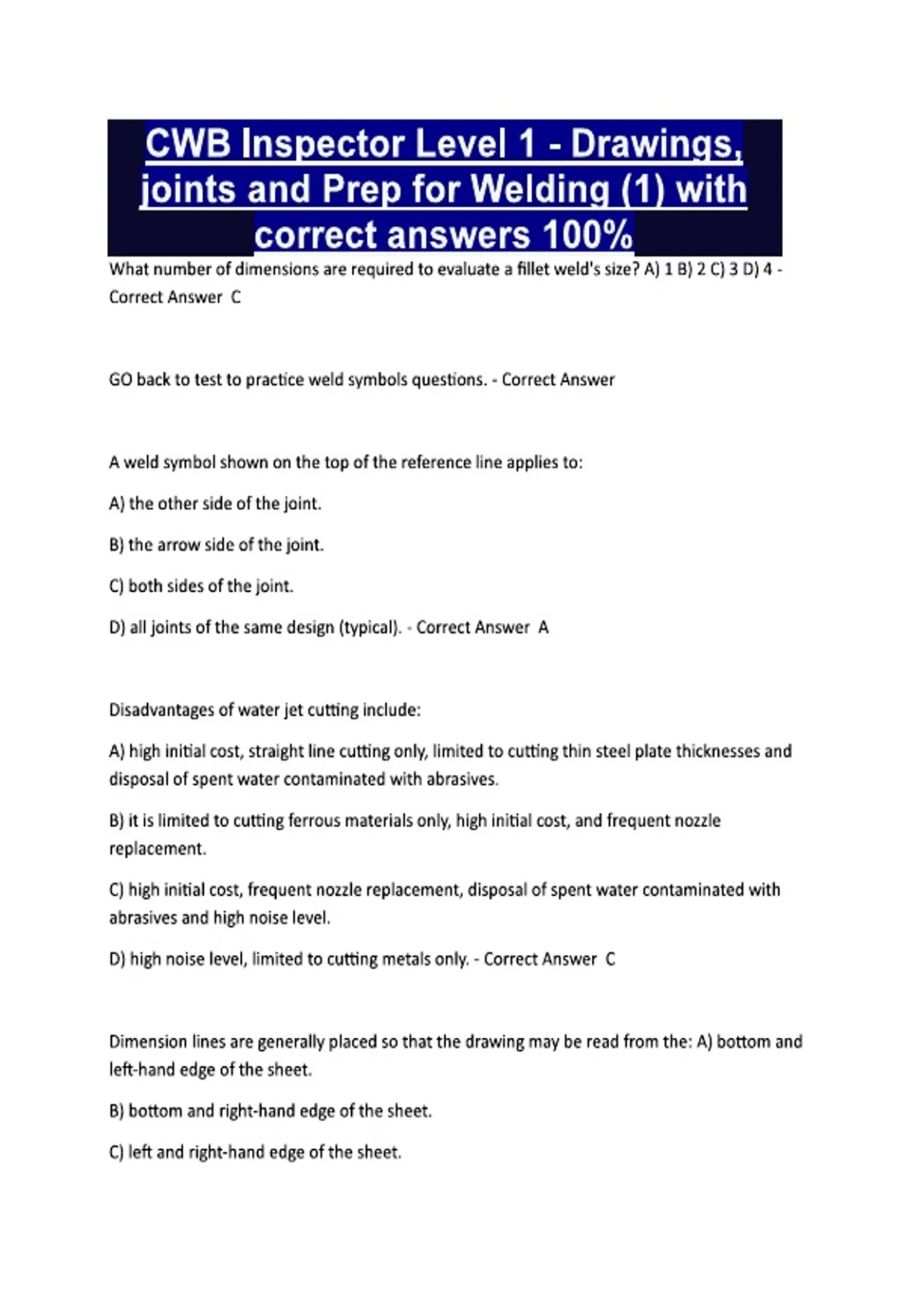

CWB Inspector Level 1 - Drawings, joints and Prep for Welding (1) with correct answers 100%

CWB Inspector Level 1 - Drawings, joints and Prep for Welding (1) with correct answers 100% What number of dimensions are required to evaluate a fillet weld's size? A) 1 B) 2 C) 3 D) 4 - Correct Answer C GO back to test to practice weld symbols questions. - Correct Answer A weld symbol shown on the top of the reference line applies to: A) the other side of the joint. B) the arrow side of the joint. C) both sides of the joint. D) all joints of the same design (typical). - Correct Answer A Disadvantages of water jet cutting include: A) high initial cost, straight line cutting only, limited to cutting thin steel plate thicknesses and disposal of spent water contaminated with abrasives. B) it is limited to cutting ferrous materials only, high initial cost, and frequent nozzle replacement. C) high initial cost, frequent nozzle replacement, disposal of spent water contaminated with abrasives and high noise level. D) high noise level, limited to cutting metals only. - Correct Answer C Dimension lines are generally placed so that the drawing may be read from the: A) bottom and left-hand edge of the sheet. B) bottom and right-hand edge of the sheet. C) left and right-hand edge of the sheet. D) top and right-hand edge of the sheet. - Correct Answer B What is the maximum number of principal views in an orthographic projection? A) Three B) Five C) Six D) Seven - Correct Answer C The designation 3G refers to:
