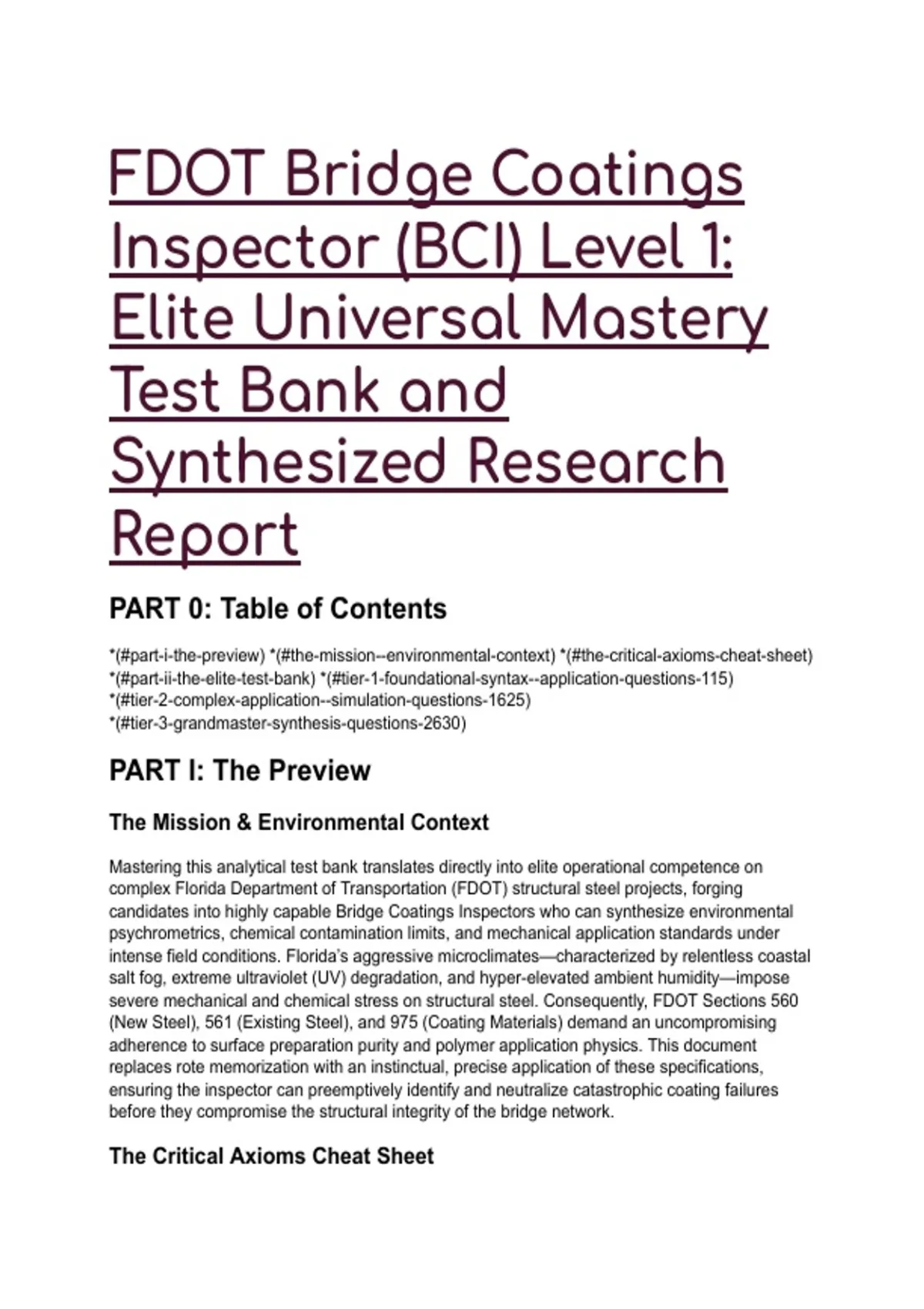

FDOT Bridge Coatings
Inspector (BCI) Level 1:
Elite Universal Mastery
Test Bank and
Synthesized Research
Report
PART 0: Table of Contents
*(#part-i-the-preview) *(#the-mission--environmental-context) *(#the-critical-axioms-cheat-sheet)
*(#part-ii-the-elite-test-bank) *(#tier-1-foundational-syntax--application-questions-115)
*(#tier-2-complex-application--simulation-questions-1625)
*(#tier-3-grandmaster-synthesis-questions-2630)
PART I: The Preview
The Mission & Environmental Context
Mastering this analytical test bank translates directly into elite operational competence on
complex Florida Department of Transportation (FDOT) structural steel projects, forging
candidates into highly capable Bridge Coatings Inspectors who can synthesize environmental
psychrometrics, chemical contamination limits, and mechanical application standards under
intense field conditions. Florida’s aggressive microclimates—characterized by relentless coastal
salt fog, extreme ultraviolet (UV) degradation, and hyper-elevated ambient humidity—impose
severe mechanical and chemical stress on structural steel. Consequently, FDOT Sections 560
(New Steel), 561 (Existing Steel), and 975 (Coating Materials) demand an uncompromising
adherence to surface preparation purity and polymer application physics. This document
replaces rote memorization with an instinctual, precise application of these specifications,
ensuring the inspector can preemptively identify and neutralize catastrophic coating failures
before they compromise the structural integrity of the bridge network.
The Critical Axioms Cheat Sheet
,Core FDOT Specification Mathematical Limit / Standard Field Application Strategy
Parameter
Dew Point / Substrate T_{steel} \ge T_{dewpoint} + Never authorize blast cleaning
Thermal Delta 5^\circ\text{F} or coating application unless
the steel surface temperature is
mathematically confirmed to be
at least 5^\circ\text{F} above
the localized dew point.
Soluble Salts: Post-Blast Chlorides \le 7\ Utilize SSPC Guide 15, Class A
(Pre-Coat) \mu\text{g/cm}^2 retrieval methods. Testing
frequency dictates one test per
1,000\ \text{ft}^2 of
blast-cleaned steel.
Dry Film Thickness (DFT) 1 test per 25\ \text{ft}^2 Standard measurement rate
Frequency applied by the Engineer.
Deficient thicknesses mandate
immediate sub-measurement
escalation to map the failure.
Stripe Coating Architecture Min 3\ \text{mils} DFT; 80\% Aluminum epoxy mastic applied
Volume Solids after the prime coat and again
after the intermediate coat.
Target all welds, crevices, and
sharp edges.
Environmental Wind Limits \le 15\ \text{mph} Absolute maximum wind speed
allowed in the immediate
vicinity during active spray
application of structural
coatings.
Emissions Containment \le 1\% (Abrasive) / \le 10\% Maximum random cumulative
(Method 22) (Water) duration of visible emissions
per workday permitted outside
the containment structure under
40 CFR 60.
PART II: The Elite Test Bank
Tier 1: Foundational Syntax & Application (Questions 1–15)
Q1: During a morning inspection of a coastal bridge span, the contractor is preparing to initiate
abrasive blast cleaning to SSPC-SP 10 (Near-White Metal). The ambient air temperature is
68^\circ\text{F} and the calculated dew point is 62^\circ\text{F}. The steel surface temperature
measures 62^\circ\text{F}. Based on FDOT Section 560 environmental requirements, which
action is the MOST APPROPRIATE? A) Authorize the abrasive blasting to commence, as the
ambient air temperature is 6^\circ\text{F} above the dew point. B) Issue a stop-work order until
the steel surface temperature is verified to be a minimum of 67^\circ\text{F}. C) Allow the
contractor to proceed but mandate the immediate application of a rust preventative compound
following the blast. D) Instruct the contractor to deploy localized containment heating until the
, ambient air temperature exceeds 75^\circ\text{F}.
● The Answer: B (Issue a stop-work order until the steel surface temperature is verified to
be a minimum of 67^\circ\text{F}.)
● Distractor Analysis:
○ A is incorrect: Ambient air temperature is a secondary atmospheric variable; FDOT
specifications strictly dictate that the physical mass of the steel surface temperature
must exceed the dew point to prevent condensation.
○ C is incorrect: Rust preventative compounds cannot mitigate active moisture
condensation (flash rust) occurring during the actual blasting operation, leading to
immediate barrier failure.
○ D is incorrect: Heating the ambient air to 75^\circ\text{F} does not guarantee the
thermal mass of the steel will concurrently rise to meet the required 5^\circ\text{F}
delta. Substrate monitoring is mandatory.
The Mentor's Analysis: The thermodynamic relationship between steel temperature and the
localized dew point is the most critical environmental axiom in structural coatings. When facing
borderline morning temperatures, the immediate priority is preventing invisible moisture from
settling inside the microscopic anchor profile. By utilizing the 5^\circ\text{F} Delta Rule on the
substrate itself, the inspector bypasses the common trap of trusting ambient air thermometers
over direct surface psychrometrics. Professional/Academic Intuition: Never authorize
surface preparation or coating unless the steel itself is at least 5^\circ\text{F} above the
dew point; microscopic condensation is the silent assassin of polymer adhesion.
Q2: Following the abrasive blasting of a structural steel girder, the Quality Control (QC)
Inspector is required to test for soluble salts. According to FDOT Specifications for
post-blast/pre-coating surfaces, which of the following combinations represents the absolute
MAXIMUM allowable non-visible contaminant limits? A) Chlorides \le 7\ \mu\text{g/cm}^2,
Sulfates \le 10\ \mu\text{g/cm}^2, Nitrates \le 17\ \mu\text{g/cm}^2 B) Chlorides \le 10\
\mu\text{g/cm}^2, Sulfates \le 17\ \mu\text{g/cm}^2, Conductivity \le 50\ \mu\text{S/cm}^2 C)
Chlorides \le 7\ \mu\text{g/cm}^2, Sulfates \le 17\ \mu\text{g/cm}^2, Nitrates \le 10\
\mu\text{g/cm}^2 D) Chlorides \le 17\ \mu\text{g/cm}^2, Sulfates \le 7\ \mu\text{g/cm}^2,
Conductivity \le 70\ \mu\text{S/cm}^2
● The Answer: C (Chlorides \le 7\ \mu\text{g/cm}^2, Sulfates \le 17\ \mu\text{g/cm}^2,
Nitrates \le 10\ \mu\text{g/cm}^2)
● Distractor Analysis:
○ A is incorrect: This option erroneously reverses the allowable regulatory limits for
sulfates and nitrates. Sulfates have a higher tolerance limit (17\ \mu\text{g/cm}^2)
than nitrates (10\ \mu\text{g/cm}^2) in the FDOT matrix.
○ B is incorrect: The absolute maximum limit for chlorides on a pre-coated surface is
7\ \mu\text{g/cm}^2, not 10\ \mu\text{g/cm}^2. Furthermore, the conductivity limit is
established at 70\ \mu\text{S/cm}^2.
○ D is incorrect: This represents a critical analytical error by swapping the strict
chloride limit with the looser sulfate limit, guaranteeing osmotic blistering of the
primer.
The Mentor's Analysis: Soluble salts act as microscopic, hygroscopic sponges, drawing
moisture through semi-permeable coatings via cellular osmosis. When verifying substrate
chemical cleanliness, the immediate priority is quantitative compliance with Table 560-7.1. By
utilizing these precise microgram limits, the inspector bypasses the trap of relying solely on
visual surface inspection (SSPC-SP 10), which is physically incapable of detecting ionic
assassins. Professional/Academic Intuition: Memorize the baseline limit: Chlorides must
Inspector (BCI) Level 1:
Elite Universal Mastery
Test Bank and
Synthesized Research
Report
PART 0: Table of Contents
*(#part-i-the-preview) *(#the-mission--environmental-context) *(#the-critical-axioms-cheat-sheet)
*(#part-ii-the-elite-test-bank) *(#tier-1-foundational-syntax--application-questions-115)
*(#tier-2-complex-application--simulation-questions-1625)
*(#tier-3-grandmaster-synthesis-questions-2630)
PART I: The Preview
The Mission & Environmental Context
Mastering this analytical test bank translates directly into elite operational competence on
complex Florida Department of Transportation (FDOT) structural steel projects, forging
candidates into highly capable Bridge Coatings Inspectors who can synthesize environmental
psychrometrics, chemical contamination limits, and mechanical application standards under
intense field conditions. Florida’s aggressive microclimates—characterized by relentless coastal
salt fog, extreme ultraviolet (UV) degradation, and hyper-elevated ambient humidity—impose
severe mechanical and chemical stress on structural steel. Consequently, FDOT Sections 560
(New Steel), 561 (Existing Steel), and 975 (Coating Materials) demand an uncompromising
adherence to surface preparation purity and polymer application physics. This document
replaces rote memorization with an instinctual, precise application of these specifications,
ensuring the inspector can preemptively identify and neutralize catastrophic coating failures
before they compromise the structural integrity of the bridge network.
The Critical Axioms Cheat Sheet
,Core FDOT Specification Mathematical Limit / Standard Field Application Strategy
Parameter
Dew Point / Substrate T_{steel} \ge T_{dewpoint} + Never authorize blast cleaning
Thermal Delta 5^\circ\text{F} or coating application unless
the steel surface temperature is
mathematically confirmed to be
at least 5^\circ\text{F} above
the localized dew point.
Soluble Salts: Post-Blast Chlorides \le 7\ Utilize SSPC Guide 15, Class A
(Pre-Coat) \mu\text{g/cm}^2 retrieval methods. Testing
frequency dictates one test per
1,000\ \text{ft}^2 of
blast-cleaned steel.
Dry Film Thickness (DFT) 1 test per 25\ \text{ft}^2 Standard measurement rate
Frequency applied by the Engineer.
Deficient thicknesses mandate
immediate sub-measurement
escalation to map the failure.
Stripe Coating Architecture Min 3\ \text{mils} DFT; 80\% Aluminum epoxy mastic applied
Volume Solids after the prime coat and again
after the intermediate coat.
Target all welds, crevices, and
sharp edges.
Environmental Wind Limits \le 15\ \text{mph} Absolute maximum wind speed
allowed in the immediate
vicinity during active spray
application of structural
coatings.
Emissions Containment \le 1\% (Abrasive) / \le 10\% Maximum random cumulative
(Method 22) (Water) duration of visible emissions
per workday permitted outside
the containment structure under
40 CFR 60.
PART II: The Elite Test Bank
Tier 1: Foundational Syntax & Application (Questions 1–15)
Q1: During a morning inspection of a coastal bridge span, the contractor is preparing to initiate
abrasive blast cleaning to SSPC-SP 10 (Near-White Metal). The ambient air temperature is
68^\circ\text{F} and the calculated dew point is 62^\circ\text{F}. The steel surface temperature
measures 62^\circ\text{F}. Based on FDOT Section 560 environmental requirements, which
action is the MOST APPROPRIATE? A) Authorize the abrasive blasting to commence, as the
ambient air temperature is 6^\circ\text{F} above the dew point. B) Issue a stop-work order until
the steel surface temperature is verified to be a minimum of 67^\circ\text{F}. C) Allow the
contractor to proceed but mandate the immediate application of a rust preventative compound
following the blast. D) Instruct the contractor to deploy localized containment heating until the
, ambient air temperature exceeds 75^\circ\text{F}.
● The Answer: B (Issue a stop-work order until the steel surface temperature is verified to
be a minimum of 67^\circ\text{F}.)
● Distractor Analysis:
○ A is incorrect: Ambient air temperature is a secondary atmospheric variable; FDOT
specifications strictly dictate that the physical mass of the steel surface temperature
must exceed the dew point to prevent condensation.
○ C is incorrect: Rust preventative compounds cannot mitigate active moisture
condensation (flash rust) occurring during the actual blasting operation, leading to
immediate barrier failure.
○ D is incorrect: Heating the ambient air to 75^\circ\text{F} does not guarantee the
thermal mass of the steel will concurrently rise to meet the required 5^\circ\text{F}
delta. Substrate monitoring is mandatory.
The Mentor's Analysis: The thermodynamic relationship between steel temperature and the
localized dew point is the most critical environmental axiom in structural coatings. When facing
borderline morning temperatures, the immediate priority is preventing invisible moisture from
settling inside the microscopic anchor profile. By utilizing the 5^\circ\text{F} Delta Rule on the
substrate itself, the inspector bypasses the common trap of trusting ambient air thermometers
over direct surface psychrometrics. Professional/Academic Intuition: Never authorize
surface preparation or coating unless the steel itself is at least 5^\circ\text{F} above the
dew point; microscopic condensation is the silent assassin of polymer adhesion.
Q2: Following the abrasive blasting of a structural steel girder, the Quality Control (QC)
Inspector is required to test for soluble salts. According to FDOT Specifications for
post-blast/pre-coating surfaces, which of the following combinations represents the absolute
MAXIMUM allowable non-visible contaminant limits? A) Chlorides \le 7\ \mu\text{g/cm}^2,
Sulfates \le 10\ \mu\text{g/cm}^2, Nitrates \le 17\ \mu\text{g/cm}^2 B) Chlorides \le 10\
\mu\text{g/cm}^2, Sulfates \le 17\ \mu\text{g/cm}^2, Conductivity \le 50\ \mu\text{S/cm}^2 C)
Chlorides \le 7\ \mu\text{g/cm}^2, Sulfates \le 17\ \mu\text{g/cm}^2, Nitrates \le 10\
\mu\text{g/cm}^2 D) Chlorides \le 17\ \mu\text{g/cm}^2, Sulfates \le 7\ \mu\text{g/cm}^2,
Conductivity \le 70\ \mu\text{S/cm}^2
● The Answer: C (Chlorides \le 7\ \mu\text{g/cm}^2, Sulfates \le 17\ \mu\text{g/cm}^2,
Nitrates \le 10\ \mu\text{g/cm}^2)
● Distractor Analysis:
○ A is incorrect: This option erroneously reverses the allowable regulatory limits for
sulfates and nitrates. Sulfates have a higher tolerance limit (17\ \mu\text{g/cm}^2)
than nitrates (10\ \mu\text{g/cm}^2) in the FDOT matrix.
○ B is incorrect: The absolute maximum limit for chlorides on a pre-coated surface is
7\ \mu\text{g/cm}^2, not 10\ \mu\text{g/cm}^2. Furthermore, the conductivity limit is
established at 70\ \mu\text{S/cm}^2.
○ D is incorrect: This represents a critical analytical error by swapping the strict
chloride limit with the looser sulfate limit, guaranteeing osmotic blistering of the
primer.
The Mentor's Analysis: Soluble salts act as microscopic, hygroscopic sponges, drawing
moisture through semi-permeable coatings via cellular osmosis. When verifying substrate
chemical cleanliness, the immediate priority is quantitative compliance with Table 560-7.1. By
utilizing these precise microgram limits, the inspector bypasses the trap of relying solely on
visual surface inspection (SSPC-SP 10), which is physically incapable of detecting ionic
assassins. Professional/Academic Intuition: Memorize the baseline limit: Chlorides must
