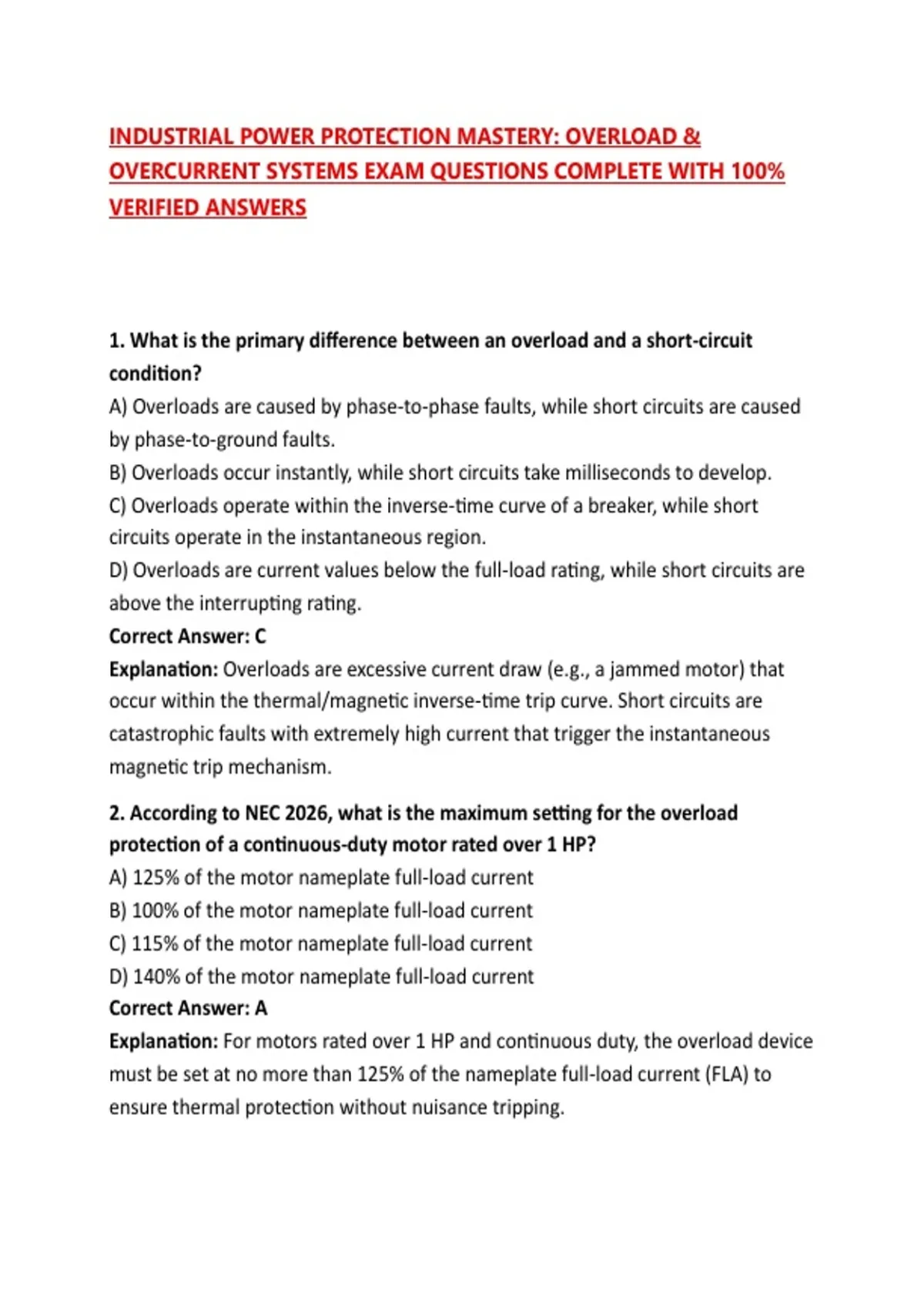

INDUSTRIAL POWER PROTECTION MASTERY: OVERLOAD &
OVERCURRENT SYSTEMS EXAM QUESTIONS COMPLETE WITH 100%
VERIFIED ANSWERS
1. What is the primary difference between an overload and a short-circuit
condition?
A) Overloads are caused by phase-to-phase faults, while short circuits are caused
by phase-to-ground faults.
B) Overloads occur instantly, while short circuits take milliseconds to develop.
C) Overloads operate within the inverse-time curve of a breaker, while short
circuits operate in the instantaneous region.
D) Overloads are current values below the full-load rating, while short circuits are
above the interrupting rating.
Correct Answer: C
Explanation: Overloads are excessive current draw (e.g., a jammed motor) that
occur within the thermal/magnetic inverse-time trip curve. Short circuits are
catastrophic faults with extremely high current that trigger the instantaneous
magnetic trip mechanism.
2. According to NEC 2026, what is the maximum setting for the overload
protection of a continuous-duty motor rated over 1 HP?
A) 125% of the motor nameplate full-load current
B) 100% of the motor nameplate full-load current
C) 115% of the motor nameplate full-load current
D) 140% of the motor nameplate full-load current
Correct Answer: A
Explanation: For motors rated over 1 HP and continuous duty, the overload device
must be set at no more than 125% of the nameplate full-load current (FLA) to
ensure thermal protection without nuisance tripping.
,3. Which device is specifically designed to protect conductors against low-level,
long-duration overcurrents that generate excessive heat?
A) Magnetic circuit breaker
B) Current-limiting fuse
C) Thermal overload relay
D) Ground fault relay
Correct Answer: C
Explanation: Thermal overload relays utilize a heating element and bimetallic strip
to simulate the heating curve of the motor or conductor, protecting against
prolonged, low-magnitude overcurrents.
4. The interrupting rating of an overcurrent protective device refers to:
A) The continuous current it can carry without tripping.
B) The maximum short-circuit current the device can safely interrupt.
C) The minimum current required to make the device trip instantly.
D) The voltage rating of the device under load.
Correct Answer: B
Explanation: Interrupting rating (or breaking capacity) is the highest fault current
the device can clear without being destroyed or causing a safety hazard.
5. When a ground fault occurs in a solidly grounded 480V system, what is the
most common type of protective relay used for detection?
A) Overvoltage relay
B) Zero-sequence current transformer (CT) relay
C) Differential relay
D) Thermal magnetic relay
Correct Answer: B
Explanation: Zero-sequence CTs encircle all phase conductors and the neutral.
Under normal conditions, the sum of currents is zero; during a ground fault, the
imbalance is detected by the relay.
6. Which type of fuse is characterized by having no time-delay and is used for
protecting solid-state devices?
A) Dual-element fuse
,B) Class RK5 fuse
C) Fast-acting fuse
D) Time-delay fuse
Correct Answer: C
Explanation: Fast-acting fuses have minimal intentional time-delay to clear faults
quickly, protecting sensitive components like SCRs and diodes from surge currents.
7. What is the pickup current of an overcurrent relay?
A) The maximum current the relay can carry before sustaining thermal damage.
B) The current level at which the relay initiates a trip command.
C) The current level at which the relay resets after a fault.
D) The difference between the fault current and the CT ratio.
Correct Answer: B
Explanation: The pickup current is the threshold value of current that activates
the relay's timing mechanism to begin its countdown to trip.
8. In inverse-time overload relays, as the fault current increases, the tripping
time:
A) Increases proportionally.
B) Remains constant.
C) Decreases exponentially.
D) Is unaffected by current magnitude.
Correct Answer: C
Explanation: Inverse-time characteristics mean that higher currents cause faster
tripping. The I²t energy released is inversely proportional to the time.
9. A ground fault protection system is mandatory for solidly grounded wye
services that exceed:
A) 150 volts to ground, 1000 amps
B) 300 volts to ground, 2000 amps
C) 150 volts to ground, 2000 amps
D) 100 volts to ground, 1200 amps
Correct Answer: A
Explanation: NEC Article 230.95 requires ground fault protection for solidly
, grounded wye electrical services of more than 150V to ground and 1000A or
more.
10. What is the effect of temperature on a thermal overload relay?
A) Higher ambient temperature increases the trip point.
B) Higher ambient temperature decreases the trip point.
C) Ambient temperature has no effect on the bimetal strip.
D) Temperature only affects the magnetic portion of the relay.
Correct Answer: B
Explanation: Thermal relays are ambient-sensitive. Higher temperatures mean
less heat is needed from the current to cause bending of the bimetallic strip, thus
lowering the trip current.
11. Which type of overcurrent protection is used to protect a motor from locked-
rotor conditions?
A) Short-circuit protection
B) Overload protection
C) Under-voltage protection
D) Differential protection
Correct Answer: B
Explanation: A locked rotor draws 5-6 times FLA, which is an overcurrent
condition that requires the overload relay (thermal or electronic) to trip before
the motor windings overheat.
12. What is the purpose of a "current-limiting" fuse?
A) To limit the continuous operating current of the circuit.
B) To limit the peak magnitude and duration of the fault current.
C) To limit the voltage drop across the circuit.
D) To limit the inrush current during motor starting.
Correct Answer: B
Explanation: Current-limiting fuses operate so fast that they clear the fault before
the first major current peak occurs, reducing the thermal and mechanical stress
on downstream equipment.
