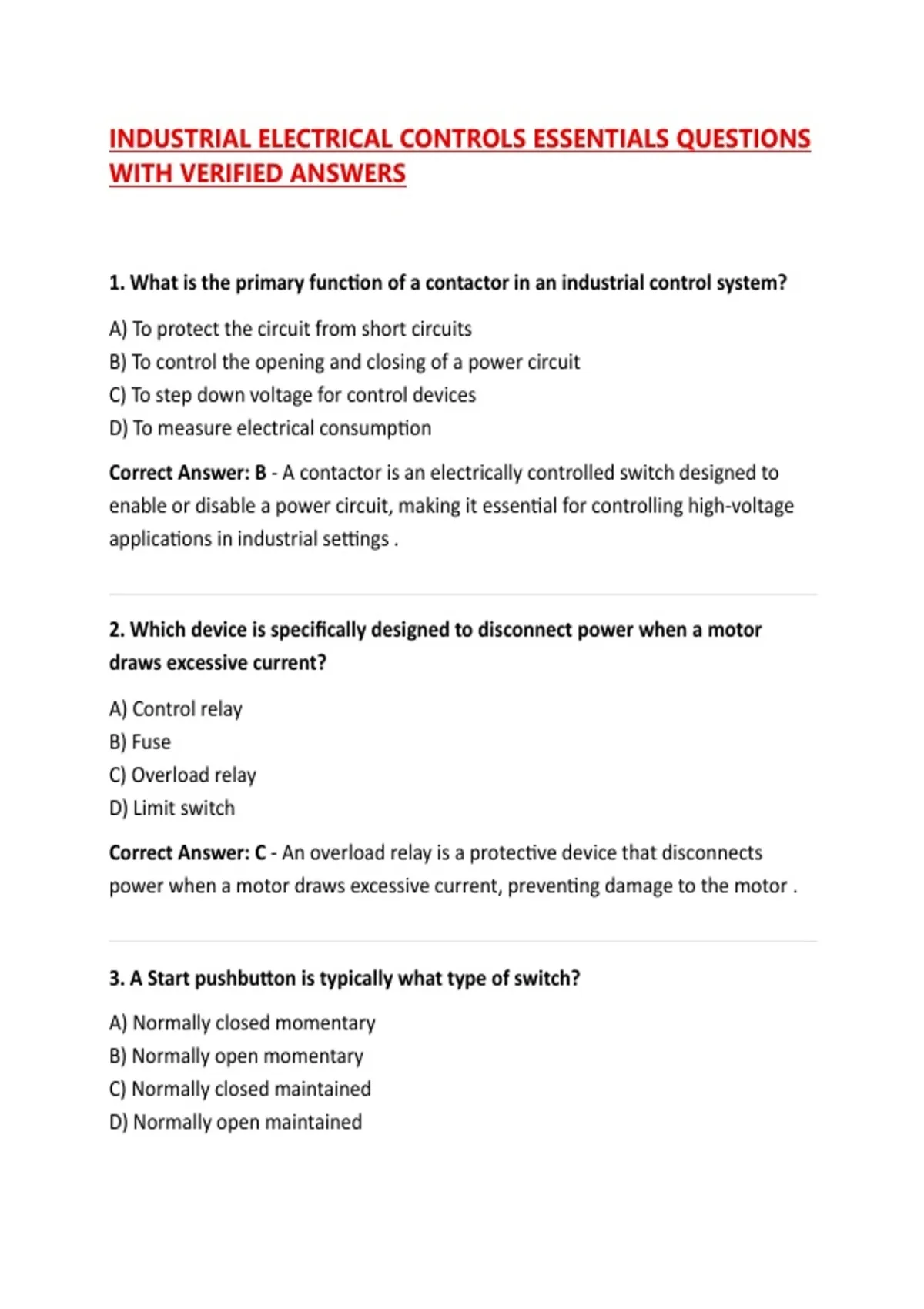

INDUSTRIAL ELECTRICAL CONTROLS ESSENTIALS QUESTIONS WITH VERIFIED ANSWERS 1. What is the primary function of a contactor in an industrial control system? A) To protect the circuit from short circuits B) To control the opening and closing of a power circuit C) To step down voltage for control devices D) To measure electrical consumption Correct Answer: B - A contactor is an electrically controlled switch designed to enable or disable a power circuit, making it essential for controlling high-voltage applications in industrial settings . ________________________________________ 2. Which device is specifically designed to disconnect power when a motor draws excessive current? A) Control relay B) Fuse C) Overload relay D) Limit switch Correct Answer: C - An overload relay is a protective device that disconnects power when a motor draws excessive current, preventing damage to the motor . ________________________________________ 3. A Start pushbutton is typically what type of switch? A) Normally closed momentary B) Normally open momentary C) Normally closed maintained D) Normally open maintained Correct Answer: B - A Start pushbutton is a normally open (NO) momentary switch that energizes a control circuit when pressed, initiating the operation of machinery . ________________________________________ 4. What does a Stop pushbutton do when pressed? A) Energizes the control circuit B) Interrupts the control circuit C) Activates the overload relay D) Closes the normally open contacts Correct Answer: B - A Stop pushbutton is a normally closed (NC) momentary switch that interrupts the control circuit when pressed, halting machinery operations . ________________________________________ 5. What is the purpose of a seal-in circuit? A) To protect against overload conditions B) To maintain relay or contactor energization after the start button is released C) To provide emergency stopping capability D) To step down voltage for safety Correct Answer: B - A seal-in circuit maintains the energization of a relay or contactor after the start button is released, ensuring continuous operation . ________________________________________ 6. What type of contact is an auxiliary contact? A) A primary power-carrying contact B) A secondary contact that provides feedback or interlocks C) A sacrificial contact that melts under overcurrent D) A contact that only operates during startup Correct Answer: B - An auxiliary contact is a secondary contact that provides feedback or interlocks in control circuits, enhancing safety and operational reliability . ________________________________________ 7. What is a limit switch actuated by? A) Electrical current B) Mechanical position or movement C) Thermal changes D) Magnetic fields Correct Answer: B - A limit switch is a mechanically actuated switch that detects the position or movement of machinery, crucial for automated systems . ________________________________________ 8. What is the typical control voltage used in industrial control systems? A) 480V AC B) 24V AC/DC or 120V AC C) 240V DC D) 600V AC Correct Answer: B - Control voltage is typically 24V AC/DC or 120V AC, ensuring safe operation of control devices in industrial systems . ________________________________________ 9. What does an MCB (Miniature Circuit Breaker) protect against? A) Voltage spikes only B) Overcurrent and short circuits C) Overheating only D) Ground faults only Correct Answer: B - An MCB safeguards circuits from overcurrent and short circuits, automatically disconnecting power when necessary . ________________________________________ 10. What is the function of a fuse? A) To switch circuits on and off B) To step down voltage C) To melt and interrupt current flow when current exceeds its rating D) To provide feedback to the control system Correct Answer: C - A fuse is a sacrificial device that melts to interrupt current flow when it exceeds its rating, providing a simple form of overcurrent protection . ________________________________________ 11. What is an interlock in a control system? A) A device that connects two circuits B) A safety mechanism that prevents conflicting operations C) A component that amplifies signals D) A device that measures resistance Correct Answer: B - An interlock is a safety mechanism that prevents conflicting operations, ensuring that machinery operates safely and correctly . ________________________________________ 12. What does L1/L2/L3 represent in industrial electrical systems? A) The three phases of AC power B) The three wires in a DC system C) The three safety interlocks D) The three control voltages Correct Answer: A - L1, L2, and L3 represent the three phases of AC power in industrial systems, essential for balanced load distribution and three-phase motor operation .
