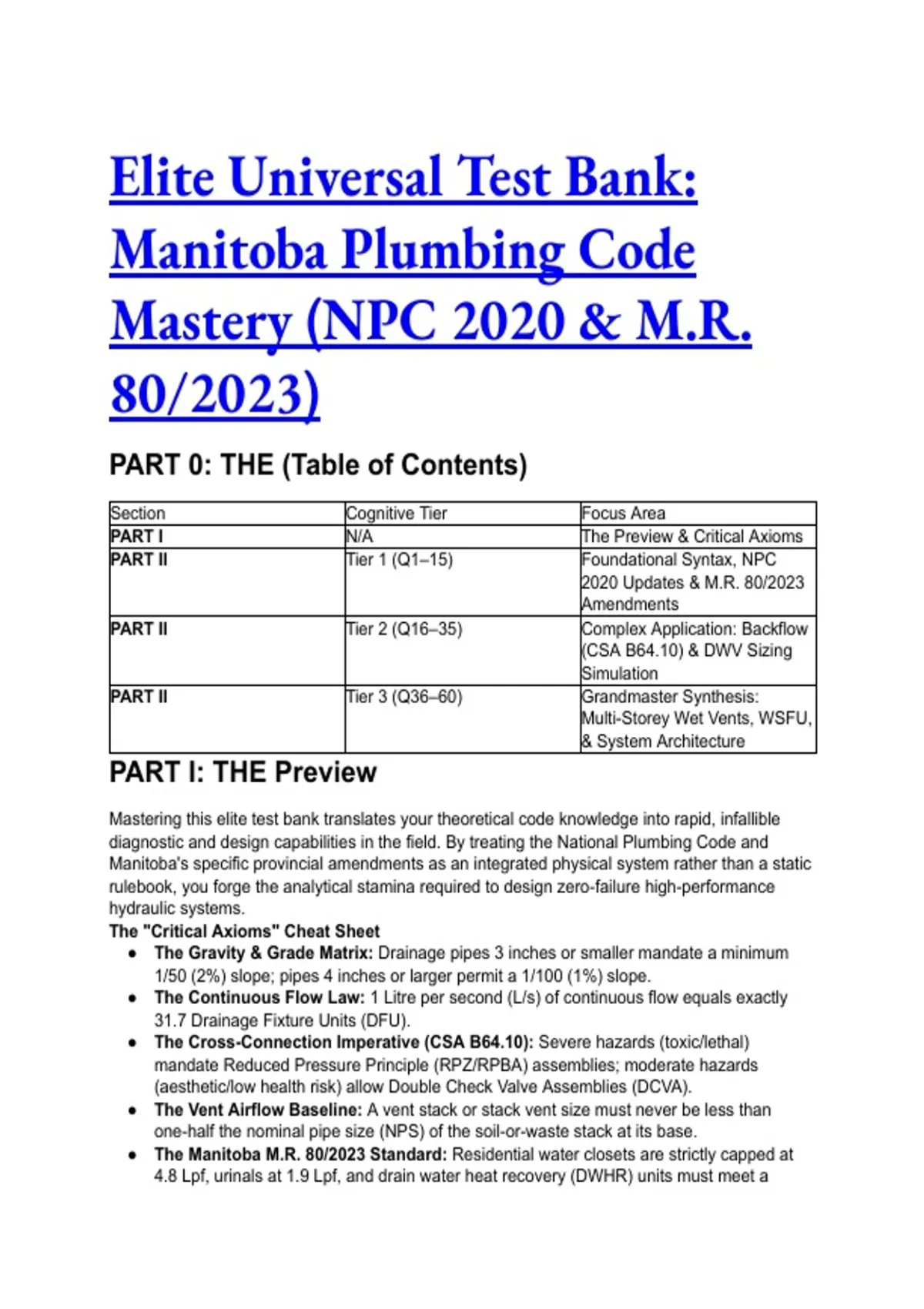

Elite Universal Test Bank:
Manitoba Plumbing Code
Mastery (NPC 2020 & M.R.
80/2023)
PART 0: THE (Table of Contents)
Section Cognitive Tier Focus Area
PART I N/A The Preview & Critical Axioms
PART II Tier 1 (Q1–15) Foundational Syntax, NPC
2020 Updates & M.R. 80/2023
Amendments
PART II Tier 2 (Q16–35) Complex Application: Backflow
(CSA B64.10) & DWV Sizing
Simulation
PART II Tier 3 (Q36–60) Grandmaster Synthesis:
Multi-Storey Wet Vents, WSFU,
& System Architecture
PART I: THE Preview
Mastering this elite test bank translates your theoretical code knowledge into rapid, infallible
diagnostic and design capabilities in the field. By treating the National Plumbing Code and
Manitoba's specific provincial amendments as an integrated physical system rather than a static
rulebook, you forge the analytical stamina required to design zero-failure high-performance
hydraulic systems.
The "Critical Axioms" Cheat Sheet
● The Gravity & Grade Matrix: Drainage pipes 3 inches or smaller mandate a minimum
1/50 (2%) slope; pipes 4 inches or larger permit a 1/100 (1%) slope.
● The Continuous Flow Law: 1 Litre per second (L/s) of continuous flow equals exactly
31.7 Drainage Fixture Units (DFU).
● The Cross-Connection Imperative (CSA B64.10): Severe hazards (toxic/lethal)
mandate Reduced Pressure Principle (RPZ/RPBA) assemblies; moderate hazards
(aesthetic/low health risk) allow Double Check Valve Assemblies (DCVA).
● The Vent Airflow Baseline: A vent stack or stack vent size must never be less than
one-half the nominal pipe size (NPS) of the soil-or-waste stack at its base.
● The Manitoba M.R. 80/2023 Standard: Residential water closets are strictly capped at
4.8 Lpf, urinals at 1.9 Lpf, and drain water heat recovery (DWHR) units must meet a
, minimum 42% efficiency.
PART II: THE ELITE TEST BANK
Q1: An engineer specifies a commercial grade floor drain serving a grease interceptor in a
Winnipeg vehicle parking garage. Based on the principles of M.R. 80/2023, which
action/conclusion is the MOST ACCURATE regarding the trap sizing? A) The trap may be 3
inches if the connected interceptor capacity is under 50 GPM. B) The trap must be sized
identically to the interceptor outlet, standardizing at 2 inches. C) The floor drain or trap serving
the interceptor must be a minimum of 4 inches in size. D) Interceptors in vehicle garages require
6-inch traps to handle continuous storm flows.
● The Answer: C (The floor drain or trap serving the interceptor must be a minimum of 4
inches in size.)
● Distractor Analysis:
○ A is incorrect: M.R. 80/2023 establishes a hard dimensional floor regardless of
specific GPM metrics for this context.
○ B is incorrect: Technically common in generic commercial sinks, but explicitly illegal
under Manitoba amendments for garage interceptors.
○ D is incorrect: 6 inches is a calculation error based on municipal combined sewer
legacy codes, not the provincial minimum.
The Mentor's Analysis: Under Manitoba Regulation 80/2023, high-sediment and high-viscosity
environments like garages and car washes require robust flow assurance. The provincial
amendment explicitly supersedes the NPC baseline, demanding 4-inch minimums. By utilizing
M.R. 80/2023 Sentence 2.4.4.3.(5), you bypass the common trap of under-sizing based on
generic NPC charts. Professional/Academic Intuition: Garages equal 4-inch minimums.
Sand and oil dictate maximum dimensional tolerance.
Q2: A contractor is retrofitting a residential dwelling in Manitoba and installs new water closets.
The client requests a high-flow 6.0 Lpf toilet for the master bathroom to prevent clogs. Based on
the principles of M.R. 80/2023 Water Use Efficiency, which action/conclusion is the MOST
ACCURATE? A) The contractor can install the 6.0 Lpf fixture if they submit a variance to the
Authority Having Jurisdiction. B) The contractor may install the 6.0 Lpf fixture because it meets
the NPC 2020 national baseline. C) The contractor must refuse; residential water closets are
strictly limited to a maximum of 4.8 Lpf. D) The contractor must use a 4.8 Lpf toilet but can
modify the flush valve to achieve 6.0 Lpf post-inspection.
● The Answer: C (The contractor must refuse; residential water closets are strictly limited
to a maximum of 4.8 Lpf.)
● Distractor Analysis:
○ A is incorrect: Variances are not granted for standard residential fixture flow
preferences.
○ B is incorrect: While NPC 2020 has base rules, M.R. 80/2023 explicitly amended
residential water closets down to 4.8 Lpf from the previous 6.0 Lpf standard.
○ D is incorrect: Modifying certified plumbing fixtures violates the Code and nullifies
the CSA certification.
The Mentor's Analysis: Manitoba skipped the 2015 NPC and adopted the 2020 NPC with strict
efficiency amendments. The drop from 6.0 Lpf to 4.8 Lpf is a rigid provincial mandate designed
to conserve potable water. By utilizing Manitoba's specific flow rate schedules, you bypass the
common trap of referencing outdated or generalized national standards.
,Professional/Academic Intuition: Residential WC = 4.8 Lpf. Non-Residential WC = 6.0 Lpf.
Context dictates the flow.
Q3: During the rough-in of a healthcare facility's laboratory in Brandon, a plumber is positioning
cleanouts for fixture drains. The lab handles hazardous wastes. Based on the principles of NPC
2020, which action/conclusion is the MOST ACCURATE regarding the cleanout location? A)
The cleanout must be installed at the base of the stack to prevent hazardous exposure. B) The
cleanout must be located exactly flush with the finished floor level to prevent tripping hazards.
C) The cleanout must be located a minimum of 150 mm above the flood level rim of the fixture.
D) Hazardous waste fixtures are strictly prohibited from having cleanouts to prevent
aerosolization.
● The Answer: C (The cleanout must be located a minimum of 150 mm above the flood
level rim of the fixture.)
● Distractor Analysis:
○ A is incorrect: Base stack cleanouts are required, but they do not replace the
requirement for individual fixture drain cleanouts.
○ B is incorrect: Floor cleanouts are technically valid for standard sanitary drains, but
hazardous waste requires vertical isolation.
○ D is incorrect: All drainage systems must be cleanable; prohibiting cleanouts is a
functional impossibility.
The Mentor's Analysis: The 2020 NPC broadened the language from "body fluids" to
"hazardous waste." To protect workers from back-siphoned or overflowing hazardous materials
during drain clearing, the access point must sit physically higher than the overflow point of the
fixture. By utilizing elevation isolation, you bypass the common trap of creating an immediate
spill hazard upon opening the plug. Professional/Academic Intuition: Hazardous waste
cleanouts require gravity protection: always 150 mm above the flood level rim.
Q4: A designer is sizing a continuous flow pump discharging clear-water waste at a rate of 0.5
L/s into a sanitary building drain. Based on the principles of NPC 2020 Hydraulic Loads, which
action/conclusion is the MOST ACCURATE conversion? A) The pump imposes a load of 15.85
Drainage Fixture Units (DFU). B) The pump imposes a load of 31.7 Drainage Fixture Units
(DFU). C) Continuous flow fixtures are exempted from DFU calculations and sized via specific
GPM charts. D) The pump imposes a load of 450 Litres, requiring an immediate conversion to
storm sizing.
● The Answer: A (The pump imposes a load of 15.85 Drainage Fixture Units (DFU).)
● Distractor Analysis:
○ B is incorrect: 31.7 is the multiplier for 1.0 L/s, not 0.5 L/s.
○ C is incorrect: This is a legacy methodology; continuous sanitary flow MUST be
converted to DFUs for combined sizing.
○ D is incorrect: Litre conversion (multiplying by 900) is only used when the
continuous flow discharges to a storm or combined sewer, not a dedicated sanitary
drain.
The Mentor's Analysis: The code bridges the gap between static fixture discharges and
continuous mechanical flow by using a hard mathematical multiplier. 1 L/s = 31.7 DFU.
Therefore, 0.5 L/s × 31.7 = 15.85 DFU. By utilizing the exact conversion multiplier, you bypass
the common trap of misapplying storm litre conversions to sanitary systems.
Professional/Academic Intuition: Sanitary Continuous Flow = L/s × 31.7 DFU. Storm
Continuous Flow = L/s × 900 Litres.
Q5: An S230 contractor is installing a domestic clothes washer drain in a single-family home.
The washer does not drain into a laundry tray. Based on the principles of NPC 2020, which
, action/conclusion is the MOST ACCURATE? A) The trap inlet must be fitted with a standpipe no
less than 600 mm long, terminating above the washer's flood level rim. B) The trap must be
increased to 3 inches to handle the pump velocity of modern domestic washers. C) The
standpipe must be a maximum of 400 mm to prevent excessive velocity at the trap weir. D) The
clothes washer may connect directly to the building drain without a trap if a backwater valve is
present.
● The Answer: A (The trap inlet must be fitted with a standpipe no less than 600 mm long,
terminating above the washer's flood level rim.)
● Distractor Analysis:
○ B is incorrect: Domestic clothes washer traps are explicitly sized at 2 inches; 3
inches is an extreme over-calculation.
○ C is incorrect: 400 mm is too short and violates the code, causing suds backup and
overflow.
○ D is incorrect: All fixtures must be trapped to prevent sewer gas infiltration;
backwater valves do not replace trap seals.
The Mentor's Analysis: Without the volumetric buffer of a laundry tray, the high-velocity
discharge from a washing machine pump will blast past a standard trap, causing suds and water
to overflow. The 600 mm standpipe creates the necessary vertical head and volume to absorb
the shock. By utilizing vertical standpipe buffering, you bypass the common trap of suds
overflow. Professional/Academic Intuition: Direct washer connections demand a 600 mm
standpipe. Volume control prevents overflow.
Q6: You are reviewing the specifications for an elder-care facility in Winnipeg. The drawings
show standard thermostatic mixing valves for all patient showers. Based on the principles of
NPC 2020, which action/conclusion is the MOST ACCURATE regarding temperature control?
A) The maximum water temperature discharging from the shower heads must be strictly
reduced below standard residential limits to prevent scalding. B) Elder-care facilities are exempt
from shower temperature limits provided standard pressure-balancing valves are used. C) The
water heater must be set to 40°C to ensure safe delivery temperatures system-wide. D) Shower
temperatures must exceed 60°C to ensure Legionella bacteria are eradicated upon discharge.
● The Answer: A (The maximum water temperature discharging from the shower heads
must be strictly reduced below standard residential limits to prevent scalding.)
● Distractor Analysis:
○ B is incorrect: Pressure-balancing valves prevent thermal shock from pressure
drops, not maximum temperature limits, which are strictly regulated in
healthcare/seniors' occupancies.
○ C is incorrect: Storing water at 40°C promotes lethal Legionella growth; water must
be stored hot and mixed down at the point of use.
○ D is incorrect: Discharging water at 60°C will cause instant third-degree burns on
elderly skin.
The Mentor's Analysis: The 2020 NPC specifically targets vulnerable populations. Elderly
individuals possess thinner skin and slower reaction times, making standard 49°C residential
limits highly dangerous. The system must store water hot (to kill bacteria) but deliver it at heavily
restricted temperatures. By utilizing point-of-use temperature reduction, you bypass the
common trap of prioritizing bacterial control over immediate scalding hazards.
Professional/Academic Intuition: Store hot, deliver safe. Vulnerable occupancies dictate
extreme point-of-use temperature suppression.
Q7: Under M.R. 80/2023, a contractor is tasked with installing a drain water heat recovery
(DWHR) unit in a newly constructed home to capture energy from a shower. Based on the
Manitoba Plumbing Code
Mastery (NPC 2020 & M.R.
80/2023)
PART 0: THE (Table of Contents)
Section Cognitive Tier Focus Area
PART I N/A The Preview & Critical Axioms
PART II Tier 1 (Q1–15) Foundational Syntax, NPC
2020 Updates & M.R. 80/2023
Amendments
PART II Tier 2 (Q16–35) Complex Application: Backflow
(CSA B64.10) & DWV Sizing
Simulation
PART II Tier 3 (Q36–60) Grandmaster Synthesis:
Multi-Storey Wet Vents, WSFU,
& System Architecture
PART I: THE Preview
Mastering this elite test bank translates your theoretical code knowledge into rapid, infallible
diagnostic and design capabilities in the field. By treating the National Plumbing Code and
Manitoba's specific provincial amendments as an integrated physical system rather than a static
rulebook, you forge the analytical stamina required to design zero-failure high-performance
hydraulic systems.
The "Critical Axioms" Cheat Sheet
● The Gravity & Grade Matrix: Drainage pipes 3 inches or smaller mandate a minimum
1/50 (2%) slope; pipes 4 inches or larger permit a 1/100 (1%) slope.
● The Continuous Flow Law: 1 Litre per second (L/s) of continuous flow equals exactly
31.7 Drainage Fixture Units (DFU).
● The Cross-Connection Imperative (CSA B64.10): Severe hazards (toxic/lethal)
mandate Reduced Pressure Principle (RPZ/RPBA) assemblies; moderate hazards
(aesthetic/low health risk) allow Double Check Valve Assemblies (DCVA).
● The Vent Airflow Baseline: A vent stack or stack vent size must never be less than
one-half the nominal pipe size (NPS) of the soil-or-waste stack at its base.
● The Manitoba M.R. 80/2023 Standard: Residential water closets are strictly capped at
4.8 Lpf, urinals at 1.9 Lpf, and drain water heat recovery (DWHR) units must meet a
, minimum 42% efficiency.
PART II: THE ELITE TEST BANK
Q1: An engineer specifies a commercial grade floor drain serving a grease interceptor in a
Winnipeg vehicle parking garage. Based on the principles of M.R. 80/2023, which
action/conclusion is the MOST ACCURATE regarding the trap sizing? A) The trap may be 3
inches if the connected interceptor capacity is under 50 GPM. B) The trap must be sized
identically to the interceptor outlet, standardizing at 2 inches. C) The floor drain or trap serving
the interceptor must be a minimum of 4 inches in size. D) Interceptors in vehicle garages require
6-inch traps to handle continuous storm flows.
● The Answer: C (The floor drain or trap serving the interceptor must be a minimum of 4
inches in size.)
● Distractor Analysis:
○ A is incorrect: M.R. 80/2023 establishes a hard dimensional floor regardless of
specific GPM metrics for this context.
○ B is incorrect: Technically common in generic commercial sinks, but explicitly illegal
under Manitoba amendments for garage interceptors.
○ D is incorrect: 6 inches is a calculation error based on municipal combined sewer
legacy codes, not the provincial minimum.
The Mentor's Analysis: Under Manitoba Regulation 80/2023, high-sediment and high-viscosity
environments like garages and car washes require robust flow assurance. The provincial
amendment explicitly supersedes the NPC baseline, demanding 4-inch minimums. By utilizing
M.R. 80/2023 Sentence 2.4.4.3.(5), you bypass the common trap of under-sizing based on
generic NPC charts. Professional/Academic Intuition: Garages equal 4-inch minimums.
Sand and oil dictate maximum dimensional tolerance.
Q2: A contractor is retrofitting a residential dwelling in Manitoba and installs new water closets.
The client requests a high-flow 6.0 Lpf toilet for the master bathroom to prevent clogs. Based on
the principles of M.R. 80/2023 Water Use Efficiency, which action/conclusion is the MOST
ACCURATE? A) The contractor can install the 6.0 Lpf fixture if they submit a variance to the
Authority Having Jurisdiction. B) The contractor may install the 6.0 Lpf fixture because it meets
the NPC 2020 national baseline. C) The contractor must refuse; residential water closets are
strictly limited to a maximum of 4.8 Lpf. D) The contractor must use a 4.8 Lpf toilet but can
modify the flush valve to achieve 6.0 Lpf post-inspection.
● The Answer: C (The contractor must refuse; residential water closets are strictly limited
to a maximum of 4.8 Lpf.)
● Distractor Analysis:
○ A is incorrect: Variances are not granted for standard residential fixture flow
preferences.
○ B is incorrect: While NPC 2020 has base rules, M.R. 80/2023 explicitly amended
residential water closets down to 4.8 Lpf from the previous 6.0 Lpf standard.
○ D is incorrect: Modifying certified plumbing fixtures violates the Code and nullifies
the CSA certification.
The Mentor's Analysis: Manitoba skipped the 2015 NPC and adopted the 2020 NPC with strict
efficiency amendments. The drop from 6.0 Lpf to 4.8 Lpf is a rigid provincial mandate designed
to conserve potable water. By utilizing Manitoba's specific flow rate schedules, you bypass the
common trap of referencing outdated or generalized national standards.
,Professional/Academic Intuition: Residential WC = 4.8 Lpf. Non-Residential WC = 6.0 Lpf.
Context dictates the flow.
Q3: During the rough-in of a healthcare facility's laboratory in Brandon, a plumber is positioning
cleanouts for fixture drains. The lab handles hazardous wastes. Based on the principles of NPC
2020, which action/conclusion is the MOST ACCURATE regarding the cleanout location? A)
The cleanout must be installed at the base of the stack to prevent hazardous exposure. B) The
cleanout must be located exactly flush with the finished floor level to prevent tripping hazards.
C) The cleanout must be located a minimum of 150 mm above the flood level rim of the fixture.
D) Hazardous waste fixtures are strictly prohibited from having cleanouts to prevent
aerosolization.
● The Answer: C (The cleanout must be located a minimum of 150 mm above the flood
level rim of the fixture.)
● Distractor Analysis:
○ A is incorrect: Base stack cleanouts are required, but they do not replace the
requirement for individual fixture drain cleanouts.
○ B is incorrect: Floor cleanouts are technically valid for standard sanitary drains, but
hazardous waste requires vertical isolation.
○ D is incorrect: All drainage systems must be cleanable; prohibiting cleanouts is a
functional impossibility.
The Mentor's Analysis: The 2020 NPC broadened the language from "body fluids" to
"hazardous waste." To protect workers from back-siphoned or overflowing hazardous materials
during drain clearing, the access point must sit physically higher than the overflow point of the
fixture. By utilizing elevation isolation, you bypass the common trap of creating an immediate
spill hazard upon opening the plug. Professional/Academic Intuition: Hazardous waste
cleanouts require gravity protection: always 150 mm above the flood level rim.
Q4: A designer is sizing a continuous flow pump discharging clear-water waste at a rate of 0.5
L/s into a sanitary building drain. Based on the principles of NPC 2020 Hydraulic Loads, which
action/conclusion is the MOST ACCURATE conversion? A) The pump imposes a load of 15.85
Drainage Fixture Units (DFU). B) The pump imposes a load of 31.7 Drainage Fixture Units
(DFU). C) Continuous flow fixtures are exempted from DFU calculations and sized via specific
GPM charts. D) The pump imposes a load of 450 Litres, requiring an immediate conversion to
storm sizing.
● The Answer: A (The pump imposes a load of 15.85 Drainage Fixture Units (DFU).)
● Distractor Analysis:
○ B is incorrect: 31.7 is the multiplier for 1.0 L/s, not 0.5 L/s.
○ C is incorrect: This is a legacy methodology; continuous sanitary flow MUST be
converted to DFUs for combined sizing.
○ D is incorrect: Litre conversion (multiplying by 900) is only used when the
continuous flow discharges to a storm or combined sewer, not a dedicated sanitary
drain.
The Mentor's Analysis: The code bridges the gap between static fixture discharges and
continuous mechanical flow by using a hard mathematical multiplier. 1 L/s = 31.7 DFU.
Therefore, 0.5 L/s × 31.7 = 15.85 DFU. By utilizing the exact conversion multiplier, you bypass
the common trap of misapplying storm litre conversions to sanitary systems.
Professional/Academic Intuition: Sanitary Continuous Flow = L/s × 31.7 DFU. Storm
Continuous Flow = L/s × 900 Litres.
Q5: An S230 contractor is installing a domestic clothes washer drain in a single-family home.
The washer does not drain into a laundry tray. Based on the principles of NPC 2020, which
, action/conclusion is the MOST ACCURATE? A) The trap inlet must be fitted with a standpipe no
less than 600 mm long, terminating above the washer's flood level rim. B) The trap must be
increased to 3 inches to handle the pump velocity of modern domestic washers. C) The
standpipe must be a maximum of 400 mm to prevent excessive velocity at the trap weir. D) The
clothes washer may connect directly to the building drain without a trap if a backwater valve is
present.
● The Answer: A (The trap inlet must be fitted with a standpipe no less than 600 mm long,
terminating above the washer's flood level rim.)
● Distractor Analysis:
○ B is incorrect: Domestic clothes washer traps are explicitly sized at 2 inches; 3
inches is an extreme over-calculation.
○ C is incorrect: 400 mm is too short and violates the code, causing suds backup and
overflow.
○ D is incorrect: All fixtures must be trapped to prevent sewer gas infiltration;
backwater valves do not replace trap seals.
The Mentor's Analysis: Without the volumetric buffer of a laundry tray, the high-velocity
discharge from a washing machine pump will blast past a standard trap, causing suds and water
to overflow. The 600 mm standpipe creates the necessary vertical head and volume to absorb
the shock. By utilizing vertical standpipe buffering, you bypass the common trap of suds
overflow. Professional/Academic Intuition: Direct washer connections demand a 600 mm
standpipe. Volume control prevents overflow.
Q6: You are reviewing the specifications for an elder-care facility in Winnipeg. The drawings
show standard thermostatic mixing valves for all patient showers. Based on the principles of
NPC 2020, which action/conclusion is the MOST ACCURATE regarding temperature control?
A) The maximum water temperature discharging from the shower heads must be strictly
reduced below standard residential limits to prevent scalding. B) Elder-care facilities are exempt
from shower temperature limits provided standard pressure-balancing valves are used. C) The
water heater must be set to 40°C to ensure safe delivery temperatures system-wide. D) Shower
temperatures must exceed 60°C to ensure Legionella bacteria are eradicated upon discharge.
● The Answer: A (The maximum water temperature discharging from the shower heads
must be strictly reduced below standard residential limits to prevent scalding.)
● Distractor Analysis:
○ B is incorrect: Pressure-balancing valves prevent thermal shock from pressure
drops, not maximum temperature limits, which are strictly regulated in
healthcare/seniors' occupancies.
○ C is incorrect: Storing water at 40°C promotes lethal Legionella growth; water must
be stored hot and mixed down at the point of use.
○ D is incorrect: Discharging water at 60°C will cause instant third-degree burns on
elderly skin.
The Mentor's Analysis: The 2020 NPC specifically targets vulnerable populations. Elderly
individuals possess thinner skin and slower reaction times, making standard 49°C residential
limits highly dangerous. The system must store water hot (to kill bacteria) but deliver it at heavily
restricted temperatures. By utilizing point-of-use temperature reduction, you bypass the
common trap of prioritizing bacterial control over immediate scalding hazards.
Professional/Academic Intuition: Store hot, deliver safe. Vulnerable occupancies dictate
extreme point-of-use temperature suppression.
Q7: Under M.R. 80/2023, a contractor is tasked with installing a drain water heat recovery
(DWHR) unit in a newly constructed home to capture energy from a shower. Based on the
