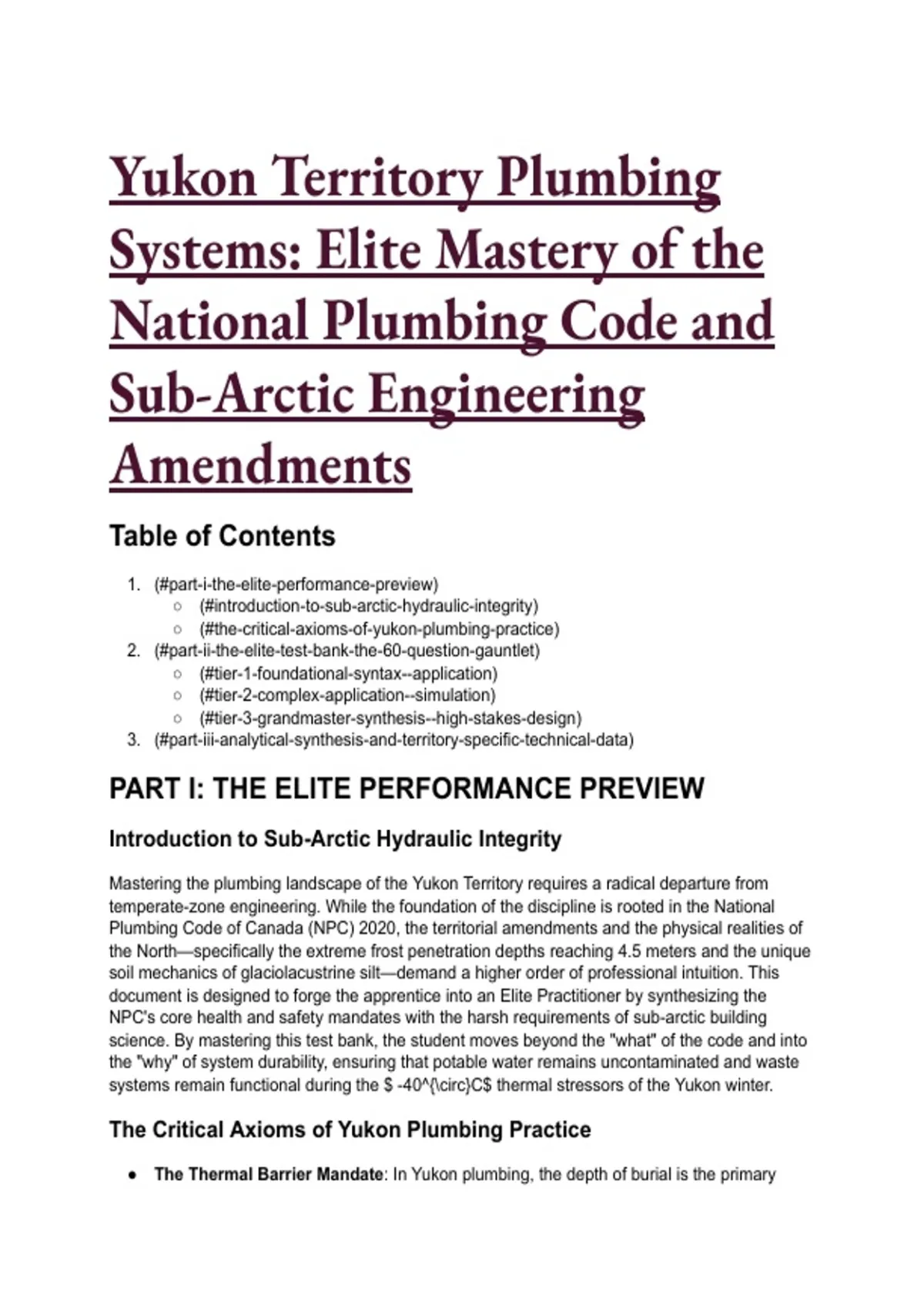

Yukon Territory Plumbing
Systems: Elite Mastery of the
National Plumbing Code and
Sub-Arctic Engineering
Amendments
Table of Contents
1. (#part-i-the-elite-performance-preview)
○ (#introduction-to-sub-arctic-hydraulic-integrity)
○ (#the-critical-axioms-of-yukon-plumbing-practice)
2. (#part-ii-the-elite-test-bank-the-60-question-gauntlet)
○ (#tier-1-foundational-syntax--application)
○ (#tier-2-complex-application--simulation)
○ (#tier-3-grandmaster-synthesis--high-stakes-design)
3. (#part-iii-analytical-synthesis-and-territory-specific-technical-data)
PART I: THE ELITE PERFORMANCE PREVIEW
Introduction to Sub-Arctic Hydraulic Integrity
Mastering the plumbing landscape of the Yukon Territory requires a radical departure from
temperate-zone engineering. While the foundation of the discipline is rooted in the National
Plumbing Code of Canada (NPC) 2020, the territorial amendments and the physical realities of
the North—specifically the extreme frost penetration depths reaching 4.5 meters and the unique
soil mechanics of glaciolacustrine silt—demand a higher order of professional intuition. This
document is designed to forge the apprentice into an Elite Practitioner by synthesizing the
NPC's core health and safety mandates with the harsh requirements of sub-arctic building
science. By mastering this test bank, the student moves beyond the "what" of the code and into
the "why" of system durability, ensuring that potable water remains uncontaminated and waste
systems remain functional during the $ -40^{\circ}C$ thermal stressors of the Yukon winter.
The Critical Axioms of Yukon Plumbing Practice
● The Thermal Barrier Mandate: In Yukon plumbing, the depth of burial is the primary
, defense against system failure. Standard frost protection in Whitehorse requires a
minimum depth of 2.5 meters, though engineering bulletins for subdivisions like Whistle
Bend highlight that seepage and frost-susceptible soils can necessitate depths exceeding
4 meters or the use of engineered insulation and heat-trace systems.
● The Law of Hydraulic Load and Scouring Velocity: Every drainage branch must be
sized not just to carry the peak load (Fixture Units), but to maintain a scouring velocity of
at least 0.6 m/s (2 ft/s). Under-sizing leads to siphoning, while over-sizing leads to solid
accumulation, which is particularly dangerous in cold-weather pipes where residual liquids
can freeze between uses.
● The Cross-Connection Imperative: Protection of the potable water supply is a
non-negotiable health objective. All connections between the drinking water system and
non-potable sources must be protected by a CSA B64-compliant backflow preventer,
selected based on the Hazard Level (Minor, Moderate, or Severe).
● The Administrative Compliance Protocol: Under Whitehorse Bylaw 99-50, any
alteration, extension, or repair of a plumbing system—excluding routine
maintenance—requires a permit. Failure to obtain a permit before starting construction
results in a doubled fee and potential mandatory demolition of uninspected work.
PART II: THE ELITE TEST BANK (The 60-Question
Gauntlet)
Tier 1: Foundational Syntax & Application
Q1: A plumbing contractor is installing a new drainage system for a residential dwelling in
Whitehorse. According to the National Plumbing Code (NPC) 2020, as adopted by the Yukon
Territory, what is the MINIMUM trap seal depth required for all standard plumbing fixtures to
prevent the ingress of harmful sewer gases into the building? A) 25 mm B) 38 mm C) 50 mm D)
75 mm
● The Answer: B (38 mm)
● Distractor Analysis:
○ A is incorrect: 25 mm is insufficient and does not provide the safety margin required
for evaporation and pressure fluctuations common in dry northern climates.
○ C is incorrect: 50 mm is a common standard for deep-seal traps used in
high-ventilation environments but is not the code-mandated minimum.
○ D is incorrect: 75 mm is generally used only for specialized industrial traps or where
significant pressure differentials are anticipated.
The Mentor's Analysis: The trap seal is the primary physical barrier between the sanitary
environment and the inhabited space. In the Yukon's low-humidity winter, 38 mm ensures that
the seal remains intact even with typical evaporation rates over 30 days.
Professional/Academic Intuition: 38 mm (1.5 inches) is the universal baseline for health
and safety in Canadian drainage.
Q2: During the installation of a building sewer for a commercial project in Dawson City, the
inspector notes the use of 100 mm (4-inch) pipe. According to NPC Table 2.4.10.6.C, what is
the MINIMUM permissible downward slope (grade) for this section of horizontal drainage pipe?
A) 1 in 25 (4%) B) 1 in 50 (2%) C) 1 in 100 (1%) D) 1 in 200 (0.5%)
● The Answer: C (1 in 100 (1%))
, ● Distractor Analysis:
○ A is incorrect: 1 in 25 is excessive for 4-inch pipe and can cause the liquid to flow
too fast, leaving solids behind to cause blockages.
○ B is incorrect: 1 in 50 is the requirement for smaller pipes (75 mm or less) but is not
the minimum for 100 mm pipe.
○ D is incorrect: 1 in 200 is only permitted for larger municipal sewers or under
specific engineered variances for pipe sizes 200 mm or greater.
The Mentor's Analysis: Slope is a precise balance between gravity and friction. For a 4-inch
pipe, 1% grade provides the ideal scouring velocity to move waste effectively without inducing
turbulence that breaks the water surface. Professional/Academic Intuition: Smaller pipes (\le
3") require 2% slope; larger pipes (\ge 4") require 1% minimum.
Q3: The Yukon Territory has officially adopted the NPC 2020 with territorial variations. Which of
the following materials is now STRICTLY PROHIBITED for the construction of drainage pipes
serving urinals? A) Polyvinyl Chloride (PVC) B) Acrylonitrile-Butadiene-Styrene (ABS) C)
Copper tube D) Galvanized steel
● The Answer: C (Copper tube)
● Distractor Analysis:
○ A is incorrect: PVC is highly resistant to chemical corrosion and is a preferred
material for urinal waste.
○ B is incorrect: ABS is a standard drainage material and remains permitted.
○ D is incorrect: While galvanized steel is prone to corrosion over long periods, the
2020 NPC specifically targets copper due to its reactive failure with nitrogenous
waste.
The Mentor's Analysis: Urinal waste contains high concentrations of urea and ammonia, which
chemically attack copper through a process of accelerated oxidation. The NPC 2020 update
harmonizes with global data on material failures in commercial sanitation.
Professional/Academic Intuition: Never use copper for urinal waste; it is a
materials-science failure waiting to happen.
Q4: A designer is calculating the water distribution load for a new multi-family residence in
Whitehorse. According to the NPC water supply sizing tables, what is the Fixture Unit (FU) value
assigned to a standard residential bathtub (with or without shower)? A) 1.0 FU B) 1.5 FU C) 2.0
FU D) 3.0 FU
● The Answer: B (1.5 FU)
● Distractor Analysis:
○ A is incorrect: 1.0 FU is typically assigned to smaller fixtures like a bidet or a
lavatory.
○ C is incorrect: 2.0 FU is the load for a standard clothes washer.
○ D is incorrect: 3.0 FU is for larger commercial-grade tubs or specific floor drains.
The Mentor's Analysis: Fixture Units (FUs) represent the probability of simultaneous use and
the resultant flow rate. Accurate FU assignment is critical to prevent pressure drops that could
lead to scalding or backflow. Professional/Academic Intuition: Hydraulic load calculation is
the foundation of pressure stability.
Q5: Under the City of Whitehorse Building and Plumbing Bylaw 99-50, which of the following
activities MANDATORILY requires a plumbing permit? A) Replacing a damaged faucet in a
kitchen. B) Repairing a minor leak in a toilet shut-off valve. C) Extending an existing plumbing
system to add a new basement bathroom. D) Clearing a standard stoppage in a main sewer
line.
● The Answer: C (Extending an existing plumbing system to add a new basement
