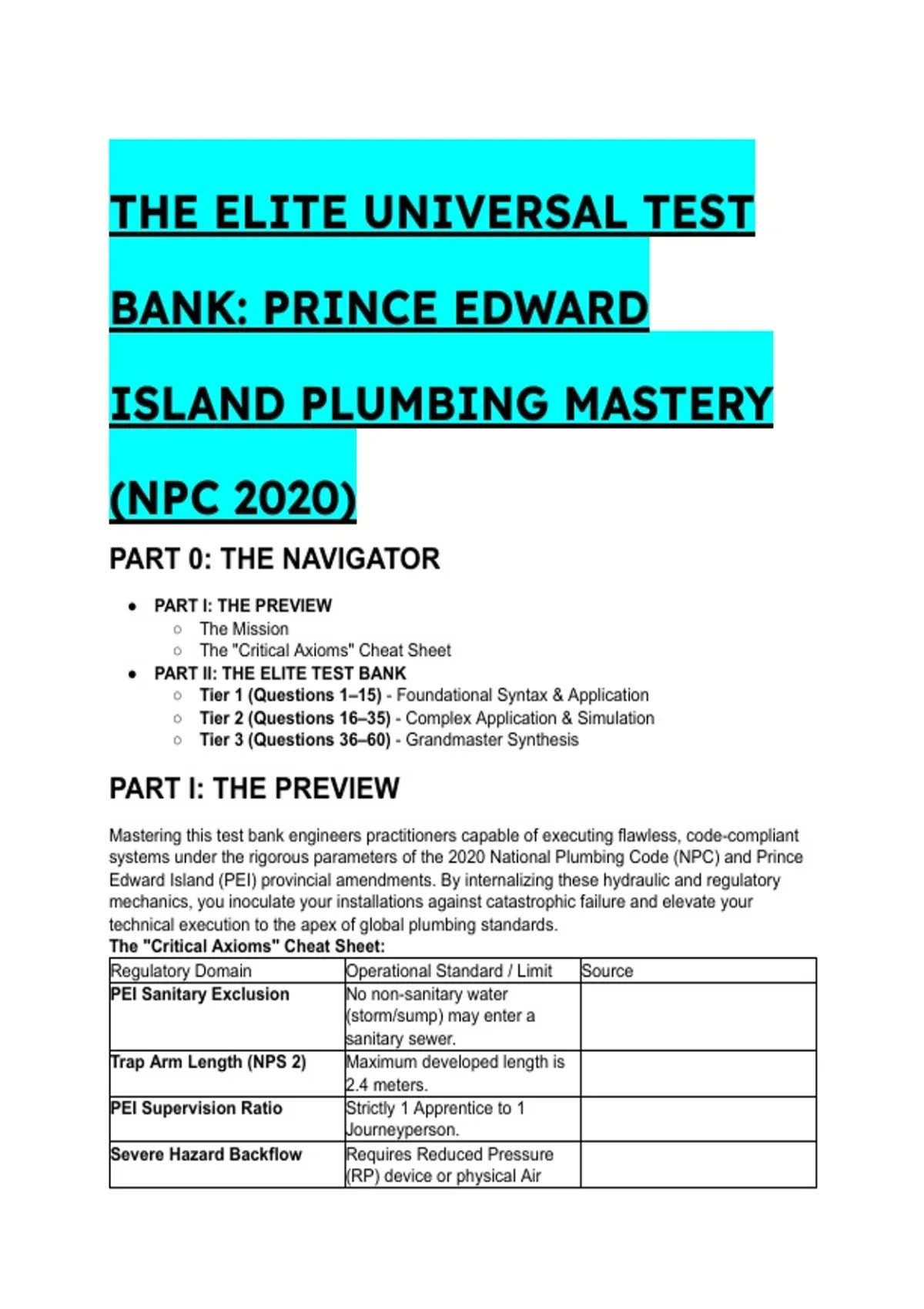

THE ELITE UNIVERSAL TEST
BANK: PRINCE EDWARD
ISLAND PLUMBING MASTERY
(NPC 2020)
PART 0: THE NAVIGATOR
● PART I: THE PREVIEW
○ The Mission
○ The "Critical Axioms" Cheat Sheet
● PART II: THE ELITE TEST BANK
○ Tier 1 (Questions 1–15) - Foundational Syntax & Application
○ Tier 2 (Questions 16–35) - Complex Application & Simulation
○ Tier 3 (Questions 36–60) - Grandmaster Synthesis
PART I: THE PREVIEW
Mastering this test bank engineers practitioners capable of executing flawless, code-compliant
systems under the rigorous parameters of the 2020 National Plumbing Code (NPC) and Prince
Edward Island (PEI) provincial amendments. By internalizing these hydraulic and regulatory
mechanics, you inoculate your installations against catastrophic failure and elevate your
technical execution to the apex of global plumbing standards.
The "Critical Axioms" Cheat Sheet:
Regulatory Domain Operational Standard / Limit Source
PEI Sanitary Exclusion No non-sanitary water
(storm/sump) may enter a
sanitary sewer.
Trap Arm Length (NPS 2) Maximum developed length is
2.4 meters.
PEI Supervision Ratio Strictly 1 Apprentice to 1
Journeyperson.
Severe Hazard Backflow Requires Reduced Pressure
(RP) device or physical Air
,Regulatory Domain Operational Standard / Limit Source
Gap.
Electric Heater Temp Thermostat must be set to
exactly 60°C to neutralize
Legionella.
Continuous Flow 1 Litre per second (L/s) = 31.7
Fixture Units (FUs).
PART II: THE ELITE TEST BANK
Tier 1 - Foundational Syntax & Application
Q1: A Prince Edward Island contractor is hired to install a new subsoil drainage sump pit and
replace a kitchen faucet. Based on the principles of the PEI Environmental Protection Act
Plumbing Regulations, which action/conclusion is the MOST ACCURATE? A) Both installations
require a provincial plumbing permit and a licensed contractor. B) The sump pit may discharge
into the sanitary building drain if equipped with an NPS 2 vent. C) The faucet replacement
requires no permit, but the sump pit is strictly prohibited from discharging into the sanitary
sewer. D) The sump pit is permitted to discharge to the sanitary sewer if an ejector pump is
utilized.
● The Answer: C (The faucet replacement requires no permit, but the sump pit is strictly
prohibited from discharging into the sanitary sewer.)
● Distractor Analysis:
○ A is incorrect: PEI regulations explicitly exempt minor valve or faucet replacements
from permitting requirements.
○ B is incorrect: Venting does not circumvent the absolute prohibition against routing
storm/subsoil water into sanitary systems.
○ D is incorrect: Pumping subsoil water into a sanitary drain violates the core PEI
mandate protecting municipal treatment plants.
The Mentor's Analysis: Provincial amendments override generalized model codes to protect
local infrastructure. When facing subsoil water disposal in PEI, the immediate priority is absolute
isolation from the sanitary grid. By utilizing Sanitary Exclusion, you bypass the common trap of
illegally flooding municipal treatment plants during rain events. Professional/Academic
Intuition: Never cross-contaminate clear-water or storm waste with sanitary building drains
within Prince Edward Island jurisdiction.
Q2: A journeyman is installing an NPS 1-1/2 trap arm for a bathtub. Based on the principles of
NPC 2020 Table 2.5.6.3, which action/conclusion is the MOST ACCURATE regarding maximum
developed length? A) The trap arm may extend up to 1.5 meters before a vent connection. B)
The trap arm may extend up to 2.4 meters before a vent connection. C) The trap arm may
extend up to 1.8 meters before a vent connection. D) The trap arm length is unrestricted
provided a 1/50 slope is maintained.
● The Answer: C (The trap arm may extend up to 1.8 meters before a vent connection.)
● Distractor Analysis:
○ A is incorrect: 1.5 meters is the absolute maximum limit for a smaller NPS 1-1/4
trap arm.
○ B is incorrect: 2.4 meters is the limit assigned exclusively to an NPS 2 trap arm.
○ D is incorrect: Trap arms are strictly limited by length regardless of proper sloping to
prevent hydraulic jumps blocking the airway.
, The Mentor's Analysis: Trap arm lengths are mathematically proportional to pipe diameter to
prevent self-siphonage. When facing trap layout, the immediate priority is maintaining the
air-to-water ratio across the arm's fall. By utilizing the 1.8-meter limit for NPS 1-1/2, you bypass
the common trap of starving the trap seal of atmospheric pressure. Professional/Academic
Intuition: Memorize the Trap Arm Matrix: 1.25"=1.5m, 1.5"=1.8m, 2"=2.4m, 3"=3.6m.
Q3: An apprentice is calculating drainage loads for a standard residential bathroom group
containing a flush tank water closet, a lavatory, and a bathtub. Based on the principles of NPC
Table 2.4.9.3, which action/conclusion is the MOST ACCURATE? A) The total hydraulic load is
exactly 4 Fixture Units. B) The total additive load must be manually calculated as 7.5 Fixture
Units. C) The total hydraulic load is governed as exactly 6 Fixture Units. D) The total hydraulic
load is governed as exactly 8 Fixture Units.
● The Answer: C (The total hydraulic load is governed as exactly 6 Fixture Units.)
● Distractor Analysis:
○ A is incorrect: 4 FUs is the isolated load for a residential water closet on its own. * B
is incorrect: Adding fixtures individually (4 + 1.5 + 1.5) fails to account for the code's
non-simultaneous use discount.
○ D is incorrect: 8 FUs is the designated load for a bathroom group utilizing a direct
flush valve, not a flush tank.
The Mentor's Analysis: The code mathematically rewards clustered fixtures based on the
statistical improbability of simultaneous use. When facing bathroom group calculations, the
immediate priority is applying the aggregate group value. By utilizing the 6 FU standard
aggregate, you bypass the common trap of heavily oversizing branch drains based on isolated
additive values. Professional/Academic Intuition: A standard residential bathroom group with
a flush-tank toilet is universally calculated as exactly 6 Fixture Units.
Q4: A contractor is designing a trap arm specifically for a floor-mounted flush tank water closet.
Based on the principles of trap arm configuration, which action/conclusion is the MOST
ACCURATE? A) The trap arm cannot exceed a cumulative directional change of 90 degrees. B)
The trap arm cannot exceed a cumulative directional change of 135 degrees. C) The trap arm
cannot exceed a cumulative directional change of 225 degrees. D) The trap arm cannot exceed
a cumulative directional change of 180 degrees.
● The Answer: C (The trap arm cannot exceed a cumulative directional change of 225
degrees.)
● Distractor Analysis:
○ A is incorrect: 90 degrees is the cleanout limitation applied to kitchen sink drip
pipes.
○ B is incorrect: 135 degrees is the standard maximum for standard fixtures, but
water closets receive a distinct exception.
○ D is incorrect: 180 degrees is an arbitrary angle not utilized in specific trap arm
directional limitations.
The Mentor's Analysis: Standard trap arms choke easily with directional changes, capping at
135°. When facing siphonic fixtures, the immediate priority is acknowledging their inherent
velocity and scouring power. By utilizing the 225° siphonic exception, you bypass the common
trap of over-restricting water closet layouts and wasting floor space. Professional/Academic
Intuition: Siphonic fixtures (water closets) permit 225° of cumulative directional change; all
standard fixtures permit only 135°.
Q5: An electric storage-type service water heater is installed. Based on the principles of NPC
2.6.1.12 regarding health and thermal stratification, which action/conclusion is the MOST
ACCURATE? A) The thermostat must be set to a maximum of 49°C to prevent scalding. B) The
