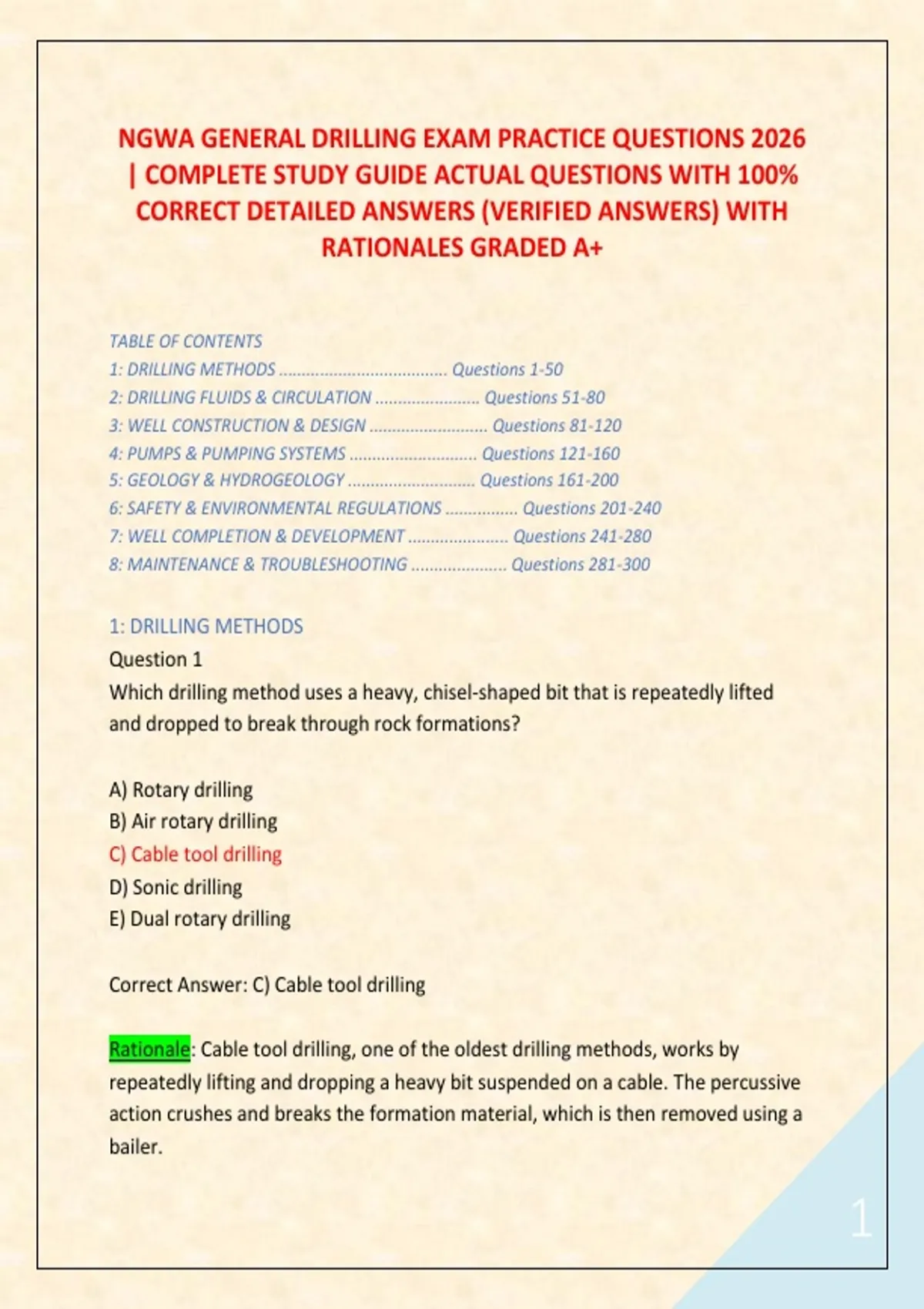

NGWA GENERAL DRILLING EXAM PRACTICE QUESTIONS 2026
| COMPLETE STUDY GUIDE ACTUAL QUESTIONS WITH 100%
CORRECT DETAILED ANSWERS (VERIFIED ANSWERS) WITH
RATIONALES GRADED A+
TABLE OF CONTENTS
1: DRILLING METHODS ..................................... Questions 1-50
2: DRILLING FLUIDS & CIRCULATION ....................... Questions 51-80
3: WELL CONSTRUCTION & DESIGN .......................... Questions 81-120
4: PUMPS & PUMPING SYSTEMS ............................ Questions 121-160
5: GEOLOGY & HYDROGEOLOGY ............................ Questions 161-200
6: SAFETY & ENVIRONMENTAL REGULATIONS ................ Questions 201-240
7: WELL COMPLETION & DEVELOPMENT ...................... Questions 241-280
8: MAINTENANCE & TROUBLESHOOTING ..................... Questions 281-300
1: DRILLING METHODS
Question 1
Which drilling method uses a heavy, chisel-shaped bit that is repeatedly lifted
and dropped to break through rock formations?
A) Rotary drilling
B) Air rotary drilling
C) Cable tool drilling
D) Sonic drilling
E) Dual rotary drilling
Correct Answer: C) Cable tool drilling
Rationale: Cable tool drilling, one of the oldest drilling methods, works by
repeatedly lifting and dropping a heavy bit suspended on a cable. The percussive
action crushes and breaks the formation material, which is then removed using a
bailer.
1
,Question 2
In rotary drilling, what is the primary function of drilling fluid (mud)?
A) To lubricate the drill pipe threads
B) To cool the engine powering the rig
C) To remove cuttings, cool the bit, and stabilize the borehole
D) To increase the weight of the drill string
E) To reduce the cost of drilling operations
Correct Answer: C) To remove cuttings, cool the bit, and stabilize the borehole
Rationale: Drilling fluid performs multiple critical functions: transporting
cuttings to the surface, cooling and lubricating the drill bit, maintaining
hydrostatic pressure to prevent formation fluids from entering the borehole, and
stabilizing the borehole wall.
Question 3
Which drilling method is considered the fastest for penetrating unconsolidated
formations?
A) Cable tool drilling
B) Rotary drilling with a tricone bit
C) Air rotary drilling
D) Auger drilling
E) Jetting
Correct Answer: B) Rotary drilling with a tricone bit
Rationale: Rotary drilling with a tricone bit is one of the fastest methods for
penetrating unconsolidated formations because the rotating bit continuously
2
,grinds and crushes material while drilling fluid removes cuttings.
Question 4
What is the primary advantage of air rotary drilling over mud rotary drilling?
A) Lower equipment costs
B) Faster penetration rates in certain formations
C) Better borehole stability
D) Less dust production
E) Easier to control formation fluids
Correct Answer: B) Faster penetration rates in certain formations
Rationale: Air rotary drilling often achieves faster penetration rates in hard
rock formations because air provides efficient cuttings removal and does not
cause formation damage from fluid invasion. However, it offers less borehole
stability than mud systems.
Question 5
What type of drilling method uses a dual-wall drill pipe to allow air or fluid
to be injected down the annulus and returned through the inner pipe?
A) Conventional rotary drilling
B) Down-the-hole hammer drilling
C) Reverse circulation drilling
D) Auger drilling
E) Sonic drilling
Correct Answer: C) Reverse circulation drilling
Rationale: Reverse circulation drilling uses a dual-wall drill pipe where
3
, air/fluid is injected down the annulus and returns through the inner pipe. This
method provides excellent sample quality and is effective in unconsolidated
formations.
Question 6
What is the primary limitation of cable tool drilling compared to rotary
drilling?
A) Higher equipment costs
B) Slower penetration rates in hard rock
C) Inability to drill through boulders
D) Requirement for large amounts of water
E) Higher skill requirements for operation
Correct Answer: B) Slower penetration rates in hard rock
Rationale: Cable tool drilling is significantly slower than rotary drilling in
hard rock formations because it relies on percussion rather than continuous
rotation. This makes it less economical for deep or large-scale projects.
Question 7
Which drilling method is most commonly used for environmental monitoring well
installation?
A) Cable tool drilling
B) Hollow stem auger drilling
C) Rotary drilling with mud
D) Air rotary drilling
E) Jetting
Correct Answer: B) Hollow stem auger drilling
4
| COMPLETE STUDY GUIDE ACTUAL QUESTIONS WITH 100%
CORRECT DETAILED ANSWERS (VERIFIED ANSWERS) WITH
RATIONALES GRADED A+
TABLE OF CONTENTS
1: DRILLING METHODS ..................................... Questions 1-50
2: DRILLING FLUIDS & CIRCULATION ....................... Questions 51-80
3: WELL CONSTRUCTION & DESIGN .......................... Questions 81-120
4: PUMPS & PUMPING SYSTEMS ............................ Questions 121-160
5: GEOLOGY & HYDROGEOLOGY ............................ Questions 161-200
6: SAFETY & ENVIRONMENTAL REGULATIONS ................ Questions 201-240
7: WELL COMPLETION & DEVELOPMENT ...................... Questions 241-280
8: MAINTENANCE & TROUBLESHOOTING ..................... Questions 281-300
1: DRILLING METHODS
Question 1
Which drilling method uses a heavy, chisel-shaped bit that is repeatedly lifted
and dropped to break through rock formations?
A) Rotary drilling
B) Air rotary drilling
C) Cable tool drilling
D) Sonic drilling
E) Dual rotary drilling
Correct Answer: C) Cable tool drilling
Rationale: Cable tool drilling, one of the oldest drilling methods, works by
repeatedly lifting and dropping a heavy bit suspended on a cable. The percussive
action crushes and breaks the formation material, which is then removed using a
bailer.
1
,Question 2
In rotary drilling, what is the primary function of drilling fluid (mud)?
A) To lubricate the drill pipe threads
B) To cool the engine powering the rig
C) To remove cuttings, cool the bit, and stabilize the borehole
D) To increase the weight of the drill string
E) To reduce the cost of drilling operations
Correct Answer: C) To remove cuttings, cool the bit, and stabilize the borehole
Rationale: Drilling fluid performs multiple critical functions: transporting
cuttings to the surface, cooling and lubricating the drill bit, maintaining
hydrostatic pressure to prevent formation fluids from entering the borehole, and
stabilizing the borehole wall.
Question 3
Which drilling method is considered the fastest for penetrating unconsolidated
formations?
A) Cable tool drilling
B) Rotary drilling with a tricone bit
C) Air rotary drilling
D) Auger drilling
E) Jetting
Correct Answer: B) Rotary drilling with a tricone bit
Rationale: Rotary drilling with a tricone bit is one of the fastest methods for
penetrating unconsolidated formations because the rotating bit continuously
2
,grinds and crushes material while drilling fluid removes cuttings.
Question 4
What is the primary advantage of air rotary drilling over mud rotary drilling?
A) Lower equipment costs
B) Faster penetration rates in certain formations
C) Better borehole stability
D) Less dust production
E) Easier to control formation fluids
Correct Answer: B) Faster penetration rates in certain formations
Rationale: Air rotary drilling often achieves faster penetration rates in hard
rock formations because air provides efficient cuttings removal and does not
cause formation damage from fluid invasion. However, it offers less borehole
stability than mud systems.
Question 5
What type of drilling method uses a dual-wall drill pipe to allow air or fluid
to be injected down the annulus and returned through the inner pipe?
A) Conventional rotary drilling
B) Down-the-hole hammer drilling
C) Reverse circulation drilling
D) Auger drilling
E) Sonic drilling
Correct Answer: C) Reverse circulation drilling
Rationale: Reverse circulation drilling uses a dual-wall drill pipe where
3
, air/fluid is injected down the annulus and returns through the inner pipe. This
method provides excellent sample quality and is effective in unconsolidated
formations.
Question 6
What is the primary limitation of cable tool drilling compared to rotary
drilling?
A) Higher equipment costs
B) Slower penetration rates in hard rock
C) Inability to drill through boulders
D) Requirement for large amounts of water
E) Higher skill requirements for operation
Correct Answer: B) Slower penetration rates in hard rock
Rationale: Cable tool drilling is significantly slower than rotary drilling in
hard rock formations because it relies on percussion rather than continuous
rotation. This makes it less economical for deep or large-scale projects.
Question 7
Which drilling method is most commonly used for environmental monitoring well
installation?
A) Cable tool drilling
B) Hollow stem auger drilling
C) Rotary drilling with mud
D) Air rotary drilling
E) Jetting
Correct Answer: B) Hollow stem auger drilling
4
