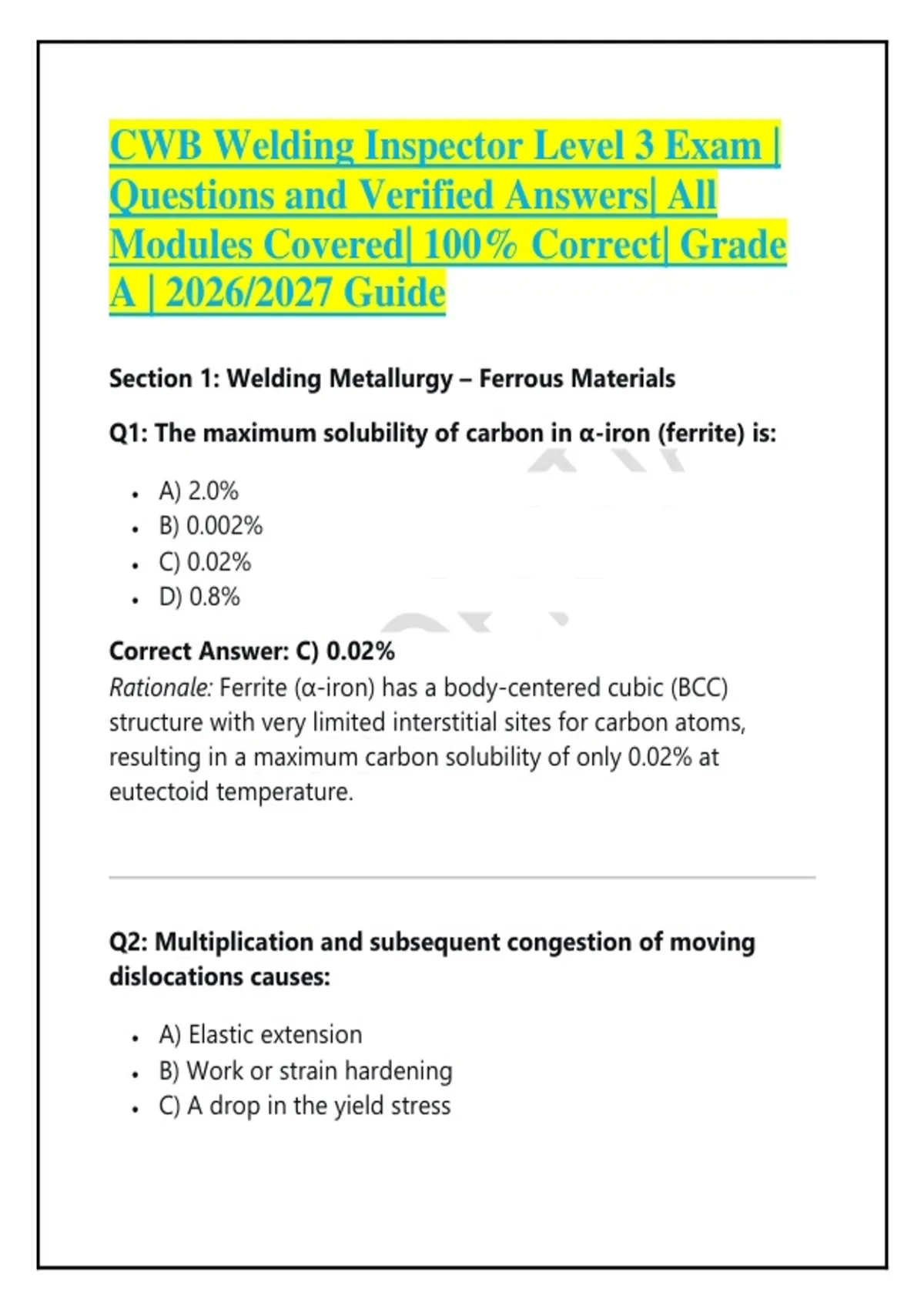

CWB Welding Inspector Level 3 Exam |
Questions and Verified Answers| All
Modules Covered| 100% Correct| Grade
A | 2026/2027 Guide
Section 1: Welding Metallurgy – Ferrous Materials
Q1: The maximum solubility of carbon in α-iron (ferrite) is:
A) 2.0%
B) 0.002%
C) 0.02%
D) 0.8%
Correct Answer: C) 0.02%
Rationale: Ferrite (α-iron) has a body-centered cubic (BCC)
structure with very limited interstitial sites for carbon atoms,
resulting in a maximum carbon solubility of only 0.02% at
eutectoid temperature.
Q2: Multiplication and subsequent congestion of moving
dislocations causes:
A) Elastic extension
B) Work or strain hardening
C) A drop in the yield stress
,Correct Answer: B) Work or strain hardening
Rationale: As dislocations multiply and become congested during
plastic deformation, they impede each other's movement,
requiring increasing stress for continued deformation—this is the
fundamental mechanism of strain hardening.
Q3: The hardness of martensite depends mainly on the:
A) Alloy content
B) Rate of cooling
C) Carbon content
D) Size of the part
Correct Answer: C) Carbon content
Rationale: The hardness of martensite is primarily determined by
the carbon content. Higher carbon content causes greater
tetragonal distortion of the body-centered tetragonal (BCT)
lattice, resulting in higher hardness. Alloying elements contribute
to hardenability (depth of hardening) but have a lesser effect on
the maximum attainable hardness.
Q4: Can bainite normally be produced in continuous cooling
of a plain carbon steel?
Correct Answer: No
Rationale: Bainite typically requires isothermal transformation
(holding at a constant temperature between the pearlite and
,martensite start temperatures). In plain carbon steels during
continuous cooling, the bainite transformation is often
suppressed, and the microstructure transforms directly to
martensite at lower temperatures.
Q5: The real strength of metals is lower than the theoretical
value because:
A) Real crystals always fracture along specific crystal planes
B) Grain boundary sliding occurs
C) The presence of dislocations facilitates slip
D) Impurities weaken the lattice
Correct Answer: C) The presence of dislocations facilitates slip
Rationale: Theoretical strength calculations assume perfect
crystals, but real crystals contain dislocations (line defects).
Dislocations move under applied stress through slip, requiring
significantly less force than breaking all atomic bonds
simultaneously. This explains why actual yield strengths are
typically 100 to 1000 times lower than theoretical values.
Q6: Which of the following elements are most likely to form
interstitial solid solutions?
A) Copper
B) Nickel
C) Carbon
, Correct Answer: C) Carbon
Rationale: Carbon atoms are small enough to fit into the
interstitial spaces of the iron lattice, forming interstitial solid
solutions. Copper and nickel form substitutional solid solutions
with iron.
Q7: If FCC iron has a denser structure than BCC iron, why does
it have a higher solubility for carbon?
Correct Answer: The preferred site for carbon in BCC iron is
smaller than that in FCC iron
Rationale: Although FCC iron is denser, the interstitial sites
(octahedral holes) in FCC are actually larger than those in BCC,
allowing greater carbon solubility in austenite (FCC) compared to
ferrite (BCC).
Q8: Using the iron-carbon phase diagram and the lever rule,
determine the percentage of ferrite and eutectoid pearlite
present in a slowly cooled 0.2% carbon steel.
Correct Answer: About 25% pearlite and 75% ferrite
Rationale: The tie line begins at 0.0%C (α ferrite) and ends at
0.8%C (pearlite). The fulcrum for the lever rule is at 0.2%C:
% pearlite = (0.2 - 0.0)/(0.8 - 0.0) × 100% = 25%
% ferrite = 75%
