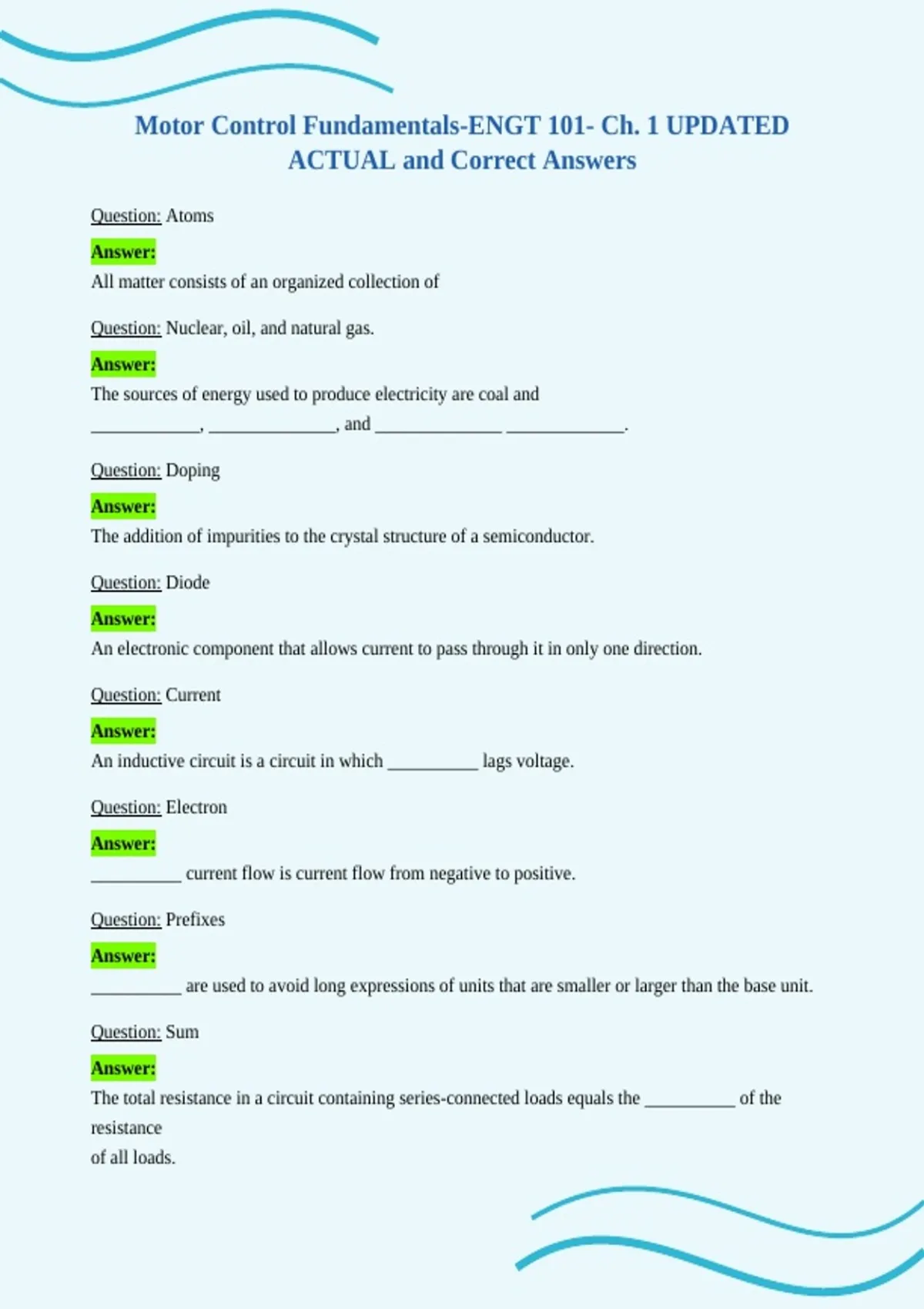

Motor Control Fundamentals-ENGT 101- Ch. 1 UPDATED
ACTUAL and Correct Answers
Question: Atoms
Answer:
All matter consists of an organized collection of
Question: Nuclear, oil, and natural gas.
Answer:
The sources of energy used to produce electricity are coal and
____________, ______________, and ______________ _____________.
Question: Doping
Answer:
The addition of impurities to the crystal structure of a semiconductor.
Question: Diode
Answer:
An electronic component that allows current to pass through it in only one direction.
Question: Current
Answer:
An inductive circuit is a circuit in which __________ lags voltage.
Question: Electron
Answer:
__________ current flow is current flow from negative to positive.
Question: Prefixes
Answer:
__________ are used to avoid long expressions of units that are smaller or larger than the base unit.
Question: Sum
Answer:
The total resistance in a circuit containing series-connected loads equals the __________ of the
resistance
of all loads.
, Question: Proton
Answer:
A __________ is a particle contained in the nucleus of an atom that has a positive electrical charge.
Question: Current times resistance
Answer:
Ohm's Law states that voltage in a circuit is equal to _____________ _____
__________.
Question: Divided
Answer:
The total voltage applied across loads connected in series is _________ across the individual loads.
Question: 40
Answer:
In addition to the maximum voltage, each photovoltaic cell may produce up to __ mA of current.
Question: Digital mulitmeter
Answer:
The photovoltaic effect is measured using a high-impedance voltage measuring
device such as a _________ __________.
Question: Temporary
Answer:
A __________ magnet is a magnet that retains only trace amounts of magnetism after the
magnetizing force has been removed.
Question: Reactive
Answer:
__________ power is power absorbed and returned to a load due to its inductive and/or capacitive
properties.
Question: Farads (F)
Answer:
The unit of capacitance is __________.
Question: Pie chart
Answer:
