AutoCAD Command Shortcuts
IN THIS GUIDE
This guide lists AutoCAD shortcuts in groups according to the command sequence. For example, all text relevant
shortcuts are grouped together.
Quick Link
BLOCKS 5 COMMON COMMANDS 5 CONTROL KEYS 5 COORDINATE ENTRY 5
DIMENSIONING 5 DRAWING OBJECTS 5 EXTERNAL REFERENCE 5 FORMATTING 5
FUNCTION KEYS 5 INQUIRY 5 LAYERS 5 MODIFYING OBJECTS 5 OBJECT SELECTION 5
OBJECT SNAP 5 TEXT 5 3D 5 UCS 5 VIEWPORTS 5
Notes:
1. Generally a shortcut prefixed with ” -“ will suppress the associated dialogue from appearing.
2. Some of the following shortcuts only work with AutoCAD 2006.
3. Not all of the shortcuts listed work with AutoCAD LT.

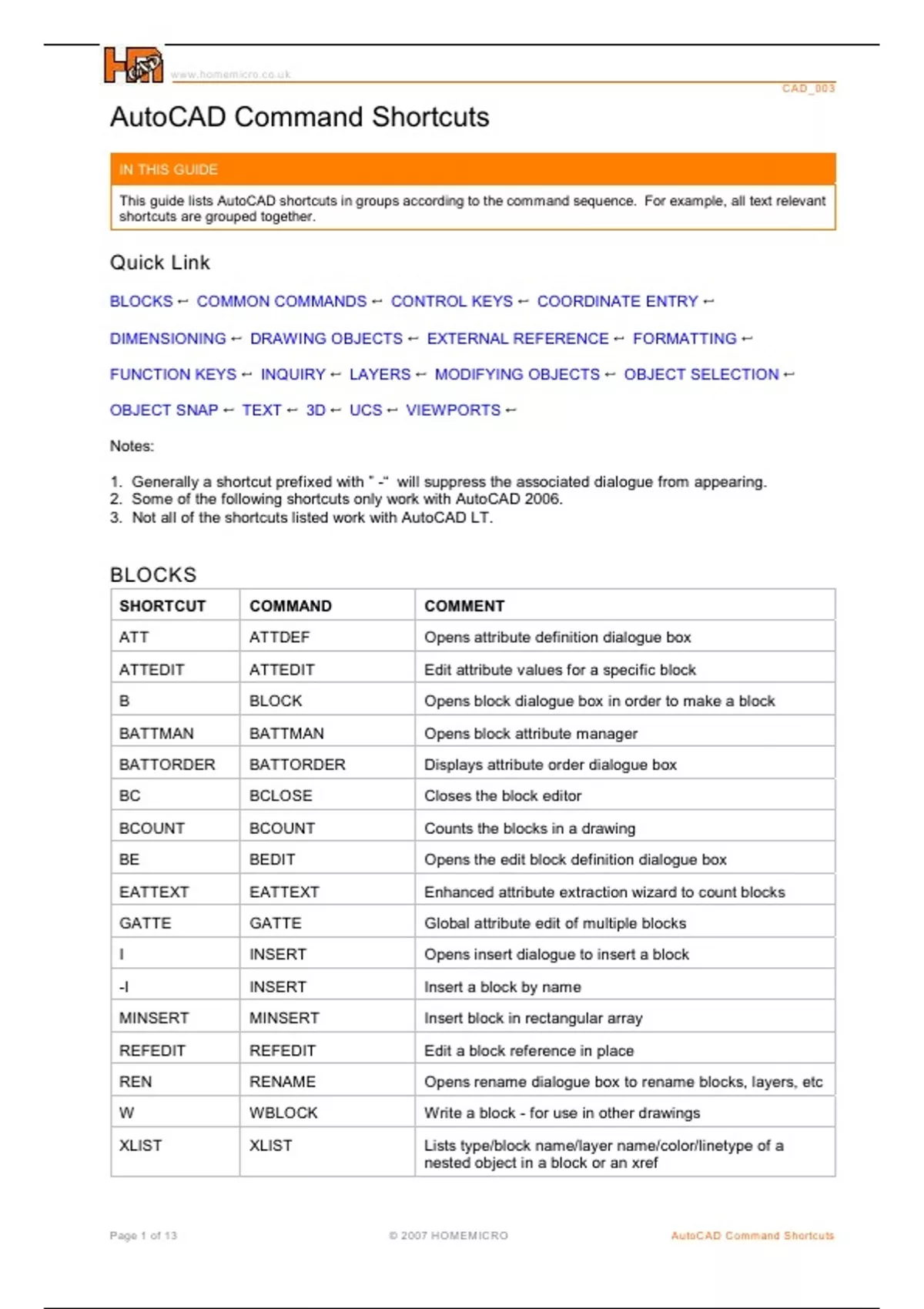

BLOCKS
SHORTCUT COMMAND COMMENT
ATT ATTDEF Opens attribute definition dialogue box
ATTEDIT ATTEDIT Edit attribute values for a specific block
B BLOCK Opens block dialogue box in order to make a block
BATTMAN BATTMAN Opens block attribute manager
BATTORDER BATTORDER Displays attribute order dialogue box
BC BCLOSE Closes the block editor
BCOUNT BCOUNT Counts the blocks in a drawing
BE BEDIT Opens the edit block definition dialogue box
EATTEXT EATTEXT Enhanced attribute extraction wizard to count blocks
GATTE GATTE Global attribute edit of multiple blocks
I INSERT Opens insert dialogue to insert a block
-I INSERT Insert a block by name
MINSERT MINSERT Insert block in rectangular array
REFEDIT REFEDIT Edit a block reference in place
REN RENAME Opens rename dialogue box to rename blocks, layers, etc
W WBLOCK Write a block - for use in other drawings
XLIST XLIST Lists type/block name/layer name/color/linetype of a
nested object in a block or an xref
Page 1 of 13 © 2007 H O MEM IC R O AutoCAD C ommand Shortcuts
, www.homemicro.co.uk
C AD _003
TIPS
1. Create a new block on layer 0 so that the block will use the layer and properties of the current
layer it is inserted on. Text can be set to colour white.
2. Set ATTDIA to 1 to use dialog box with block attributes or 0 to use command line.
3. AutoCAD 2006 allows you to change the insertion point on the fly. INSERT and select
BASEPOINT. This allows you to pick anywhere in the drawing (and anywhere in the block you
are inserting) as your new insertion point (basepoint).
COMMON COMMANDS
SHORTCUT COMMAND COMMENT
A ARC Draw an arc
AL ALIGN Align an object with another
AP APPLOAD Opens application load dialogue box
AR ARRAY Opens array dialogue box
AUDIT AUDIT Audit drawing for errors
AV DSVIEWER Opens ariel view of drawing
B BLOCK Opens block dialogue box
C CIRCLE Draw a circle
CO COPY Copy an object
CHA CHAMFER Chamfer between 2 non-parallel lines
COL COLOR Opens select color dialogue box
CUI Opens customise user interface dialogue
D DIMSTYLE Opens dimstyle manager
DC ADCENTER Opens designcenter
DI DIST Check a distance
DIV DIVIDE Inserts point node a set division
DO DONUT Draw a solid donut shape
DV DVIEW Perspective view
E ERASE Erase a selection
EX EXTEND Extend a selection
F FILLET Draw an arc between 2 intersecting lines
FI FILTER Opens filter dialogue box
FLATTEN FLATTEN Converts 3D to 2D
G GROUP Launches the group dialogue box
H HATCH Opens hatch and gradient dialogue box
I INSERT Insert a block
IM IMAGE Launches image manager
J JOIN Joins 2 objects to form single object
Page 2 of 13 © 2007 H O MEM IC R O AutoCAD C ommand Shortcuts
, www.homemicro.co.uk
C AD _003
JPGOUT JPGOUT Creates a JPEG file of current drawing
L LINE Draw a line
LA LAYER Opens layer manager
LE QLEADER Draw a leader line (may need to adjust settings)
LEAD LEADER Leader line with annotation
LI or LS LIST Display information about objects in a text window
LO -LAYOUT Creates a new layout tab
LTS LTScale Change the linetype scale
M MOVE Move a selection
MA MATCHPROPERTIES Match properties of an object
ME MEASURE Inserts point node at input distance
O OFFSET Offset a selection
OP OPTIONS Launches options dialogue box
P PAN Pan in drawing
PE POLYEDIT Edit a polyline
PL PLINE Draw a polyline
PLOT PLOT Opens plot/print dialogue box
PO POINT Point marker or node - DDPTYPE to change pointstyle
PR PROPERTIES Opens properties dialogue box
PRE PREVIEW Preview a plot
PU PURGE Opens purge dialogue box to remove unused elements
RE REGEN Regenerate the display
REC RECTANG Draw a rectangle
REN RENAME Opens rename dialogue box to rename blocks, layers, etc
RO ROTATE Rotate a selection
SP SPELL Spell check a selection - ALL to check entire drawing
T MTEXT Insert multiline text
TB TABLE Opens insert a table dialogue box
TP TOOLPALETTES Displays toolpalette
TR TRIM Trim a selection
U UNDO Undo last command
UN UNITS Opens units dialogue box
V VIEW Opens view dialogue box
W WBLOCK Write a block
Page 3 of 13 © 2007 H O MEM IC R O AutoCAD C ommand Shortcuts
, www.homemicro.co.uk
C AD _003
WHOHAS WHOHAS Displays who has a drawing open
X EXPLODE Explode a selection
XR XREF Opens x-reference manager
Z ZOOM Zoom in display - A=All, E=EXTENTS, W=WINDOW
CONTROL KEYS
CTRL+0 CLEANSCREEN Turns user interface elements on/off
CTRL+1 PROPERTIES Turns properties on/off
CTRL+2 ADCENTER Turns design center on/off
CTRL+3 TOOLPALETTES Turns tool palettes window on/off
CTRL+8 QUICKCALC Launches calculator window
CTRL+A Select all
CTRL+C COPYCLIP Copies objects to clipboard
CTRL+H Turns a group on or off
CTRL+J Repeats last command
CTRL+N NEW Opens create new drawing dialogue box
CTRL+O OPEN Opens the select file dialogue box
CTRL+P PLOT Opens the plot dialogue box
CTRL+R CVPORT Switches between viewports
CTRL+S QSAVE Opens the save drawing as dialogue box
CTRL+SHIFT+ Save as
S
CTRL+V PASTECLIP Pastes data from clipboard to drawing
CTRL+X CUTCLIP Removes select object from drawing to clipboard
CTRL+Y REDO Performs the operation cancelled by UNDO
CTRL+Z UNDO Undoes the last operation
CTRL+TAB Switches between open drawings
CTRL+PAGE Switch up between layout tabs
UP
CTRL+PAGE Switch down between layout tabs
DOWN
ARROW Recall last command
UP/Down
