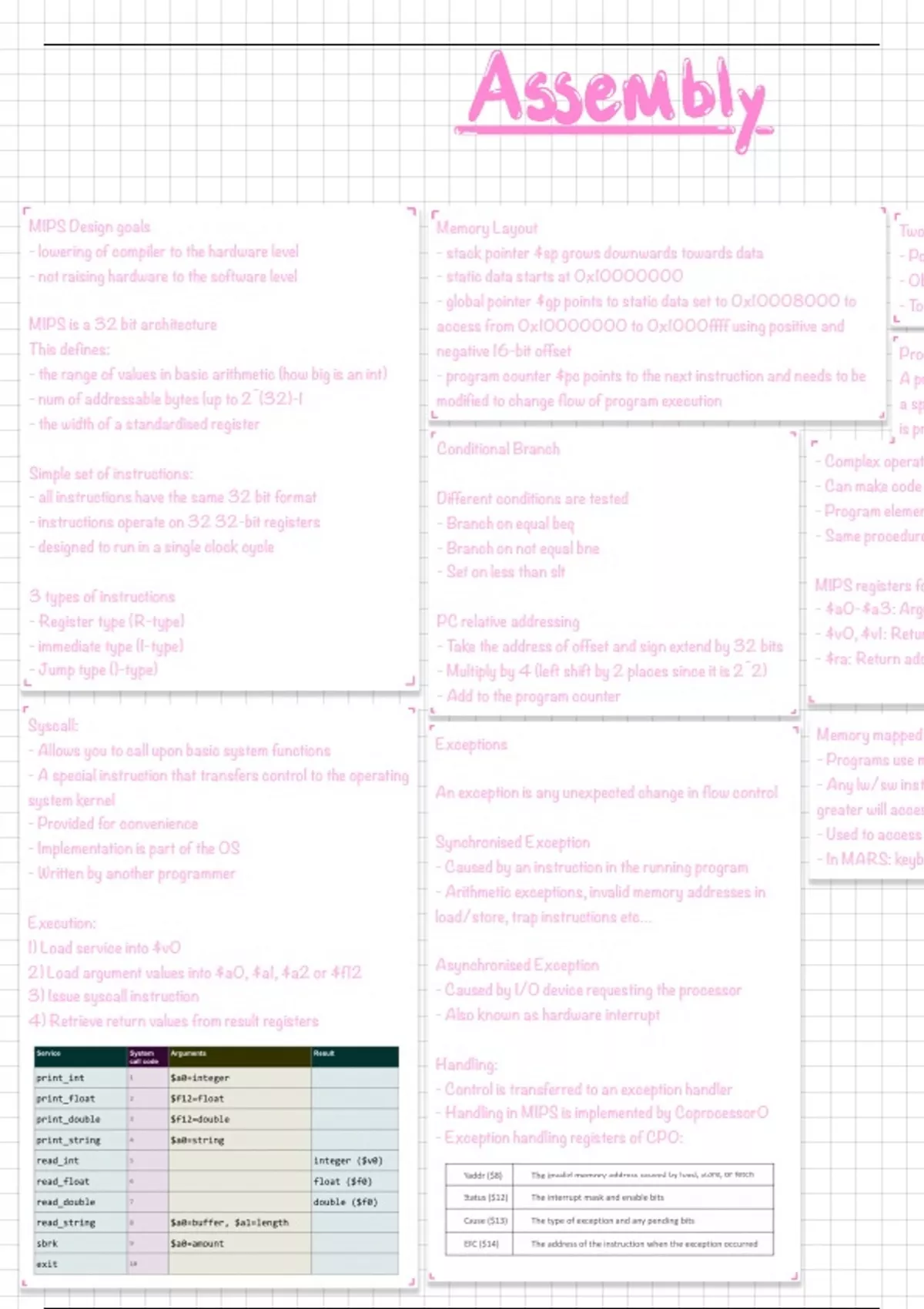

MIPS Design goals Memory Layout Two
- lowering of compiler to the hardware level - stack pointer $sp grows downwards towards data - Po
- not raising hardware to the software level - static data starts at 0x10000000 - Ob
- global pointer $gp points to static data set to 0x10008000 to - To
MIPS is a 32 bit architecture access from 0x10000000 to 0x1000ffff using positive and
This defines: negative 16-bit offset Pro
- the range of values in basic arithmetic (how big is an int) - program counter $pc points to the next instruction and needs to be A pr
- num of addressable bytes (up to 2^(32)-1 modified to change flow of program execution a sp
- the width of a standardised register is pr
Conditional Branch
- Complex operat
Simple set of instructions:
- Can make code
- all instructions have the same 32 bit format Different conditions are tested
- Program elemen
- instructions operate on 32 32-bit registers - Branch on equal beq
- Same procedure
- designed to run in a single clock cycle - Branch on not equal bne
- Set on less than slt
MIPS registers fo
3 types of instructions
- $a0-$a3: Arg
- Register type (R-type) PC relative addressing
- $v0, $v1: Retur
- immediate type (I-type) - Take the address of offset and sign extend by 32 bits
- $ra: Return add
- Jump type ()-type) - Multiply by 4 (left shift by 2 places since it is 2^2)
- Add to the program counter
Syscall:
Memory mapped
- Allows you to call upon basic system functions Exceptions
- Programs use m
- A special instruction that transfers control to the operating
- Any lw/sw inst
system kernel An exception is any unexpected change in flow control
greater will acces
- Provided for convenience
- Used to access
- Implementation is part of the OS Synchronised Exception
- In MARS: keyb
- Written by another programmer - Caused by an instruction in the running program
- Arithmetic exceptions, invalid memory addresses in
Execution: load/store, trap instructions etc…
1) Load service into $v0
2) Load argument values into $a0, $a1, $a2 or $f12 Asynchronised Exception
3) Issue syscall instruction - Caused by I/O device requesting the processor
4) Retrieve return values from result registers - Also known as hardware interrupt
Handling:
- Control is transferred to an exception handler
- Handling in MIPS is implemented by Coprocessor0
- Exception handling registers of CP0:
