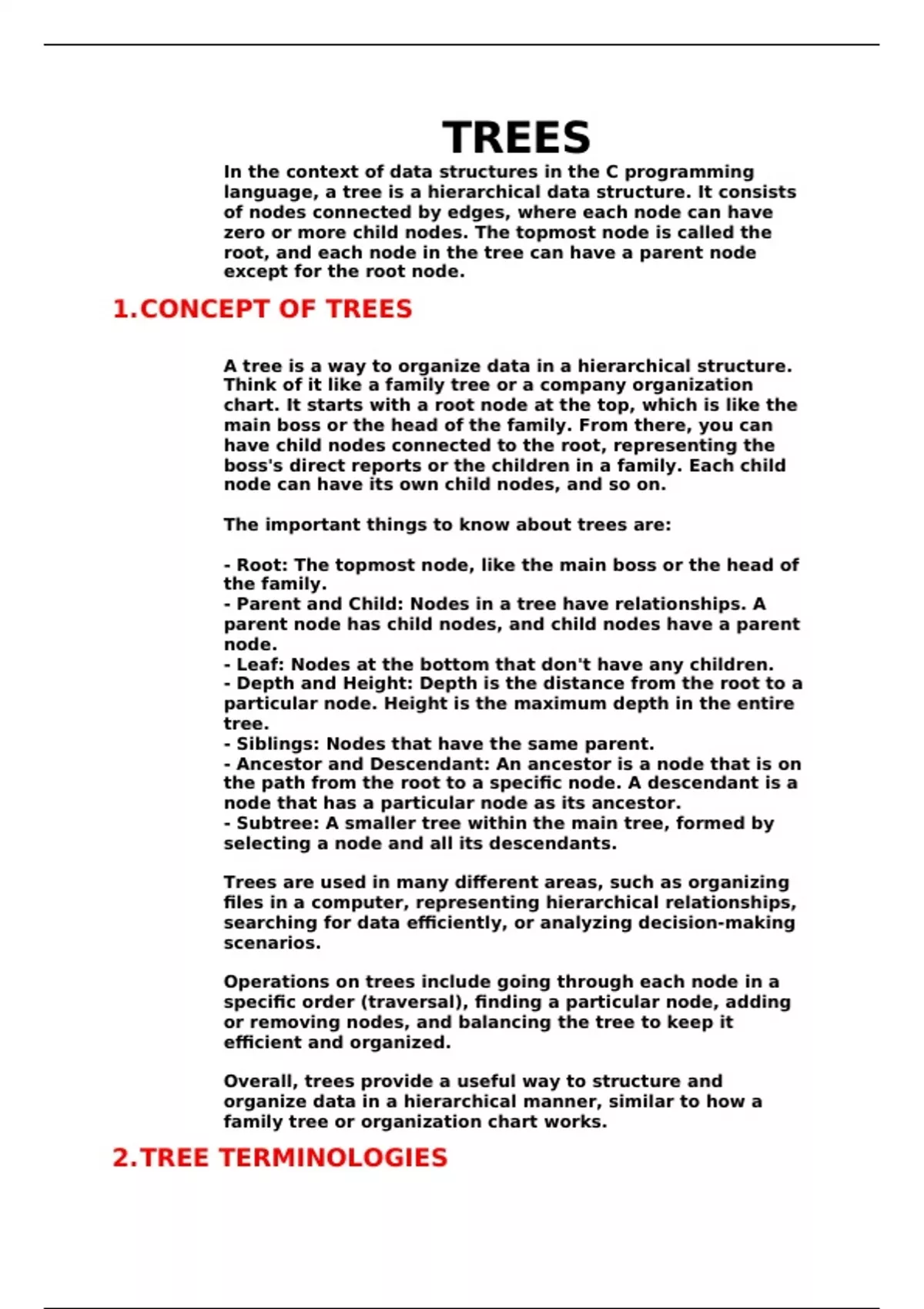

TREES
In the context of data structures in the C programming
language, a tree is a hierarchical data structure. It consists
of nodes connected by edges, where each node can have
zero or more child nodes. The topmost node is called the
root, and each node in the tree can have a parent node
except for the root node.
1.CONCEPT OF TREES
A tree is a way to organize data in a hierarchical structure.
Think of it like a family tree or a company organization
chart. It starts with a root node at the top, which is like the
main boss or the head of the family. From there, you can
have child nodes connected to the root, representing the
boss's direct reports or the children in a family. Each child
node can have its own child nodes, and so on.
The important things to know about trees are:
- Root: The topmost node, like the main boss or the head of
the family.
- Parent and Child: Nodes in a tree have relationships. A
parent node has child nodes, and child nodes have a parent
node.
- Leaf: Nodes at the bottom that don't have any children.
- Depth and Height: Depth is the distance from the root to a
particular node. Height is the maximum depth in the entire
tree.
- Siblings: Nodes that have the same parent.
- Ancestor and Descendant: An ancestor is a node that is on
the path from the root to a specific node. A descendant is a
node that has a particular node as its ancestor.
- Subtree: A smaller tree within the main tree, formed by
selecting a node and all its descendants.
Trees are used in many different areas, such as organizing
files in a computer, representing hierarchical relationships,
searching for data efficiently, or analyzing decision-making
scenarios.
Operations on trees include going through each node in a
specific order (traversal), finding a particular node, adding
or removing nodes, and balancing the tree to keep it
efficient and organized.
Overall, trees provide a useful way to structure and
organize data in a hierarchical manner, similar to how a
family tree or organization chart works.
2.TREE TERMINOLOGIES
, Certainly! Here are some tree terminologies explained in
simple and easy-to-understand points:
Root: The topmost node of the tree.
Node: A single element or unit in a tree that contains
data.
Parent: A node that has child nodes connected to it.
Child: A node that is connected to a parent node.
Leaf: A node that does not have any child nodes.
Siblings: Nodes that have the same parent.
Ancestor: A node that is higher in the tree hierarchy
and is on the path to a specific node.
Descendant: A node that is lower in the tree hierarchy
and has a specific node as its ancestor.
Depth: The level or distance of a node from the root.
Height: The maximum depth of any node in the tree.
Subtree: A smaller tree within the main tree, formed
by selecting a node and all its descendants.
Traversal: Visiting each node in a specific order, such
as going through all the nodes from left to right.
Search: Looking for a specific node in the tree.
Insertion: Adding a new node to the tree.
Deletion: Removing a node from the tree.
Balancing: Modifying the tree structure to maintain its
efficiency and organization.
Binary Tree: A tree where each node has at most two
child nodes (left and right).
Binary Search Tree: A binary tree where the value of
the left child is less than the parent, and the value of
the right child is greater.
AVL Tree: A self-balancing binary search tree that
ensures the tree remains balanced.
Red-Black Tree: Another type of self-balancing binary
search tree that maintains balance using specific
rules.
These are some of the essential terminologies related to
trees. They help in understanding the relationships,
structure, and operations performed on trees.
3.BINARY TREE
A binary tree is a type of tree data structure in which each
node can have at most two child nodes, commonly referred
to as the left child and the right child. It is called a binary
tree because each node has a maximum of two branches.
Node Structure: Each node in a binary tree contains
data and two pointers, typically named left and right,
pointing to its left and right child nodes.
In the context of data structures in the C programming
language, a tree is a hierarchical data structure. It consists
of nodes connected by edges, where each node can have
zero or more child nodes. The topmost node is called the
root, and each node in the tree can have a parent node
except for the root node.
1.CONCEPT OF TREES
A tree is a way to organize data in a hierarchical structure.
Think of it like a family tree or a company organization
chart. It starts with a root node at the top, which is like the
main boss or the head of the family. From there, you can
have child nodes connected to the root, representing the
boss's direct reports or the children in a family. Each child
node can have its own child nodes, and so on.
The important things to know about trees are:
- Root: The topmost node, like the main boss or the head of
the family.
- Parent and Child: Nodes in a tree have relationships. A
parent node has child nodes, and child nodes have a parent
node.
- Leaf: Nodes at the bottom that don't have any children.
- Depth and Height: Depth is the distance from the root to a
particular node. Height is the maximum depth in the entire
tree.
- Siblings: Nodes that have the same parent.
- Ancestor and Descendant: An ancestor is a node that is on
the path from the root to a specific node. A descendant is a
node that has a particular node as its ancestor.
- Subtree: A smaller tree within the main tree, formed by
selecting a node and all its descendants.
Trees are used in many different areas, such as organizing
files in a computer, representing hierarchical relationships,
searching for data efficiently, or analyzing decision-making
scenarios.
Operations on trees include going through each node in a
specific order (traversal), finding a particular node, adding
or removing nodes, and balancing the tree to keep it
efficient and organized.
Overall, trees provide a useful way to structure and
organize data in a hierarchical manner, similar to how a
family tree or organization chart works.
2.TREE TERMINOLOGIES
, Certainly! Here are some tree terminologies explained in
simple and easy-to-understand points:
Root: The topmost node of the tree.
Node: A single element or unit in a tree that contains
data.
Parent: A node that has child nodes connected to it.
Child: A node that is connected to a parent node.
Leaf: A node that does not have any child nodes.
Siblings: Nodes that have the same parent.
Ancestor: A node that is higher in the tree hierarchy
and is on the path to a specific node.
Descendant: A node that is lower in the tree hierarchy
and has a specific node as its ancestor.
Depth: The level or distance of a node from the root.
Height: The maximum depth of any node in the tree.
Subtree: A smaller tree within the main tree, formed
by selecting a node and all its descendants.
Traversal: Visiting each node in a specific order, such
as going through all the nodes from left to right.
Search: Looking for a specific node in the tree.
Insertion: Adding a new node to the tree.
Deletion: Removing a node from the tree.
Balancing: Modifying the tree structure to maintain its
efficiency and organization.
Binary Tree: A tree where each node has at most two
child nodes (left and right).
Binary Search Tree: A binary tree where the value of
the left child is less than the parent, and the value of
the right child is greater.
AVL Tree: A self-balancing binary search tree that
ensures the tree remains balanced.
Red-Black Tree: Another type of self-balancing binary
search tree that maintains balance using specific
rules.
These are some of the essential terminologies related to
trees. They help in understanding the relationships,
structure, and operations performed on trees.
3.BINARY TREE
A binary tree is a type of tree data structure in which each
node can have at most two child nodes, commonly referred
to as the left child and the right child. It is called a binary
tree because each node has a maximum of two branches.
Node Structure: Each node in a binary tree contains
data and two pointers, typically named left and right,
pointing to its left and right child nodes.
