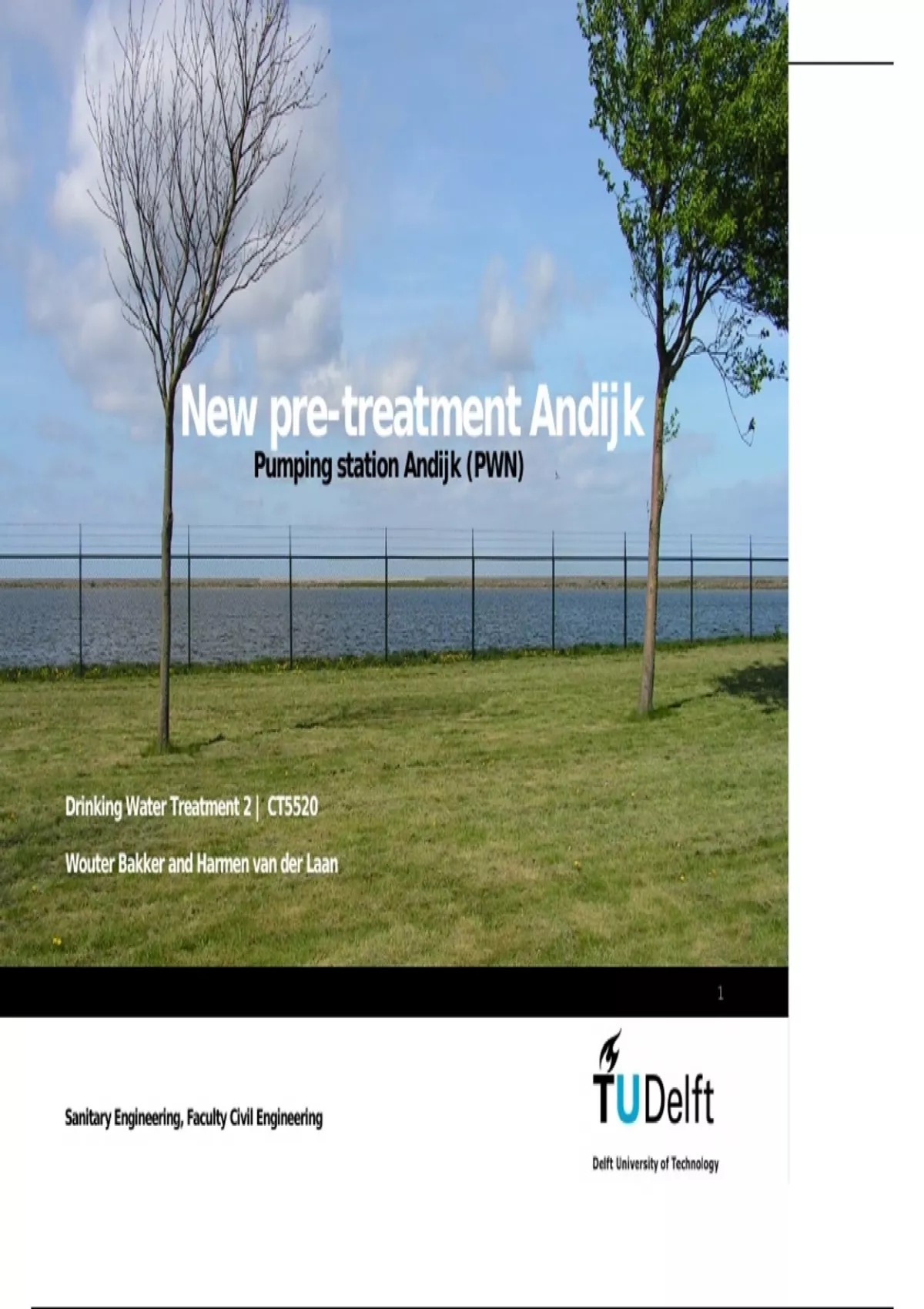

New pre-treatment Andijk
Pumping station Andijk (PWN)
Drinking Water Treatment 2 | CT5520
Wouter Bakker and Harmen van der Laan
April 20, 2007
1
Sanitary
Vermelding
Engineering,
onderdeelFaculty
organisatie
Civil Engineering
,Content
• Short report excursion
• Design criteria
• TOC/NOM/DOC
• Influence DOC and Nitrate on UVT
• Present Water Quality
Presentation of alternatives and the final choice
• Next steps
27 April 2007 2
,Short report excursion Friday 20 April
The micro sieves were in good working condition.
Flocculation :
Outdated, too many improvements made on a
outdated design.
Only 2500 m3/h else the thickness of the flock
blanket will change
RSF:
No possibilities to enlarge the RSF inside the
existing building.
It is an upgraded installation (in the past
controlled by hand)
The pipe infrastructure is complex, and hard to
reach/repair.
27 April 2007 3
, Short report excursion Friday 20 April
27 April 2007 4
