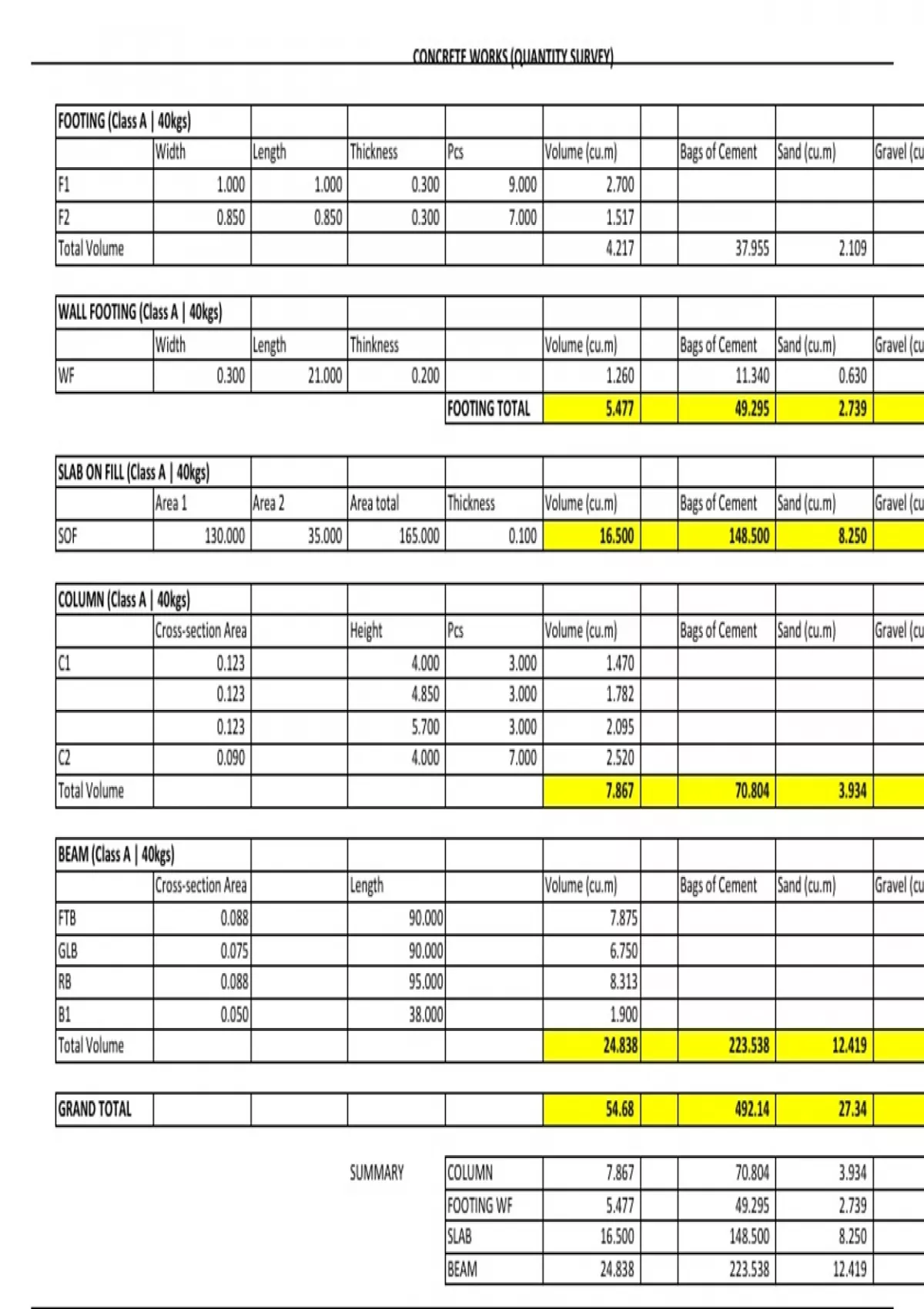

CONCRETE WORKS (QUANTITY SURVEY) SEAT WORK

CONCRETE WORKS (QUANTITY SURVEY)

FOOTING (Class A | 40kgs)
Width Length Thickness Pcs Volume (cu.m) Bags of Cement Sand (cu.m) Gravel (cu
F1 1.000 1.000 0.300 9.000 2.700
F2 0.850 0.850 0.300 7.000 1.517
Total Volume 4.217 37.955 2.109

WALL FOOTING (Class A | 40kgs)
Width Length Thinkness Volume (cu.m) Bags of Cement Sand (cu.m) Gravel (cu
WF 0.300 21.000 0.200 1.260 11.340 0.630
FOOTING TOTAL 5.477 49.295 2.739

SLAB ON FILL (Class A | 40kgs)
Area 1 Area 2 Area total Thickness Volume (cu.m) Bags of Cement Sand (cu.m) Gravel (cu
SOF 130.000 35.000 165.000 0.100 16.500 148.500 8.250

COLUMN (Class A | 40kgs)
Cross-section Area Height Pcs Volume (cu.m) Bags of Cement Sand (cu.m) Gravel (cu
C1 0.123 4.000 3.000 1.470
0.123 4.850 3.000 1.782
0.123 5.700 3.000 2.095
C2 0.090 4.000 7.000 2.520
Total Volume 7.867 70.804 3.934

BEAM (Class A | 40kgs)
Cross-section Area Length Volume (cu.m) Bags of Cement Sand (cu.m) Gravel (cu
FTB 0.088 90.000 7.875
GLB 0.075 90.000 6.750
RB 0.088 95.000 8.313
B1 0.050 38.000 1.900
Total Volume 24.838 223.538 12.419

GRAND TOTAL 54.68 492.14 27.34

SUMMARY COLUMN 7.867 70.804 3.934
FOOTING WF 5.477 49.295 2.739
SLAB 16.500 148.500 8.250
BEAM 24.838 223.538 12.419
