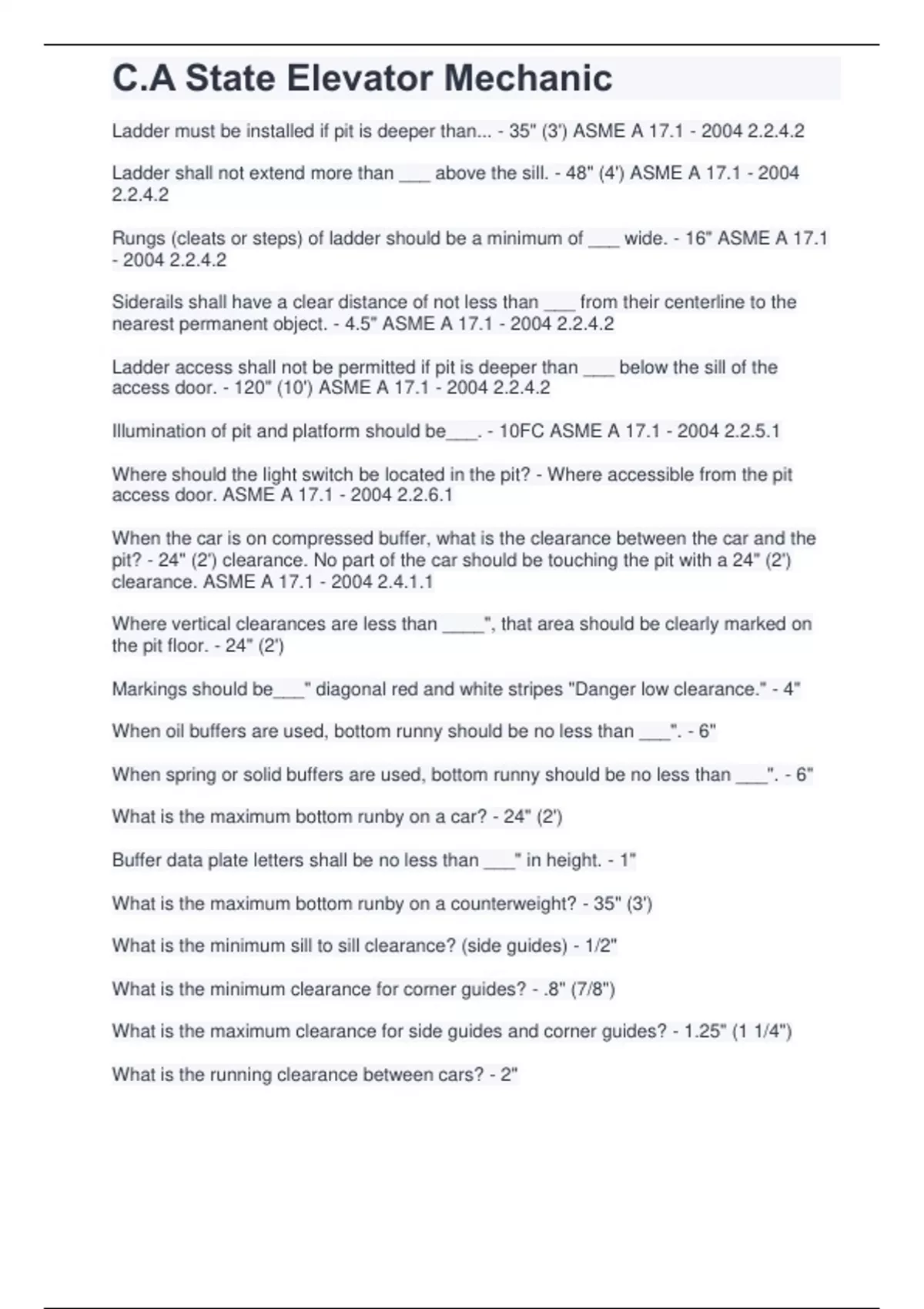

C.A State Elevator Mechanic

C.A State Elevator Mechanic Ladder must be installed if pit is deeper than... - 35" (3') ASME A 17.1 - 2004 2.2.4.2 Ladder shall not extend more than ___ above the sill. - 48" (4') ASME A 17.1 - 2004 2.2.4.2 Rungs (cleats or steps) of ladder should be a minimum of ___ wide. - 16" ASME A 17.1 - 2004 2.2.4.2 Siderails shall have a clear distance of not less than ___ from their centerline to the nearest permanent object. - 4.5" ASME A 17.1 - 2004 2.2.4.2 Ladder access shall not be permitted if pit is deeper than ___ below the sill of the access door. - 120" (10') ASME A 17.1 - 2004 2.2.4.2 Illumination of pit and platform should be___. - 10FC ASME A 17.1 - 2004 2.2.5.1 Where should the light switch be located in the pit? - Where accessible from the pit access door. ASME A 17.1 - 2004 2.2.6.1 When the car is on compressed buffer, what is the clearance between the car and the pit? - 24" (2') clearance. No part of the car should be touching the pit with a 24" (2') clearance. ASME A 17.1 - 2004 2.4.1.1 Where vertical clearances are less than ____", that area should be clearly marked on the pit floor. - 24" (2') Markings should be___" diagonal red and white stripes "Danger low clearance." - 4" When oil buffers are used, bottom runny should be no less than ___". - 6" When spring or solid buffers are used, bottom runny should be no less than ___". - 6" What is the maximum bottom runby on a car? - 24" (2') Buffer data plate letters shall be no less than ___" in height. - 1" What is the maximum bottom runby on a counterweight? - 35" (3') What is the minimum sill to sill clearance? (side guides) - 1/2" What is the minimum clearance for corner guides? - .8" (7/8") What is the maximum clearance for side guides and corner guides? - 1.25" (1 1/4") What is the running clearance between cars? - 2"
