COMPUTER ORGANIZATION

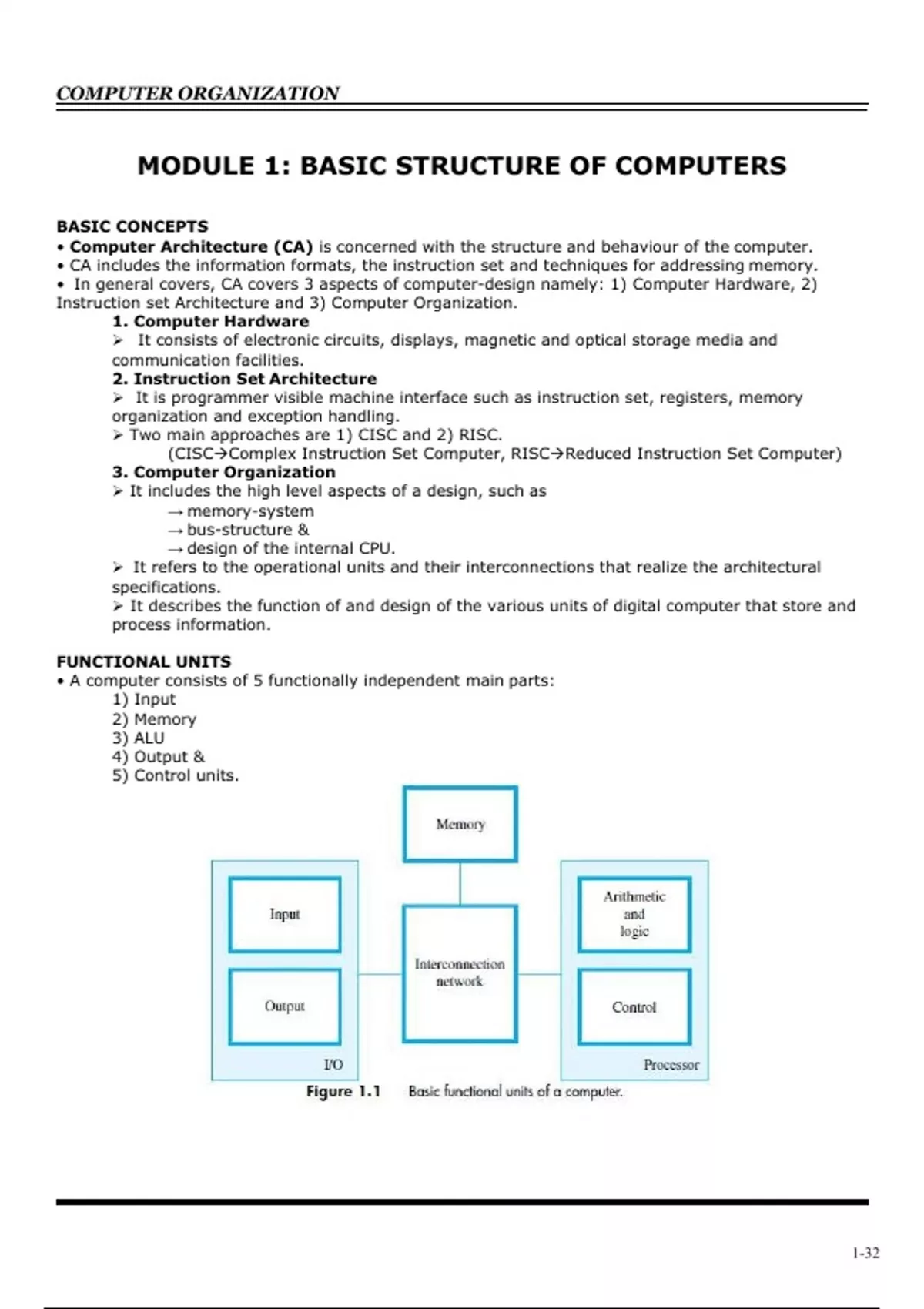

MODULE 1: BASIC STRUCTURE OF COMPUTERS

BASIC CONCEPTS
• Computer Architecture (CA) is concerned with the structure and behaviour of the computer.
• CA includes the information formats, the instruction set and techniques for addressing memory.
• In general covers, CA covers 3 aspects of computer-design namely: 1) Computer Hardware, 2)
Instruction set Architecture and 3) Computer Organization.
1. Computer Hardware
 It consists of electronic circuits, displays, magnetic and optical storage media and
communication facilities.
2. Instruction Set Architecture
 It is programmer visible machine interface such as instruction set, registers, memory
organization and exception handling.
 Two main approaches are 1) CISC and 2) RISC.
(CISCComplex Instruction Set Computer, RISCReduced Instruction Set Computer)
3. Computer Organization
 It includes the high level aspects of a design, such as
→ memory-system
→ bus-structure &
→ design of the internal CPU.
 It refers to the operational units and their interconnections that realize the architectural
specifications.
 It describes the function of and design of the various units of digital computer that store and
process information.

FUNCTIONAL UNITS
• A computer consists of 5 functionally independent main parts:
1) Input
2) Memory
3) ALU
4) Output &
5) Control units.




1-32

,COMPUTER ORGANIZATION
BASIC OPERATIONAL CONCEPTS
• An Instruction consists of 2 parts, 1) Operation code (Opcode) and 2) Operands.
OPCODE OPERANDS
• The data/operands are stored in memory.
• The individual instruction are brought from the memory to the processor.
• Then, the processor performs the specified operation.
• Let us see a typical instruction
ADD LOCA, R0
• This instruction is an addition operation. The following are the steps to execute the instruction:
Step 1: Fetch the instruction from main-memory into the processor.
Step 2: Fetch the operand at location LOCA from main-memory into the processor.
Step 3: Add the memory operand (i.e. fetched contents of LOCA) to the contents of register R0.
Step 4: Store the result (sum) in R0.
• The same instruction can be realized using 2 instructions as:
Load LOCA, R1
Add R1, R0
• The following are the steps to execute the instruction:
Step 1: Fetch the instruction from main-memory into the processor.
Step 2: Fetch the operand at location LOCA from main-memory into the register R1.
Step 3: Add the content of Register R1 and the contents of register R0.
Step 4: Store the result (sum) in R0.




1-32

,COMPUTER ORGANIZATION
MAIN PARTS OF PROCESSOR
• The processor contains ALU, control-circuitry and many registers.
• The processor contains „n‟ general-purpose registers R0 through Rn-1.
• The IR holds the instruction that is currently being executed.
• The control-unit generates the timing-signals that determine when a given action is to take place.
• The PC contains the memory-address of the next-instruction to be fetched & executed.
• During the execution of an instruction, the contents of PC are updated to point to next instruction.
• The MAR holds the address of the memory-location to be accessed.
• The MDR contains the data to be written into or read out of the addressed location.
• MAR and MDR facilitates the communication with memory.
(IR  Instruction-Register, PC  Program Counter)
(MAR  Memory Address Register, MDR Memory Data Register)
STEPS TO EXECUTE AN INSTRUCTION
1) The address of first instruction (to be executed) gets loaded into PC.
2) The contents of PC (i.e. address) are transferred to the MAR & control-unit issues Read signal to
memory.
3) After certain amount of elapsed time, the first instruction is read out of memory and placed into
MDR.
4) Next, the contents of MDR are transferred to IR. At this point, the instruction can be decoded &
executed.
5) To fetch an operand, it's address is placed into MAR & control-unit issues Read signal. As a result,
the operand is transferred from memory into MDR, and then it is transferred from MDR to ALU.
6) Likewise required number of operands is fetched into processor.
7) Finally, ALU performs the desired operation.
8) If the result of this operation is to be stored in the memory, then the result is sent to the MDR.
9) The address of the location where the result is to be stored is sent to the MAR and a Write cycle is
initiated.
10) At some point during execution, contents of PC are incremented to point to next instruction in the
program.




1-32

, COMPUTER ORGANIZATION
BUS STRUCTURE
• A bus is a group of lines that serves as a connecting path for several devices.
• A bus may be lines or wires.
• The lines carry data or address or control signal.
• There are 2 types of Bus structures: 1) Single Bus Structure and 2) Multiple Bus Structure.
1) Single Bus Structure
 Because the bus can be used for only one transfer at a time, only 2 units can actively use the
bus at any given time.
 Bus control lines are used to arbitrate multiple requests for use of the bus.
 Advantages:
1) Low cost &
2) Flexibility for attaching peripheral devices.
2) Multiple Bus Structure
 Systems that contain multiple buses achieve more concurrency in operations.
 Two or more transfers can be carried out at the same time.
 Advantage: Better performance.
 Disadvantage: Increased cost.




• The devices connected to a bus vary widely in their speed of operation.
• To synchronize their operational-speed, buffer-registers can be used.
• Buffer Registers
→ are included with the devices to hold the information during transfers.
→ prevent a high-speed processor from being locked to a slow I/O device during data transfers.
