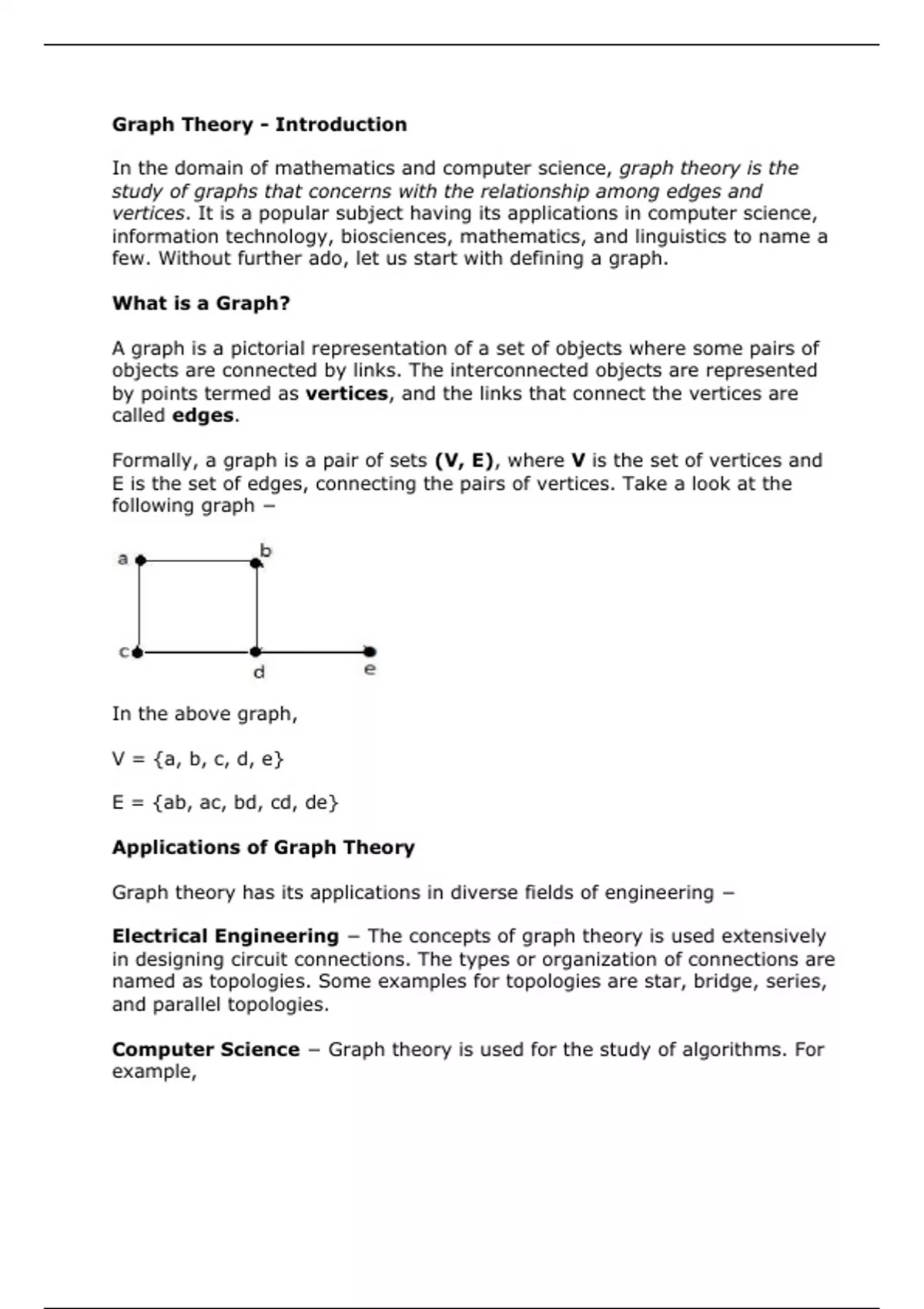

Graph Theory - Introduction
In the domain of mathematics and computer science, graph theory is the
study of graphs that concerns with the relationship among edges and
vertices. It is a popular subject having its applications in computer science,
information technology, biosciences, mathematics, and linguistics to name a
few. Without further ado, let us start with defining a graph.
What is a Graph?
A graph is a pictorial representation of a set of objects where some pairs of
objects are connected by links. The interconnected objects are represented
by points termed as vertices, and the links that connect the vertices are
called edges.
Formally, a graph is a pair of sets (V, E), where V is the set of vertices and
E is the set of edges, connecting the pairs of vertices. Take a look at the
following graph −
In the above graph,
V = {a, b, c, d, e}
E = {ab, ac, bd, cd, de}
Applications of Graph Theory
Graph theory has its applications in diverse fields of engineering −
Electrical Engineering − The concepts of graph theory is used extensively
in designing circuit connections. The types or organization of connections are
named as topologies. Some examples for topologies are star, bridge, series,
and parallel topologies.
Computer Science − Graph theory is used for the study of algorithms. For
example,
, Kruskal's Algorithm
Prim's Algorithm
Dijkstra's Algorithm
Computer Network − The relationships among interconnected computers
in the network follows the principles of graph theory.
Science − The molecular structure and chemical structure of a substance,
the DNA structure of an organism, etc., are represented by graphs.
Linguistics − The parsing tree of a language and grammar of a language
uses graphs.
General − Routes between the cities can be represented using graphs.
Depicting hierarchical ordered information such as family tree can be used
as a special type of graph called tree.
Graph Theory - Fundamentals
A graph is a diagram of points and lines connected to the points. It has at
least one line joining a set of two vertices with no vertex connecting itself.
The concept of graphs in graph theory stands up on some basic terms such
as point, line, vertex, edge, degree of vertices, properties of graphs, etc.
Here, in this chapter, we will cover these fundamentals of graph theory.
Point
A point is a particular position in a one-dimensional, two-dimensional, or
three-dimensional space. For better understanding, a point can be denoted
by an alphabet. It can be represented with a dot.
Example
Here, the dot is a point named ‘a’.
Line
A Line is a connection between two points. It can be represented with a
solid line.
Example
, Here, ‘a’ and ‘b’ are the points. The link between these two points is called a
line.
Vertex
A vertex is a point where multiple lines meet. It is also called a node.
Similar to points, a vertex is also denoted by an alphabet.
Example
Here, the vertex is named with an alphabet ‘a’.
Edge
An edge is the mathematical term for a line that connects two vertices. Many
edges can be formed from a single vertex. Without a vertex, an edge cannot
be formed. There must be a starting vertex and an ending vertex for an
edge.
Example
Here, ‘a’ and ‘b’ are the two vertices and the link between them is called an
edge.
Graph
A graph ‘G’ is defined as G = (V, E) Where V is a set of all vertices and E is a
set of all edges in the graph.
Example 1
In the domain of mathematics and computer science, graph theory is the
study of graphs that concerns with the relationship among edges and
vertices. It is a popular subject having its applications in computer science,
information technology, biosciences, mathematics, and linguistics to name a
few. Without further ado, let us start with defining a graph.
What is a Graph?
A graph is a pictorial representation of a set of objects where some pairs of
objects are connected by links. The interconnected objects are represented
by points termed as vertices, and the links that connect the vertices are
called edges.
Formally, a graph is a pair of sets (V, E), where V is the set of vertices and
E is the set of edges, connecting the pairs of vertices. Take a look at the
following graph −
In the above graph,
V = {a, b, c, d, e}
E = {ab, ac, bd, cd, de}
Applications of Graph Theory
Graph theory has its applications in diverse fields of engineering −
Electrical Engineering − The concepts of graph theory is used extensively
in designing circuit connections. The types or organization of connections are
named as topologies. Some examples for topologies are star, bridge, series,
and parallel topologies.
Computer Science − Graph theory is used for the study of algorithms. For
example,
, Kruskal's Algorithm
Prim's Algorithm
Dijkstra's Algorithm
Computer Network − The relationships among interconnected computers
in the network follows the principles of graph theory.
Science − The molecular structure and chemical structure of a substance,
the DNA structure of an organism, etc., are represented by graphs.
Linguistics − The parsing tree of a language and grammar of a language
uses graphs.
General − Routes between the cities can be represented using graphs.
Depicting hierarchical ordered information such as family tree can be used
as a special type of graph called tree.
Graph Theory - Fundamentals
A graph is a diagram of points and lines connected to the points. It has at
least one line joining a set of two vertices with no vertex connecting itself.
The concept of graphs in graph theory stands up on some basic terms such
as point, line, vertex, edge, degree of vertices, properties of graphs, etc.
Here, in this chapter, we will cover these fundamentals of graph theory.
Point
A point is a particular position in a one-dimensional, two-dimensional, or
three-dimensional space. For better understanding, a point can be denoted
by an alphabet. It can be represented with a dot.
Example
Here, the dot is a point named ‘a’.
Line
A Line is a connection between two points. It can be represented with a
solid line.
Example
, Here, ‘a’ and ‘b’ are the points. The link between these two points is called a
line.
Vertex
A vertex is a point where multiple lines meet. It is also called a node.
Similar to points, a vertex is also denoted by an alphabet.
Example
Here, the vertex is named with an alphabet ‘a’.
Edge
An edge is the mathematical term for a line that connects two vertices. Many
edges can be formed from a single vertex. Without a vertex, an edge cannot
be formed. There must be a starting vertex and an ending vertex for an
edge.
Example
Here, ‘a’ and ‘b’ are the two vertices and the link between them is called an
edge.
Graph
A graph ‘G’ is defined as G = (V, E) Where V is a set of all vertices and E is a
set of all edges in the graph.
Example 1
