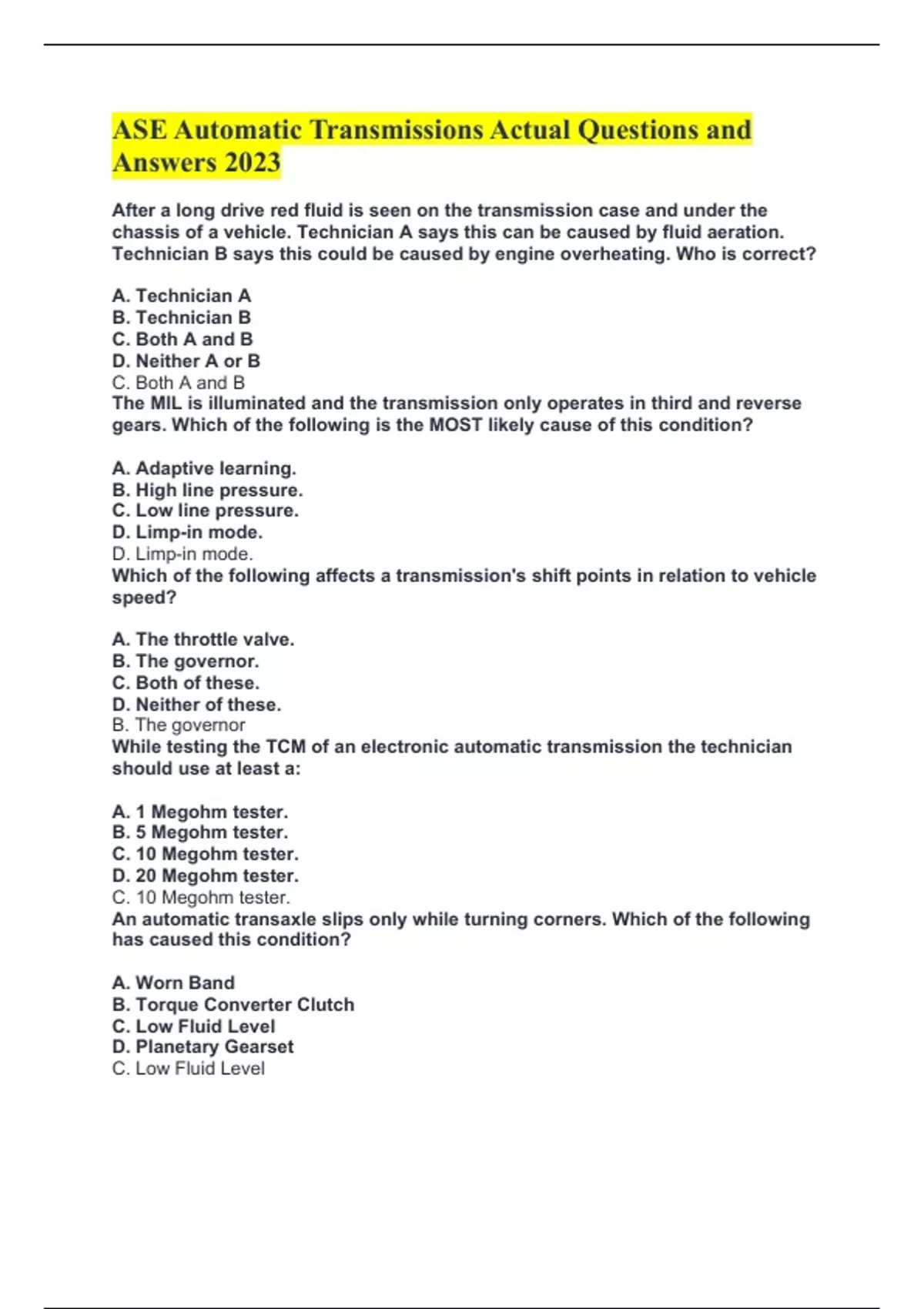

ASE Automatic Transmissions Actual Questions and
Answers 2023
After a long drive red fluid is seen on the transmission case and under the
chassis of a vehicle. Technician A says this can be caused by fluid aeration.
Technician B says this could be caused by engine overheating. Who is correct?
A. Technician A
B. Technician B
C. Both A and B
D. Neither A or B
C. Both A and B
The MIL is illuminated and the transmission only operates in third and reverse
gears. Which of the following is the MOST likely cause of this condition?
A. Adaptive learning.
B. High line pressure.
C. Low line pressure.
D. Limp-in mode.
D. Limp-in mode.
Which of the following affects a transmission's shift points in relation to vehicle
speed?
A. The throttle valve.
B. The governor.
C. Both of these.
D. Neither of these.
B. The governor
While testing the TCM of an electronic automatic transmission the technician
should use at least a:
A. 1 Megohm tester.
B. 5 Megohm tester.
C. 10 Megohm tester.
D. 20 Megohm tester.
C. 10 Megohm tester.
An automatic transaxle slips only while turning corners. Which of the following
has caused this condition?
A. Worn Band
B. Torque Converter Clutch
C. Low Fluid Level
D. Planetary Gearset
C. Low Fluid Level
, Refer to the chart above. Which gear ratio best represents overdrive?
A. 4.027:1
B. 0.852:1
C. 3.064:1
D. None of these.
Answer B is correct. This ratio (0.852:1) represents overdrive
A final drive assembly has been replaced. Technician A says to use an inch
pound torque wrench to check for proper pinion preload. Technician B says to
use a dial indicator to check the ring gear's backlash. Who is correct?
A. Technician A
B. Technician B
C. Both A and B
D. Neither A or B
C. Both A and B
An automatic transaxle loses pressure as it shifts from first to second gear.
Technician A says this could be caused by the clutch piston seal. Technician B
says this could be caused by a stuck servo. Who is correct?
A. Technician A
B. Technician B
C. Both A and B
D. Neither A or B
A. Technician A
An automatic transmission has a late delayed shift from first to second gear. All
other shift points are normal. The 1-2 shift valve is suspected of sticking in its
bore. Technician A says to clean the transmission valves and valve body to
remove tarnish and dry them with compressed air before placing them back into
service. Technician B says a slightly bent spool valve can be repaired and placed
back into service. Who is correct?
A. Technician A
B. Technician B
C. Both A and B
D. Neither A or B
A. Technician A
Technician A says to pressure test a transmission if an internal leak is suspected.
Technician B says pressure testing ports are located on the transmission case.
Who is correct?
A. Technician A
B. Technician B
C. Both A and B
D. Neither A or B
C. Both A and B
