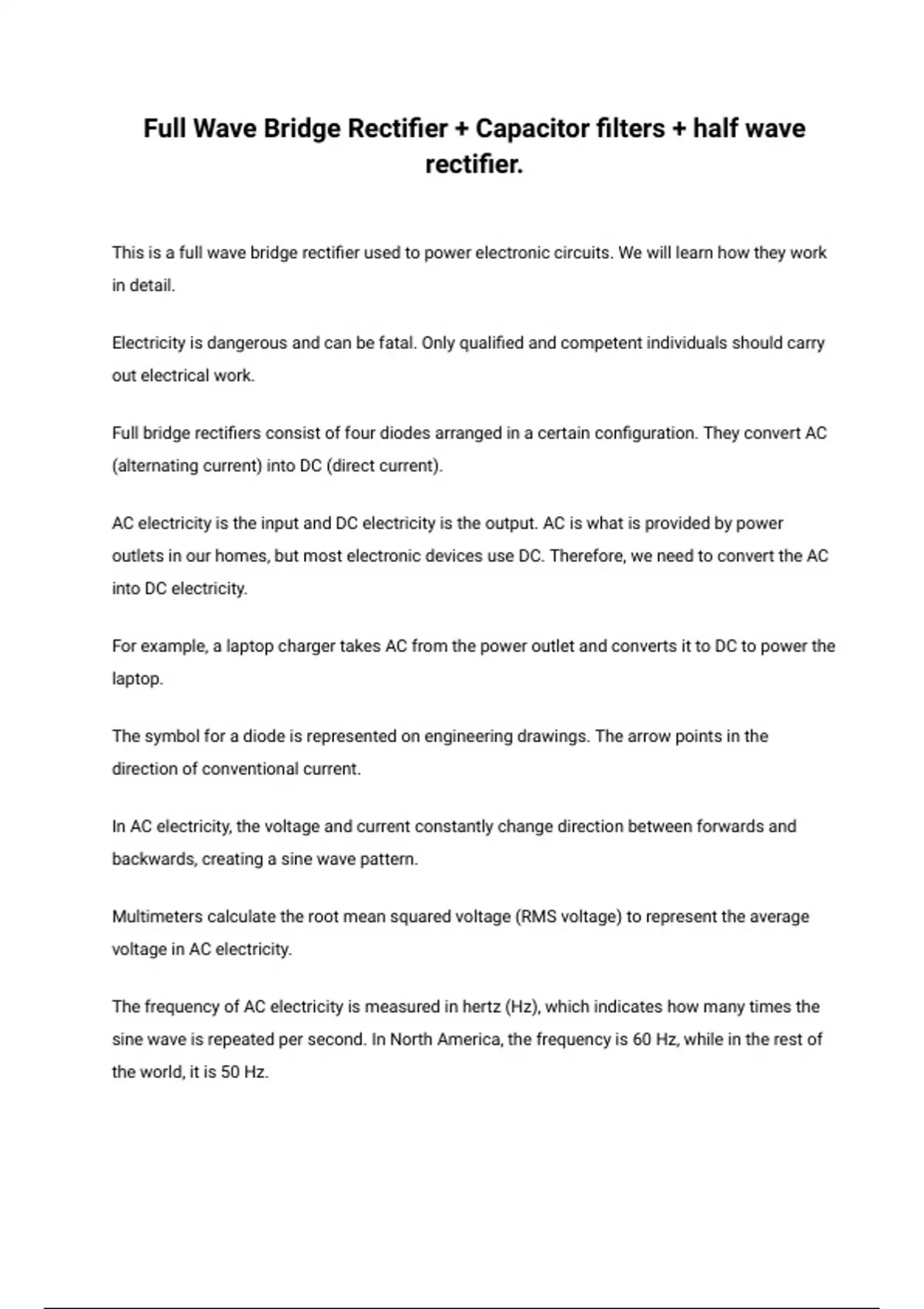

Full Wave Bridge Rectifier + Capacitor filters + half wave
rectifier.
This is a full wave bridge rectifier used to power electronic circuits. We will learn how they work
in detail.
Electricity is dangerous and can be fatal. Only qualified and competent individuals should carry
out electrical work.
Full bridge rectifiers consist of four diodes arranged in a certain configuration. They convert AC
(alternating current) into DC (direct current).
AC electricity is the input and DC electricity is the output. AC is what is provided by power
outlets in our homes, but most electronic devices use DC. Therefore, we need to convert the AC
into DC electricity.
For example, a laptop charger takes AC from the power outlet and converts it to DC to power the
laptop.
The symbol for a diode is represented on engineering drawings. The arrow points in the
direction of conventional current.
In AC electricity, the voltage and current constantly change direction between forwards and
backwards, creating a sine wave pattern.
Multimeters calculate the root mean squared voltage (RMS voltage) to represent the average
voltage in AC electricity.
The frequency of AC electricity is measured in hertz (Hz), which indicates how many times the
sine wave is repeated per second. In North America, the frequency is 60 Hz, while in the rest of
the world, it is 50 Hz.
, DC electricity has a constant voltage and current in one direction. It is represented by a flat line
on a graph.
A rectifier can only convert AC to DC. To convert DC to AC, an inverter is needed.
A diode is a semiconductor device that allows current to flow in only one direction. This property
is used in rectifiers to control the direction of current flow.
There are different types of rectifiers, including half wave rectifiers and full wave rectifiers.
A half wave rectifier only allows current to flow in one direction, resulting in a pulsating
waveform. It is not a good DC output.
A full wave rectifier, such as a four-way rectifier, uses a center tap transformer and two diodes to
convert AC to DC more effectively.
Using a capacitor in parallel with the load can improve the output of a rectifier.
When an AC waveform is rectified using a diode, the resulting DC waveform is not smooth and
contains ripples. To improve this, filtering methods are used, such as adding a capacitor in
parallel to the load. The capacitor charges during the increase in voltage and releases the stored
electrons during the decrease, reducing the ripple. The size of the capacitor affects the
smoothness of the waveform, with larger capacitors producing smoother outputs. Multiple
capacitors can also be used in parallel to further improve the waveform.
When using a capacitor, it is important to place a bleeder resistor across the output to drain the
capacitor when the circuit is off for safety reasons. Without a load, the energy stored in the
capacitor can be dangerous if the voltage is high.
A full wave bridge rectifier, which uses four diodes, is a common method for rectifying AC
waveforms. The AC supply is connected between diodes 1 and 2, with the neutral between
diodes 3 and 4. The positive DC output is connected between diodes 2 and 3, and the negative
rectifier.
This is a full wave bridge rectifier used to power electronic circuits. We will learn how they work
in detail.
Electricity is dangerous and can be fatal. Only qualified and competent individuals should carry
out electrical work.
Full bridge rectifiers consist of four diodes arranged in a certain configuration. They convert AC
(alternating current) into DC (direct current).
AC electricity is the input and DC electricity is the output. AC is what is provided by power
outlets in our homes, but most electronic devices use DC. Therefore, we need to convert the AC
into DC electricity.
For example, a laptop charger takes AC from the power outlet and converts it to DC to power the
laptop.
The symbol for a diode is represented on engineering drawings. The arrow points in the
direction of conventional current.
In AC electricity, the voltage and current constantly change direction between forwards and
backwards, creating a sine wave pattern.
Multimeters calculate the root mean squared voltage (RMS voltage) to represent the average
voltage in AC electricity.
The frequency of AC electricity is measured in hertz (Hz), which indicates how many times the
sine wave is repeated per second. In North America, the frequency is 60 Hz, while in the rest of
the world, it is 50 Hz.
, DC electricity has a constant voltage and current in one direction. It is represented by a flat line
on a graph.
A rectifier can only convert AC to DC. To convert DC to AC, an inverter is needed.
A diode is a semiconductor device that allows current to flow in only one direction. This property
is used in rectifiers to control the direction of current flow.
There are different types of rectifiers, including half wave rectifiers and full wave rectifiers.
A half wave rectifier only allows current to flow in one direction, resulting in a pulsating
waveform. It is not a good DC output.
A full wave rectifier, such as a four-way rectifier, uses a center tap transformer and two diodes to
convert AC to DC more effectively.
Using a capacitor in parallel with the load can improve the output of a rectifier.
When an AC waveform is rectified using a diode, the resulting DC waveform is not smooth and
contains ripples. To improve this, filtering methods are used, such as adding a capacitor in
parallel to the load. The capacitor charges during the increase in voltage and releases the stored
electrons during the decrease, reducing the ripple. The size of the capacitor affects the
smoothness of the waveform, with larger capacitors producing smoother outputs. Multiple
capacitors can also be used in parallel to further improve the waveform.
When using a capacitor, it is important to place a bleeder resistor across the output to drain the
capacitor when the circuit is off for safety reasons. Without a load, the energy stored in the
capacitor can be dangerous if the voltage is high.
A full wave bridge rectifier, which uses four diodes, is a common method for rectifying AC
waveforms. The AC supply is connected between diodes 1 and 2, with the neutral between
diodes 3 and 4. The positive DC output is connected between diodes 2 and 3, and the negative
