Subject :- printing technology
UNIT – 1
1. An introduction to different printing processes such as pre process :-
What is Prepress?
Prepress is the term used in printing for all the procedures and activities between receiving the
final copy and its delivery to the press. Prepress happens before the actual final printing of a job or
project. This usually includes such operations as converting customer-supplied electronic files into
aform usable by the printing equipment, imposition (the process of creating a printable layout),
proofing, and plate making. During the prepress process, projects are checked for potential
technical errors or printing issues that could result in a poor print job. This is an important step in
ensuring that the final product achieves the desired quality standard and meets the customer's
expectations. Proofing also usually occurs during prepress, which allows for corrections to be made
before the job goes to print.
Prepress can be a complex and time-consuming process, but it is a crucial part of the printing
process. By taking the time to properly prepare a print job for production, printers can avoid many
potential problems and ensure that the job turns out looking its best.
Prepress History :-
The history of prepress is intimately bound up with the history of printing itself. Johannes
Gutenberg invented the first movable type press in the mid-15th century, and for the next
several hundred years, printing technology underwent only incremental changes. It was not until
the late 19th century that substantial advances were made in prepress technology.
The development of photography in the 19th century led to the first real departure from
Gutenberg's printing methods. Photographic plates were used to create printing negatives,
which could be used to produce positive prints on paper. This process was known as "offset
lithography" and quickly
became the standard method for commercial printing.
Offset lithography remained the primary printing technology until the 1970s when computer-aided
design (CAD) and computer-aided manufacturing (CAM) began to be used in prepress. These
technologies allowed for the creation of digital files that could be directly input into
printing equipment.
The 1990s saw the development of workflows that linked all the steps in the prepress process,
from design to plate making. These "end-to-end" prepress workflows greatly increased the
efficiency of
the prepress process and helped to make digital printing the dominant technology in the industry.
, Why is Prepress Important?
Prepress is important because it ensures that the final product is of the highest possible
quality. By carefully preparing the printing plates and proofing the print job, printers can be
confident that the finished product will meet their customer's expectations. Prepress is also
important from a design perspective. The ability to directly input digital files into printing
equipment allows designers to havegreater control over the final look of their printed pieces.
What is the Prepress Process?
The typical prepress workflow begins with the customer supplying a digital file to the printer.
This file is then converted into a form that can be used by the printing equipment. Once the
file is in the proper format, it is impositioned or laid out on a print sheet. The imposition step
is important
because it determines how the final printed piece will look.
After the file is impositioned, it is sent to a proofing system, where a mock-up of the finished
product is created. This proof is then reviewed by the customer to ensure that everything is
correct. Once the customer has approved the proof, the file is sent to the plate-making system,
where printing plates
are created. These plates are then used on the printing press to produce the final printed
piece. The following sections will break down these processes in further detail.
Pre-Flighting :-
Pre-flighting is the first step in the prepress process. It involves checking the customer's digital
file to ensure that it is in the proper format and that all the necessary elements are included.
This step isimportant because it helps to ensure that the file will print correctly and that there
are no surprises when the job goes to proof. It is ensured that images have proper formatting,
resolution, current fonts, and color spacing. It is also important to check margins and layouts in
this step to ensure thatnothing will be cropped off of the page and that the text is legible.
Essentially, this stage is about double-checking all of the technical aspects of the file to ensure a
smooth workflow later on.
Creating the Proof :-
Proofs are commonly made in the form of hard-copy prints or PDFs. Hard-copy prints are
actual prints of the file that will be used on the printing press, while PDFs are digital
versions of the file.
Both types of proofs are important in the prepress process because they allow the customer to
see what the final printed piece will look like. This stage is important because it allows for
changes to bemade to the file before it goes to print. It is also a good time to catch any errors
that may have been missed in the pre-flighting stage.
, What are prepress techniques?
There are a variety of different prepress techniques that can be used to help ensure that a print
job isaccurate and error-free. The most common prepress stages and techniques are known as
pre- flighting, proof creation, and plate printing.
What is the definition of prepress?
Prepress is the stage in printing where a file or project is prepared for printing and checked
for a variety of potential printing and technical errors. It is important that this process occurs
before the final printing of a job so that any mistakes can be corrected.
Pre-Press :-
In the prepress production phase, an expert technician will review yourfiles, both manually and through
preflight software, for any sign of a
problem that may cause production errors. An electronic proof is issuedonce your PDF files pass the
preflight inspection. We provide electronic proofing to all of our customers for free, and all projects are
required togo through this process — unless you’ve printed with us before and areusing the exact same
production files. When you receive your electronicproof via email, you may have suggestions from your
prepress expert for changes that should be made to your files before sending them intoproduction. You’ll
also notice that printer’s marks have been added to your files. These are special marks to indicate different
elements such as trim, bleed, and center. If requested, hard copy proofs (for books and games) may also be
created and sent to you for approval, usually for color purposes. Hard copy proofs are not available for
domestic orders, but single-unit orders can be purchased before placing a higher volume digital-offset order.
Once you have approved your proof and sent your files to press, the nextphase in prepress production is
that your files are output through a
process called the RIP (Raster Image Processing). During this part ofthe prepress production process, your
images are separated into four
colors and output
plates onto enough
are sturdy four metal
to beprinting
used for plates – one plate
many thousands for each ofthe colors of cyan, magenta, yellow,
of printing
and black (CMYK). These
impressions, thin
yet also metalenough to wrap around a rotating cylinder
flexible
inside the printing press. Metal printing plates are not required for digital-offset printing, but the process is
similar in the way colors areseparated and then applied to paper substrates to create your art.
3-PART WORKFLOW :-
Our workflow at A-State Printing Services consists of three main areas:
Pre-Press:-
Prepress is the term used in the printing and publishing industries for the processes and procedures that
occur between the creation of a print layout and the final printing. This
procedure includes the manufacture of a printing plate, image carrier, ready for mounting on a printing
,press, as well as the adjustment of images, photographs and texts or the creation of a high-quality print
file. In today's prepress, either a PDF or native application files are created from programs such as Adobe
Creative Suites, QuarkXPress, etc.
Press:-
Arkansas State's award-winning Printing Services Department with state-of-the-art
technologies offers a complete range of document production services in both offset and digital
environments. Whether you have a simple one-color job or a complex four- color piece with aqueous
coating, you will receive the same high level of service, quality, convenience, sensitivity to deadlines, and
competitive pricing.
Post Press:-
Our full-service bindery can provide saddle stitching and other popular binding methods and folding to suit
your needs. Since its creation, Printing Services has adapted to many changes in technology and customer
demand. We strive to continue to grow and advance as new technologies become available and as our
customers demand new services. Please feel free to contact us if you have any questions before
submitting a job.
What is Prepress?
If you’ve worked with a printing company, you may have heard the term “prepress.” Understanding this step in the production
process is helpful for business owners, purchasing agents, marketing professionals, and others involved in the process of
printingand producing materials.
Prepress:-
This term refers to the process of creating a print layout and performing all the steps that lead to the nal print project. A digital
prepress machine accepts information electronically and transforms the data onto a printing plate which is ultimately used to
transfer your les onto paper while on press. Using an experienced prepress team can be asigni cant time saver, especially if you
used a graphic designer to create artwork in the correct format. Di erent le sizes, output needs, and le types can all slow down
the printing process, but utilizing a trained prepress technician results in e cient le output quickly and e ciently.
The Pre-Press Stage:-
The pre-press stage is a crucial step in the printing process thatinvolves preparing digital files for printing.
This stage encompasses a range of activities, including designing,layout, and typesetting, all of which play a
crucial role in ensuringthat the final printed product meets the desired specifications.
During the pre-press stage, designers will work to ensure that the digital files are properly formatted for
printing.
One of the common mistakes designers make during their artwork preparation is not converting their work
from RBG to CMYK.
The best way to make sure you are preparing your files correctly isby contacting a product specialist of the
packaging or printing company you are working with.
,2 . FLEXO PLATE:-
,WHAT ARE FLEXOGRAPHIC PRINTING PLATES?
Flexographic printing plates are exible photopolymer plates, used in exo printing to transfer ink &
images to a exible substrate, such
as paper or lm. The printing plates are a critical element of the
exographic printing process and the quality of the printed image is
largely dependant on the quality of the exo plates used.
The exo process itself is well known for adapting to print onto all types of exible substrates and the
plates can be used & re-used over millions of impressions. Here, you will understand the how the
plates are made and how they function. The plates are designed in relief, which means the print
surface is raised where the image has been exposed.
The plate surface is the only area that comes into contact with the substrate after the ink is applied
to the plate. The etched or relieved areas do not contact the ink. Originally, exo plates were made
from rubber, but are today made from photopolymer material in sheet form – which di
erentiates them from the xed metallic printing plates of o set printing. The plates are exible
enough to be wrapped around cylindrical print/plate rollers.
PLATE PROCESSING:-
1) Traditional Method :-
The required image is rst exposed onto a lm negative, using a laser imagesetter. It is then placed
directly onto the surface of the unexposed plate material and is held in place via a vacuum cover.
The plate and lm are then exposed to UV light in order to x the image into the polymer material.
Only the transparent areas of the negative lm will allow the UV light to pass through, enabling the UV
rays to alter the molecular bonding in the photopolymer material.
After su cient exposure time, the plate is then xed to an oscillating platten and immersed into a
washout tank. The washout solution can be water or solvent, depending on the type of plate
material. The unexposed areas of the polymer are then washed away from the plate base, via a
washout brush. The waste polymer is dissolved into the washout solution, which is then later
processed for recycling / solvent reclamation.
Following the washout process, the plate is then placed in a hot air dryer, where excess water /
solvent evaporates, leaving a dry plate. A post cure is then required, using both UVA & UVC lamps,
after which the nished plate is ready for use.
2) Digital Plates :-
,Most exo plates today are exposed using direct ‘computer-to-plate’ technology (CTP). In this case, the
unexposed lm negative is supplied pre-laminated onto the photopolymer sheet, so that both layers can
be exposed in the same piece of equipment.
A laser is directed by a computer to rst expose the negative layer, after which the photopolymer is then
exposed to the UVA light source. This exposure technique produces a superior quality plate, compared
with the traditional method. The exposed plate is then processed, using the washout method
described above.
3) Thermal Flexo Plate Processing :-
Whilst the exposure is a CTP process, as above - this processing method eliminates the need for water or
solvent in the etching process. The unexposed areas of the photopolymer are essentially ‘melted’ and
removed using a purely mechanical process, using heat treatment and a series of rotating rollers. This
method is said to be more environmentally friendly than conventional plate washout processing.
Flexo printing plates are used to print on the flexible packaging materials like poly bags, non-
woven bags, pouches, paper cups, etc. Flexography is a modern version of letter press and is
mostly used for printing on non-porous substrates. Flexo printing plates are made upof
photopolymer resin and act as a carrier medium duringthe transfer of ink to the desired
surface.
Flexo Printing Plates are the lifeblood of any productionhouse. Without these, it would be
impossible to print attractive, high quality images at the speed that we all desire. These
printing plates are made specifically for flexographic printing and come in a variety of
differentmodels and sizes.
What is a Flexographic Printing Plate?
Images are printed on a unique surface known as a flexographic printing plate. Paper and
plastic are only two of the many materials that may be used to create flexographic printing
plates. They are created by puttingink on the plate, pressing it against paper or another
picture to create an image, and then drying it. They are tiny sheets of rubber that may be
used to make many copies of your artwork and hold your design. You may select the one
that is perfect for your project because they come in a variety of sizes and thicknesses!
, Prints on paper are produced using lithographic printing plates, such as flexographic printing
plates. They are composed of a stiff surface that may be inked up and imprinted with
pictures that have been transferred from aplate; when placed up against paper, they
respond by producing a negative image.
How do Flexo Plates Work?
Flexo printing plates work by making an image using two different colored inks. One of
these inks is used to print the image on the paper while the other is used to create a
negative image. The positive image is then transferred onto an aluminum plate which can be
used again to createa second negative image.
The Process of Flexo Printing is as follows:
Step 1 –
The first step involves placing two different colored inkson top of each other so that they
form a single layer. Thislayer will then be placed over a piece of paper with a textured
surface. The ink that has been placed on top should be thicker than the one below it so that
when pressed against the paper, it creates a raised pattern.
Step 2 –
Next, another piece of paper is pressed against this first sheet which has created an
impression in its surface. This new sheet will then be removed and paired with another piece
of paper with a smooth surface for creating anotherimpression on it. Once both sheets have
been created, they are placed on top of each other with their
impressions lined up perfectly with one another so that
they create one continuous image across both sheets ofpaper at once!
Flexo printing plates manufacturers are the best ones andif you want purchasing high quality
of the flexo printing plates then it is very hard for you. Also we can get the top flexo printing
plates manufacturers in India and their products are certified by IPC (India) standard also so
that your print quality is improved by them.
The photopolymer plate :-
Flexography is a direct printing process, widely used in the packaging industry, especially for the
manufacture of labels. However, its manufacturing techniques remain unknown compared to other
industrial reproduction methods.
The printing form, also known as the plate, matrix, or sole, is raised and varies in thickness from 0.78 to
6.35 mm. The use of thin plates offers a sharper print, a reduced dot gain, and an optimal ink transfer.
euros in its raw state, the flexographic plate consists of a photopolymer plate, topped by a carbon layer
intended to receive the negative of the image or the composition to be engraved.
In the past, rubber was the raw material used in the manufacture of flexographic plates, but today it is
largely replaced by synthetic resins allowing a finer linearity andthus the reproduction of a greater number
,of details.
Sunstroke:-
The production of a conventional plate takes an average of 30 minutes. The elements of the negative film
are engraved by laser on the carbon layer, then the exposure of theplate by UV rays shapes the material by
cross-linking: the openwork parts of the negative are exposed and harden. The laser engraving of the plate
is very powerful, because it makes it possible to reproduce complex and finer screens than by older
processes.
Nowadays, it is possible to eliminate the negative manufacturing step by connecting the computer directly
to the platesetter.
Washing and drying of the flexo plate:-
The cleaning of the uninsulated plate is usually done with solvents. When it is immersed in the washer, the
plate loses its last traces of carbon and the printing formappears.
The drying operation is the last stage of the manufacture of a flexographic plate. Carried out at a
temperature ranging between 50 and 60°, the drying produces a
Cutting of the plates:-
Depending on the photo-engraver, the dimensions of the photopolymer plate in its rawstate can be 1m x
2m. To save a maximum of material, the plates to be produced are amalgamated, then cut to correspond
to the final format, ordered by the printer.
Tips for preserving a flexo plate:-
The flexographic plate is sensitive to light. To prolong its life, it is important to clean it properly with water
after each use and not to expose it to light for more than a few days: the material will harden within a
week.
Too much pressure when rolling can also damage the plate and wear it out more quickly. Once the job has
been printed and washed, the plates must be stored for the next print run. To do this, it is recommended
to store them in opaque kraft envelopes with foam sheets between each color (and therefore each plate)
to protect them from shocks and rubbing.
The guide to a perfect flexo plate
What is the definition of a perfect flexo plate? Well, this really depends on what you are going after? Are
you going for the best possible image quality possible? Are you looking for the lowest cost plate? Are you
looking to print images with lots of highlights? Are you looking to print images with lots of solid areas? A
perfect flexo plate really depends on your requirements. In this article, we are going to look into the
different metrics that you should consider when seeking and designing a flexo plate for your production.
These metrics include 1. Line screen level 2. Flat top dots 3. Plate hardness 4. Plate duration 5. Micro
Screening Plate
6. Plate surface tension.
, Line Screen Level:-
With today’s technology, imaging a flexo plate with a 180LPI is achievable it enables you to produce high-
definition prints with great quality in the highlighted image areas. However, it does not come without cost.
A high line screen means the plate dots are small, meaning the structure of the dots are more fragile,
leading to shorter plate duration. A high line screen means the gap between dots are small, meaning there
are less area for the ink to flow through, leading to more ink blockage issues at the plate. One needs to
balance between quality and efficiency.
Flat Top Dots:-
Nowadays flat top dots have almost become a must for quality prints. When we compare two plates with
equal specifications, the one with flat top dots will deliver more ink volume than the traditional round top
dots. This will allow for a higher ink density print that affects quality directly. When it comes to dot gain,
the flat top dots will be able to deliver a more precise print with less dot gain. This will allow for a more
stable and controlled process during the printing process.

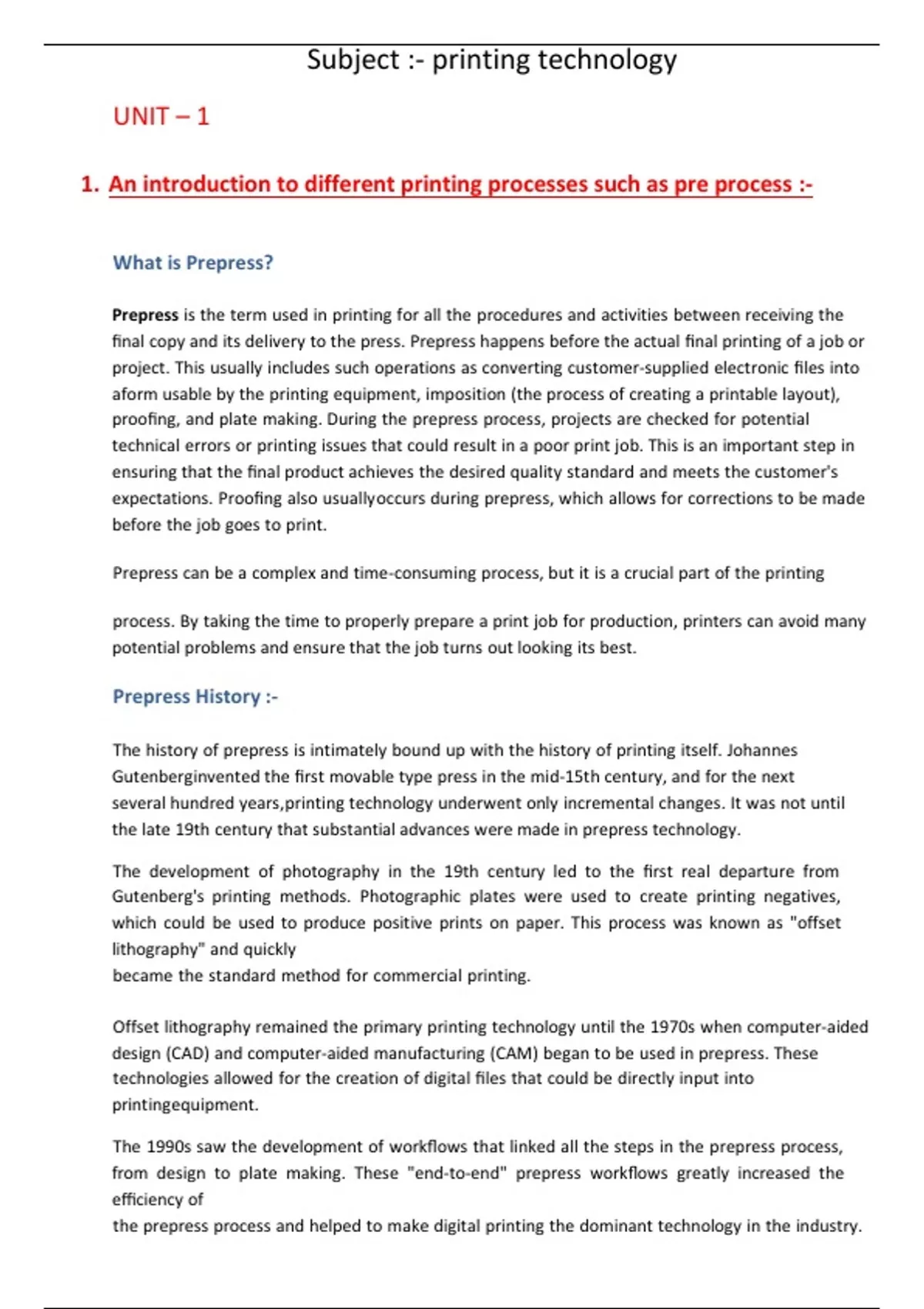

UNIT – 1
1. An introduction to different printing processes such as pre process :-
What is Prepress?
Prepress is the term used in printing for all the procedures and activities between receiving the
final copy and its delivery to the press. Prepress happens before the actual final printing of a job or
project. This usually includes such operations as converting customer-supplied electronic files into
aform usable by the printing equipment, imposition (the process of creating a printable layout),
proofing, and plate making. During the prepress process, projects are checked for potential
technical errors or printing issues that could result in a poor print job. This is an important step in
ensuring that the final product achieves the desired quality standard and meets the customer's
expectations. Proofing also usually occurs during prepress, which allows for corrections to be made
before the job goes to print.
Prepress can be a complex and time-consuming process, but it is a crucial part of the printing
process. By taking the time to properly prepare a print job for production, printers can avoid many
potential problems and ensure that the job turns out looking its best.
Prepress History :-
The history of prepress is intimately bound up with the history of printing itself. Johannes
Gutenberg invented the first movable type press in the mid-15th century, and for the next
several hundred years, printing technology underwent only incremental changes. It was not until
the late 19th century that substantial advances were made in prepress technology.
The development of photography in the 19th century led to the first real departure from
Gutenberg's printing methods. Photographic plates were used to create printing negatives,
which could be used to produce positive prints on paper. This process was known as "offset
lithography" and quickly
became the standard method for commercial printing.
Offset lithography remained the primary printing technology until the 1970s when computer-aided
design (CAD) and computer-aided manufacturing (CAM) began to be used in prepress. These
technologies allowed for the creation of digital files that could be directly input into
printing equipment.
The 1990s saw the development of workflows that linked all the steps in the prepress process,
from design to plate making. These "end-to-end" prepress workflows greatly increased the
efficiency of
the prepress process and helped to make digital printing the dominant technology in the industry.
, Why is Prepress Important?
Prepress is important because it ensures that the final product is of the highest possible
quality. By carefully preparing the printing plates and proofing the print job, printers can be
confident that the finished product will meet their customer's expectations. Prepress is also
important from a design perspective. The ability to directly input digital files into printing
equipment allows designers to havegreater control over the final look of their printed pieces.
What is the Prepress Process?
The typical prepress workflow begins with the customer supplying a digital file to the printer.
This file is then converted into a form that can be used by the printing equipment. Once the
file is in the proper format, it is impositioned or laid out on a print sheet. The imposition step
is important
because it determines how the final printed piece will look.
After the file is impositioned, it is sent to a proofing system, where a mock-up of the finished
product is created. This proof is then reviewed by the customer to ensure that everything is
correct. Once the customer has approved the proof, the file is sent to the plate-making system,
where printing plates
are created. These plates are then used on the printing press to produce the final printed
piece. The following sections will break down these processes in further detail.
Pre-Flighting :-
Pre-flighting is the first step in the prepress process. It involves checking the customer's digital
file to ensure that it is in the proper format and that all the necessary elements are included.
This step isimportant because it helps to ensure that the file will print correctly and that there
are no surprises when the job goes to proof. It is ensured that images have proper formatting,
resolution, current fonts, and color spacing. It is also important to check margins and layouts in
this step to ensure thatnothing will be cropped off of the page and that the text is legible.
Essentially, this stage is about double-checking all of the technical aspects of the file to ensure a
smooth workflow later on.
Creating the Proof :-
Proofs are commonly made in the form of hard-copy prints or PDFs. Hard-copy prints are
actual prints of the file that will be used on the printing press, while PDFs are digital
versions of the file.
Both types of proofs are important in the prepress process because they allow the customer to
see what the final printed piece will look like. This stage is important because it allows for
changes to bemade to the file before it goes to print. It is also a good time to catch any errors
that may have been missed in the pre-flighting stage.
, What are prepress techniques?
There are a variety of different prepress techniques that can be used to help ensure that a print
job isaccurate and error-free. The most common prepress stages and techniques are known as
pre- flighting, proof creation, and plate printing.
What is the definition of prepress?
Prepress is the stage in printing where a file or project is prepared for printing and checked
for a variety of potential printing and technical errors. It is important that this process occurs
before the final printing of a job so that any mistakes can be corrected.
Pre-Press :-
In the prepress production phase, an expert technician will review yourfiles, both manually and through
preflight software, for any sign of a
problem that may cause production errors. An electronic proof is issuedonce your PDF files pass the
preflight inspection. We provide electronic proofing to all of our customers for free, and all projects are
required togo through this process — unless you’ve printed with us before and areusing the exact same
production files. When you receive your electronicproof via email, you may have suggestions from your
prepress expert for changes that should be made to your files before sending them intoproduction. You’ll
also notice that printer’s marks have been added to your files. These are special marks to indicate different
elements such as trim, bleed, and center. If requested, hard copy proofs (for books and games) may also be
created and sent to you for approval, usually for color purposes. Hard copy proofs are not available for
domestic orders, but single-unit orders can be purchased before placing a higher volume digital-offset order.
Once you have approved your proof and sent your files to press, the nextphase in prepress production is
that your files are output through a
process called the RIP (Raster Image Processing). During this part ofthe prepress production process, your
images are separated into four
colors and output
plates onto enough
are sturdy four metal
to beprinting
used for plates – one plate
many thousands for each ofthe colors of cyan, magenta, yellow,
of printing
and black (CMYK). These
impressions, thin
yet also metalenough to wrap around a rotating cylinder
flexible
inside the printing press. Metal printing plates are not required for digital-offset printing, but the process is
similar in the way colors areseparated and then applied to paper substrates to create your art.
3-PART WORKFLOW :-
Our workflow at A-State Printing Services consists of three main areas:
Pre-Press:-
Prepress is the term used in the printing and publishing industries for the processes and procedures that
occur between the creation of a print layout and the final printing. This
procedure includes the manufacture of a printing plate, image carrier, ready for mounting on a printing
,press, as well as the adjustment of images, photographs and texts or the creation of a high-quality print
file. In today's prepress, either a PDF or native application files are created from programs such as Adobe
Creative Suites, QuarkXPress, etc.
Press:-
Arkansas State's award-winning Printing Services Department with state-of-the-art
technologies offers a complete range of document production services in both offset and digital
environments. Whether you have a simple one-color job or a complex four- color piece with aqueous
coating, you will receive the same high level of service, quality, convenience, sensitivity to deadlines, and
competitive pricing.
Post Press:-
Our full-service bindery can provide saddle stitching and other popular binding methods and folding to suit
your needs. Since its creation, Printing Services has adapted to many changes in technology and customer
demand. We strive to continue to grow and advance as new technologies become available and as our
customers demand new services. Please feel free to contact us if you have any questions before
submitting a job.
What is Prepress?
If you’ve worked with a printing company, you may have heard the term “prepress.” Understanding this step in the production
process is helpful for business owners, purchasing agents, marketing professionals, and others involved in the process of
printingand producing materials.
Prepress:-
This term refers to the process of creating a print layout and performing all the steps that lead to the nal print project. A digital
prepress machine accepts information electronically and transforms the data onto a printing plate which is ultimately used to
transfer your les onto paper while on press. Using an experienced prepress team can be asigni cant time saver, especially if you
used a graphic designer to create artwork in the correct format. Di erent le sizes, output needs, and le types can all slow down
the printing process, but utilizing a trained prepress technician results in e cient le output quickly and e ciently.
The Pre-Press Stage:-
The pre-press stage is a crucial step in the printing process thatinvolves preparing digital files for printing.
This stage encompasses a range of activities, including designing,layout, and typesetting, all of which play a
crucial role in ensuringthat the final printed product meets the desired specifications.
During the pre-press stage, designers will work to ensure that the digital files are properly formatted for
printing.
One of the common mistakes designers make during their artwork preparation is not converting their work
from RBG to CMYK.
The best way to make sure you are preparing your files correctly isby contacting a product specialist of the
packaging or printing company you are working with.
,2 . FLEXO PLATE:-
,WHAT ARE FLEXOGRAPHIC PRINTING PLATES?
Flexographic printing plates are exible photopolymer plates, used in exo printing to transfer ink &
images to a exible substrate, such
as paper or lm. The printing plates are a critical element of the
exographic printing process and the quality of the printed image is
largely dependant on the quality of the exo plates used.
The exo process itself is well known for adapting to print onto all types of exible substrates and the
plates can be used & re-used over millions of impressions. Here, you will understand the how the
plates are made and how they function. The plates are designed in relief, which means the print
surface is raised where the image has been exposed.
The plate surface is the only area that comes into contact with the substrate after the ink is applied
to the plate. The etched or relieved areas do not contact the ink. Originally, exo plates were made
from rubber, but are today made from photopolymer material in sheet form – which di
erentiates them from the xed metallic printing plates of o set printing. The plates are exible
enough to be wrapped around cylindrical print/plate rollers.
PLATE PROCESSING:-
1) Traditional Method :-
The required image is rst exposed onto a lm negative, using a laser imagesetter. It is then placed
directly onto the surface of the unexposed plate material and is held in place via a vacuum cover.
The plate and lm are then exposed to UV light in order to x the image into the polymer material.
Only the transparent areas of the negative lm will allow the UV light to pass through, enabling the UV
rays to alter the molecular bonding in the photopolymer material.
After su cient exposure time, the plate is then xed to an oscillating platten and immersed into a
washout tank. The washout solution can be water or solvent, depending on the type of plate
material. The unexposed areas of the polymer are then washed away from the plate base, via a
washout brush. The waste polymer is dissolved into the washout solution, which is then later
processed for recycling / solvent reclamation.
Following the washout process, the plate is then placed in a hot air dryer, where excess water /
solvent evaporates, leaving a dry plate. A post cure is then required, using both UVA & UVC lamps,
after which the nished plate is ready for use.
2) Digital Plates :-
,Most exo plates today are exposed using direct ‘computer-to-plate’ technology (CTP). In this case, the
unexposed lm negative is supplied pre-laminated onto the photopolymer sheet, so that both layers can
be exposed in the same piece of equipment.
A laser is directed by a computer to rst expose the negative layer, after which the photopolymer is then
exposed to the UVA light source. This exposure technique produces a superior quality plate, compared
with the traditional method. The exposed plate is then processed, using the washout method
described above.
3) Thermal Flexo Plate Processing :-
Whilst the exposure is a CTP process, as above - this processing method eliminates the need for water or
solvent in the etching process. The unexposed areas of the photopolymer are essentially ‘melted’ and
removed using a purely mechanical process, using heat treatment and a series of rotating rollers. This
method is said to be more environmentally friendly than conventional plate washout processing.
Flexo printing plates are used to print on the flexible packaging materials like poly bags, non-
woven bags, pouches, paper cups, etc. Flexography is a modern version of letter press and is
mostly used for printing on non-porous substrates. Flexo printing plates are made upof
photopolymer resin and act as a carrier medium duringthe transfer of ink to the desired
surface.
Flexo Printing Plates are the lifeblood of any productionhouse. Without these, it would be
impossible to print attractive, high quality images at the speed that we all desire. These
printing plates are made specifically for flexographic printing and come in a variety of
differentmodels and sizes.
What is a Flexographic Printing Plate?
Images are printed on a unique surface known as a flexographic printing plate. Paper and
plastic are only two of the many materials that may be used to create flexographic printing
plates. They are created by puttingink on the plate, pressing it against paper or another
picture to create an image, and then drying it. They are tiny sheets of rubber that may be
used to make many copies of your artwork and hold your design. You may select the one
that is perfect for your project because they come in a variety of sizes and thicknesses!
, Prints on paper are produced using lithographic printing plates, such as flexographic printing
plates. They are composed of a stiff surface that may be inked up and imprinted with
pictures that have been transferred from aplate; when placed up against paper, they
respond by producing a negative image.
How do Flexo Plates Work?
Flexo printing plates work by making an image using two different colored inks. One of
these inks is used to print the image on the paper while the other is used to create a
negative image. The positive image is then transferred onto an aluminum plate which can be
used again to createa second negative image.
The Process of Flexo Printing is as follows:
Step 1 –
The first step involves placing two different colored inkson top of each other so that they
form a single layer. Thislayer will then be placed over a piece of paper with a textured
surface. The ink that has been placed on top should be thicker than the one below it so that
when pressed against the paper, it creates a raised pattern.
Step 2 –
Next, another piece of paper is pressed against this first sheet which has created an
impression in its surface. This new sheet will then be removed and paired with another piece
of paper with a smooth surface for creating anotherimpression on it. Once both sheets have
been created, they are placed on top of each other with their
impressions lined up perfectly with one another so that
they create one continuous image across both sheets ofpaper at once!
Flexo printing plates manufacturers are the best ones andif you want purchasing high quality
of the flexo printing plates then it is very hard for you. Also we can get the top flexo printing
plates manufacturers in India and their products are certified by IPC (India) standard also so
that your print quality is improved by them.
The photopolymer plate :-
Flexography is a direct printing process, widely used in the packaging industry, especially for the
manufacture of labels. However, its manufacturing techniques remain unknown compared to other
industrial reproduction methods.
The printing form, also known as the plate, matrix, or sole, is raised and varies in thickness from 0.78 to
6.35 mm. The use of thin plates offers a sharper print, a reduced dot gain, and an optimal ink transfer.
euros in its raw state, the flexographic plate consists of a photopolymer plate, topped by a carbon layer
intended to receive the negative of the image or the composition to be engraved.
In the past, rubber was the raw material used in the manufacture of flexographic plates, but today it is
largely replaced by synthetic resins allowing a finer linearity andthus the reproduction of a greater number
,of details.
Sunstroke:-
The production of a conventional plate takes an average of 30 minutes. The elements of the negative film
are engraved by laser on the carbon layer, then the exposure of theplate by UV rays shapes the material by
cross-linking: the openwork parts of the negative are exposed and harden. The laser engraving of the plate
is very powerful, because it makes it possible to reproduce complex and finer screens than by older
processes.
Nowadays, it is possible to eliminate the negative manufacturing step by connecting the computer directly
to the platesetter.
Washing and drying of the flexo plate:-
The cleaning of the uninsulated plate is usually done with solvents. When it is immersed in the washer, the
plate loses its last traces of carbon and the printing formappears.
The drying operation is the last stage of the manufacture of a flexographic plate. Carried out at a
temperature ranging between 50 and 60°, the drying produces a
Cutting of the plates:-
Depending on the photo-engraver, the dimensions of the photopolymer plate in its rawstate can be 1m x
2m. To save a maximum of material, the plates to be produced are amalgamated, then cut to correspond
to the final format, ordered by the printer.
Tips for preserving a flexo plate:-
The flexographic plate is sensitive to light. To prolong its life, it is important to clean it properly with water
after each use and not to expose it to light for more than a few days: the material will harden within a
week.
Too much pressure when rolling can also damage the plate and wear it out more quickly. Once the job has
been printed and washed, the plates must be stored for the next print run. To do this, it is recommended
to store them in opaque kraft envelopes with foam sheets between each color (and therefore each plate)
to protect them from shocks and rubbing.
The guide to a perfect flexo plate
What is the definition of a perfect flexo plate? Well, this really depends on what you are going after? Are
you going for the best possible image quality possible? Are you looking for the lowest cost plate? Are you
looking to print images with lots of highlights? Are you looking to print images with lots of solid areas? A
perfect flexo plate really depends on your requirements. In this article, we are going to look into the
different metrics that you should consider when seeking and designing a flexo plate for your production.
These metrics include 1. Line screen level 2. Flat top dots 3. Plate hardness 4. Plate duration 5. Micro
Screening Plate
6. Plate surface tension.
, Line Screen Level:-
With today’s technology, imaging a flexo plate with a 180LPI is achievable it enables you to produce high-
definition prints with great quality in the highlighted image areas. However, it does not come without cost.
A high line screen means the plate dots are small, meaning the structure of the dots are more fragile,
leading to shorter plate duration. A high line screen means the gap between dots are small, meaning there
are less area for the ink to flow through, leading to more ink blockage issues at the plate. One needs to
balance between quality and efficiency.
Flat Top Dots:-
Nowadays flat top dots have almost become a must for quality prints. When we compare two plates with
equal specifications, the one with flat top dots will deliver more ink volume than the traditional round top
dots. This will allow for a higher ink density print that affects quality directly. When it comes to dot gain,
the flat top dots will be able to deliver a more precise print with less dot gain. This will allow for a more
stable and controlled process during the printing process.
