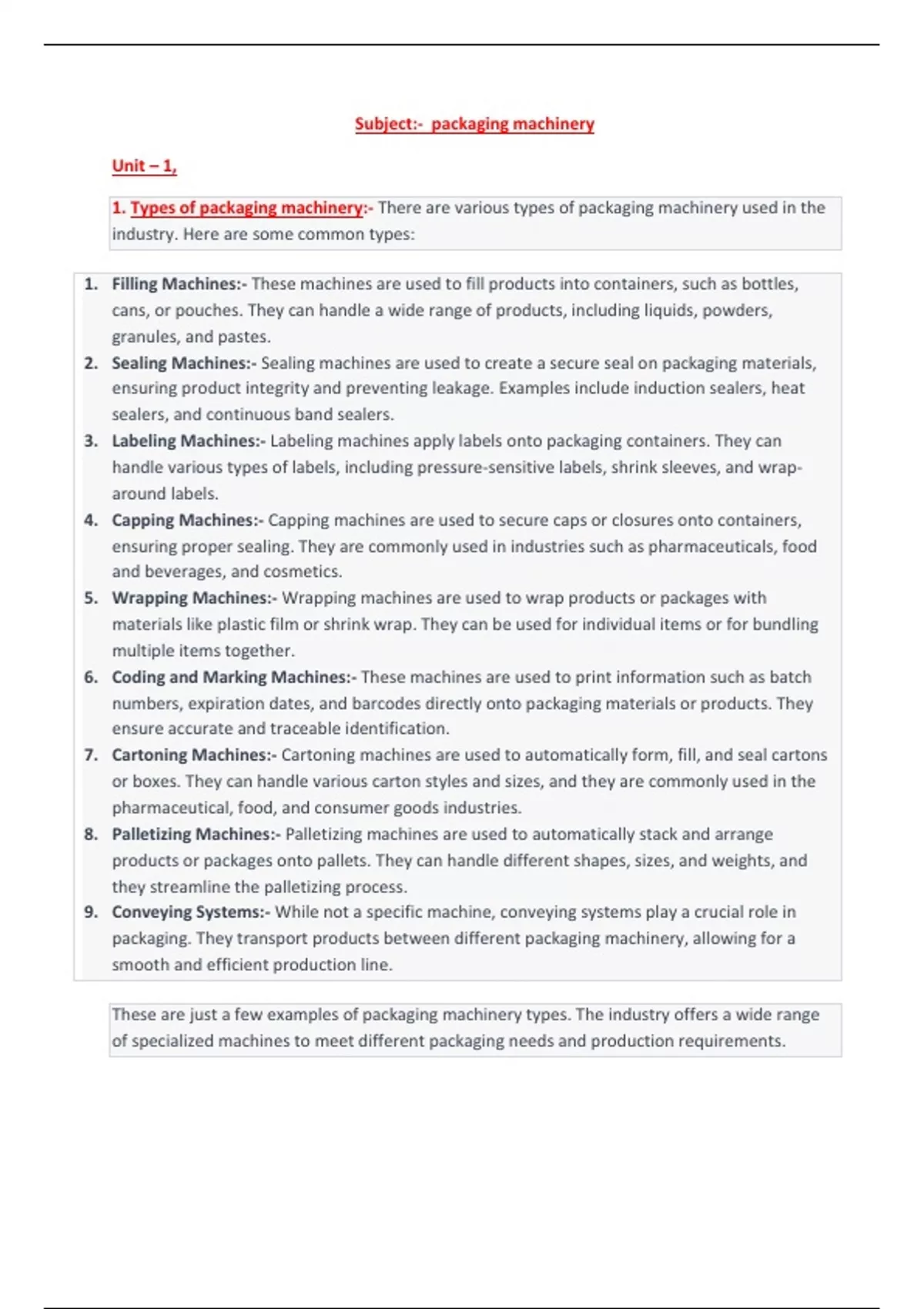

Subject:- packaging machinery
Unit – 1,
1. Types of packaging machinery:- There are various types of packaging machinery used in the
industry. Here are some common types:
1. Filling Machines:- These machines are used to fill products into containers, such as bottles,
cans, or pouches. They can handle a wide range of products, including liquids, powders,
granules, and pastes.
2. Sealing Machines:- Sealing machines are used to create a secure seal on packaging materials,
ensuring product integrity and preventing leakage. Examples include induction sealers, heat
sealers, and continuous band sealers.
3. Labeling Machines:- Labeling machines apply labels onto packaging containers. They can
handle various types of labels, including pressure-sensitive labels, shrink sleeves, and wrap-
around labels.
4. Capping Machines:- Capping machines are used to secure caps or closures onto containers,
ensuring proper sealing. They are commonly used in industries such as pharmaceuticals, food
and beverages, and cosmetics.
5. Wrapping Machines:- Wrapping machines are used to wrap products or packages with
materials like plastic film or shrink wrap. They can be used for individual items or for bundling
multiple items together.
6. Coding and Marking Machines:- These machines are used to print information such as batch
numbers, expiration dates, and barcodes directly onto packaging materials or products. They
ensure accurate and traceable identification.
7. Cartoning Machines:- Cartoning machines are used to automatically form, fill, and seal cartons
or boxes. They can handle various carton styles and sizes, and they are commonly used in the
pharmaceutical, food, and consumer goods industries.
8. Palletizing Machines:- Palletizing machines are used to automatically stack and arrange
products or packages onto pallets. They can handle different shapes, sizes, and weights, and
they streamline the palletizing process.
9. Conveying Systems:- While not a specific machine, conveying systems play a crucial role in
packaging. They transport products between different packaging machinery, allowing for a
smooth and efficient production line.
These are just a few examples of packaging machinery types. The industry offers a wide range
of specialized machines to meet different packaging needs and production requirements.
, 2. Merits of process:- The merits or advantages of using packaging machinery in the packaging
process are numerous. Here are some key benefits:-
1. Increased Efficiency:- Packaging machinery automates the packaging process, significantly
improving efficiency and productivity. Machines can work at high speeds, handle repetitive
tasks with precision, and operate continuously without fatigue or breaks.
2. Cost Savings:- Although the initial investment in packaging machinery may be significant, it
often leads to long-term cost savings. Automated packaging reduces the need for manual labor,
minimizing labor costs and potential errors. It also increases output, allowing for larger
production volumes without a proportional increase in labor expenses.
3. Improved Accuracy:- Packaging machinery ensures a high level of accuracy and consistency in
packaging operations. Machines are programmed to perform tasks precisely, resulting in
consistent product weights, measurements, and packaging quality. This reduces the risk of
errors, rejects, and product recalls.
4. Enhanced Product Protection:- Packaging machinery enables precise control over packaging
materials, ensuring optimal product protection. Machines can accurately measure and dispense
materials, apply appropriate seals and closures, and create airtight or tamper-evident
packaging. This helps preserve product freshness, extend shelf life, and prevent damage during
transportation.
5. Versatility and Adaptability:- Packaging machinery is designed to handle a wide range of
product types, sizes, and packaging formats. It can be easily adjusted or reprogrammed to
accommodate different packaging requirements, allowing for flexibility in production. This is
particularly beneficial when dealing with various product variations or seasonal packaging
changes.
6. Time Savings:- Packaging machinery can significantly reduce packaging time compared to
manual operations. Automated machines can complete packaging tasks in a fraction of the time
required for manual labor. This allows companies to meet tight production deadlines, fulfill
customer orders promptly, and respond quickly to market demands.
7. Improved Safety and Ergonomics:- Packaging machinery helps improve workplace safety by
minimizing the need for manual handling of heavy or hazardous materials. It reduces the risk of
injuries associated with repetitive motions, lifting, and exposure to harmful substances.
Additionally, automated machines often include safety features and fail-safe mechanisms to
protect operators and prevent accidents.
8. Quality Control:- Packaging machinery incorporates quality control mechanisms to ensure
consistent packaging quality. It can detect and reject defective or improperly packaged
products, reducing the chances of delivering subpar goods to customers. This enhances overall
product quality and customer satisfaction.
, These are some of the merits of using packaging machinery in the packaging process.
Implementing the right machinery can provide significant advantages in terms of efficiency,
cost savings, quality control, and overall operational effectiveness.
3. Demerits of process:- While packaging machinery offers numerous advantages, there are
also some potential drawbacks or demerits to consider. Here are a few:-
1. Initial Cost:- Acquiring packaging machinery can involve a significant upfront investment. The
cost of purchasing, installing, and maintaining the equipment may pose a financial challenge,
especially for small or start-up businesses with limited capital.
2. Technical Complexity:- Packaging machinery often involves complex technology and specialized
knowledge for operation, maintenance, and troubleshooting. Training operators and
maintenance personnel to effectively handle the machinery may require additional time,
resources, and expertise.
3. Maintenance and Downtime:- Packaging machinery requires regular maintenance to ensure
optimal performance and longevity. Scheduled maintenance, repairs, and equipment downtime
can disrupt production schedules and potentially lead to delays in fulfilling orders.
4. Limited Flexibility:- While packaging machinery offers versatility, it may have limitations in
terms of handling unique packaging requirements or rapidly changing product specifications.
Adjusting or reconfiguring machines to accommodate new packaging formats or product
variations may require additional time and resources.
5. Risk of Obsolescence:- Technology in the packaging industry is continuously evolving. Investing
in packaging machinery entails the risk of potential obsolescence as newer, more advanced
technologies emerge. Regular updates or upgrades may be necessary to keep up with industry
trends and maintain competitiveness.
6. Operator Dependency:- Packaging machinery often relies on skilled operators to ensure
efficient and effective operation. The reliance on trained personnel can create a bottleneck if
there is a shortage of skilled operators or if training new personnel takes time.
7. Potential for Errors:- While packaging machinery can improve accuracy, errors can still occur.
Machine malfunctions, misconfigurations, or errors in programming can lead to packaging
defects, rejections, or waste. Regular monitoring, quality control checks, and preventive
maintenance are necessary to minimize such risks.
8. Environmental Impact:- Some packaging machinery may consume significant energy or require
the use of environmentally unfriendly materials, such as certain types of packaging films or
adhesives. Careful consideration of the environmental impact and implementing sustainable
practices is essential to mitigate negative effects.
, It's important to note that not all of these demerits apply to every packaging machinery
scenario, and many challenges can be addressed through proper planning, training, and
maintenance. Assessing the specific needs and constraints of a packaging operation is crucial to
make informed decisions about the implementation of packaging machinery.
4. Filling of dry and liquid products:- Filling machinery plays a crucial role in the packaging
process, whether it involves dry or liquid products. Here's an overview of the filling process for
both types:-
Filling Dry Products:-
1. Auger Fillers:- Auger fillers are commonly used for filling dry, powdered, or granular products.
They consist of a rotating auger screw that moves the product from a hopper into the
packaging container. The rotation of the auger screw is controlled to dispense a precise amount
of product based on weight or volume.
2. Volumetric Fillers:- Volumetric fillers are suitable for filling dry products that can be measured
by volume, such as snacks, grains, or small components. These fillers use volumetric
measurement methods like cups, spoons, or pistons to dispense a predetermined volume of
product into the packaging container.
3. Net Weight Fillers:- Net weight fillers are used for filling dry products based on weight. They
use load cells or weighing scales to measure the weight of the product as it is dispensed into
the container. The filling process continues until the desired weight is reached.
4. Counting Machines:- For small, discrete items like pills, tablets, or hardware, counting
machines are employed. These machines use sensors or cameras to count and dispense a
specific number of items into individual packaging units, ensuring precise product counts.
Filling Liquid Products:-
1. Gravity Fillers:- Gravity fillers rely on the force of gravity to fill liquid products into containers.
The product flows from a holding tank to the filling nozzle, and the containers are positioned
below the nozzle. The liquid fills the containers through gravity, and the fill level is controlled by
adjusting the nozzle height or valve opening.
2. Piston Fillers:- Piston fillers are commonly used for viscous or thick liquid products such as
sauces, creams, or pastes. They use a piston mechanism to draw the product into a cylinder and
then dispense it into the container. The piston movement is synchronized with the container
movement to ensure accurate fills.
3. Overflow Fillers:- Overflow fillers are ideal for filling liquid products into containers with
consistent internal volumes, such as bottles. The filling nozzle delivers the product to the
, container, and any excess liquid spills over into a reservoir. This method ensures a consistent fill
level, regardless of variations in container shape or volume.
4. Pump Fillers:- Pump fillers are versatile machines suitable for a wide range of liquid products.
They use pumps to transfer the liquid from a reservoir to the packaging container. The pumps
can be peristaltic, gear, or diaphragm pumps, depending on the product characteristics and
specific requirements.
It's important to note that there are various subtypes and configurations of filling machines
available, each with its own advantages and suitability for specific products. The selection of
the appropriate filling machinery depends on factors such as product characteristics, desired fill
accuracy, production speed, and packaging format.
5. Gravimetric filling :- Gravimetric filling is a method of filling products based on weight. It
involves accurately measuring the weight of the product as it is dispensed into the packaging
container. Here's how gravimetric filling works:
1. Weighing System:- Gravimetric filling systems incorporate a weighing system, typically
consisting of load cells or weighing scales. Load cells are sensors that measure the weight of the
product during the filling process. These sensors are connected to a control system that
calculates and monitors the weight.
2. Tare Weight:- Before filling, the empty packaging container is placed on the weighing platform,
and its weight is recorded as the tare weight. The tare weight represents the weight of the
container without any product.
3. Product Dispensing:- The filling process begins by dispensing the product into the container.
This can be done using various methods such as auger fillers, volumetric cup fillers, or other
suitable filling equipment. As the product is dispensed, the weight of the container and the
product combined is continuously monitored by the weighing system.
4. Target Weight:- The control system is programmed to reach a specific target weight for each
container. It adjusts the filling process based on real-time weight measurements. Once the
weight of the product in the container reaches the target weight, the filling process stops.
5. Feedback Control:- The gravimetric filling system utilizes a feedback control mechanism to
maintain accuracy. The control system compares the actual weight of the product being
dispensed with the target weight. It makes fine adjustments to the filling rate or duration to
achieve the desired weight accuracy.
6. Accuracy and Compensation:- Gravimetric filling offers high accuracy in filling operations, as it
directly measures the weight of the product. It compensates for variations in product density,
flow characteristics, or other factors that may affect the actual fill volume.
,7. Data Recording:- Gravimetric filling systems often include data recording capabilities, allowing
for traceability and quality control. The system can record and store data such as fill weights,
batch information, time stamps, and other relevant data for production and quality analysis
purposes.
Gravimetric filling is commonly used in various industries, including food and beverages,
pharmaceuticals, chemicals, and more. It ensures precise and consistent filling weights, reduces
product giveaway or underfilling, and allows for tighter control over product quality and
compliance with regulatory requirements.
6. Volumertric filling:- Volumetric filling is a method of filling products based on volume rather
than weight. It involves using a predetermined volume measurement to dispense the product
into the packaging container. Here's an overview of volumetric filling:
1. Volumetric Measurement:- Volumetric filling systems use various mechanisms to measure and
control the volume of the product being dispensed. Common volumetric measurement
methods include cups, spoons, pistons, or other devices that have a known volume.
2. Filling Mechanism:-The filling mechanism in a volumetric filler is designed to deliver a specific
volume of the product into the packaging container. The mechanism is usually synchronized
with the container movement, ensuring precise fills.
3. Cup Fillers:- Cup fillers are a type of volumetric filling system that use cups or scoops of a
specific volume to measure and dispense the product. The cups are filled with the product and
then discharged into the container. Cup fillers are commonly used for dry or granular products
like grains, snacks, or similar items.
4. Piston Fillers:- Piston fillers are suitable for filling viscous or thick liquid products. They use a
piston mechanism to draw the product into a cylinder and then dispense it into the container.
The volume of the product is determined by the piston stroke length and diameter.
5. Rotary Valve Fillers:- Rotary valve fillers are often used for filling free-flowing liquid or semi-
liquid products. They employ a rotary valve mechanism that controls the flow of the product
into the container. The volume of the product is determined by the valve opening and duration.
6. Accuracy and Adjustment:- Volumetric filling systems can provide accurate and consistent fills,
but it's important to calibrate and adjust the equipment to ensure precise volume
measurements. The volumetric measurement mechanism may need periodic checks and
adjustments to maintain accuracy.
7. Product Compatibility:- Volumetric filling is suitable for a wide range of products, including
liquids, creams, pastes, and some dry or granular materials. The equipment can be customized
or adjusted to accommodate different product viscosities, flow characteristics, and container
sizes.
,8. Production Speed:- Volumetric filling systems can operate at high speeds, allowing for efficient
and rapid filling of products. The filling speed depends on factors such as product
characteristics, container size, and the design of the filling equipment.
Volumetric filling is commonly used in various industries, including food and beverages,
pharmaceuticals, cosmetics, and chemicals. It provides a reliable and efficient method for
achieving consistent product volumes and streamlining the packaging process.
7. Filling of still liquids:- Filling still liquids refers to the process of filling containers with non-
carbonated or non-fizzy liquids. Here's an overview of the filling process for still liquids:
1. Container Preparation:- The first step in filling still liquids is to prepare the containers. This
includes cleaning and sanitizing them to ensure they are free from any contaminants or
residues that could affect the product quality.
2. Liquid Reservoir:- The still liquid is stored in a reservoir or holding tank. The reservoir may be
pressurized or non-pressurized, depending on the specific requirements of the liquid being
filled.
3. Filling Mechanism:- There are different types of filling machines used for filling still liquids.
Some common filling mechanisms include:
Gravity Filling:- Gravity filling relies on the force of gravity to fill the liquid into the
containers. The liquid flows from the reservoir to the filling nozzle, and the containers
are positioned below the nozzle. The liquid fills the containers through gravity, and the
fill level is controlled by adjusting the nozzle height or valve opening.
Piston Filling:- Piston fillers are commonly used for filling viscous or thick liquids. They
use a piston mechanism to draw the liquid into a cylinder and then dispense it into the
containers. The fill volume is determined by the piston stroke length and diameter.
Pump Filling:- Pump fillers utilize pumps to transfer the liquid from the reservoir to the
containers. The pumps can be peristaltic pumps, gear pumps, or diaphragm pumps,
depending on the product characteristics and specific requirements.
4. Fill Level Control:- Achieving the correct fill level is crucial for still liquids. This can be done
using various methods such as:
Time-based Filling:- The filling machine is programmed to dispense the liquid for a
specific duration to achieve the desired fill volume.
Sensor-based Filling:- Sensors, such as float or capacitive level sensors, are used to
detect the liquid level in the container. Once the desired level is reached, the filling
process stops.
, Weight-based Filling:- Gravimetric filling, as discussed earlier, can also be used for filling
still liquids based on weight. The weight of the liquid is continuously monitored, and the
filling process stops when the desired weight is reached.
5. Sealing:- After the containers are filled, they go through the sealing process. This may involve
capping, crimping, or applying other types of closures, depending on the container and product
requirements.
6. Quality Control:- Still liquid filling processes often include quality control measures such as leak
detection, visual inspections, or automated systems to ensure the integrity and quality of the
filled containers.
The specific equipment and filling method chosen for still liquid filling depend on factors such
as the viscosity of the liquid, desired fill accuracy, production speed, container size, and the
specific requirements of the product and industry.
8. Filling of carbonated liquids:- Filling carbonated liquids, such as carbonated beverages or
sparkling drinks, requires specialized equipment and processes to maintain the carbonation
levels and prevent excessive foaming. Here's an overview of the filling process for carbonated
liquids:
1. Container Preparation:- Like with any filling process, the containers for carbonated liquids need
to be prepared by cleaning and sanitizing them to ensure product integrity and safety.
2. Carbonation System:- Carbonated liquids require carbon dioxide (CO2) to be added to the
liquid during the filling process to create the desired level of carbonation. A carbonation system
is used to dissolve CO2 gas into the liquid in the correct proportions.
3. Carbonation Pressure Control:- Controlling the pressure of the carbonation system is crucial to
maintaining the desired level of carbonation. The pressure is carefully adjusted based on factors
such as the product recipe, temperature, and desired carbonation level.
4. Filling Mechanism:- Filling carbonated liquids involves specialized machinery designed to
handle the unique challenges associated with carbonation. Common filling mechanisms include:
Counter Pressure Filling:- Counter pressure filling is a widely used method for filling
carbonated liquids. It involves pressurizing the container with CO2 before the liquid is
introduced. This minimizes foaming and helps preserve the carbonation. The liquid is
then introduced under pressure to fill the container while maintaining carbonation
levels.
Isobaric Filling:- Isobaric filling is another method used for carbonated liquids. It
involves filling the container at a pressure equal to the internal pressure of the
container. This technique helps prevent foaming and maintain carbonation.
, Vacuum Filling:- Vacuum filling is sometimes used for carbonated liquids with lower
carbonation levels. The container is first evacuated to remove air, and then the liquid is
introduced under vacuum. This process helps minimize foaming and maintain
carbonation.
5. Fill Level Control:- Achieving the correct fill level while maintaining carbonation is critical for
carbonated liquids. The filling equipment typically incorporates level sensors or probes to
measure the liquid level and adjust the filling process accordingly. This ensures consistent fill
levels and prevents overfilling or underfilling.
6. Sealing:- After the containers are filled, they undergo sealing to ensure product integrity. This
may involve capping, applying crown caps, or other closure methods suitable for carbonated
liquids.
7. Quality Control:- Carbonated liquid filling processes often include quality control measures
such as leak detection systems, visual inspections, or automated monitoring to ensure the filled
containers meet quality standards.
It's important to note that the equipment used for filling carbonated liquids must be specifically
designed for carbonation and have features to handle the pressure and foaming challenges
associated with carbonated products. This ensures that the carbonation levels are maintained,
and the final product meets the desired quality and consumer expectations.
9. In line check weighing:- In-line check weighing is a process used to verify the weight of
packaged products as they move along a production line. It is an important quality control
measure to ensure that the filled packages meet the desired weight specifications. Here's an
overview of in-line check weighing:
1. Check Weigher System:- In-line check weighing involves the use of specialized equipment
called check weighers. Check weighers are typically integrated into the production line, placed
after the filling or packaging process.
2. Conveyor Belt:- The check weigher system consists of a conveyor belt that carries the packaged
products through the check weighing process. The conveyor belt moves the products at a
controlled speed, allowing them to be accurately weighed.
3. Weight Measurement:- The check weigher is equipped with load cells or weighing sensors that
measure the weight of the packaged products. These sensors can detect even small variations
in weight with high accuracy.
4. Target Weight:- The check weigher is programmed with a target weight or weight range for the
specific product being checked. This target weight is based on the product specifications or
regulatory requirements.
, 5. Comparison and Sorting:- As the packaged products pass through the check weigher, their
actual weight is compared to the target weight. If the product weight falls within the acceptable
range, it continues along the production line without any action. However, if the weight
deviates from the target, the check weigher triggers a sorting mechanism.
6. Sorting Mechanism:- The sorting mechanism can be designed to divert underweight or
overweight products from the production line. This can be achieved using methods such as air
jets, pneumatic arms, or conveyor belt diverters. The diverted products can be sent for rework,
further inspection, or rejected based on the specific quality control protocol.
7. Data Recording and Analysis:- In-line check weighers often have data recording capabilities,
allowing for real-time weight data collection. This data can be used for quality analysis,
statistical process control, and production monitoring. It helps identify trends, detect potential
issues, and ensure compliance with weight regulations.
In-line check weighing helps to prevent underfilled or overfilled packages, ensuring that the
products meet consumer expectations and regulatory requirements. It is commonly used in
industries such as food and beverages, pharmaceuticals, cosmetics, and others where accurate
weight control is essential.
10. Equipment of filling tubes:- When it comes to filling tubes, various equipment options are
available to efficiently and accurately fill products such as creams, gels, pastes, ointments, and
other semi-solid or viscous substances. Here are some common types of equipment used for
filling tubes:
1. Tube Filling Machine:- Tube filling machines are specifically designed for filling tubes with
various products. These machines automate the tube filling process and offer precise control
over the filling volume. They often include features such as automatic tube feeding, product
filling, sealing, and coding.
2. Piston Filler:- Piston fillers are widely used for filling tubes due to their ability to handle thick
and viscous products. They consist of a cylinder and piston mechanism that draws the product
from a reservoir and dispenses it into the tubes. The piston movement can be controlled to
achieve accurate and consistent fills.
3. Hot Air Tube Filling Machine:- Hot air tube filling machines are suitable for filling plastic tubes
that require heat sealing. These machines heat-seal the tube ends after the product has been
filled. The heating process ensures a secure and airtight seal.
4. Rotary Tube Filling Machine:- Rotary tube filling machines are designed for high-speed
production lines. They feature a rotating turret that holds multiple tubes, and each station
performs a specific function in the filling process, including filling, sealing, coding, and trimming.
Rotary machines are suitable for large-scale tube filling operations.
Unit – 1,
1. Types of packaging machinery:- There are various types of packaging machinery used in the
industry. Here are some common types:
1. Filling Machines:- These machines are used to fill products into containers, such as bottles,
cans, or pouches. They can handle a wide range of products, including liquids, powders,
granules, and pastes.
2. Sealing Machines:- Sealing machines are used to create a secure seal on packaging materials,
ensuring product integrity and preventing leakage. Examples include induction sealers, heat
sealers, and continuous band sealers.
3. Labeling Machines:- Labeling machines apply labels onto packaging containers. They can
handle various types of labels, including pressure-sensitive labels, shrink sleeves, and wrap-
around labels.
4. Capping Machines:- Capping machines are used to secure caps or closures onto containers,
ensuring proper sealing. They are commonly used in industries such as pharmaceuticals, food
and beverages, and cosmetics.
5. Wrapping Machines:- Wrapping machines are used to wrap products or packages with
materials like plastic film or shrink wrap. They can be used for individual items or for bundling
multiple items together.
6. Coding and Marking Machines:- These machines are used to print information such as batch
numbers, expiration dates, and barcodes directly onto packaging materials or products. They
ensure accurate and traceable identification.
7. Cartoning Machines:- Cartoning machines are used to automatically form, fill, and seal cartons
or boxes. They can handle various carton styles and sizes, and they are commonly used in the
pharmaceutical, food, and consumer goods industries.
8. Palletizing Machines:- Palletizing machines are used to automatically stack and arrange
products or packages onto pallets. They can handle different shapes, sizes, and weights, and
they streamline the palletizing process.
9. Conveying Systems:- While not a specific machine, conveying systems play a crucial role in
packaging. They transport products between different packaging machinery, allowing for a
smooth and efficient production line.
These are just a few examples of packaging machinery types. The industry offers a wide range
of specialized machines to meet different packaging needs and production requirements.
, 2. Merits of process:- The merits or advantages of using packaging machinery in the packaging
process are numerous. Here are some key benefits:-
1. Increased Efficiency:- Packaging machinery automates the packaging process, significantly
improving efficiency and productivity. Machines can work at high speeds, handle repetitive
tasks with precision, and operate continuously without fatigue or breaks.
2. Cost Savings:- Although the initial investment in packaging machinery may be significant, it
often leads to long-term cost savings. Automated packaging reduces the need for manual labor,
minimizing labor costs and potential errors. It also increases output, allowing for larger
production volumes without a proportional increase in labor expenses.
3. Improved Accuracy:- Packaging machinery ensures a high level of accuracy and consistency in
packaging operations. Machines are programmed to perform tasks precisely, resulting in
consistent product weights, measurements, and packaging quality. This reduces the risk of
errors, rejects, and product recalls.
4. Enhanced Product Protection:- Packaging machinery enables precise control over packaging
materials, ensuring optimal product protection. Machines can accurately measure and dispense
materials, apply appropriate seals and closures, and create airtight or tamper-evident
packaging. This helps preserve product freshness, extend shelf life, and prevent damage during
transportation.
5. Versatility and Adaptability:- Packaging machinery is designed to handle a wide range of
product types, sizes, and packaging formats. It can be easily adjusted or reprogrammed to
accommodate different packaging requirements, allowing for flexibility in production. This is
particularly beneficial when dealing with various product variations or seasonal packaging
changes.
6. Time Savings:- Packaging machinery can significantly reduce packaging time compared to
manual operations. Automated machines can complete packaging tasks in a fraction of the time
required for manual labor. This allows companies to meet tight production deadlines, fulfill
customer orders promptly, and respond quickly to market demands.
7. Improved Safety and Ergonomics:- Packaging machinery helps improve workplace safety by
minimizing the need for manual handling of heavy or hazardous materials. It reduces the risk of
injuries associated with repetitive motions, lifting, and exposure to harmful substances.
Additionally, automated machines often include safety features and fail-safe mechanisms to
protect operators and prevent accidents.
8. Quality Control:- Packaging machinery incorporates quality control mechanisms to ensure
consistent packaging quality. It can detect and reject defective or improperly packaged
products, reducing the chances of delivering subpar goods to customers. This enhances overall
product quality and customer satisfaction.
, These are some of the merits of using packaging machinery in the packaging process.
Implementing the right machinery can provide significant advantages in terms of efficiency,
cost savings, quality control, and overall operational effectiveness.
3. Demerits of process:- While packaging machinery offers numerous advantages, there are
also some potential drawbacks or demerits to consider. Here are a few:-
1. Initial Cost:- Acquiring packaging machinery can involve a significant upfront investment. The
cost of purchasing, installing, and maintaining the equipment may pose a financial challenge,
especially for small or start-up businesses with limited capital.
2. Technical Complexity:- Packaging machinery often involves complex technology and specialized
knowledge for operation, maintenance, and troubleshooting. Training operators and
maintenance personnel to effectively handle the machinery may require additional time,
resources, and expertise.
3. Maintenance and Downtime:- Packaging machinery requires regular maintenance to ensure
optimal performance and longevity. Scheduled maintenance, repairs, and equipment downtime
can disrupt production schedules and potentially lead to delays in fulfilling orders.
4. Limited Flexibility:- While packaging machinery offers versatility, it may have limitations in
terms of handling unique packaging requirements or rapidly changing product specifications.
Adjusting or reconfiguring machines to accommodate new packaging formats or product
variations may require additional time and resources.
5. Risk of Obsolescence:- Technology in the packaging industry is continuously evolving. Investing
in packaging machinery entails the risk of potential obsolescence as newer, more advanced
technologies emerge. Regular updates or upgrades may be necessary to keep up with industry
trends and maintain competitiveness.
6. Operator Dependency:- Packaging machinery often relies on skilled operators to ensure
efficient and effective operation. The reliance on trained personnel can create a bottleneck if
there is a shortage of skilled operators or if training new personnel takes time.
7. Potential for Errors:- While packaging machinery can improve accuracy, errors can still occur.
Machine malfunctions, misconfigurations, or errors in programming can lead to packaging
defects, rejections, or waste. Regular monitoring, quality control checks, and preventive
maintenance are necessary to minimize such risks.
8. Environmental Impact:- Some packaging machinery may consume significant energy or require
the use of environmentally unfriendly materials, such as certain types of packaging films or
adhesives. Careful consideration of the environmental impact and implementing sustainable
practices is essential to mitigate negative effects.
, It's important to note that not all of these demerits apply to every packaging machinery
scenario, and many challenges can be addressed through proper planning, training, and
maintenance. Assessing the specific needs and constraints of a packaging operation is crucial to
make informed decisions about the implementation of packaging machinery.
4. Filling of dry and liquid products:- Filling machinery plays a crucial role in the packaging
process, whether it involves dry or liquid products. Here's an overview of the filling process for
both types:-
Filling Dry Products:-
1. Auger Fillers:- Auger fillers are commonly used for filling dry, powdered, or granular products.
They consist of a rotating auger screw that moves the product from a hopper into the
packaging container. The rotation of the auger screw is controlled to dispense a precise amount
of product based on weight or volume.
2. Volumetric Fillers:- Volumetric fillers are suitable for filling dry products that can be measured
by volume, such as snacks, grains, or small components. These fillers use volumetric
measurement methods like cups, spoons, or pistons to dispense a predetermined volume of
product into the packaging container.
3. Net Weight Fillers:- Net weight fillers are used for filling dry products based on weight. They
use load cells or weighing scales to measure the weight of the product as it is dispensed into
the container. The filling process continues until the desired weight is reached.
4. Counting Machines:- For small, discrete items like pills, tablets, or hardware, counting
machines are employed. These machines use sensors or cameras to count and dispense a
specific number of items into individual packaging units, ensuring precise product counts.
Filling Liquid Products:-
1. Gravity Fillers:- Gravity fillers rely on the force of gravity to fill liquid products into containers.
The product flows from a holding tank to the filling nozzle, and the containers are positioned
below the nozzle. The liquid fills the containers through gravity, and the fill level is controlled by
adjusting the nozzle height or valve opening.
2. Piston Fillers:- Piston fillers are commonly used for viscous or thick liquid products such as
sauces, creams, or pastes. They use a piston mechanism to draw the product into a cylinder and
then dispense it into the container. The piston movement is synchronized with the container
movement to ensure accurate fills.
3. Overflow Fillers:- Overflow fillers are ideal for filling liquid products into containers with
consistent internal volumes, such as bottles. The filling nozzle delivers the product to the
, container, and any excess liquid spills over into a reservoir. This method ensures a consistent fill
level, regardless of variations in container shape or volume.
4. Pump Fillers:- Pump fillers are versatile machines suitable for a wide range of liquid products.
They use pumps to transfer the liquid from a reservoir to the packaging container. The pumps
can be peristaltic, gear, or diaphragm pumps, depending on the product characteristics and
specific requirements.
It's important to note that there are various subtypes and configurations of filling machines
available, each with its own advantages and suitability for specific products. The selection of
the appropriate filling machinery depends on factors such as product characteristics, desired fill
accuracy, production speed, and packaging format.
5. Gravimetric filling :- Gravimetric filling is a method of filling products based on weight. It
involves accurately measuring the weight of the product as it is dispensed into the packaging
container. Here's how gravimetric filling works:
1. Weighing System:- Gravimetric filling systems incorporate a weighing system, typically
consisting of load cells or weighing scales. Load cells are sensors that measure the weight of the
product during the filling process. These sensors are connected to a control system that
calculates and monitors the weight.
2. Tare Weight:- Before filling, the empty packaging container is placed on the weighing platform,
and its weight is recorded as the tare weight. The tare weight represents the weight of the
container without any product.
3. Product Dispensing:- The filling process begins by dispensing the product into the container.
This can be done using various methods such as auger fillers, volumetric cup fillers, or other
suitable filling equipment. As the product is dispensed, the weight of the container and the
product combined is continuously monitored by the weighing system.
4. Target Weight:- The control system is programmed to reach a specific target weight for each
container. It adjusts the filling process based on real-time weight measurements. Once the
weight of the product in the container reaches the target weight, the filling process stops.
5. Feedback Control:- The gravimetric filling system utilizes a feedback control mechanism to
maintain accuracy. The control system compares the actual weight of the product being
dispensed with the target weight. It makes fine adjustments to the filling rate or duration to
achieve the desired weight accuracy.
6. Accuracy and Compensation:- Gravimetric filling offers high accuracy in filling operations, as it
directly measures the weight of the product. It compensates for variations in product density,
flow characteristics, or other factors that may affect the actual fill volume.
,7. Data Recording:- Gravimetric filling systems often include data recording capabilities, allowing
for traceability and quality control. The system can record and store data such as fill weights,
batch information, time stamps, and other relevant data for production and quality analysis
purposes.
Gravimetric filling is commonly used in various industries, including food and beverages,
pharmaceuticals, chemicals, and more. It ensures precise and consistent filling weights, reduces
product giveaway or underfilling, and allows for tighter control over product quality and
compliance with regulatory requirements.
6. Volumertric filling:- Volumetric filling is a method of filling products based on volume rather
than weight. It involves using a predetermined volume measurement to dispense the product
into the packaging container. Here's an overview of volumetric filling:
1. Volumetric Measurement:- Volumetric filling systems use various mechanisms to measure and
control the volume of the product being dispensed. Common volumetric measurement
methods include cups, spoons, pistons, or other devices that have a known volume.
2. Filling Mechanism:-The filling mechanism in a volumetric filler is designed to deliver a specific
volume of the product into the packaging container. The mechanism is usually synchronized
with the container movement, ensuring precise fills.
3. Cup Fillers:- Cup fillers are a type of volumetric filling system that use cups or scoops of a
specific volume to measure and dispense the product. The cups are filled with the product and
then discharged into the container. Cup fillers are commonly used for dry or granular products
like grains, snacks, or similar items.
4. Piston Fillers:- Piston fillers are suitable for filling viscous or thick liquid products. They use a
piston mechanism to draw the product into a cylinder and then dispense it into the container.
The volume of the product is determined by the piston stroke length and diameter.
5. Rotary Valve Fillers:- Rotary valve fillers are often used for filling free-flowing liquid or semi-
liquid products. They employ a rotary valve mechanism that controls the flow of the product
into the container. The volume of the product is determined by the valve opening and duration.
6. Accuracy and Adjustment:- Volumetric filling systems can provide accurate and consistent fills,
but it's important to calibrate and adjust the equipment to ensure precise volume
measurements. The volumetric measurement mechanism may need periodic checks and
adjustments to maintain accuracy.
7. Product Compatibility:- Volumetric filling is suitable for a wide range of products, including
liquids, creams, pastes, and some dry or granular materials. The equipment can be customized
or adjusted to accommodate different product viscosities, flow characteristics, and container
sizes.
,8. Production Speed:- Volumetric filling systems can operate at high speeds, allowing for efficient
and rapid filling of products. The filling speed depends on factors such as product
characteristics, container size, and the design of the filling equipment.
Volumetric filling is commonly used in various industries, including food and beverages,
pharmaceuticals, cosmetics, and chemicals. It provides a reliable and efficient method for
achieving consistent product volumes and streamlining the packaging process.
7. Filling of still liquids:- Filling still liquids refers to the process of filling containers with non-
carbonated or non-fizzy liquids. Here's an overview of the filling process for still liquids:
1. Container Preparation:- The first step in filling still liquids is to prepare the containers. This
includes cleaning and sanitizing them to ensure they are free from any contaminants or
residues that could affect the product quality.
2. Liquid Reservoir:- The still liquid is stored in a reservoir or holding tank. The reservoir may be
pressurized or non-pressurized, depending on the specific requirements of the liquid being
filled.
3. Filling Mechanism:- There are different types of filling machines used for filling still liquids.
Some common filling mechanisms include:
Gravity Filling:- Gravity filling relies on the force of gravity to fill the liquid into the
containers. The liquid flows from the reservoir to the filling nozzle, and the containers
are positioned below the nozzle. The liquid fills the containers through gravity, and the
fill level is controlled by adjusting the nozzle height or valve opening.
Piston Filling:- Piston fillers are commonly used for filling viscous or thick liquids. They
use a piston mechanism to draw the liquid into a cylinder and then dispense it into the
containers. The fill volume is determined by the piston stroke length and diameter.
Pump Filling:- Pump fillers utilize pumps to transfer the liquid from the reservoir to the
containers. The pumps can be peristaltic pumps, gear pumps, or diaphragm pumps,
depending on the product characteristics and specific requirements.
4. Fill Level Control:- Achieving the correct fill level is crucial for still liquids. This can be done
using various methods such as:
Time-based Filling:- The filling machine is programmed to dispense the liquid for a
specific duration to achieve the desired fill volume.
Sensor-based Filling:- Sensors, such as float or capacitive level sensors, are used to
detect the liquid level in the container. Once the desired level is reached, the filling
process stops.
, Weight-based Filling:- Gravimetric filling, as discussed earlier, can also be used for filling
still liquids based on weight. The weight of the liquid is continuously monitored, and the
filling process stops when the desired weight is reached.
5. Sealing:- After the containers are filled, they go through the sealing process. This may involve
capping, crimping, or applying other types of closures, depending on the container and product
requirements.
6. Quality Control:- Still liquid filling processes often include quality control measures such as leak
detection, visual inspections, or automated systems to ensure the integrity and quality of the
filled containers.
The specific equipment and filling method chosen for still liquid filling depend on factors such
as the viscosity of the liquid, desired fill accuracy, production speed, container size, and the
specific requirements of the product and industry.
8. Filling of carbonated liquids:- Filling carbonated liquids, such as carbonated beverages or
sparkling drinks, requires specialized equipment and processes to maintain the carbonation
levels and prevent excessive foaming. Here's an overview of the filling process for carbonated
liquids:
1. Container Preparation:- Like with any filling process, the containers for carbonated liquids need
to be prepared by cleaning and sanitizing them to ensure product integrity and safety.
2. Carbonation System:- Carbonated liquids require carbon dioxide (CO2) to be added to the
liquid during the filling process to create the desired level of carbonation. A carbonation system
is used to dissolve CO2 gas into the liquid in the correct proportions.
3. Carbonation Pressure Control:- Controlling the pressure of the carbonation system is crucial to
maintaining the desired level of carbonation. The pressure is carefully adjusted based on factors
such as the product recipe, temperature, and desired carbonation level.
4. Filling Mechanism:- Filling carbonated liquids involves specialized machinery designed to
handle the unique challenges associated with carbonation. Common filling mechanisms include:
Counter Pressure Filling:- Counter pressure filling is a widely used method for filling
carbonated liquids. It involves pressurizing the container with CO2 before the liquid is
introduced. This minimizes foaming and helps preserve the carbonation. The liquid is
then introduced under pressure to fill the container while maintaining carbonation
levels.
Isobaric Filling:- Isobaric filling is another method used for carbonated liquids. It
involves filling the container at a pressure equal to the internal pressure of the
container. This technique helps prevent foaming and maintain carbonation.
, Vacuum Filling:- Vacuum filling is sometimes used for carbonated liquids with lower
carbonation levels. The container is first evacuated to remove air, and then the liquid is
introduced under vacuum. This process helps minimize foaming and maintain
carbonation.
5. Fill Level Control:- Achieving the correct fill level while maintaining carbonation is critical for
carbonated liquids. The filling equipment typically incorporates level sensors or probes to
measure the liquid level and adjust the filling process accordingly. This ensures consistent fill
levels and prevents overfilling or underfilling.
6. Sealing:- After the containers are filled, they undergo sealing to ensure product integrity. This
may involve capping, applying crown caps, or other closure methods suitable for carbonated
liquids.
7. Quality Control:- Carbonated liquid filling processes often include quality control measures
such as leak detection systems, visual inspections, or automated monitoring to ensure the filled
containers meet quality standards.
It's important to note that the equipment used for filling carbonated liquids must be specifically
designed for carbonation and have features to handle the pressure and foaming challenges
associated with carbonated products. This ensures that the carbonation levels are maintained,
and the final product meets the desired quality and consumer expectations.
9. In line check weighing:- In-line check weighing is a process used to verify the weight of
packaged products as they move along a production line. It is an important quality control
measure to ensure that the filled packages meet the desired weight specifications. Here's an
overview of in-line check weighing:
1. Check Weigher System:- In-line check weighing involves the use of specialized equipment
called check weighers. Check weighers are typically integrated into the production line, placed
after the filling or packaging process.
2. Conveyor Belt:- The check weigher system consists of a conveyor belt that carries the packaged
products through the check weighing process. The conveyor belt moves the products at a
controlled speed, allowing them to be accurately weighed.
3. Weight Measurement:- The check weigher is equipped with load cells or weighing sensors that
measure the weight of the packaged products. These sensors can detect even small variations
in weight with high accuracy.
4. Target Weight:- The check weigher is programmed with a target weight or weight range for the
specific product being checked. This target weight is based on the product specifications or
regulatory requirements.
, 5. Comparison and Sorting:- As the packaged products pass through the check weigher, their
actual weight is compared to the target weight. If the product weight falls within the acceptable
range, it continues along the production line without any action. However, if the weight
deviates from the target, the check weigher triggers a sorting mechanism.
6. Sorting Mechanism:- The sorting mechanism can be designed to divert underweight or
overweight products from the production line. This can be achieved using methods such as air
jets, pneumatic arms, or conveyor belt diverters. The diverted products can be sent for rework,
further inspection, or rejected based on the specific quality control protocol.
7. Data Recording and Analysis:- In-line check weighers often have data recording capabilities,
allowing for real-time weight data collection. This data can be used for quality analysis,
statistical process control, and production monitoring. It helps identify trends, detect potential
issues, and ensure compliance with weight regulations.
In-line check weighing helps to prevent underfilled or overfilled packages, ensuring that the
products meet consumer expectations and regulatory requirements. It is commonly used in
industries such as food and beverages, pharmaceuticals, cosmetics, and others where accurate
weight control is essential.
10. Equipment of filling tubes:- When it comes to filling tubes, various equipment options are
available to efficiently and accurately fill products such as creams, gels, pastes, ointments, and
other semi-solid or viscous substances. Here are some common types of equipment used for
filling tubes:
1. Tube Filling Machine:- Tube filling machines are specifically designed for filling tubes with
various products. These machines automate the tube filling process and offer precise control
over the filling volume. They often include features such as automatic tube feeding, product
filling, sealing, and coding.
2. Piston Filler:- Piston fillers are widely used for filling tubes due to their ability to handle thick
and viscous products. They consist of a cylinder and piston mechanism that draws the product
from a reservoir and dispenses it into the tubes. The piston movement can be controlled to
achieve accurate and consistent fills.
3. Hot Air Tube Filling Machine:- Hot air tube filling machines are suitable for filling plastic tubes
that require heat sealing. These machines heat-seal the tube ends after the product has been
filled. The heating process ensures a secure and airtight seal.
4. Rotary Tube Filling Machine:- Rotary tube filling machines are designed for high-speed
production lines. They feature a rotating turret that holds multiple tubes, and each station
performs a specific function in the filling process, including filling, sealing, coding, and trimming.
Rotary machines are suitable for large-scale tube filling operations.
