Subject :- TOOL AND MOLD DESIGNING
UNIT – 1.

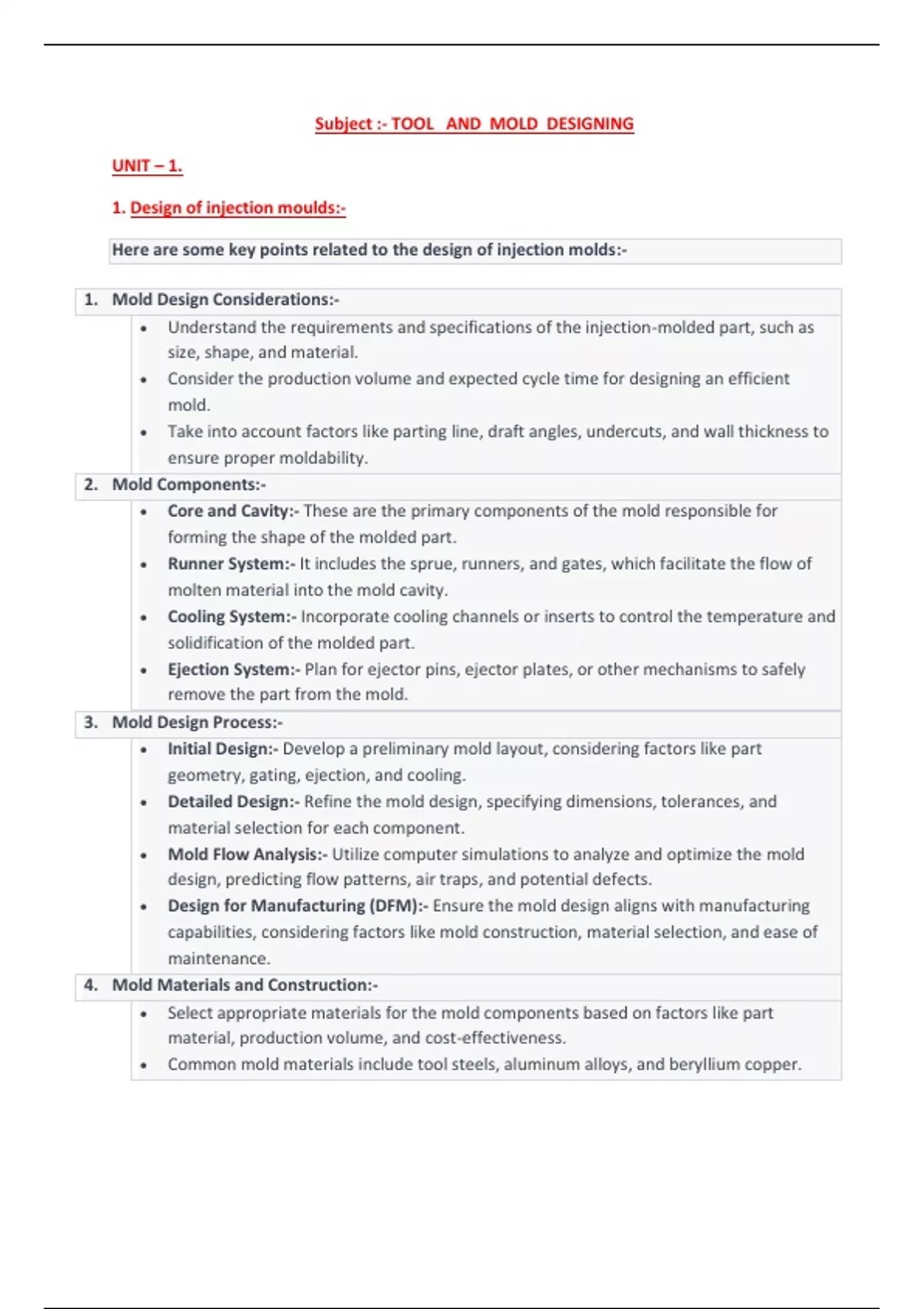

1. Design of injection moulds:-
Here are some key points related to the design of injection molds:-
1. Mold Design Considerations:-
Understand the requirements and specifications of the injection-molded part, such as
size, shape, and material.
Consider the production volume and expected cycle time for designing an efficient
mold.
Take into account factors like parting line, draft angles, undercuts, and wall thickness to
ensure proper moldability.
2. Mold Components:-
Core and Cavity:- These are the primary components of the mold responsible for
forming the shape of the molded part.
Runner System:- It includes the sprue, runners, and gates, which facilitate the flow of
molten material into the mold cavity.
Cooling System:- Incorporate cooling channels or inserts to control the temperature and
solidification of the molded part.
Ejection System:- Plan for ejector pins, ejector plates, or other mechanisms to safely
remove the part from the mold.
3. Mold Design Process:-
Initial Design:- Develop a preliminary mold layout, considering factors like part
geometry, gating, ejection, and cooling.
Detailed Design:- Refine the mold design, specifying dimensions, tolerances, and
material selection for each component.
Mold Flow Analysis:- Utilize computer simulations to analyze and optimize the mold
design, predicting flow patterns, air traps, and potential defects.
Design for Manufacturing (DFM):- Ensure the mold design aligns with manufacturing
capabilities, considering factors like mold construction, material selection, and ease of
maintenance.
4. Mold Materials and Construction:-
Select appropriate materials for the mold components based on factors like part
material, production volume, and cost-effectiveness.
Common mold materials include tool steels, aluminum alloys, and beryllium copper.
, Consider factors like thermal conductivity, wear resistance, and corrosion resistance
when choosing the mold material.
5. Mold Manufacturing and Assembly:-
Utilize machining processes like milling, drilling, and EDM (Electrical Discharge
Machining) to fabricate the mold components.
Precision assembly techniques ensure proper alignment and functioning of the mold
components.
Pay attention to venting, ensuring the proper release of air during the injection molding
process.
These points should provide you with a good starting point for studying the design of injection
molds. Remember to refer to your course materials and textbooks for more detailed
information and examples related to this topic. If you have any specific questions, feel free to
ask!
Concepts in detail:-
Mold design consideration in tools and mould designing:-
When it comes to mold design considerations in tool and mold designing, there are several
important factors to keep in mind. Here are some key considerations:-
1. Part Design:-
Understand the requirements and specifications of the molded part, including its size,
shape, function, and material.
Analyze the part geometry for features such as undercuts, thin walls, ribs, and bosses,
which may affect mold design.
Ensure the part design is suitable for injection molding, taking into account draft angles,
parting lines, and gating locations.
2. Moldability:-
Evaluate the moldability of the part design by considering factors such as parting line
selection, draft angles, and wall thickness uniformity.
Avoid sharp corners or edges that can lead to stress concentration and potential defects
in the molded part.
Identify potential areas of sink marks, warpage, or air traps and develop strategies to
address these issues in the mold design.
3. Parting Line and Ejection:-
, Determine the optimal location for the parting line based on part geometry and
functional requirements.
Plan for proper ejection of the molded part by incorporating features like ejector pins,
ejector plates, or lifters into the mold design.
Minimize the visibility and impact of parting lines on the final molded part.
4. Cooling System:-
Design an effective cooling system using cooling channels or inserts to control the
temperature and solidification of the molded part.
Optimize the cooling layout to ensure uniform cooling and minimize cycle time.
Consider factors like coolant flow rate, channel diameter, and placement to achieve
efficient heat transfer and reduce part defects.
5. Runner and Gate Design:-
Determine the appropriate runner system, including the number, size, and shape of
runners, based on the part geometry and production requirements.
Select suitable gate types (e.g., edge gate, tunnel gate, or hot runner system) based on
factors such as part aesthetics, gate vestige, and material flow characteristics.
6. Venting:-
Incorporate proper venting in the mold design to allow the escape of air or gas during
the injection process.
Insufficient venting can lead to issues like burn marks, poor surface finish, or incomplete
filling of the mold cavity.
7. Material Selection:-
Choose appropriate mold materials based on factors such as part material, production
volume, and cost-effectiveness.
Consider factors like wear resistance, thermal conductivity, corrosion resistance, and
ease of machining when selecting mold materials.
8. Tooling and Manufacturing Considerations:-
Account for tooling considerations, including the selection of suitable machining
processes, tolerances, and surface finishes for mold fabrication.
Ensure ease of maintenance, repair, and replacement of mold components.
Consider factors like mold size, weight, and compatibility with injection molding
machines.
These considerations should help you approach the mold design process with a comprehensive
understanding of the various factors that need to be taken into account. Remember to refer to
your course materials, textbooks, or industry standards for more specific guidelines and
examples related to mold design considerations.
, Mold components in tools and mould designing:-
In tool and mold designing, various components are involved in the construction of a mold.
Here are some key mold components:-
1. Mold Base:- The mold base is the foundation of the mold and provides support for other
components. It typically includes guide pins, guide bushings, and support pillars.
2. Cavities and Cores:- The cavities and cores are the primary components responsible for shaping
the final molded part. The cavity is the part of the mold that forms the external shape of the
part, while the core forms the internal features. These components are typically made of tool
steel and are precision-machined to achieve the desired part geometry.
3. Runner System:- The runner system facilitates the flow of molten material from the injection
unit to the mold cavities. It includes the sprue, runners, and gates. The sprue is the main
channel through which the material enters the mold, while runners distribute the material to
individual cavities. Gates control the flow of material into the cavities and are designed to
minimize defects such as flow lines and gate marks.
4. Cooling System:- The cooling system helps control the temperature of the mold and the
molded part. It typically consists of cooling channels or inserts strategically placed within the
mold to circulate coolant (typically water or oil) and dissipate heat. Proper cooling is essential
for achieving consistent part quality, reducing cycle time, and preventing warping or distortion.
5. Ejection System:- The ejection system is responsible for removing the molded part from the
mold after it has solidified. It includes various components such as ejector pins, ejector plates,
or slides. Ejector pins are pushed into the mold to eject the part, while ejector plates provide a
larger surface area for ejection in multi-cavity molds. Slides are used for complex part
geometries or undercuts that require additional movement during ejection.
6. Venting System:- The venting system allows the escape of air, gases, and excess material from
the mold during the injection process. Adequate venting helps prevent issues such as burn
marks, gas traps, or incomplete filling of the mold. Venting can be achieved through venting
slots, vent pins, or venting inserts strategically placed in the mold.
7. Alignment and Fastening Components:- Alignment components, such as guide pins and
bushings, ensure proper alignment and registration of mold halves during assembly. Fastening
components, such as bolts, screws, or clamps, hold the mold together securely during the
injection molding process.
8. Inserts and Lifters:- Inserts are additional components inserted into the mold to create specific
features or incorporate additional elements into the molded part. Lifters are used for molds
with complex part geometries or undercuts. They help lift or move certain sections of the mold
to facilitate part ejection.
, These are some of the essential mold components involved in tool and mold designing. The
selection and design of these components depend on factors such as part geometry, material,
production requirements, and mold complexity.
Mold design process in tools and mould designing:-
The mold design process in tool and mold designing involves several steps to ensure the
creation of a well-designed and functional mold.
Here is an overview of the typical mold design process:-
1. Part Analysis and Requirements:-
Understand the part requirements, including its size, shape, function, and material.
Analyze the part geometry for features such as undercuts, thin walls, and draft angles
that may impact the mold design.
Consider the production volume, expected cycle time, and cost constraints.
2. Preliminary Mold Layout:-
Determine the mold type (e.g., two-plate mold, three-plate mold, or hot runner mold)
based on part requirements and production considerations.
Develop a preliminary mold layout, which includes the placement of cavities, cores,
runners, gates, cooling channels, and ejection system.
Consider factors like parting line selection and mold split to ensure proper moldability.
3. Detailed Mold Design:-
Refine the mold layout and finalize the dimensions and specifications of each mold
component.
Design the cavities and cores with appropriate draft angles, parting line positions, and
surface finishes.
Determine the runner system layout, gate types, and locations for efficient material flow
and minimal part defects.
Incorporate a cooling system with strategically placed cooling channels or inserts to
achieve uniform cooling and minimize cycle time.
Design the ejection system, including ejector pins, ejector plates, or lifters, to ensure
proper part ejection.
4. Mold Flow Analysis:-
Utilize computer-aided engineering (CAE) software to simulate the mold filling process
and analyze the flow of molten material.
Perform mold flow analysis to predict potential issues such as air traps, weld lines, or
material flow imbalances.
, Optimize the mold design based on the analysis results to enhance part quality and
minimize defects.
5. Design for Manufacturing (DFM):-
Ensure the mold design aligns with manufacturing capabilities and limitations.
Consider factors such as mold construction, material selection, machining processes,
and ease of maintenance.
Optimize the mold design for cost-effectiveness, manufacturability, and long-term
reliability.
6. Documentation and Drawings:-
Create detailed documentation, including assembly drawings, part drawings, and BOM
(Bill of Materials).
Provide comprehensive guidelines and specifications for mold manufacturing, assembly,
and inspection.
7. Mold Manufacturing and Assembly:-
Fabricate the mold components using machining processes such as milling, turning, and
EDM.
Assemble the mold components accurately, ensuring proper alignment and
functionality.
Test the mold for functionality, including the verification of parting line, ejection, and
cooling system.
8. Mold Testing and Validation:-
Conduct mold trials using the injection molding machine to validate the mold design and
identify any issues or improvements needed.
Fine-tune the mold parameters, such as injection pressure, temperature, and cooling
time, to achieve optimal part quality.
Perform inspection and quality checks on the molded parts to ensure they meet the
desired specifications.
The mold design process may vary depending on the complexity of the part, mold type, and
specific requirements. It is essential to follow industry best practices, consult with experienced
mold designers, and refer to design guidelines and standards relevant to your specific
application.
Mold Materials and Construction in tools & mould designing:-
When it comes to mold materials and construction in tool and mold designing, selecting the
appropriate materials and constructing the mold with precision are crucial for achieving desired
results. Here are some key considerations:-
,1. Mold Material Selection:-
Mold materials should possess high strength, wear resistance, and heat resistance to
withstand the demands of the injection molding process.
Commonly used mold materials include tool steels (such as P20, H13, or S7), stainless
steels, and aluminum alloys.
The choice of material depends on factors like part complexity, production volume,
desired surface finish, and cost.
2. Tool Steel Selection:-
Tool steels are preferred for molds due to their excellent combination of hardness,
toughness, and machinability.
Different grades of tool steels are available, each with specific properties suitable for
various mold components.
For example, the core and cavity are typically made of hardened tool steels with high
wear resistance, while less critical components may use lower-cost tool steels.
3. Aluminum Alloy Molds:-
Aluminum alloys offer advantages like faster heat transfer, lighter weight, and shorter
machining time compared to tool steels.
Aluminum molds are suitable for low to medium production volumes and can be cost-
effective for prototyping or short-run production.
However, they may have limitations in terms of durability and resistance to wear and
high temperatures.
4. Mold Surface Treatment:-
Proper surface treatment enhances mold performance and longevity.
Processes like polishing, nitriding, or coatings (such as hard chrome plating or PVD
coatings) can improve wear resistance, corrosion resistance, and part release
properties.
Surface treatments can also reduce friction, enhance cooling efficiency, and minimize
the risk of part defects.
5. Mold Construction:-
Precision machining is essential to ensure accurate dimensions, tight tolerances, and
proper fit of mold components.
Advanced manufacturing techniques like CNC (Computer Numerical Control) machining
and EDM (Electrical Discharge Machining) are commonly employed for mold
construction.
The construction process involves cutting, milling, drilling, and grinding of the mold
components to achieve the desired shape and finish.
6. Mold Maintenance and Repair:-
, Proper maintenance and periodic inspection of the mold are crucial to ensure its
optimal performance and longevity.
Regular cleaning, lubrication, and inspection of the mold components help prevent
damage and ensure smooth operation.
In case of mold damage or wear, repair processes like welding, grinding, or component
replacement may be necessary to restore functionality.
Remember that the choice of mold materials and construction methods depends on various
factors, including the specific application, production volume, budget, and desired part quality.
It is advisable to consult with experienced mold designers and consider industry best practices
and standards while selecting materials and designing the mold construction process.
Mold Manufacturing and Assembly in tools and mould designing:-
In tool and mold designing, the mold manufacturing and assembly processes play a crucial role
in bringing the design to life.
Here are the key considerations for mold manufacturing and assembly:-
1. Mold Component Production:-
Fabricate the mold components, such as cavities, cores, cooling inserts, and ejector
system components, using machining processes like milling, turning, drilling, and EDM
(Electrical Discharge Machining).
Follow the design specifications and tolerances for each component to ensure accuracy
and proper fit during assembly.
Use appropriate tooling and machining techniques to achieve the desired surface finish
and dimensional accuracy.
2. Precision Assembly:-
Ensure proper alignment and fit of the mold components during assembly.
Utilize alignment features like guide pins and bushings to ensure accurate positioning
and registration of mold halves.
Pay attention to the proper installation and alignment of the ejection system
components, such as ejector pins and plates.
Use precision measurement tools, such as micrometers and gauges, to verify the
dimensional accuracy and alignment of the assembled mold.
3. Fastening and Clamping:-
Securely fasten the mold components together using bolts, screws, or clamps.
, Use appropriate torque values to ensure proper tightening without damaging the
components.
Consider the overall mold structure and strength requirements to determine the
number and location of fasteners.
4. Cooling System Integration:-
Install the cooling system components, such as cooling channels or inserts, into the
mold.
Ensure proper alignment and tight connections to allow efficient circulation of coolant
(water or oil) for effective temperature control.
Pay attention to the placement of cooling channels to achieve uniform cooling and
minimize cycle time.
Test the cooling system for leaks and proper functionality before proceeding to mold
trials.
5. Mold Testing and Validation:-
Conduct mold trials using an injection molding machine to validate the mold design and
functionality.
Verify the proper operation of the gating and runner system, cooling system, and
ejection system.
Fine-tune the mold parameters, such as injection pressure, temperature, and cooling
time, to optimize part quality and cycle time.
Inspect the molded parts for any defects or dimensional variations and compare them
against the design specifications.
6. Documentation and Traceability:-
Maintain detailed documentation of the mold manufacturing and assembly process,
including assembly drawings, part lists, and documentation of critical dimensions.
Establish traceability by assigning unique identification numbers or codes to the mold
components for easy identification, tracking, and maintenance purposes.
Document any modifications or repairs made during the manufacturing or assembly
process for future reference.
Proper mold manufacturing and assembly processes are essential to ensure the mold's
functionality, durability, and performance. Adhering to design specifications, following best
practices, and employing skilled craftsmen and machinists are crucial for successful mold
manufacturing and assembly. Regular maintenance and inspections are also important to
ensure the mold's long-term performance and productivity.
, 2. Concept of mould construction in tools and mould design - two plate , three plate , split
mould:-
In tool and mold design, there are different concepts and configurations used for mold
construction. The two plate mold, three plate mold, and split mold are three commonly
employed configurations. Let's explore each concept:-
1. Two Plate Mold:- The two plate mold, also known as a single-parting line mold, is the simplest
and most common type of mold construction. It consists of two main plates:-
Core Plate:- The core plate contains the cavity impression, which gives shape to the final
product. It is mounted on the stationary side of the molding machine.
Cavity Plate:- The cavity plate forms the outer surface of the product and is mounted on the
movable side of the molding machine.
During the molding process, the two plates come together, forming a closed mold. The molten
material is injected into the cavity, filling it and taking the shape of the product. After
solidification, the mold is opened, and the product is ejected.
2. Three Plate Mold:- The three plate mold, also known as a two-parting line mold, is a more
complex mold configuration that allows for additional features and increased flexibility. It
consists of three main plates:-
Core Plate:- Similar to the two plate mold, the core plate contains the cavity impression and
remains stationary.
Cavity Plate:- The cavity plate forms the outer surface of the product and also remains
stationary.
Runner Plate:- The runner plate is placed between the core and cavity plates. It contains
channels and gates that allow the molten material to flow into the cavity. The runner plate
moves horizontally to create an additional parting line, separating the runner system from the
product.
The three plate mold enables the separation of the runner system from the product, facilitating
easier removal and reducing waste material.
3. Split Mold:- A split mold, also known as a multi-parting line mold, is used when the product
design requires undercuts or complex shapes that cannot be achieved with a traditional two or
three plate mold. It consists of multiple plates that move in different directions to
accommodate the complex features:-
Core Plates:- The core plates form the internal surfaces of the product and move in different
directions to release undercuts.
UNIT – 1.
1. Design of injection moulds:-
Here are some key points related to the design of injection molds:-
1. Mold Design Considerations:-
Understand the requirements and specifications of the injection-molded part, such as
size, shape, and material.
Consider the production volume and expected cycle time for designing an efficient
mold.
Take into account factors like parting line, draft angles, undercuts, and wall thickness to
ensure proper moldability.
2. Mold Components:-
Core and Cavity:- These are the primary components of the mold responsible for
forming the shape of the molded part.
Runner System:- It includes the sprue, runners, and gates, which facilitate the flow of
molten material into the mold cavity.
Cooling System:- Incorporate cooling channels or inserts to control the temperature and
solidification of the molded part.
Ejection System:- Plan for ejector pins, ejector plates, or other mechanisms to safely
remove the part from the mold.
3. Mold Design Process:-
Initial Design:- Develop a preliminary mold layout, considering factors like part
geometry, gating, ejection, and cooling.
Detailed Design:- Refine the mold design, specifying dimensions, tolerances, and
material selection for each component.
Mold Flow Analysis:- Utilize computer simulations to analyze and optimize the mold
design, predicting flow patterns, air traps, and potential defects.
Design for Manufacturing (DFM):- Ensure the mold design aligns with manufacturing
capabilities, considering factors like mold construction, material selection, and ease of
maintenance.
4. Mold Materials and Construction:-
Select appropriate materials for the mold components based on factors like part
material, production volume, and cost-effectiveness.
Common mold materials include tool steels, aluminum alloys, and beryllium copper.
, Consider factors like thermal conductivity, wear resistance, and corrosion resistance
when choosing the mold material.
5. Mold Manufacturing and Assembly:-
Utilize machining processes like milling, drilling, and EDM (Electrical Discharge
Machining) to fabricate the mold components.
Precision assembly techniques ensure proper alignment and functioning of the mold
components.
Pay attention to venting, ensuring the proper release of air during the injection molding
process.
These points should provide you with a good starting point for studying the design of injection
molds. Remember to refer to your course materials and textbooks for more detailed
information and examples related to this topic. If you have any specific questions, feel free to
ask!
Concepts in detail:-
Mold design consideration in tools and mould designing:-
When it comes to mold design considerations in tool and mold designing, there are several
important factors to keep in mind. Here are some key considerations:-
1. Part Design:-
Understand the requirements and specifications of the molded part, including its size,
shape, function, and material.
Analyze the part geometry for features such as undercuts, thin walls, ribs, and bosses,
which may affect mold design.
Ensure the part design is suitable for injection molding, taking into account draft angles,
parting lines, and gating locations.
2. Moldability:-
Evaluate the moldability of the part design by considering factors such as parting line
selection, draft angles, and wall thickness uniformity.
Avoid sharp corners or edges that can lead to stress concentration and potential defects
in the molded part.
Identify potential areas of sink marks, warpage, or air traps and develop strategies to
address these issues in the mold design.
3. Parting Line and Ejection:-
, Determine the optimal location for the parting line based on part geometry and
functional requirements.
Plan for proper ejection of the molded part by incorporating features like ejector pins,
ejector plates, or lifters into the mold design.
Minimize the visibility and impact of parting lines on the final molded part.
4. Cooling System:-
Design an effective cooling system using cooling channels or inserts to control the
temperature and solidification of the molded part.
Optimize the cooling layout to ensure uniform cooling and minimize cycle time.
Consider factors like coolant flow rate, channel diameter, and placement to achieve
efficient heat transfer and reduce part defects.
5. Runner and Gate Design:-
Determine the appropriate runner system, including the number, size, and shape of
runners, based on the part geometry and production requirements.
Select suitable gate types (e.g., edge gate, tunnel gate, or hot runner system) based on
factors such as part aesthetics, gate vestige, and material flow characteristics.
6. Venting:-
Incorporate proper venting in the mold design to allow the escape of air or gas during
the injection process.
Insufficient venting can lead to issues like burn marks, poor surface finish, or incomplete
filling of the mold cavity.
7. Material Selection:-
Choose appropriate mold materials based on factors such as part material, production
volume, and cost-effectiveness.
Consider factors like wear resistance, thermal conductivity, corrosion resistance, and
ease of machining when selecting mold materials.
8. Tooling and Manufacturing Considerations:-
Account for tooling considerations, including the selection of suitable machining
processes, tolerances, and surface finishes for mold fabrication.
Ensure ease of maintenance, repair, and replacement of mold components.
Consider factors like mold size, weight, and compatibility with injection molding
machines.
These considerations should help you approach the mold design process with a comprehensive
understanding of the various factors that need to be taken into account. Remember to refer to
your course materials, textbooks, or industry standards for more specific guidelines and
examples related to mold design considerations.
, Mold components in tools and mould designing:-
In tool and mold designing, various components are involved in the construction of a mold.
Here are some key mold components:-
1. Mold Base:- The mold base is the foundation of the mold and provides support for other
components. It typically includes guide pins, guide bushings, and support pillars.
2. Cavities and Cores:- The cavities and cores are the primary components responsible for shaping
the final molded part. The cavity is the part of the mold that forms the external shape of the
part, while the core forms the internal features. These components are typically made of tool
steel and are precision-machined to achieve the desired part geometry.
3. Runner System:- The runner system facilitates the flow of molten material from the injection
unit to the mold cavities. It includes the sprue, runners, and gates. The sprue is the main
channel through which the material enters the mold, while runners distribute the material to
individual cavities. Gates control the flow of material into the cavities and are designed to
minimize defects such as flow lines and gate marks.
4. Cooling System:- The cooling system helps control the temperature of the mold and the
molded part. It typically consists of cooling channels or inserts strategically placed within the
mold to circulate coolant (typically water or oil) and dissipate heat. Proper cooling is essential
for achieving consistent part quality, reducing cycle time, and preventing warping or distortion.
5. Ejection System:- The ejection system is responsible for removing the molded part from the
mold after it has solidified. It includes various components such as ejector pins, ejector plates,
or slides. Ejector pins are pushed into the mold to eject the part, while ejector plates provide a
larger surface area for ejection in multi-cavity molds. Slides are used for complex part
geometries or undercuts that require additional movement during ejection.
6. Venting System:- The venting system allows the escape of air, gases, and excess material from
the mold during the injection process. Adequate venting helps prevent issues such as burn
marks, gas traps, or incomplete filling of the mold. Venting can be achieved through venting
slots, vent pins, or venting inserts strategically placed in the mold.
7. Alignment and Fastening Components:- Alignment components, such as guide pins and
bushings, ensure proper alignment and registration of mold halves during assembly. Fastening
components, such as bolts, screws, or clamps, hold the mold together securely during the
injection molding process.
8. Inserts and Lifters:- Inserts are additional components inserted into the mold to create specific
features or incorporate additional elements into the molded part. Lifters are used for molds
with complex part geometries or undercuts. They help lift or move certain sections of the mold
to facilitate part ejection.
, These are some of the essential mold components involved in tool and mold designing. The
selection and design of these components depend on factors such as part geometry, material,
production requirements, and mold complexity.
Mold design process in tools and mould designing:-
The mold design process in tool and mold designing involves several steps to ensure the
creation of a well-designed and functional mold.
Here is an overview of the typical mold design process:-
1. Part Analysis and Requirements:-
Understand the part requirements, including its size, shape, function, and material.
Analyze the part geometry for features such as undercuts, thin walls, and draft angles
that may impact the mold design.
Consider the production volume, expected cycle time, and cost constraints.
2. Preliminary Mold Layout:-
Determine the mold type (e.g., two-plate mold, three-plate mold, or hot runner mold)
based on part requirements and production considerations.
Develop a preliminary mold layout, which includes the placement of cavities, cores,
runners, gates, cooling channels, and ejection system.
Consider factors like parting line selection and mold split to ensure proper moldability.
3. Detailed Mold Design:-
Refine the mold layout and finalize the dimensions and specifications of each mold
component.
Design the cavities and cores with appropriate draft angles, parting line positions, and
surface finishes.
Determine the runner system layout, gate types, and locations for efficient material flow
and minimal part defects.
Incorporate a cooling system with strategically placed cooling channels or inserts to
achieve uniform cooling and minimize cycle time.
Design the ejection system, including ejector pins, ejector plates, or lifters, to ensure
proper part ejection.
4. Mold Flow Analysis:-
Utilize computer-aided engineering (CAE) software to simulate the mold filling process
and analyze the flow of molten material.
Perform mold flow analysis to predict potential issues such as air traps, weld lines, or
material flow imbalances.
, Optimize the mold design based on the analysis results to enhance part quality and
minimize defects.
5. Design for Manufacturing (DFM):-
Ensure the mold design aligns with manufacturing capabilities and limitations.
Consider factors such as mold construction, material selection, machining processes,
and ease of maintenance.
Optimize the mold design for cost-effectiveness, manufacturability, and long-term
reliability.
6. Documentation and Drawings:-
Create detailed documentation, including assembly drawings, part drawings, and BOM
(Bill of Materials).
Provide comprehensive guidelines and specifications for mold manufacturing, assembly,
and inspection.
7. Mold Manufacturing and Assembly:-
Fabricate the mold components using machining processes such as milling, turning, and
EDM.
Assemble the mold components accurately, ensuring proper alignment and
functionality.
Test the mold for functionality, including the verification of parting line, ejection, and
cooling system.
8. Mold Testing and Validation:-
Conduct mold trials using the injection molding machine to validate the mold design and
identify any issues or improvements needed.
Fine-tune the mold parameters, such as injection pressure, temperature, and cooling
time, to achieve optimal part quality.
Perform inspection and quality checks on the molded parts to ensure they meet the
desired specifications.
The mold design process may vary depending on the complexity of the part, mold type, and
specific requirements. It is essential to follow industry best practices, consult with experienced
mold designers, and refer to design guidelines and standards relevant to your specific
application.
Mold Materials and Construction in tools & mould designing:-
When it comes to mold materials and construction in tool and mold designing, selecting the
appropriate materials and constructing the mold with precision are crucial for achieving desired
results. Here are some key considerations:-
,1. Mold Material Selection:-
Mold materials should possess high strength, wear resistance, and heat resistance to
withstand the demands of the injection molding process.
Commonly used mold materials include tool steels (such as P20, H13, or S7), stainless
steels, and aluminum alloys.
The choice of material depends on factors like part complexity, production volume,
desired surface finish, and cost.
2. Tool Steel Selection:-
Tool steels are preferred for molds due to their excellent combination of hardness,
toughness, and machinability.
Different grades of tool steels are available, each with specific properties suitable for
various mold components.
For example, the core and cavity are typically made of hardened tool steels with high
wear resistance, while less critical components may use lower-cost tool steels.
3. Aluminum Alloy Molds:-
Aluminum alloys offer advantages like faster heat transfer, lighter weight, and shorter
machining time compared to tool steels.
Aluminum molds are suitable for low to medium production volumes and can be cost-
effective for prototyping or short-run production.
However, they may have limitations in terms of durability and resistance to wear and
high temperatures.
4. Mold Surface Treatment:-
Proper surface treatment enhances mold performance and longevity.
Processes like polishing, nitriding, or coatings (such as hard chrome plating or PVD
coatings) can improve wear resistance, corrosion resistance, and part release
properties.
Surface treatments can also reduce friction, enhance cooling efficiency, and minimize
the risk of part defects.
5. Mold Construction:-
Precision machining is essential to ensure accurate dimensions, tight tolerances, and
proper fit of mold components.
Advanced manufacturing techniques like CNC (Computer Numerical Control) machining
and EDM (Electrical Discharge Machining) are commonly employed for mold
construction.
The construction process involves cutting, milling, drilling, and grinding of the mold
components to achieve the desired shape and finish.
6. Mold Maintenance and Repair:-
, Proper maintenance and periodic inspection of the mold are crucial to ensure its
optimal performance and longevity.
Regular cleaning, lubrication, and inspection of the mold components help prevent
damage and ensure smooth operation.
In case of mold damage or wear, repair processes like welding, grinding, or component
replacement may be necessary to restore functionality.
Remember that the choice of mold materials and construction methods depends on various
factors, including the specific application, production volume, budget, and desired part quality.
It is advisable to consult with experienced mold designers and consider industry best practices
and standards while selecting materials and designing the mold construction process.
Mold Manufacturing and Assembly in tools and mould designing:-
In tool and mold designing, the mold manufacturing and assembly processes play a crucial role
in bringing the design to life.
Here are the key considerations for mold manufacturing and assembly:-
1. Mold Component Production:-
Fabricate the mold components, such as cavities, cores, cooling inserts, and ejector
system components, using machining processes like milling, turning, drilling, and EDM
(Electrical Discharge Machining).
Follow the design specifications and tolerances for each component to ensure accuracy
and proper fit during assembly.
Use appropriate tooling and machining techniques to achieve the desired surface finish
and dimensional accuracy.
2. Precision Assembly:-
Ensure proper alignment and fit of the mold components during assembly.
Utilize alignment features like guide pins and bushings to ensure accurate positioning
and registration of mold halves.
Pay attention to the proper installation and alignment of the ejection system
components, such as ejector pins and plates.
Use precision measurement tools, such as micrometers and gauges, to verify the
dimensional accuracy and alignment of the assembled mold.
3. Fastening and Clamping:-
Securely fasten the mold components together using bolts, screws, or clamps.
, Use appropriate torque values to ensure proper tightening without damaging the
components.
Consider the overall mold structure and strength requirements to determine the
number and location of fasteners.
4. Cooling System Integration:-
Install the cooling system components, such as cooling channels or inserts, into the
mold.
Ensure proper alignment and tight connections to allow efficient circulation of coolant
(water or oil) for effective temperature control.
Pay attention to the placement of cooling channels to achieve uniform cooling and
minimize cycle time.
Test the cooling system for leaks and proper functionality before proceeding to mold
trials.
5. Mold Testing and Validation:-
Conduct mold trials using an injection molding machine to validate the mold design and
functionality.
Verify the proper operation of the gating and runner system, cooling system, and
ejection system.
Fine-tune the mold parameters, such as injection pressure, temperature, and cooling
time, to optimize part quality and cycle time.
Inspect the molded parts for any defects or dimensional variations and compare them
against the design specifications.
6. Documentation and Traceability:-
Maintain detailed documentation of the mold manufacturing and assembly process,
including assembly drawings, part lists, and documentation of critical dimensions.
Establish traceability by assigning unique identification numbers or codes to the mold
components for easy identification, tracking, and maintenance purposes.
Document any modifications or repairs made during the manufacturing or assembly
process for future reference.
Proper mold manufacturing and assembly processes are essential to ensure the mold's
functionality, durability, and performance. Adhering to design specifications, following best
practices, and employing skilled craftsmen and machinists are crucial for successful mold
manufacturing and assembly. Regular maintenance and inspections are also important to
ensure the mold's long-term performance and productivity.
, 2. Concept of mould construction in tools and mould design - two plate , three plate , split
mould:-
In tool and mold design, there are different concepts and configurations used for mold
construction. The two plate mold, three plate mold, and split mold are three commonly
employed configurations. Let's explore each concept:-
1. Two Plate Mold:- The two plate mold, also known as a single-parting line mold, is the simplest
and most common type of mold construction. It consists of two main plates:-
Core Plate:- The core plate contains the cavity impression, which gives shape to the final
product. It is mounted on the stationary side of the molding machine.
Cavity Plate:- The cavity plate forms the outer surface of the product and is mounted on the
movable side of the molding machine.
During the molding process, the two plates come together, forming a closed mold. The molten
material is injected into the cavity, filling it and taking the shape of the product. After
solidification, the mold is opened, and the product is ejected.
2. Three Plate Mold:- The three plate mold, also known as a two-parting line mold, is a more
complex mold configuration that allows for additional features and increased flexibility. It
consists of three main plates:-
Core Plate:- Similar to the two plate mold, the core plate contains the cavity impression and
remains stationary.
Cavity Plate:- The cavity plate forms the outer surface of the product and also remains
stationary.
Runner Plate:- The runner plate is placed between the core and cavity plates. It contains
channels and gates that allow the molten material to flow into the cavity. The runner plate
moves horizontally to create an additional parting line, separating the runner system from the
product.
The three plate mold enables the separation of the runner system from the product, facilitating
easier removal and reducing waste material.
3. Split Mold:- A split mold, also known as a multi-parting line mold, is used when the product
design requires undercuts or complex shapes that cannot be achieved with a traditional two or
three plate mold. It consists of multiple plates that move in different directions to
accommodate the complex features:-
Core Plates:- The core plates form the internal surfaces of the product and move in different
directions to release undercuts.
