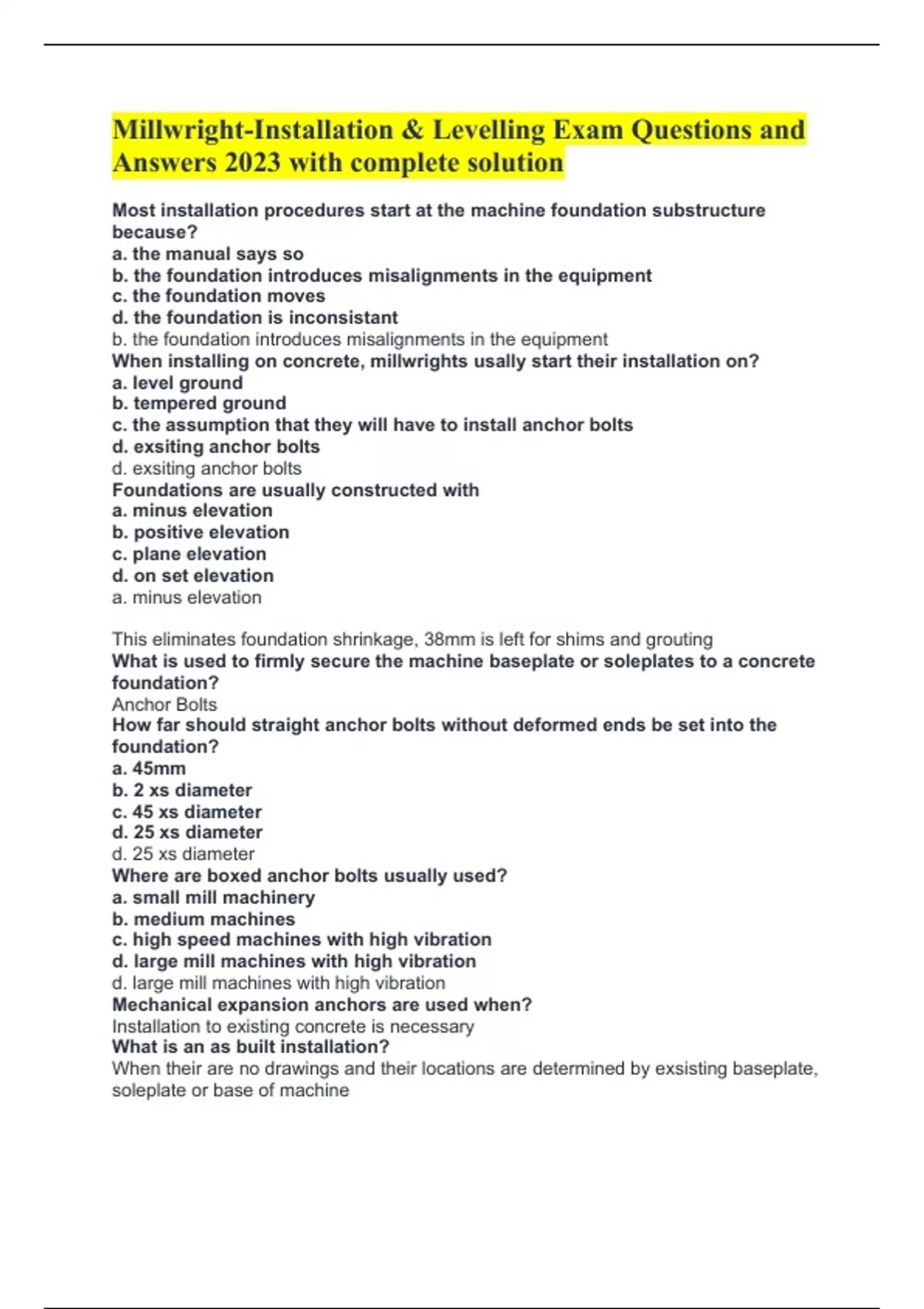

Millwright-Installation & Levelling Exam Questions and
Answers 2023 with complete solution
Most installation procedures start at the machine foundation substructure
because?
a. the manual says so
b. the foundation introduces misalignments in the equipment
c. the foundation moves
d. the foundation is inconsistant
b. the foundation introduces misalignments in the equipment
When installing on concrete, millwrights usally start their installation on?
a. level ground
b. tempered ground
c. the assumption that they will have to install anchor bolts
d. exsiting anchor bolts
d. exsiting anchor bolts
Foundations are usually constructed with
a. minus elevation
b. positive elevation
c. plane elevation
d. on set elevation
a. minus elevation
This eliminates foundation shrinkage, 38mm is left for shims and grouting
What is used to firmly secure the machine baseplate or soleplates to a concrete
foundation?
Anchor Bolts
How far should straight anchor bolts without deformed ends be set into the
foundation?
a. 45mm
b. 2 xs diameter
c. 45 xs diameter
d. 25 xs diameter
d. 25 xs diameter
Where are boxed anchor bolts usually used?
a. small mill machinery
b. medium machines
c. high speed machines with high vibration
d. large mill machines with high vibration
d. large mill machines with high vibration
Mechanical expansion anchors are used when?
Installation to existing concrete is necessary
What is an as built installation?
When their are no drawings and their locations are determined by exsisting baseplate,
soleplate or base of machine
