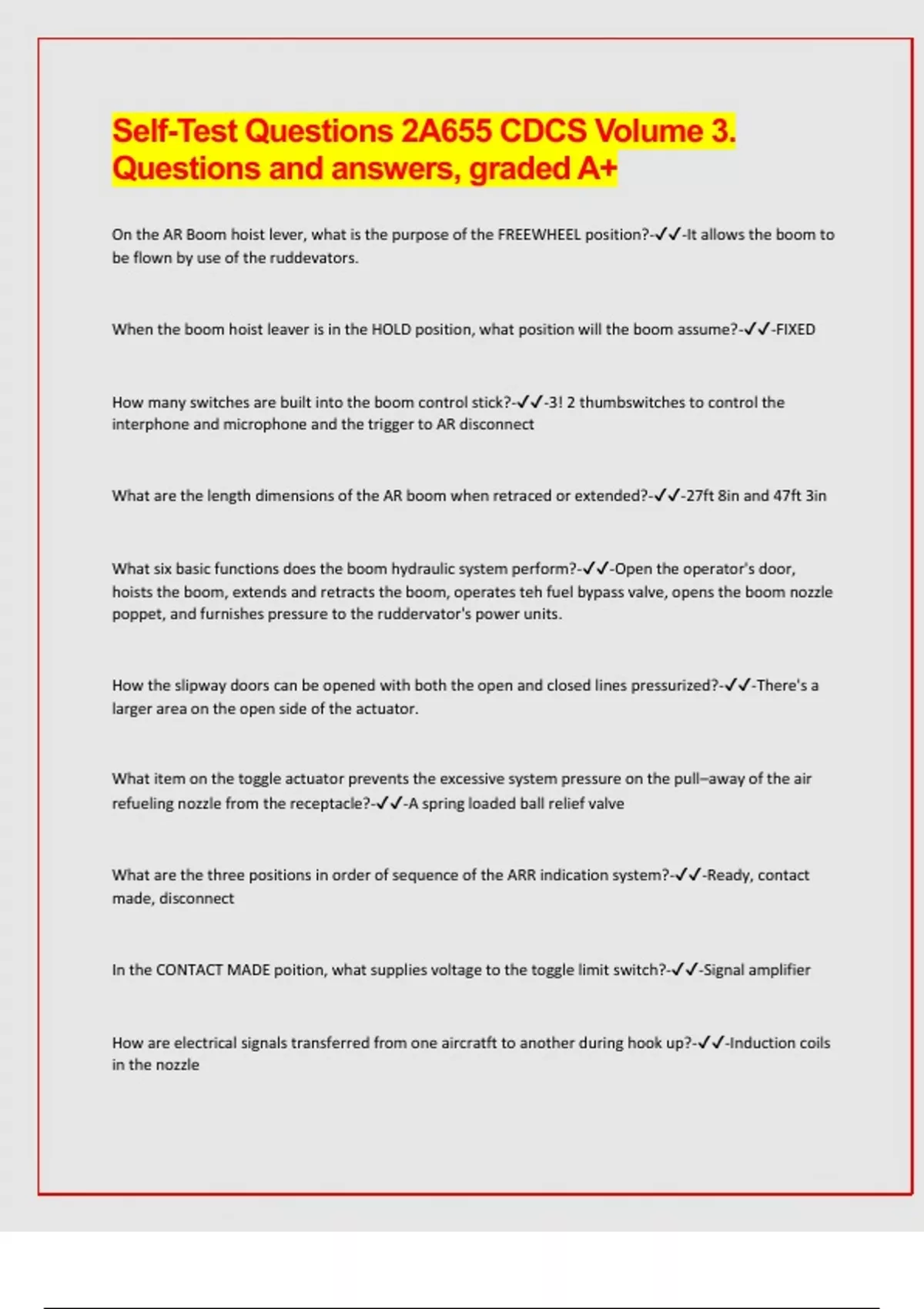

Self-Test Questions 2A655 CDCS Volume 3. Questions and answers, graded A+

Self-Test Questions 2A655 CDCS Volume 3. Questions and answers, graded A+ On the AR Boom hoist lever, what is the purpose of the FREEWHEEL position?--It allows the boom to be flown by use of the ruddevators. When the boom hoist leaver is in the HOLD position, what position will the boom assume?--FIXED How many switches are built into the boom control stick?--3! 2 thumbswitches to control the interphone and microphone and the trigger to AR disconnect What are the length dimensions of the AR boom when retraced or extended?--27ft 8in and 47ft 3in What six basic functions does the boom hydraulic system perform?--Open the operator's door, hoists the boom, extends and retracts the boom, operates teh fuel bypass valve, opens the boom nozzle poppet, and furnishes pressure to the ruddervator's power units. How the slipway doors can be opened with both the open and closed lines pressurized?--There's a larger area on the open side of the actuator. What item on the toggle actuator prevents the excessive system pressure on the pull–away of the air refueling nozzle from the receptacle?--A spring loaded ball relief valve What are the three positions in order of sequence of the ARR indication system?--Ready, contact made, disconnect In the CONTACT MADE poition, what supplies voltage to the toggle limit switch?--Signal amplifier How are electrical signals transferred from one aircratft to another during hook up?--Induction coils in the nozzle What position is the ramp placed for straight–in loading and off–loading of pallets?--Horizontal When can you operate the cargo door and ramp from the pilot's ADS control panel?--In–flight At what locations can the ramp and door be operated from?--Pilot ADS panel, forward loadmaster control panel, and the aft loadmaster control panel During normal ramp lowering, why are the ramp close (up/unlatch) actuators energized prior to lowering the ramp?--Removes the ramp weight from the latches What is the purpose of the toes that are installed on the aft end of the ramp?--Loading rolling stock
